Roughness Tester PCE-RT 1200-ICA Incl. ISO Calibration Cert.

Order no.: PCE-RT 1200-ICA

GTIN (EAN): 4250348726612

Accessory

Re-Calibration Certificate RE-CAL-PCE-RT for Roughness

₹23,014.00

Test Stand for Roughness Tester

₹126,019.00

Groove Sensor PCE-RT2000-RP131

₹189,110.00

Curvature Sensor PCE-RT2000-RP110

₹165,302.00

Spare Sensor for Roughness-Tester PCE-RT2000-RP200

₹115,752.00

Description

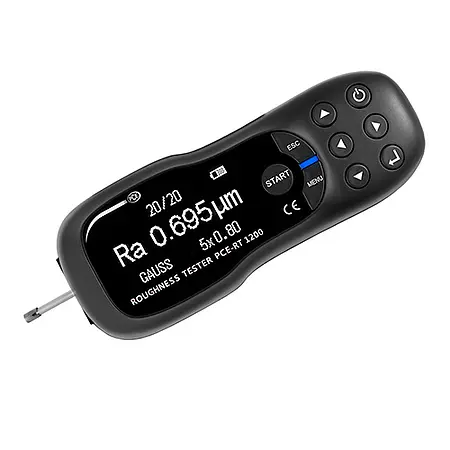

Roughness Tester PCE-RT 1200-ICA incl. ISO calibration
Portable roughness tester for fast detection of Ra, Rz, Rq and Rt /
Large OLED display / Micro-USB interface / With calibration plate and roughness standard / Measuring software / Permanently installed li-ion battery

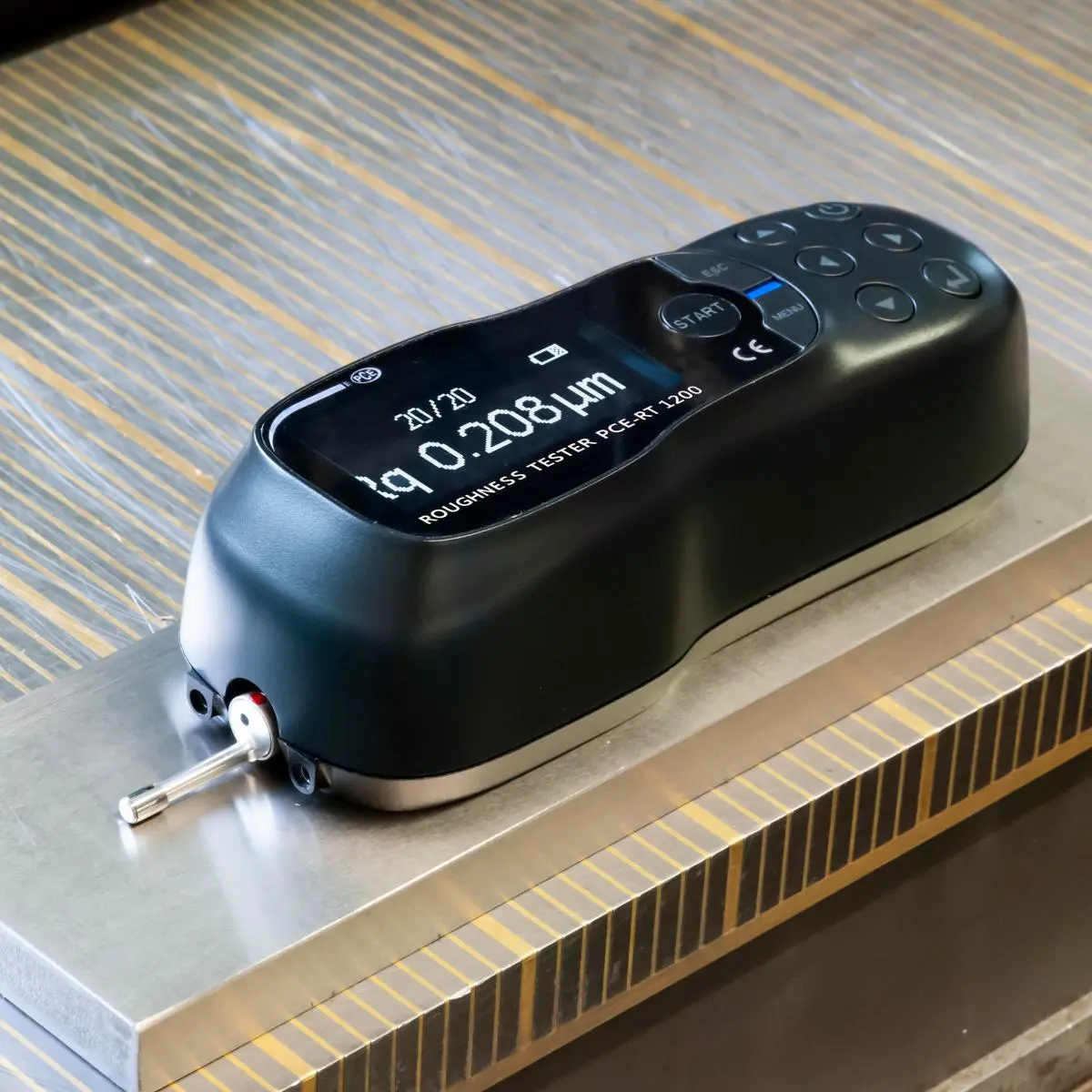

The Roughness Tester PCE-RT 1200-ICA is used to determine surface roughness. The compact roughness tester is a handheld device for mobile use. Due to the power supply via a powerful battery, it can be used directly on site. The roughness tester is used in the laboratory, in production and everywhere where the roughness of surfaces is to be determined. The measured values are displayed on the clear and user-friendly OLED display directly on the measuring device. In addition, the roughness tester has a storage option for up to 20 measured values, which can later be read out via the micro USB interface. For this purpose, the measurement software can be used, and a USB cable is included in the delivery. The built-in rechargeable battery is also charged via the micro USB interface. The above mentioned measurement software is particularly suitable when measurement series are pending. The data is then transferred to the software and can be evaluated directly on the screen.

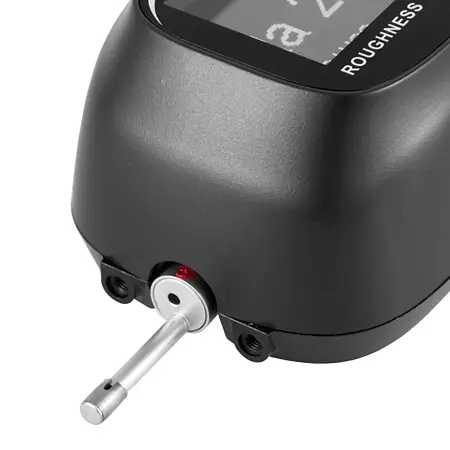

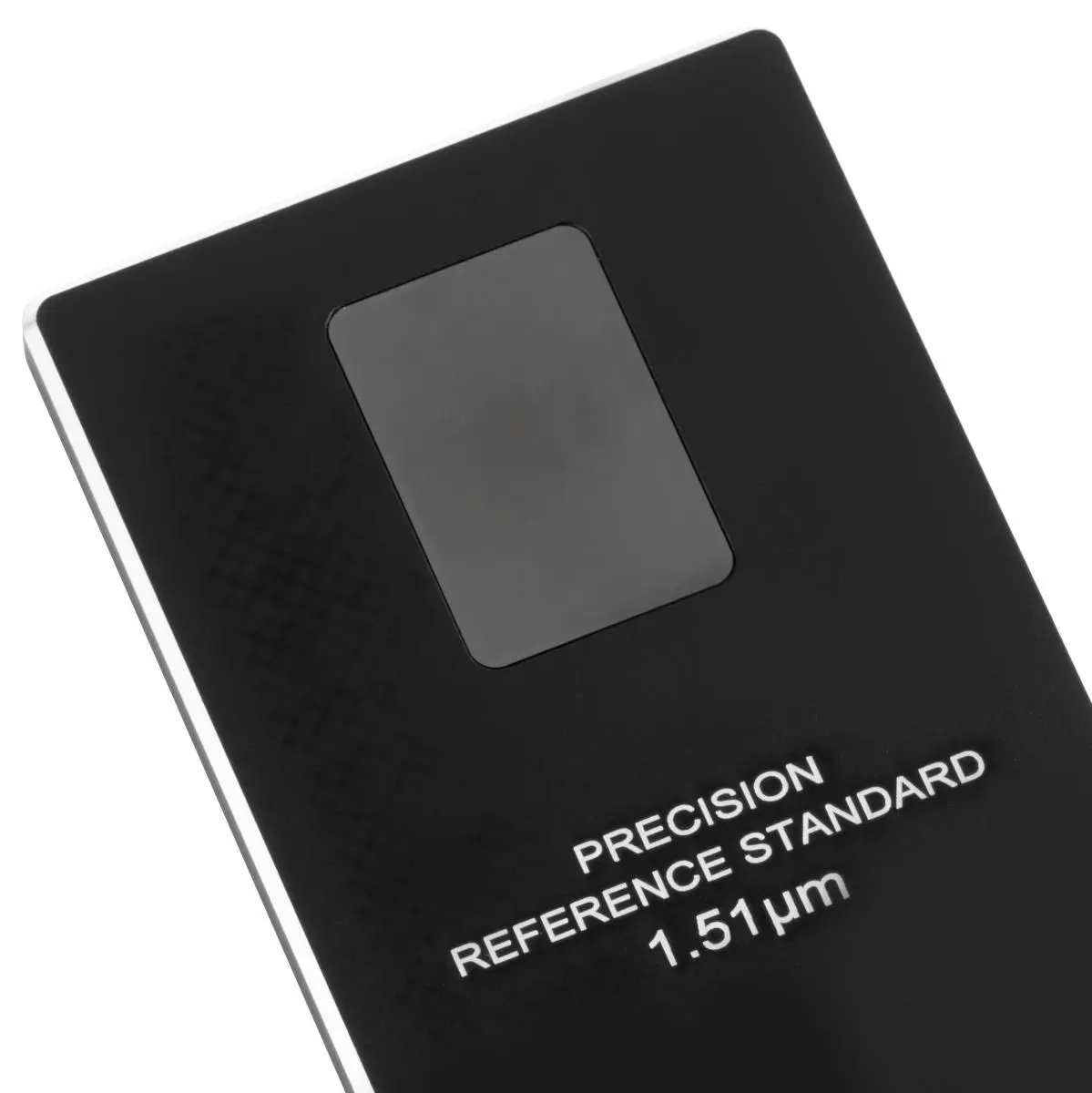

The roughness meter has a protective cap for the sensor, which protects it from external influences and can be easily screwed to the device. A calibration plate with roughness standard is also part of the standard equipment and serves to check the correctness of the measurement results.

Rz = average roughness
The average roughness Rz is the arithmetic mean of the largest single roughness depths of several adjacent individual measuring sections.
Ra = arithmetic centers roughness
Ra is the generally recognized and internationally applied roughness parameter. It is the arithmetic mean of the absolute values of the profile deviations within the reference line. The measured value Ra is always smaller than the Rz value determined on the same roughness profile.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Highlights

- Very compact
- Easy to handle
- A large OLED display
- 4 measurable parameters of roughness

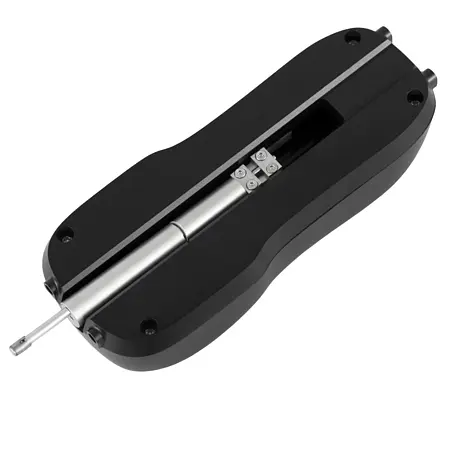

- The probe of the roughness meter consists of a high-quality diamond

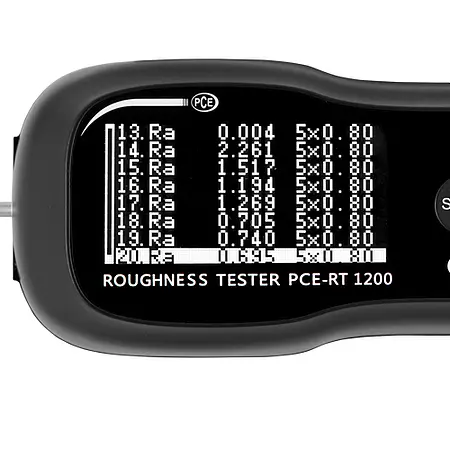

- The display of the roughness meter outputs the measured values in tabular form

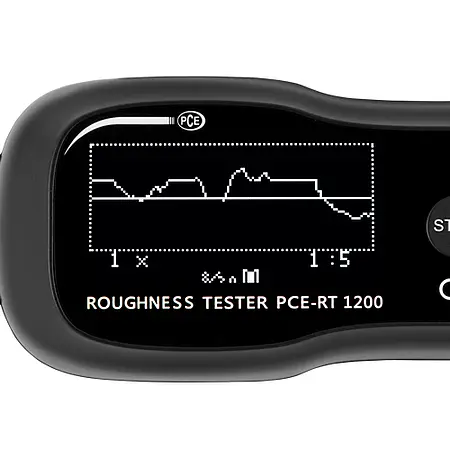

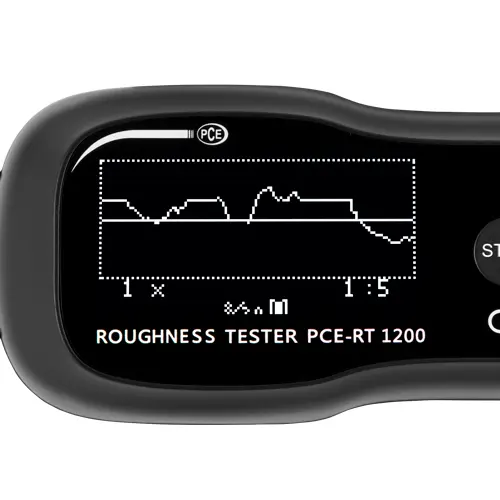

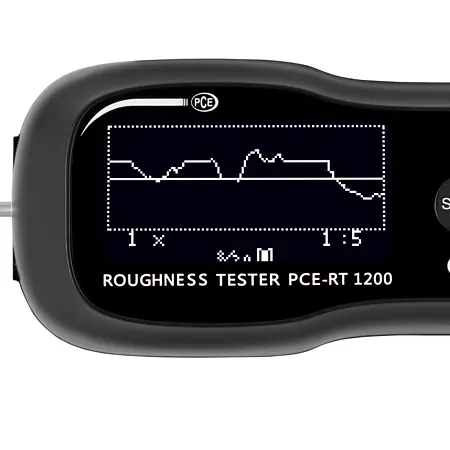

- The measured values can also be output by the roughness meter as a graph

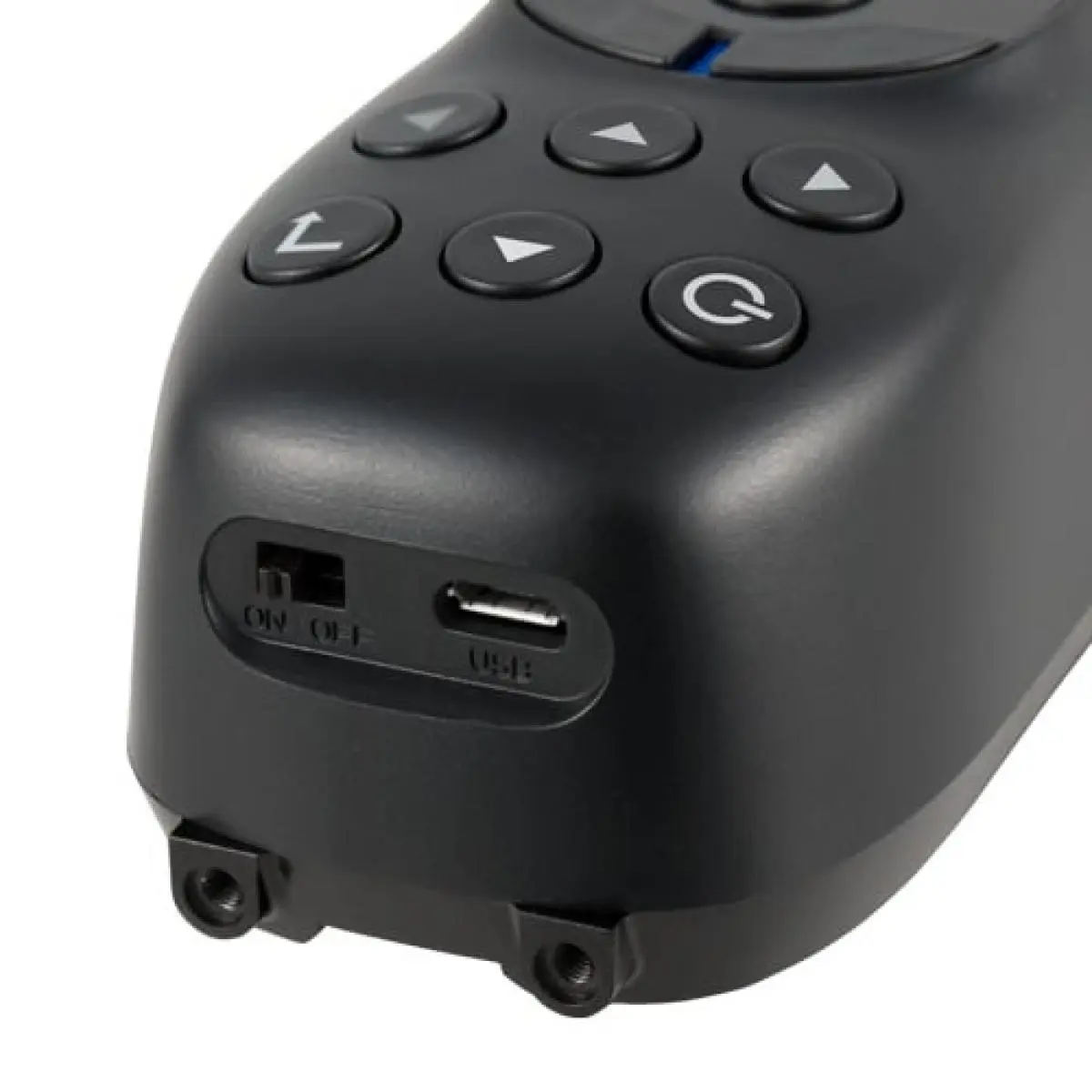

- A micro-USB interface for online data transmission to a PC (for example useful for serial measurement or laboratory measurement)
- An internal rechargeable battery (3000 measurements with one battery charge (Li-ion))

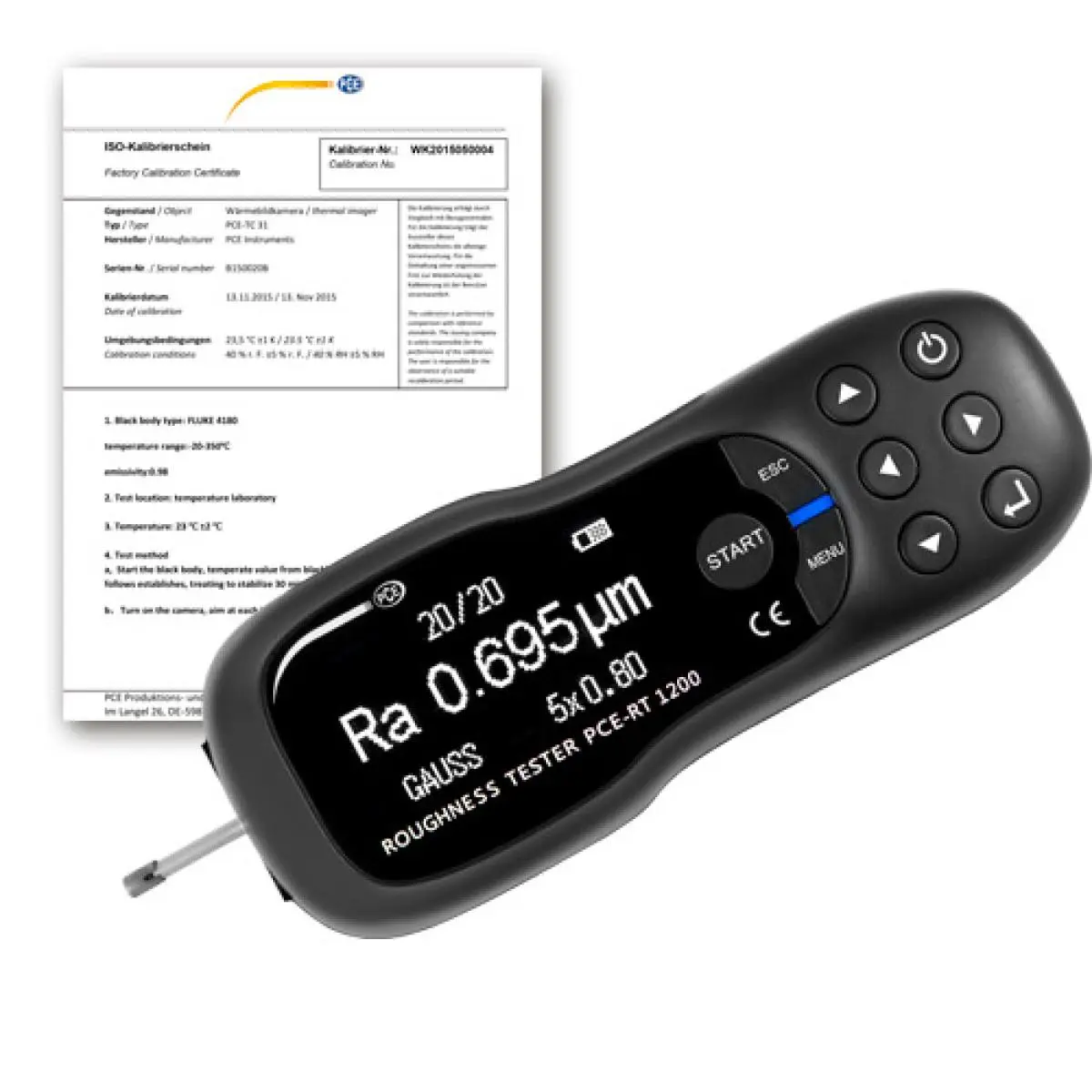

- Incl. ISO calibration certificate

Specification

Measurement parameters	Ra, Rz, Rq, Rt
Measuring ranges	Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
Radius probe tip	5 µm/ 196.850 µin
Material probe tip	Diamond, 90° angled
Max. recommended force for static measurement	4 mN (0.4 gf)
Radius longitudinal guide bar	45 mm / 1.77"
Standards	ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum driving distance	15 mm / 0.59"
Measuring principle	Inductive
Cut-off wavelength	0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
Testing speed	0.135 mm/s at cut-off wavelength: 0.25 mm 0.5 mm/s at cut-off wavelength: 0.8 mm 1 mm/s at cut-off wavelength: 2.5 mm Reversing speed: 1 mm/s
Measuring accuracy	< ± 10%
Repeatability	< 6%
Display	OLED
Units	μm / μinch (switchable)
Interface	Micro-USB
Power supply	Rechargeable Li-ion battery
Dimensions L x W x H	150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in
Weight	370 g / < 1 lb

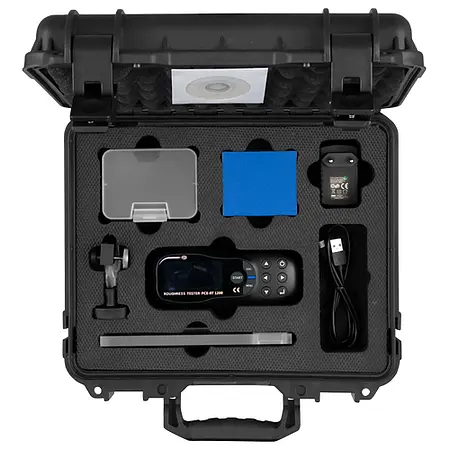

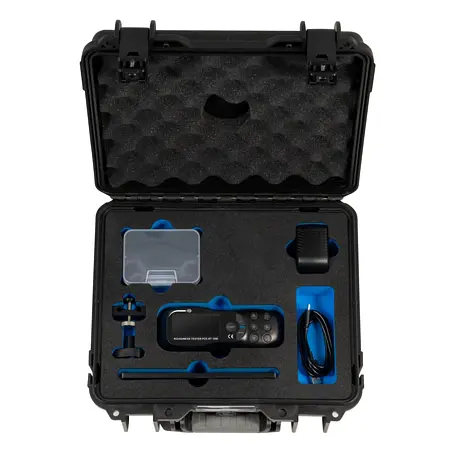

Delivery Scope

1 x Roughness Tester PCE-RT 1200
1 x Micro-probe
1 x Downloadable Software
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Carrying case
1 x User manual
1 x ISO calibration certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
