Spectrophotometer PCE-CSM 3

Order no.: PCE-CSM 3

GTIN (EAN): 4250348716477

Accessory

Calibration certificate CAL-CSM

₹66,201.00

Universal Test Set PCE-CSM-UTC

₹170,510.00

Powder Test Box PTB-PCE

₹36,345.58

White Test Block PCE-WTB-CSM 1-7

₹19,924.00

Replacement battery PCE-CSM-BAT

₹19,924.00

CAL-CSM D8 calibration certificate for repeatability

₹29,930.00

Description

Spectrophotometer PCE-CSM 3 for quality control

PC software included / Li-ion battery / different colour spaces /
determination of reference values and samples / white calibration

The Spectrophotometer PCE-CSM 3 was developed for quality control and offers a high accuracy. When using the Spectrophotometer, you can choose between different colour spaces (CIE L*a*b*C*h, CIE L*a*b*). After a measurement with the Spectrophotometer, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the Spectrophotometer, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*a*b*C*h, CIE L*a*b*
- white calibration
- determination of reference values and samples
- measuring aperture is 8 mm

- rechargeable lithium-ion battery
- high accuracy
- easy to use
- incl. PC software

Specification

Measuring geometry	8°/d
Measuring aperture	Diameter 8 mm
Sensor	Silicon photoelectric diode
Colour spaces	CIE LabCh, CIE Lab*
Colour difference formular	ΔEab, ΔLab, ΔEC*h
Errors between each equipment	≤0.50 ΔE*ab
Repeatability	Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
Light source	D65
Storage	100 reference values, 20,000 samples

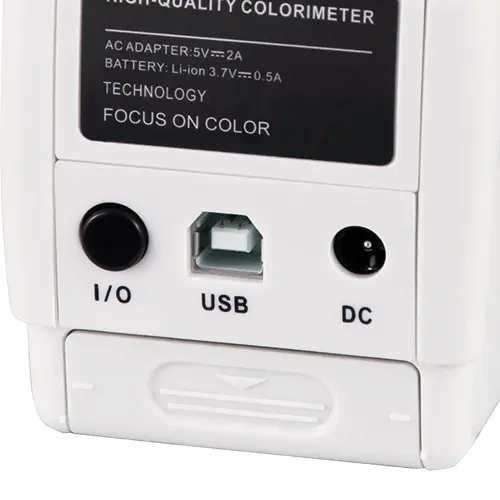

Interface	USB
Power supply	Rechargeable lithium-ion battery 3.7 V @ 3,200 mAh
Charging time	2 h (8 h at first use)
Battery life	> 3,000 measurements
Lamp life	3 years, more than 1 million measurements
Operating conditions	0 ... +40 °C / 32 ... +104 °F 0 ... 85 % RH
Dimensions	200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in
Weight	500 g / 17.6 oz
