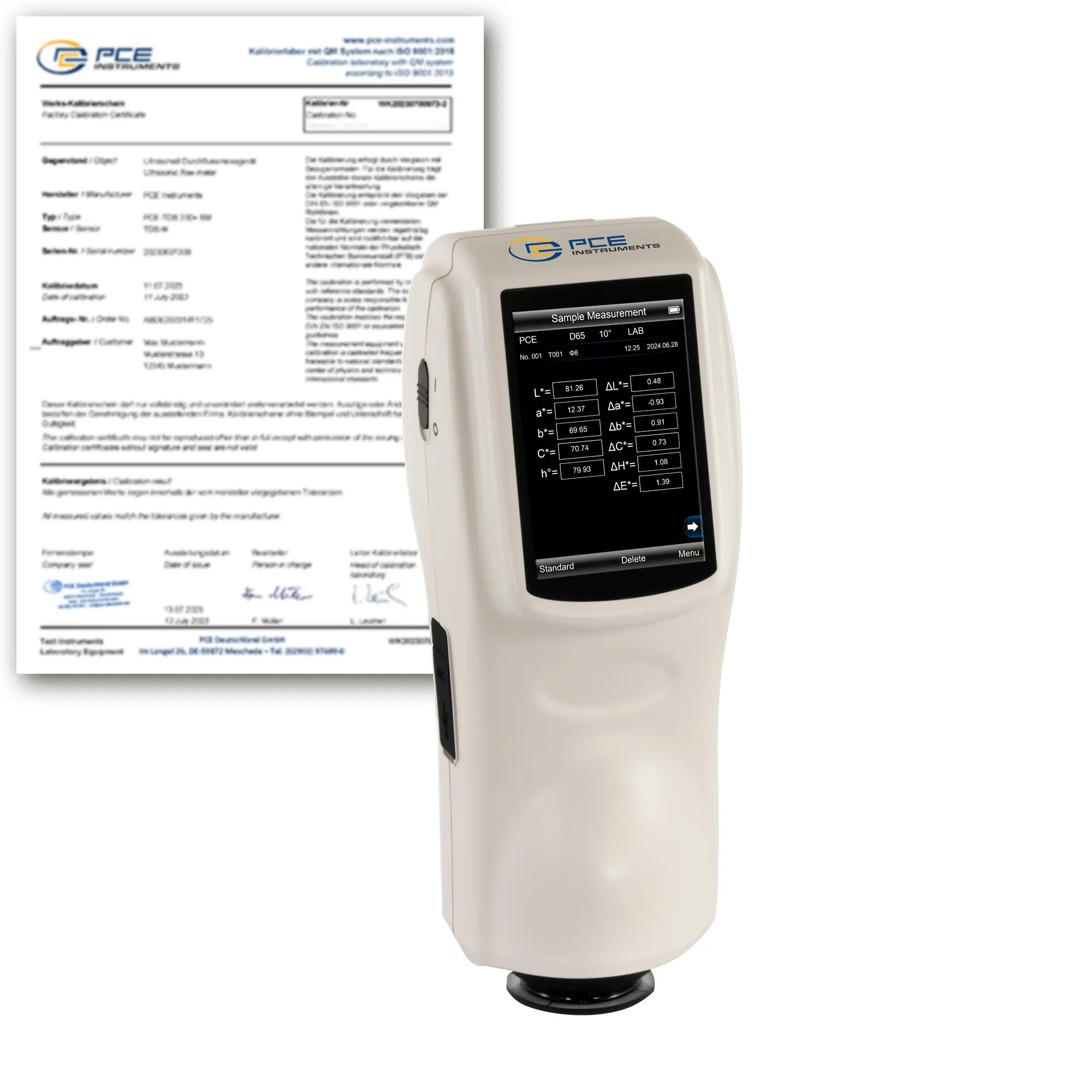

The Surface Testing Colorimeter and spectrophotometer PCE-CSM 8 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the Surface Testing Colorimeter, you can choose between different color spaces (CIE LAB, XYZ, Yxy, LCh, and LUV) and 45/0 optics angle. After a measurement with the Surface Testing Colorimeter, the reading can be used as a named reference value while other readings can be recorded as a sample and later be compared to the reference value easily for Pass/Fail determination.
In addition to the individual color space coordinates, the deviation between the reading (delta E) is also displayed. When using the Surface Testing Colorimeter, it is possible to store up to 1000 reference values and up to 10,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
| General technical data | |
| Display type | TFT touchscreen |
| Display size | 3,5 Inch |
| Storage medium | Internal memory |
| Storage capacity | 10000 Values |
| Memory capacity (additional information) | 1000 standard values, 10000 sample values |
| Interface | Mini-USB |
| Sensor | Silicon photodiode array |
| Light source | combined LED Illuminant: D65, A,C,D50, D55, D75, F2, F6, F7, F8, F10, F11, F12 |
| Measurement time | 1,5 s |
| Colour spaces | CIEL a* b*, XYZ, Yxy, LCh, CIE VUV, HunterLAB |
| Measuring aperature | Ø 8 mm |
| Wavelength range | 400 ... 700 Nm |
| Observer | 2°, 10° |
| Calibration | White or black calibration selectable |
| Colour difference | ΔE*ab ΔE*uv ΔE*94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE*00 ΔE(h) |
| Menu language | English, Chinese |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 230 x 90 x 77 mm |
| Weight | 600 g |
