Surface Testing - Fiberscope PCE-VE 360N

Order no.: PCE-VE 360N
GTIN (EAN): 4250348709295

₹202,800.00
₹239,304.00
Topseller
price ex. (VAT / delivery)
:
4250348709295
PCE-VE 360N
Delivery time: 1-2 working days
Cracks and Defects

Description

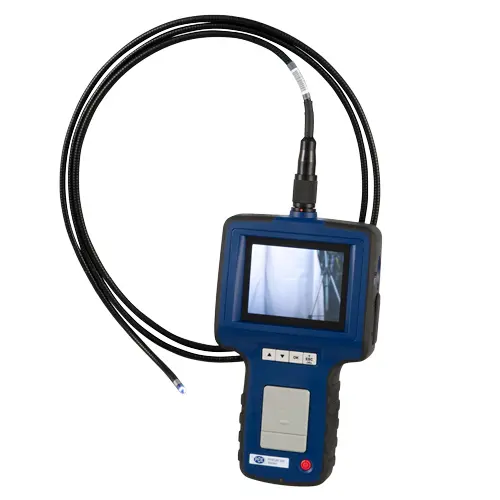

Fiberscope PCE-VE 360N
 Fiberscope for industry, workshops and research and development /
512 MB memory card and data cable for PC. Diameter (3.9 mm / 0.16 in diameter
), length 1 m (3.3 ft) / For the site inspection and documentation of machine parts, pipes, etc.

The Fiberscope is the ideal tool for professional, technical, maintenance and development. The Fiberoscope also allows you to visualize the interior of installations and machinery without the need to disassemble them, to take pictures and video clips of the parts to check and to in the Fiberscope and then transfer them to your PC.

This Fiberscope is the ideal instrument for the maintenance and conservation in industrial businesses and workshops. It has never been so simple and inexpensive to make optical analyses documented with a Fiberoscope. It also has a very small cable diameter of 3.9 mm / 0.16 in. This allows the Fiberscope to penetrate up into very small pieces, and this with a cable length of 1 m / 3.3 ft. The cable has markings with which you can detect how much cable has penetrated, for example, in a tube. The handling is very simple. Direct the flexible cable through a hole or cavity near the place you want to see and examine everything on the screen.

You can take photos for documentation, which are stored in the internal memory of the Fiberscope. You can then transfer the images to the computer and analyze them there safely. This allows you to take preventive measures without having to make costly disassembly. Especially the documentation produced as an image or video allows an examination before and after. In reconstructions or repairs, you can  compare the initial state with the final state.


Highlights

- The boroscope with 3 LEDs
- Cable diameter of only 3.9 mm / 0.15"
- Cable length: 1 m / 3ft 3"
- Cable Type: Semi-rigid ("gooseneck")
- Image and video recordings possible
- Playback of the image data on the device possible
- Memory: 8 GB SD memory card (incl.)

Specification

Cable diameter

3.9 mm / 0.16 in

Cable length

1 m / 3.28 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in

Field of view

67°

Bending radius 90 mm / 3.54 in
Illumination 3 LEDs, automatic
Image sensor CMOS
Picture rate 30 frames per second (fps)
Display
88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 60°C / 14 ... 140°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft






Delivery Scope

1 x Surface Testing - Fiberscope PCE-VE 360N
1 x 1 m / 3ft 3" camera cable with front camera
1 x 1 m / 3ft 3" camera cable with 90° side camera
1 x 8 GB SD memory card
1 x USB cable, Carrying case, Mains power adapter, User manual

Please note: Not to be used for medical applications!
