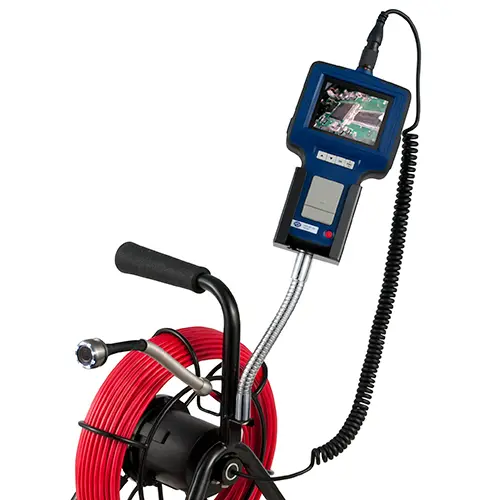

Surface Testing Fiberscope Snake Camera PCE-VE 380N-LOC

Order no.: PCE-VE 380N-LOC
GTIN (EAN): 4250348718266

₹479,568.00
₹565,890.24
price ex. (VAT / delivery)
:
4250348718266
PCE-VE 380N-LOC
Delivery time: 1-2 working days
No
28 mm
22 m
320 x 240 / 640 x 480 pixels
Digital
No
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)

Description

Surface Testing Fiberscope Snake Camera PCE-VE 380N-LOC for industrial companies, craft shops or workshops / with 4 GB memory card / Video recording and image recording / Diameter 28 mm (1.1 in) /
30 Meter (98 ft) pushcable

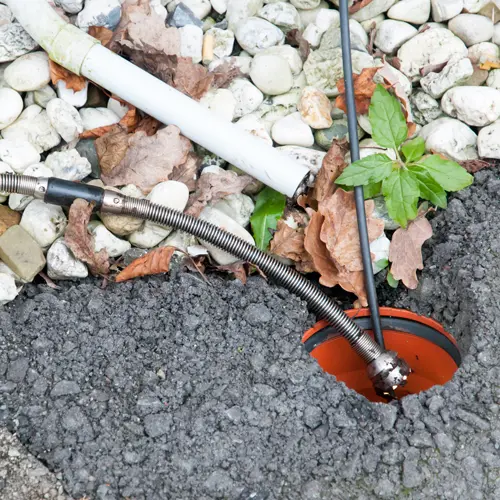

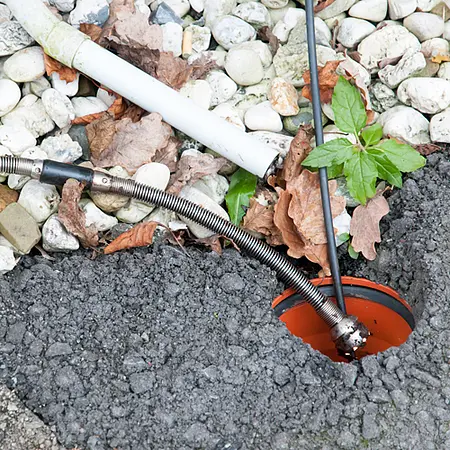

The PCE-VE 380N-LOC surface testing fiberscope snake camera provides you with new, optical insights into the inner workings of machines and systems as well as in cavities, ventilation ducts, down pipes, chimneys, sewage pipes, etc. The surface testing fiberscope snake camera PCE-VE 380N-LOC is the ideal tool for maintenance and repair in any industrial area, craft or workshop. Never was optical analysis with a fiberscope so easy.



This surface testing fiberscope snake camera offers you entry into professional video inspection. Simple and network-independent, you can inspect damaged areas in machines and systems, pipes and other cavities. The sturdy camera head with a diameter of only 28 mm / 1.1 in masters bends even in pipes with a diameter of just 50 mm / 2 in. With the fiberscope, images and video sequences of the components to be inspected can be stored directly in the device on an SD card.


Highlights

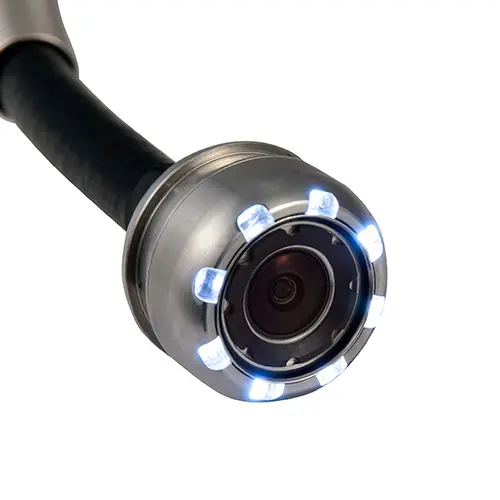

- Camera head with only 28 mm / 1.1" diameter
- Waterproof camera head
- Bright LED lighting
- Includes handset
- Push-pull cable on a reel with 30 m / 98ft 5" length
- Battery operation
- SD memory card

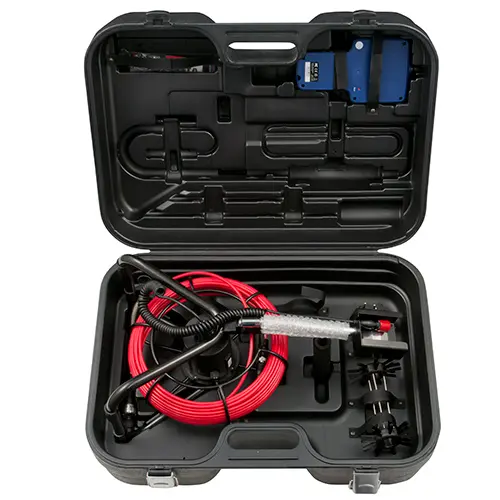

- Supplied in a case complete with centering star

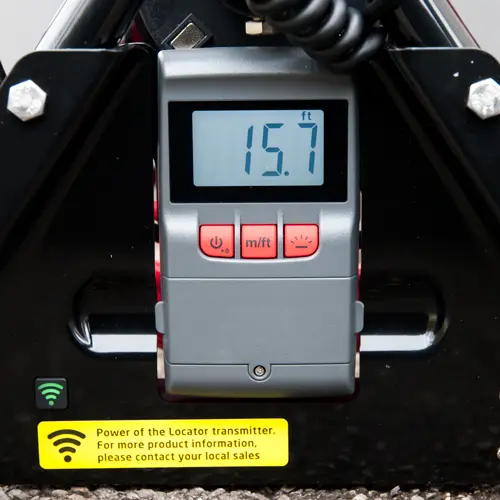

- incl. Locator

Specification

Cable diameter 28 mm / 1.11 in
Cable length 30 m / 98 ft
Depth of field 10 mm … ∞ / 0.4 in to infinity
Field of view 150.8°
Illumination 8 LEDs
Exposure Automatic
White balance Fixed
Image sensor CMOS
Image sensor 640 x 480
Picture rate 30 / s

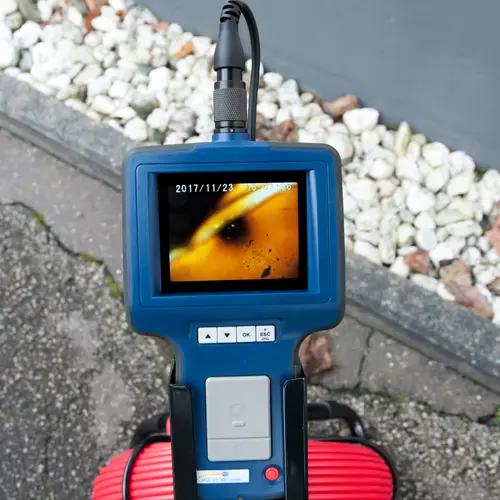

Display 3.5" / 88.9 mm TFT screen
Interface Mini-USB 1.1 and AV out
Storage options image and video
Image storgae 8 GB SD memory card (incl.)
Compression format MPEG4
Picture format JPEG (640 x 480)
Video output format NTSC & PAL
Video format ASF (320 x 240)
Menu navigation yes
Operation & storage temperature -10 ... 70°C / 14 ... 158°C
Power supply rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 mm x 118 mm (79 mm) x 37 mm / 8.15 x 4.65 x 1.46 in
Protection type, camera IP 68

Delivery Scope

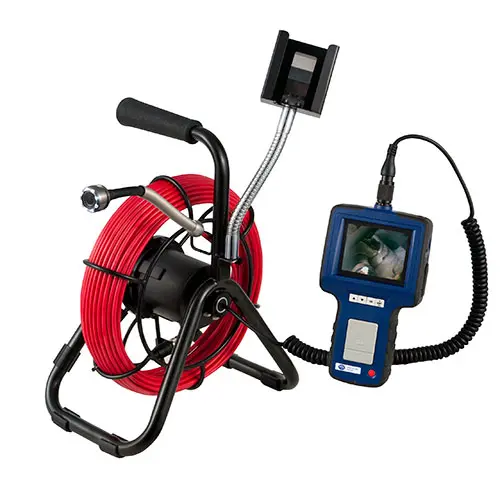

1 x Surface Testing Fiberscope Snake Camera PCE-VE 380N
1 x Semi-flexible / semi-rigid waterproof push-pull cable on reel

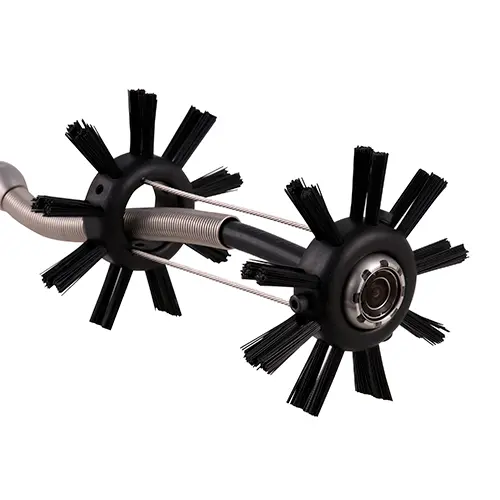

1 x Centering star
1 x SD memory card

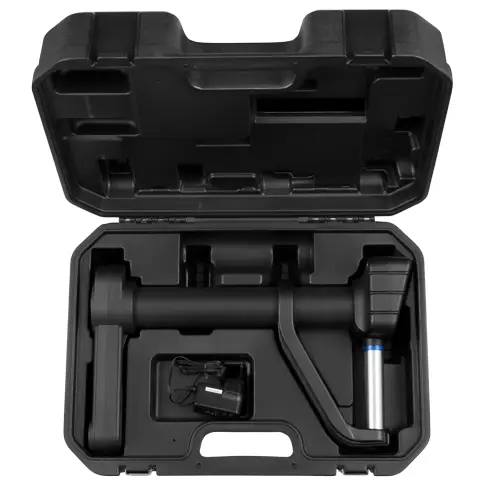

1 x Carrying case

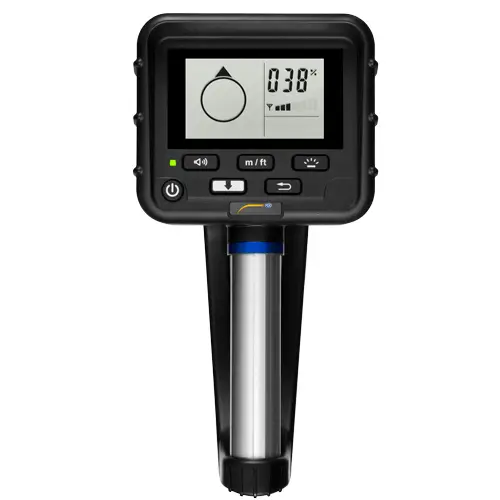

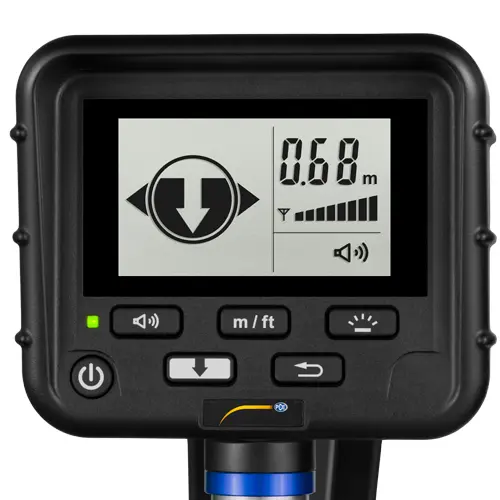

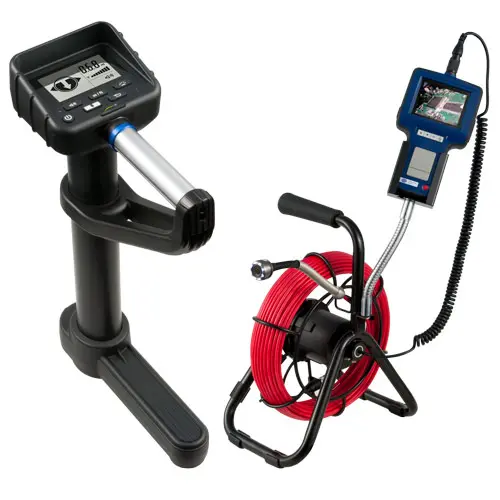

1 x PCE-VE-LOC Locator
