₹33,614.00

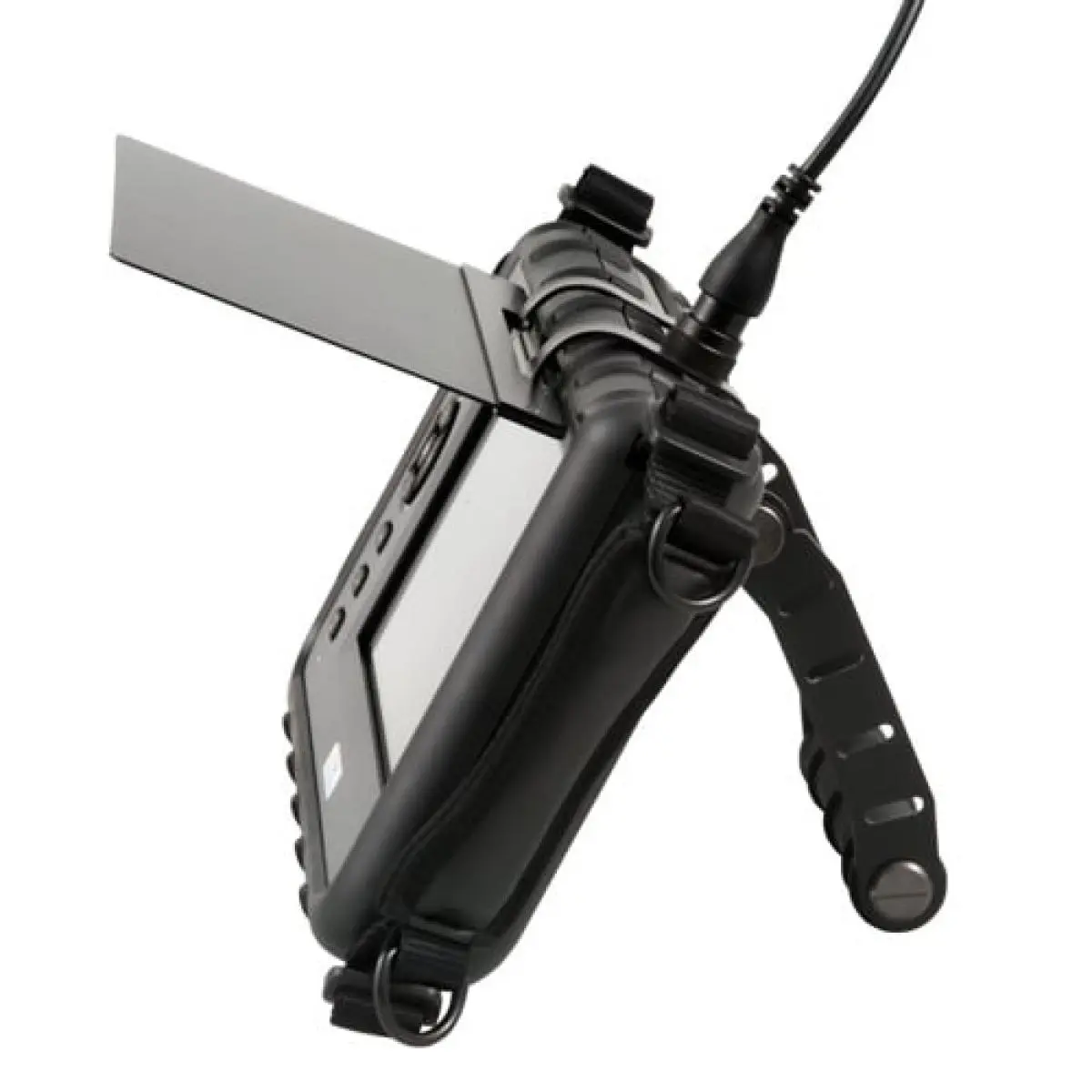

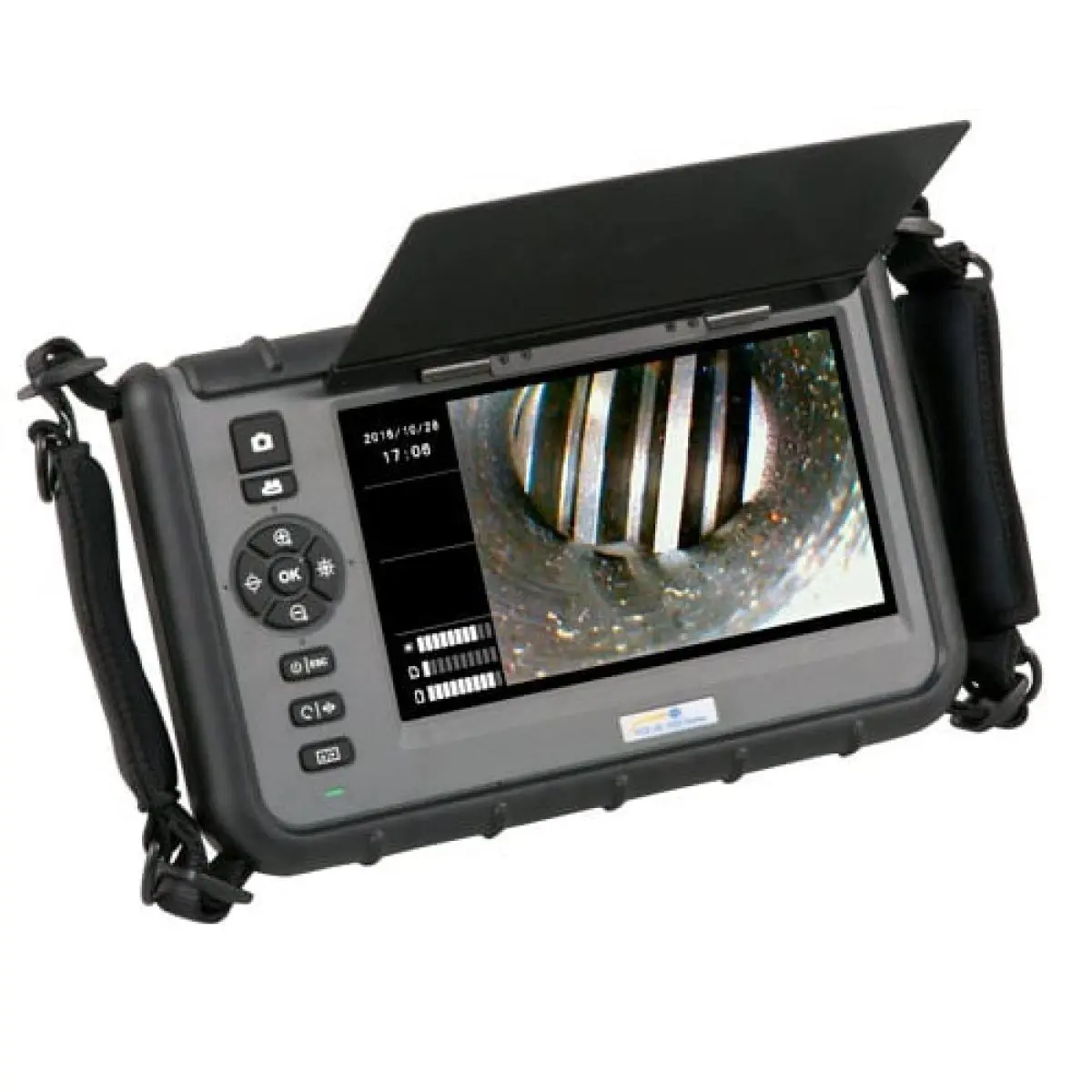

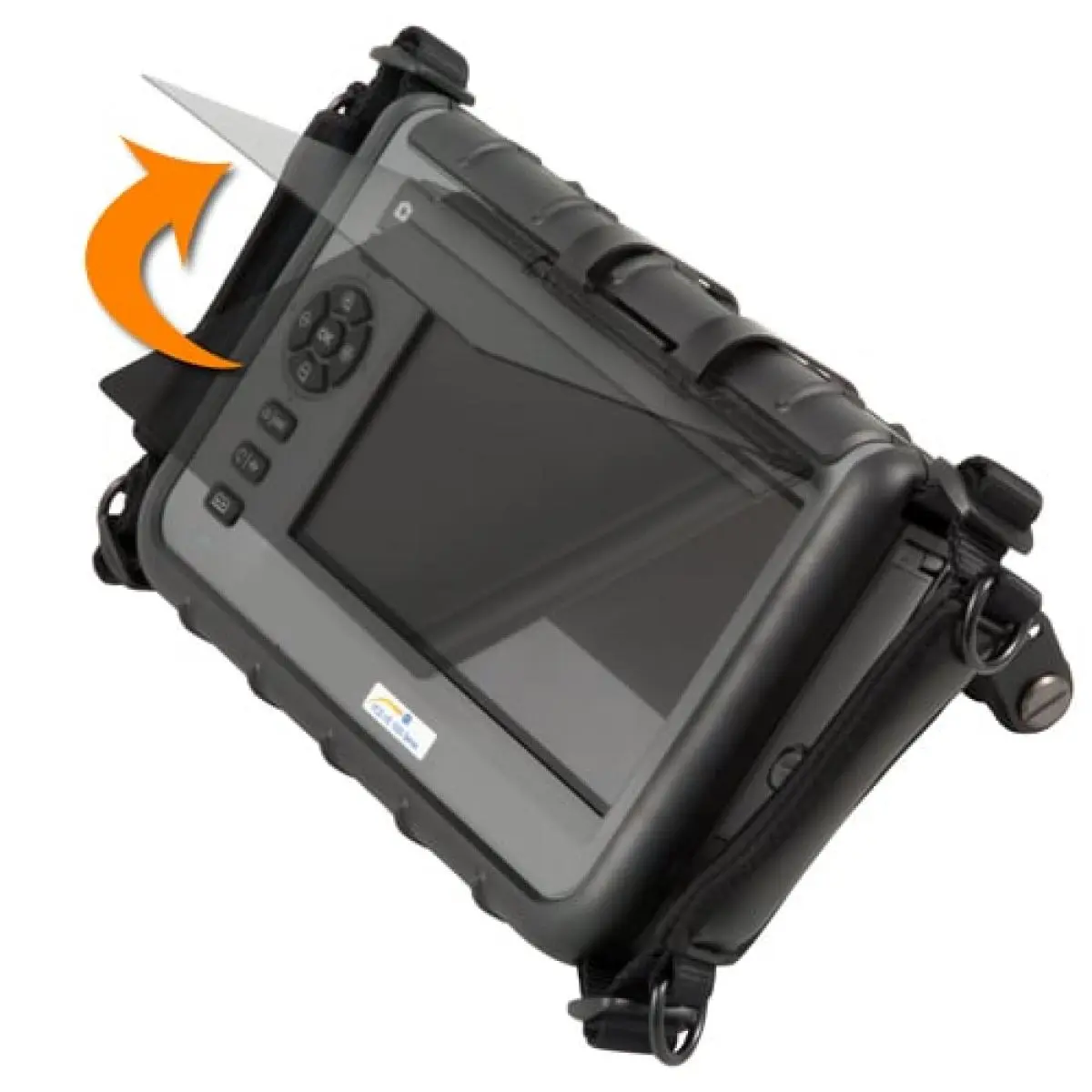

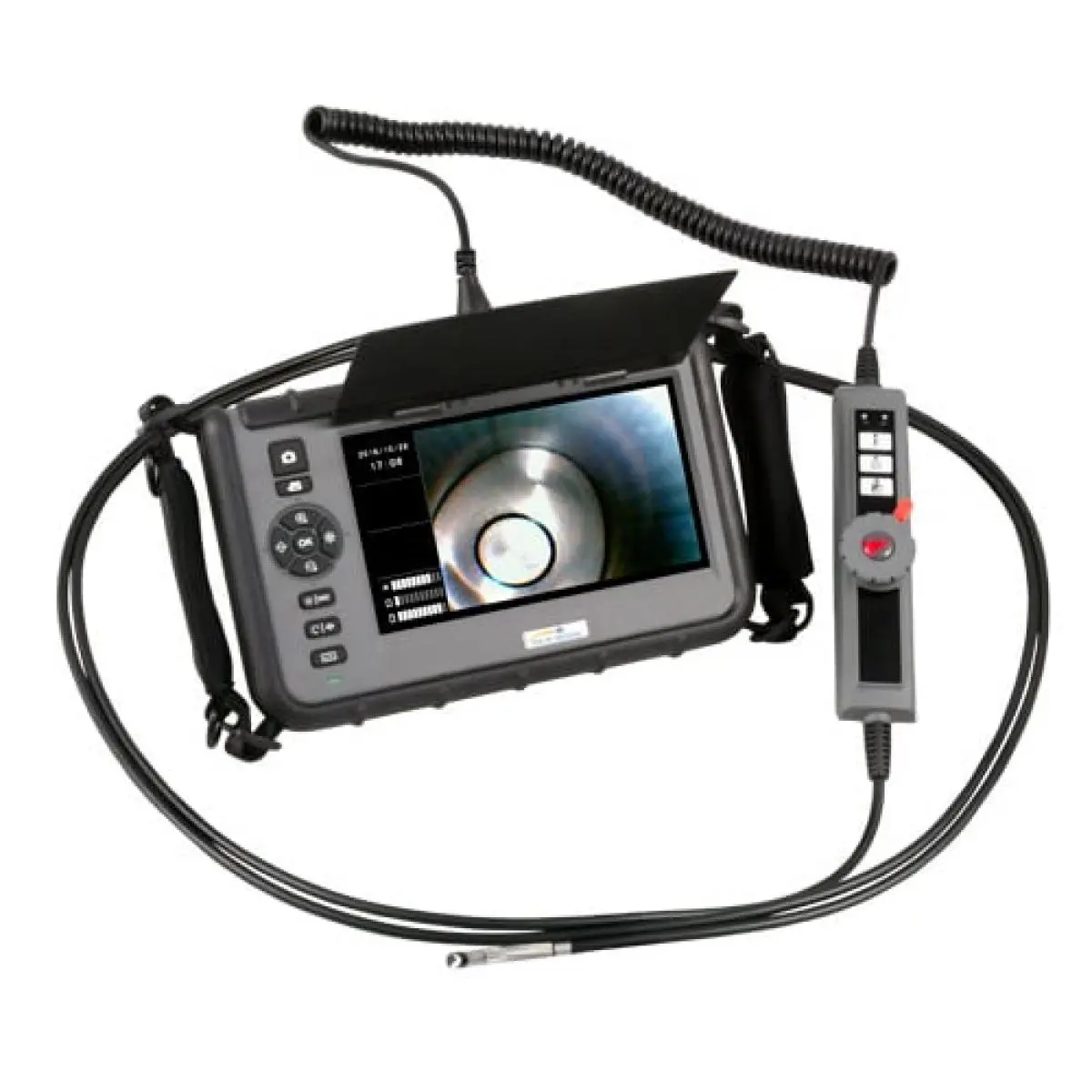

The PCE-VE 1036HR-F is a versatile surface testing inspection instrument. Various inspection camera or endoscope cables with different characteristics can be connected to the endoscope. A special advantage of the endoscope is the large display, which offers the user the best possible overview of the area to be viewed due to its dimensions and resolution. The endoscope allows the recording of pictures and videos, whereby the videos are additionally stored with an audio recording. The clear resolution is also clear when the images are stored in the endoscope by touching the stylus on the inserted SD card. When the SD card is read from the computer, the recorded images and videos are clearly displayed. Due to the fact that the recordings are stored on an external mass storage device, it is possible to select which SD card is inserted into the endoscope. However, it should have a maximum capacity of 32 GB. An 8 GB memory card allows you to store more than 60,000 images or more than 530 minutes of video material.

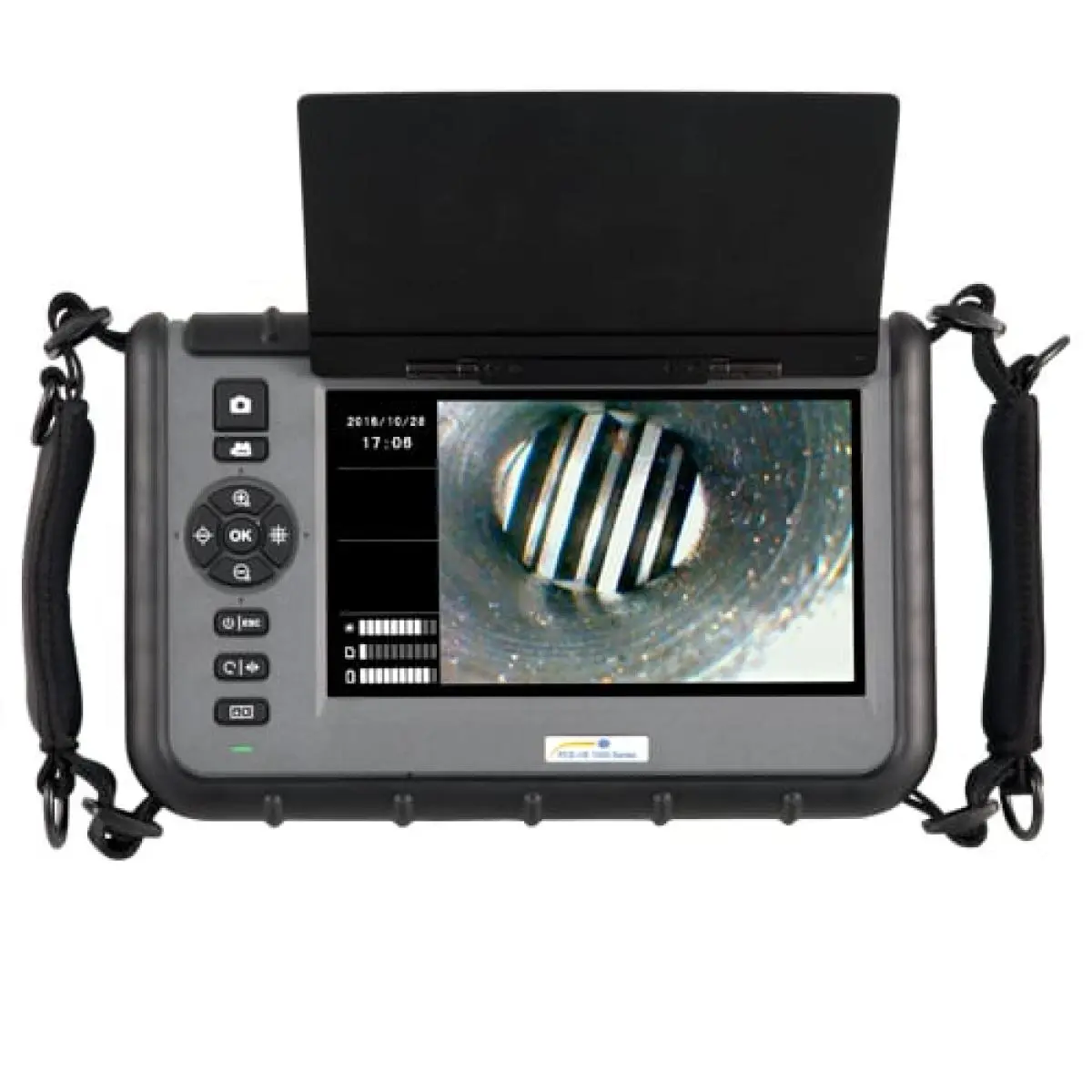

| Display | 7" LCD (800 x 480) |
| Image Resolution | 640 x 480 JPEG |
| Video Recording | 640 x 480 MPEG (with sound recording) |
| drop test | 1 m / 3.2 ft |
| Power Supply | Li-Ion battery |

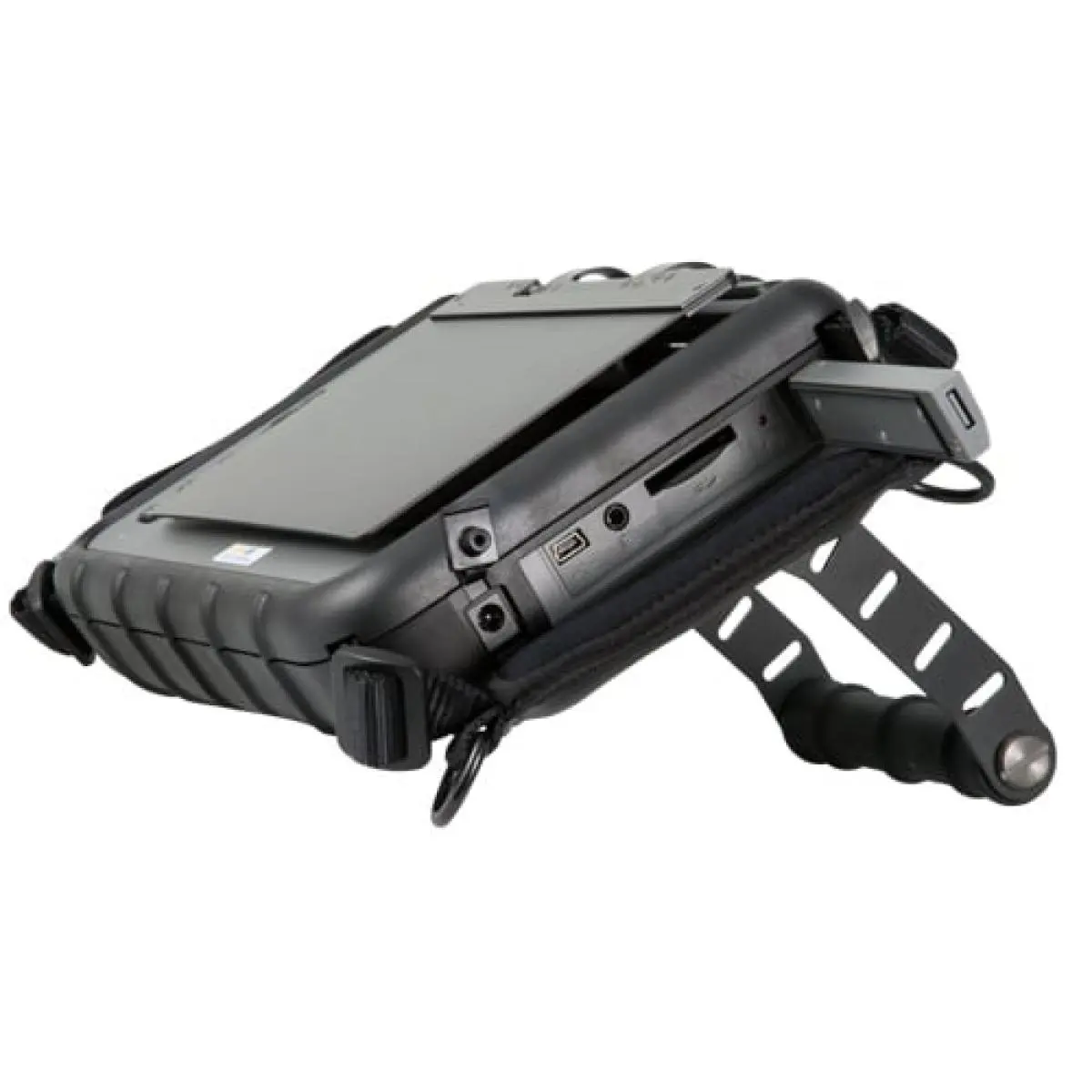

| Interface | USB |
| Picture and Video Memory | To SD card (up to 32 GB) |
| AV Output | NTSC / PAL |
| Audio Input | Built-in microphone |
| Brightness Setting | 10-step adjustable on the main unit |
| Runtime per Battery Charge | 5 hours |
| Charging Time Battery | 3 hours |
| Charging Temperature | 10 ... 40°C / 50 ... 104°F |
| Operating Temperature | 0 ... 60°C / 32 ... 140°F |
| Storage Temperature | 0 ... 60°C / 32 ... 140°F |
| Protection Class | IP57 |
| Measurements | 240 x 154 x 47 mm / 9.4 x 6 x 1.8 in |
| Weight | 1.3 kg / 2.8 lbs |
| Technical specifications of the Thrust Cable | |
| Cable Length | 3 m / 9.8 ft |
| Functions on the control unit of the cable | - Imporve Lighting - Image rotation through 360° in 90° increments to change the lighting for the mirror use camera head lock - Keylock |
| Lighting | 3 white LEDs on the camera head |
| Length of the camera head | About 20 mm / 0.79 in |
| Material Camera head | Dtainless steel |
| Diameter of camera head | 6 mm / 0.24 in |
| Resolution | VGA (640 x 480) |
| Depth of Cut | 10 to 60 mm / 0.39 ... 2.4 in |
| Working and Storage Temperature | -20 ... 60°C / -4 ... 140°F |
| Protection class | IP67 |
| Video Output | NTSC |
| Viewing Angle | 135° |
| Dimensions Control unit | 228 x 35 x 53 mm / 8.9 x 1.3 x 2 in |
| Weight | Approx. 400 g / < 1 lb |
1 x Surface Testing - Inspection Camera PCE-VE 1036HR-F
1 x Pushcable PCE-VE-2W3-HR
1 x SD Memory Card (8 GB)
1 x Cleaning kit for camera head and mirror
1 x USB Cable
1 x Power Adapter for Monitor
1 x Video cable

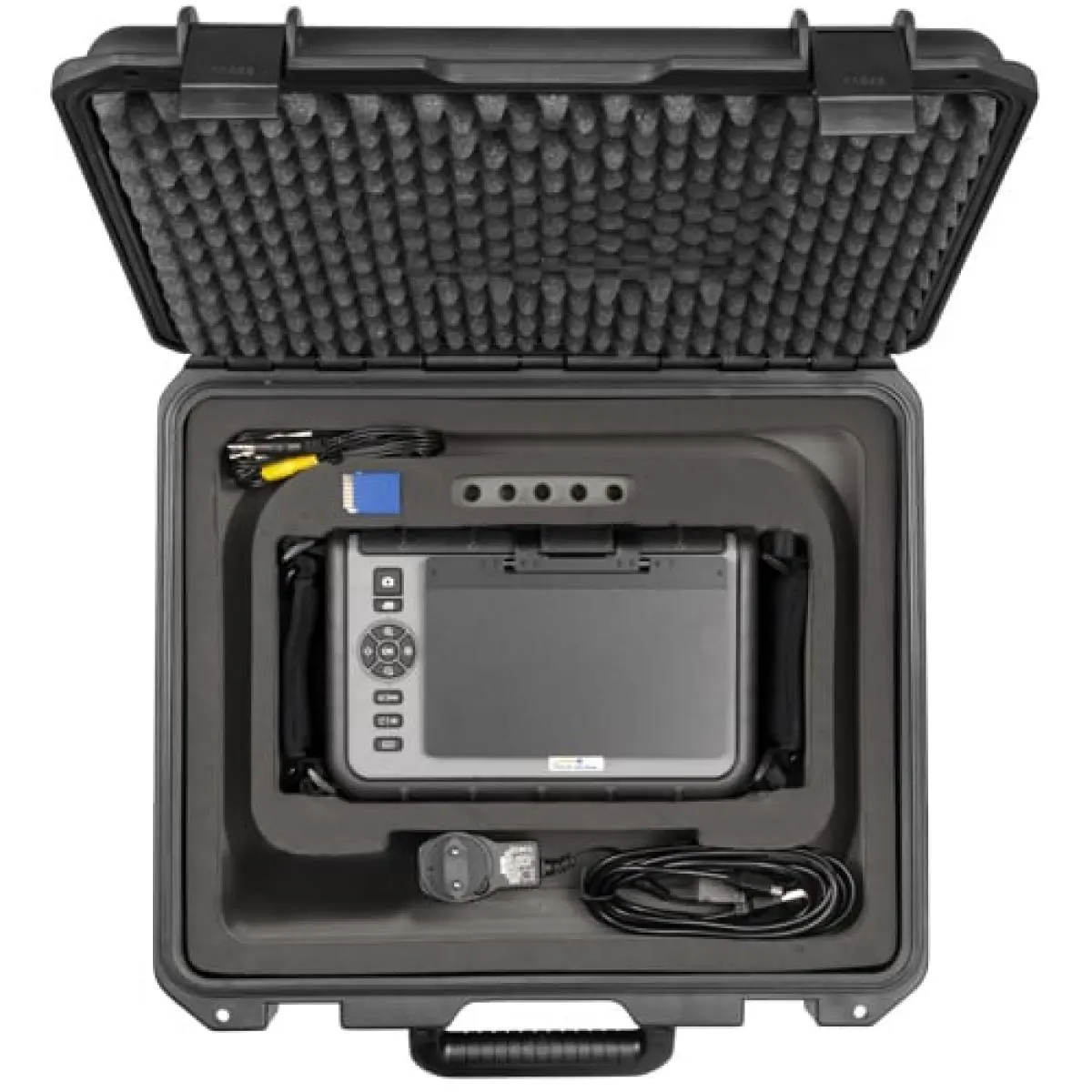

1 x Robust plastic case
Please note: The inspection cameras are not suitable for medical purposes!
