Tachometer PCE-DT 65

Order no.: PCE-DT 65

GTIN (EAN): 4250348710475

Accessory

Roll of Reflective Tape REFB

₹2,961.00

Probes PCE-DT 65-EMR for PCE-DT 65

₹5,491.00

ISO Calibration Certificate for Tachometer

₹23,793.00

Description

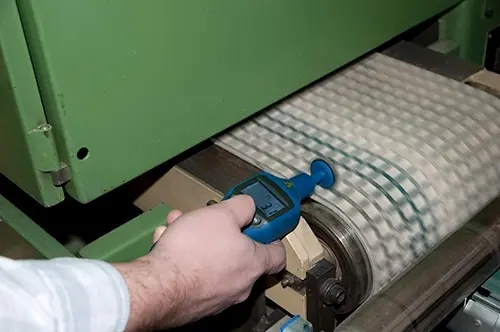

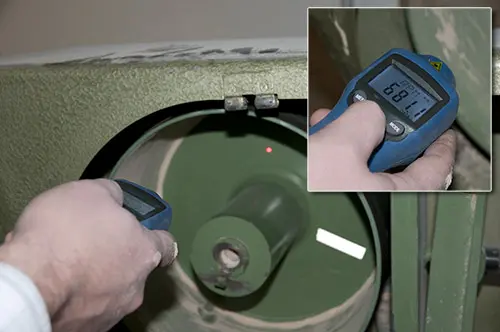

PCE-DT 65 is a digital handheld tachometer, or rotation meter, that can take both contact and non-contact measurements of rotation speed and linear speed. This handheld tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts. Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. Contact measurements are taken using the included mechanical attachment and contact probes.

Highlights

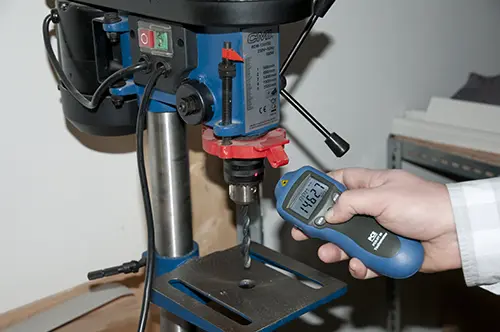

- Speed measurement: rpm

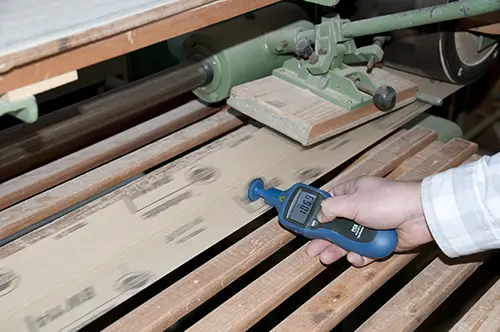

- Surface velocity: m/min
- Number of rotations: counter
- Frequency: m, in, ft, yd
- Linear measurement: m, in, ft, yd

PCE-DT 65 comes factory calibrated.

Specification

Measurement range, laser-optics	2 … 99,999 rpm
Measurement range, mechanical	2 … 20,000 rpm
Resolution	0.1 rpm in the range of 2.0 … 9999.9 rpm 1 rpm in the range of 10,000 … 99,999 rpm
Accuracy	± 0.05% of rpm value ± 1 digit
Measuring distance	50 … 500 mm / 1.96 ... 19.68 in
Memory	10 measurement values
Power supply	1 x 9V block / 6V external power supply
Operating temperature range	0 … 50°C / 32 ... 122°F
Casing	ABS plastic
LCD display	5 digits, 22 mm / 0.9 in height
Dimensions	160 x 60 x 42 mm / 6.24 x 2.36 x 1.65 in
Weight	200 g / < 1 lb

Delivery Scope

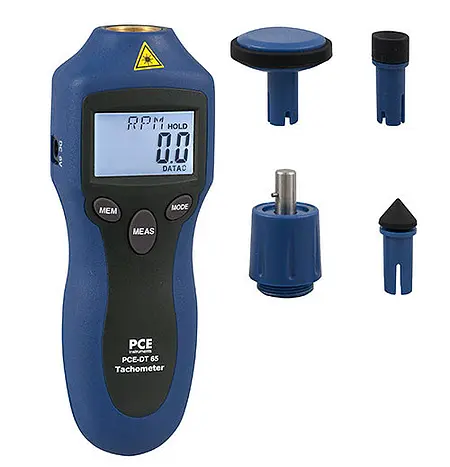

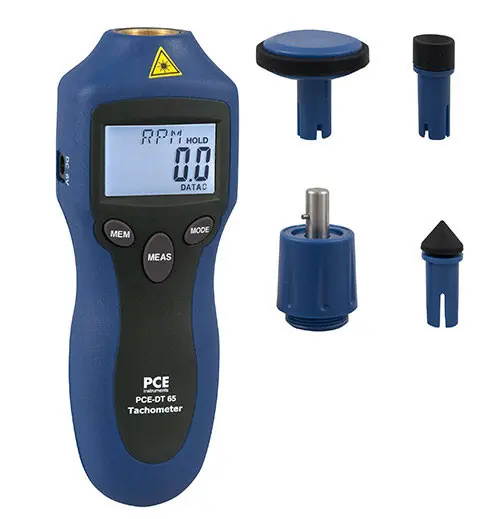

1 x PCE-DT 65 tachometer
1 x Mechanical attachment
1 x Adapter wheel
1 x Measuring probe (outer cone)
1 x Measuring hollow point (inside cone)

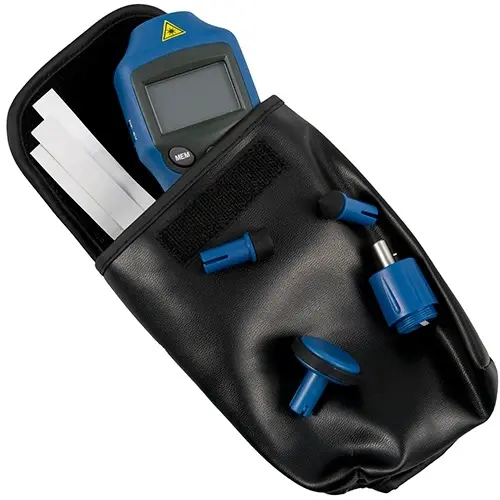

1 x Belt bag
1 x Battery
3 x Stripes reflective tape (each 20 mm or 0.78 in)
1 x User manual
