₹36,888.00

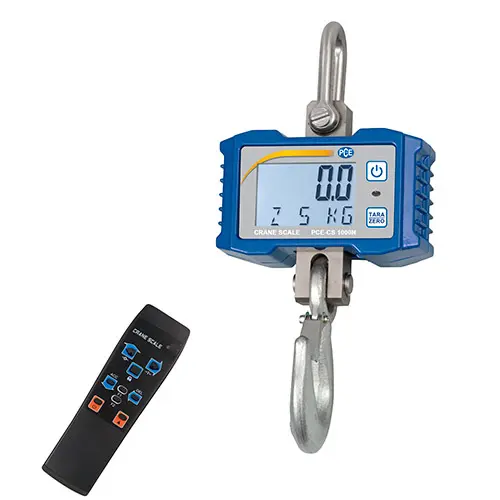

The force test instrument PCE-CS 1000N is a compact, mobile crane scale for in-house applications. The robust aluminum housing of this force test instrument allows weighing in even the harshest industrial environments. The force test instrument is operated with three commercially available 1.5 V AA batteries, which allow a continual operating time of approx. 65 hours. The display of the force test instrument is a backlit LCD display with a digit height of 20 mm.
The background lighting of the force test instrument can be regulated and thus help to extend the operating time. Other functions of the force test instrument are: gross / net weighing, summing function, hold function, autozero OFF function as well as the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the force test instrument, so that the weighed product is not in kg but e.g. in meters (1 kg = 1.25 m). The force test instrument has a linear calibration and thus ensures particularly high accuracy.
| Maximum weighing capacity | 1000 kg / 2200 lbs ≈ 1 Ton |
| Resolution | 0.2 kg / 0.4 lbs |
| Tare range | 100% full scale |
| Accuracy | ± 1% of the measuring range |
| Minimum load | 10 kg / 23 lbs |
| Measuring units | kg / lb |
| Response time | Less than 1 second |
| Safety load | 150% (do not exceed) |
| Functions | Zero, tare, data hold, power-saving automatic shutdown and timed backlighting |
| Display | LCD with backlight, 20 mm / 0.79 in. digit height |
| Power supply | 3 x 1.5 V AA batteries (operating time up to 65 hours), 2 x AA batteries (remote) |
| Operating conditions | -10° C ... +40° C / +14° F ... +104° F |
Overall dimensions: See table below |
|
| L | 230 mm / 9.1 in |
| A | 20 mm / 0.8 in |
| B | 43 mm / 1.7 in |
| C | 27 mm / 1.1 in |
| Approx. weight | 1.4 kg / 3.1 lbs |
Delivery contents
1 x PCE-CS 1000N Force Test Instrument
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries
1 x user manual
