₹5,342.00

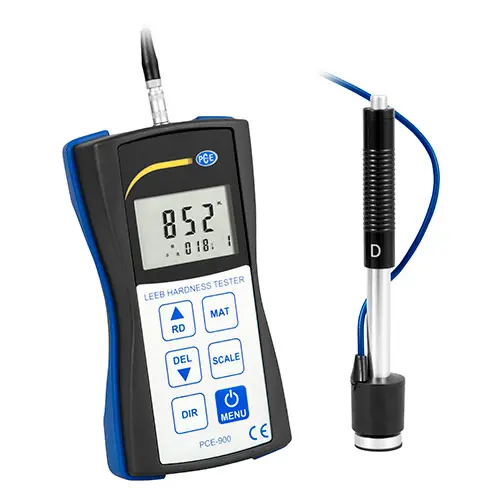

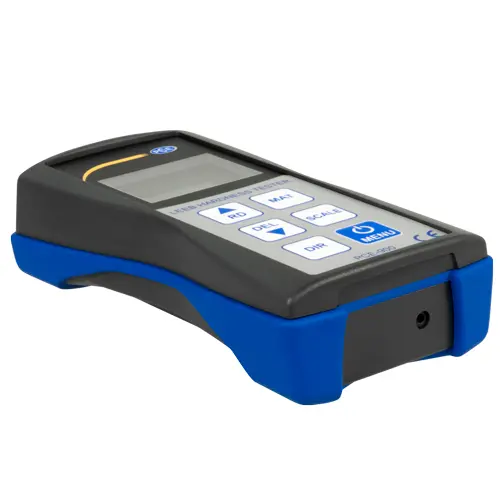

PCE-900 Hardness test instrument for metals
9 materials pre-calibrated / Conversion into 6 different hardness scales
/ Type D impact probe

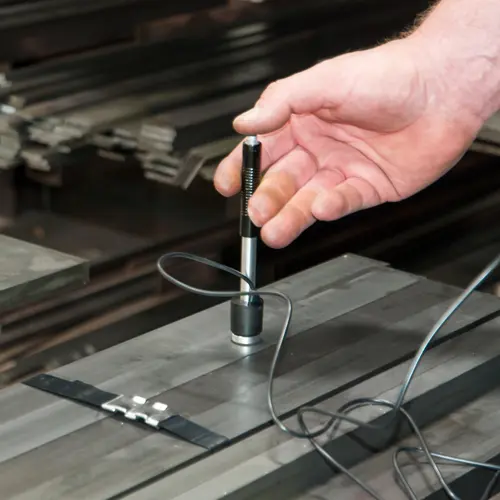

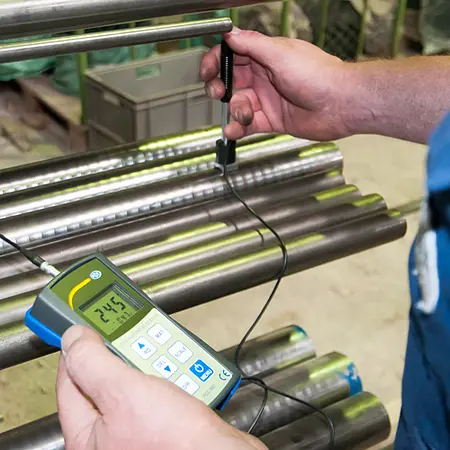

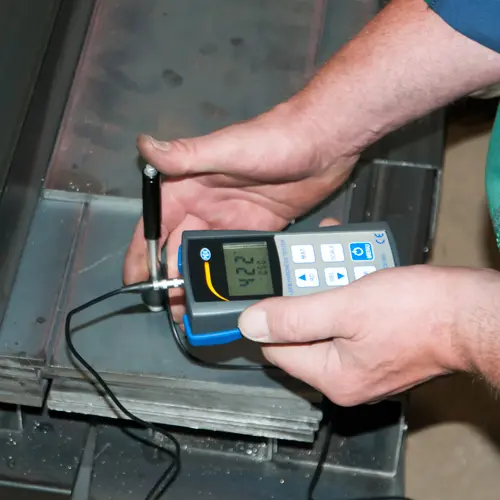

The Leeb Hardness Test Instrument PCE-900 measures the hardness of nine different metals using the Leeb rebound method. This means that with the hardness test instrument a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness. The hardness test instrument PCE-900 measures the metal hardness in 6 different hardness scales, including: Rockwell, Vickers, Leeb, Brinell and Shore. A distinction is made between Rockwell B and C when measuring in the Rockwell scale.

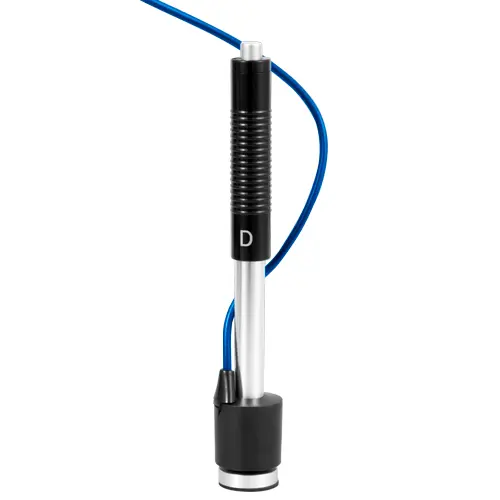

The Leeb hardness test instrument PCE-900 comes with a type D impact probe as standard. This probe can be used for many measurements. Via the optional software, the measured values can be transmitted live to the PC. This makes the PCE-900 Leeb hardness test instrument an important instrument in the field of material inspection in goods control.
| Measuring range | 200 ... 900 HL |
| Measuring accuracy | ± 0.8% at HLD=900 |
| Materials | 9 common material presets |
| Hardness scales | Leeb: HL Rockwell C: HRC Rockwell B: HRB Brinell: HB Vickers: HV Shore: HSD |

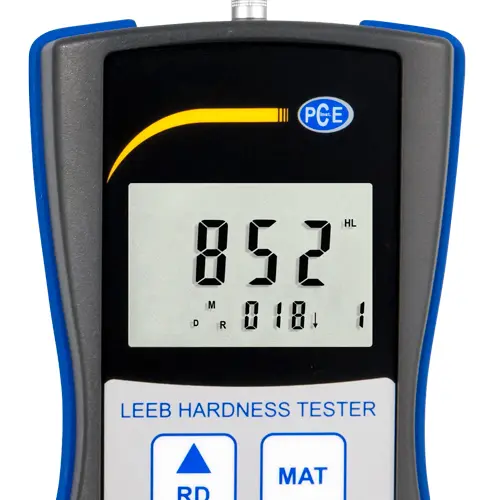

| Display | 12.5 mm / 0.5" LCD with backlight |
| Impact probe | Type D |
| Memory | 50 data sets |
| Interface | RS-232 |
| Power supply | 4 x 1.5V AAA batteries |
| Environmental conditions | Operating temperature: -10 ... 50°C / 14 ... 122°F Storage temperature: -30 ... 60°C / -22 ... 140°F Relative humidity: < 90% |
| Dimensions | 142 x 77 x 40 mm / 5.59 x 3.03 x 1.58 in |
| Weight | Device weight: ca. 130 g / < 1 lb Probe weight: 75 g / < 1 lb |
| Cable length | ca. 1.2 m / 3.9 ft |
