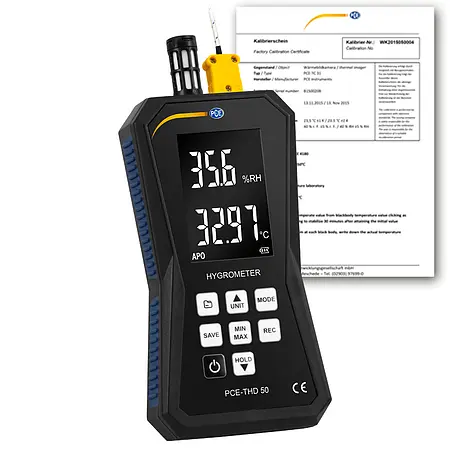

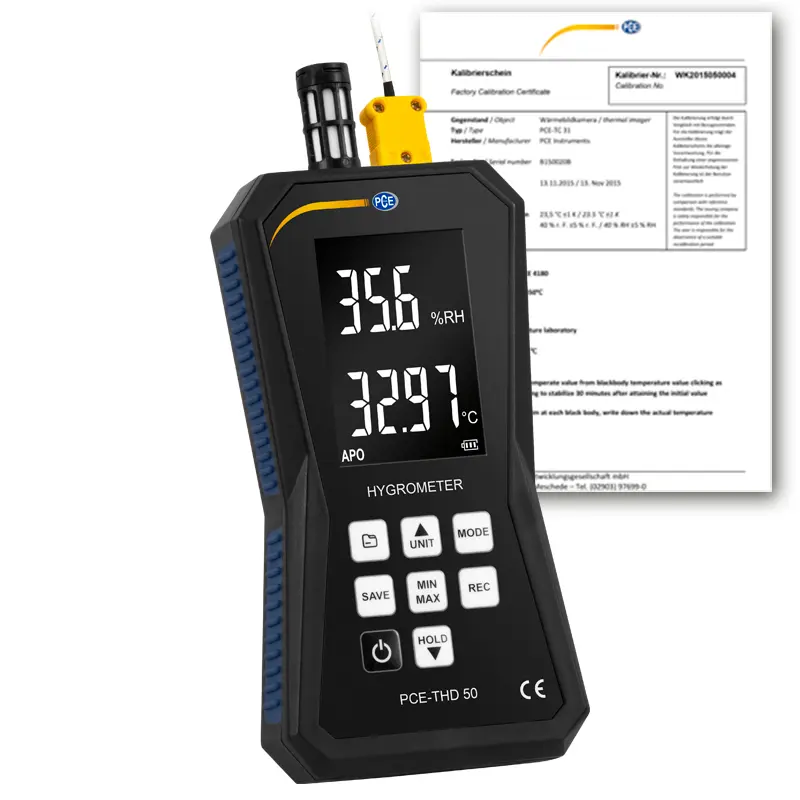

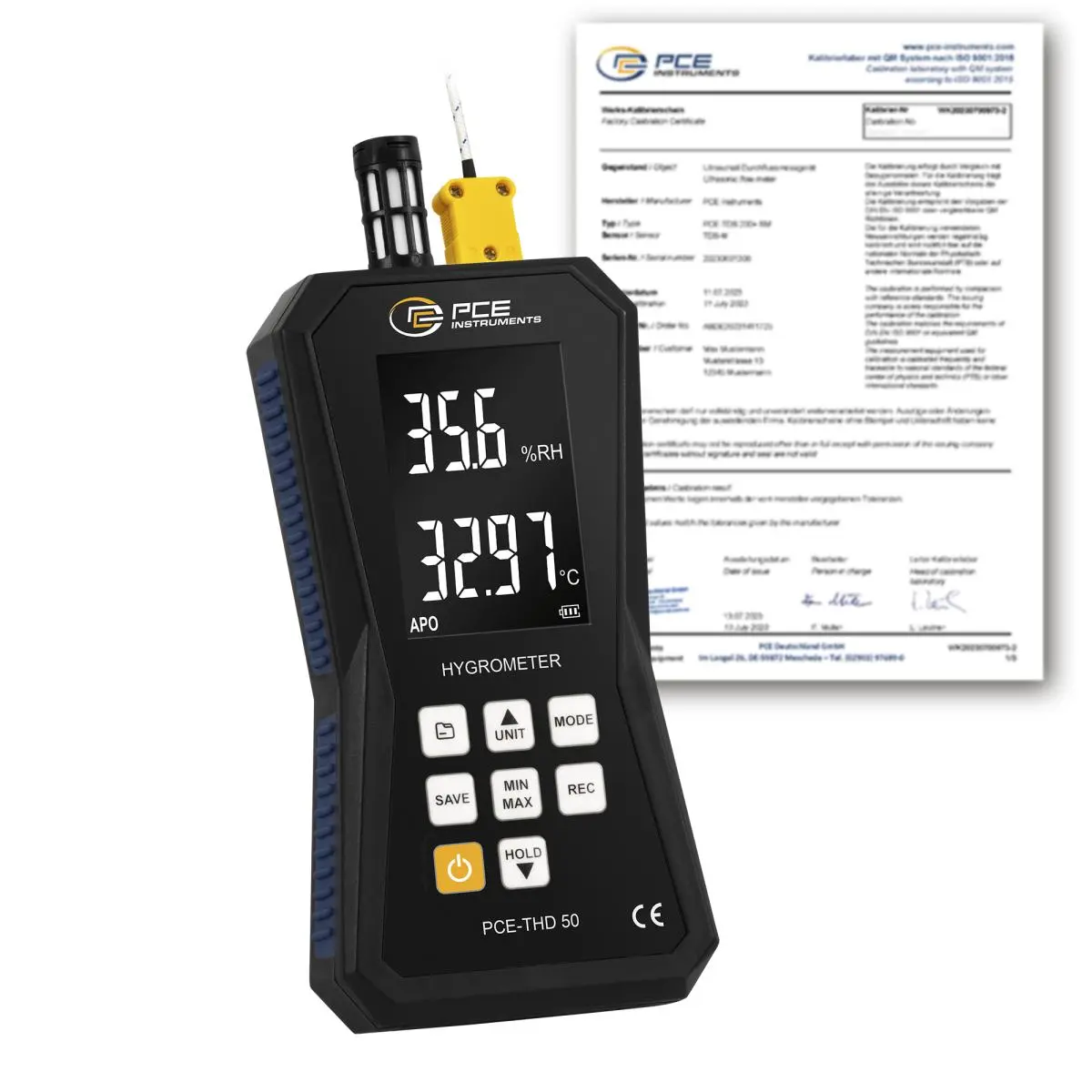

Thermo Hygrometer PCE-THD 50-ICA incl. ISO Calibration Certificate

Order no.: PCE-THD 50-ICA
GTIN (EAN): 4250348728302
₹43,435.00
₹51,253.30
ISO Calibration
price ex. (VAT / delivery)
:
4250348728302
PCE-THD 50-ICA
Delivery time: 10 - 14 days

Description

Thermo Hygrometer with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate


The thermo hygrometer is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The thermo hygrometer can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the thermo hygrometer. In addition, the dew point and wet bulb temperature is calculated and displayed by the thermo hygrometer. In addition, any type K thermocouple can be connected to the thermo hygrometer in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the thermo hygrometer to the thermocouple.

Measured values ​​can be recorded with the data logger function of the thermo hygrometer. The large memory of 32,000 measuring points in the thermo hygrometer allows recording of measured values ​​over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the thermo hygrometer and the free software. The data logged by the thermo hygrometer can be exported in CSV file format for further processing.

A 3.7 V Li-ion battery is installed in the thermo hygrometer to enable mobile use. This battery can be recharged via the micro-USB interface on the thermo hygrometer.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature

Specification

Air temperature
Measuring range -20 … 60 °C(-4 … 140 °F)
Resolution 0.01 °C/°F
Accuracy ±0.5 °C @ 0 … 45 °C,±1.0 °C
   in remaining range
  ±1.0 °F @ 32 … 113 °F,±2.0 °F
   in remaining range
Measuring rate 3 Hz

Relative humidity
Measuring range 0 … 100 % RH
Resolution 0.1 % RH
Accuracy ±2.2 % RH (10 … 90 % RH)
  @ 23 °C (73.4 °F)
  ±3.2 % RH (<10,>90 % RH)
   @23 °C (73.4 °F)
Response time <10 s (90 % RH, 25 °C (77 °F), with no wind)

Thermoelement
Sensor type Thermoelement Type K
Measuring range -100 … 1372 °C(-148 … 2501 °F)
Resolution 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F
Accuracy ±(1 % ±1 °C)

Calculated values
Wet bulb temperature   -20 … 60 °C (-4 … 140 °F)
Dew point temperature -50 … 60 °C (-58 … 140 °F)

Further specifications
Internal memory 99 measuring points
  (redundant, only readable on the measuring device)
  32,000 measuring points
  (only readable on the PC)
Power supply 3.7 V Li-ion battery
Operating conditions 0 … 40 °C (32 … 104 °F) <80 % RH,
  non-condensing
Storage conditions -10 … 60 °C (14 … 140 °F) <80 % RH,
  non-condensing
Dimensions 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2"
Weight 248 g / 8.74 oz

Delivery Scope

1 x Thermo Hygrometer PCE-THD 50
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
