Multi-Channel Data-Logging Digital Thermometer PCE-T 1200-ICA incl. ISO Calibration Certificate

Order no.: PCE-T 1200-ICA

GTIN (EAN): 4250348731968

Accessory

Penetration / Immersion Sensor TF-106

₹7,425.00

Insulated Surface Temperature Sensor TF-102A

₹8,318.00

HT Surface Sensor TF-110A

₹11,889.00

High Temperature Wire Sensor TF-121

₹10,401.00

High Temperature Sensor TF-104B (extra long)

₹14,716.00

High Temperature Sensor TF-104A

₹7,425.00

Flexible Sensor TF-120

₹4,896.00

Crocodile Clip Sensor TF-109

₹5,937.00

Air Sensor TF-108

₹7,128.00

USB Data Cable Incl. Software SOFT-LUT-USB

₹12,782.00

Screw-in Sensor TF-119

₹21,561.00

Temperature Sensor TF-101

₹10,104.00

Power Supply 9 V / 0.8 A (US / North American)

₹2,366.00

AGL-400 Compensation / Thermocouple Extension Cable 400 °C (lfm)

AGL-400 Compensation / Thermocouple Extension Cable 400 °C (linear meter)

₹543.00

AGL-260 Compensation / Thermocouple Extension Cable 260 °C (linear meter)

₹498.00

Surface Sensor TF-509 (self-adhesive)

₹6,979.00

Screw-on Sensor TF-524

₹6,681.00

Miniature Connector TF-551

₹1,027.00

Miniature Connector TF-550

₹1,027.00

Magnetic Surface Sensor TF-513

₹12,633.00

Flexible Temperature Sensor TF-500

₹1,548.00

Extension Cable TF-520

₹8,764.00

Power Supply 9 V / 1 A (European)

₹3,705.00

ISO Calibration Certificate CAL-T SIM12 for thermocouple thermometers

₹112,924.00

Description

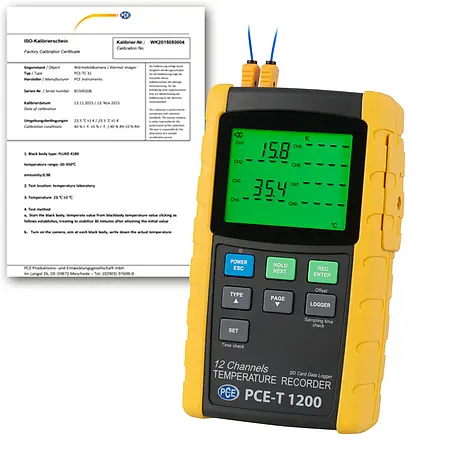

PCE-T 1200 Multi-Channel Data-Logging Digital Thermometer
Multichannel datalogging temperature meter with a backlit display, SD card memory and automatic temperature compensation (ATC)

PCE-T 1200 is a 12-channel data-logging digital thermometer that accommodates SD cards up to 16 GB in size. The optional software allows the digital thermometer to connect to a PC via USB for direct data transfer and analysis via Microsoft Excel. The datalogging interval can be set from 1 second per channel up to a maximum of 3600 seconds. The 4.5" LCD display features a green backlight and can indicate up to eight channels of measurements simultaneously (CH 1 ... CH 8). With just the press of a button, the remaining channels (CH 9 ... CH 12) can be viewed. The digital thermometer works with six different kinds of transducers or sensors including type K, type J, type T, type E, type R and type S thermocouples.

Highlights

- 12-channel datalogger for temperature (°C / F)
- Includes 2 Type K sensors 1-meter in length
- 4.5" graphic LCD display (82 x 61 mm / 3.2 x 2.4 in)
- Adjustable data recording timer interval
- Compatible with 6 different types of thermocouples
- High and low alarm for each inputbr/> - Indication of maximum and minimum values
- Accommodates up to 16 GB SD memory card to save measured data
- Integrated calendar
- Automatic temperature compensation (ATC)
- Hold function to freeze the values indicated
- Integrated stand

Specification

Sensor type	Resolution	Measurement range	Accuracy
Type K	0.1°C / 0.18°F	-50.1 ... -100°C / -58.2 ... 212°F	± (0.4% + 1°C / 0.8°F)
	0.1°C / 0.18°F	-50 ... 999.9°C / -58 ... 1831.8°F	± (0.4% + 0.5°C / 0.9°F)
	1°C / 0.8°F	1000 ... 1300°C / 1832 ... 2372°F	± (0.4% + 1°C / 0.8°F)
Type J	0.1°C / 0.18°F	-50.1 ... -100°C / -58.2 ... 212°F	± (0.4% + 1°C / 0.8°F)
		-50 ... 999.9°C / -58 ... 1831.8°F	± (0.4% + 0.5°C / 0.9°F)
		-50 ... 999.9°C / -58 ... 1831.8°F	± (0.4% + 1°C / 0.8°F)
	1°C / 0.8°F	1000 ... 1150°C / 1832 ... 2102°F	± (0.4% + 1°C / 0.8°F)
Type T	0.1°C / 0.18°F	-50.1 ... -100°C / -58.2 ... 212°F	± (0.4% + 1°C / 0.8°F)
Type T	0.1°C / 0.18°F	-50 ... 400°C / -58 ... 752°F	± (0.4% + 0.5°C / 0.9°F)
Type E	0.1°C / 0.18°F	-50.1 ... -100°C / -58.2 ... 212°F	± (0.4% + 1°C / 0.8°F)
Type E	0.1°C / 0.18°F	-50 ... 900°C / -58 ... 1652°F	± (0.4% + 0.5°C / 0.9°F)
Type R	1°C / 0.8°F	0 ... 1700°C / 32 ... 3092°F	± (0.5% + 3°C / 7.4°F)
Type S	1°C / 0.8°F	0 ... 1500°C / 32 ... 2732	± (0.5% + 3°C / 7.4°F)

Power consumption (lights off / logging off)

7.5-mA

Power consumption (lights off / logging on)

25-mA

Dimensions

225 x 125 x 64 mm / 8.9 x 4.9 x 2.5 in

Weight

827 g / 1.8 lbs (excl. battery)

Operation conditions

0°C ... 50°C / 32 ... 122°F, 85% rH

Delivery Scope

1 x Multi-Channel Data-Logging Digital Thermometer PCE-T 1200-ICA
2 x Type K sensor
8 x 1.5V AA batteries
1 x SD memory card
1 x Carrying case
1 x User manual
1 x ISO Calibration Certificate
