₹7,425.00
Flow measurement | |
Measuring range | ±32 m/s |
Accuracy | 0,001 m/s |
Genauigkeit | DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s |
DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s | |
Reproducibility | ±0.5 % of measured value |

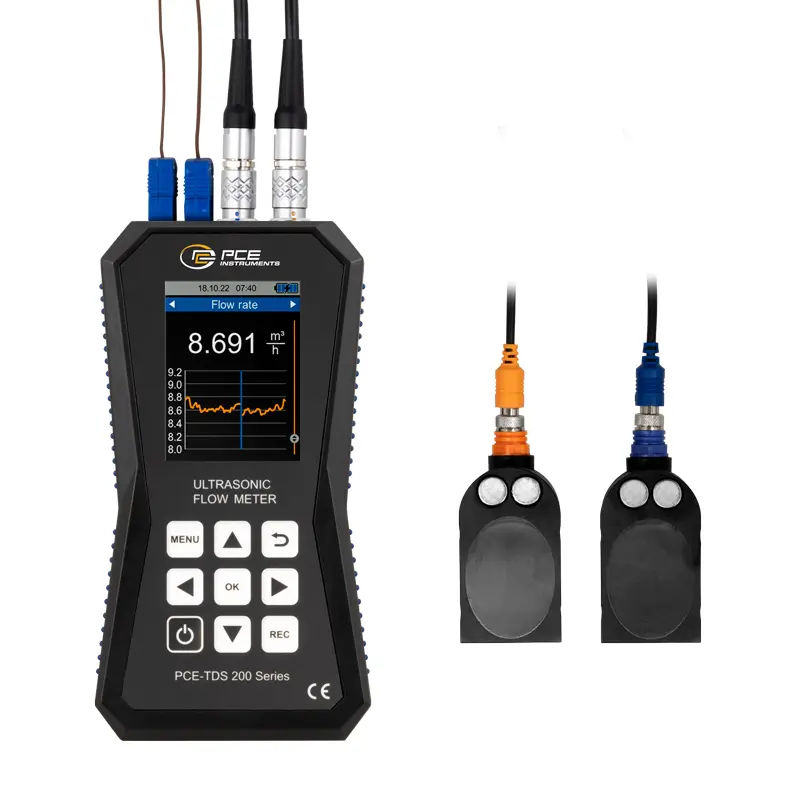

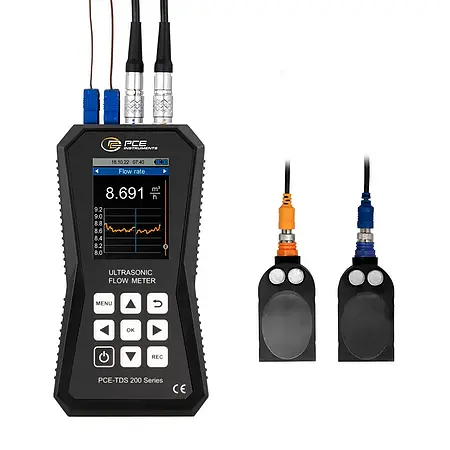

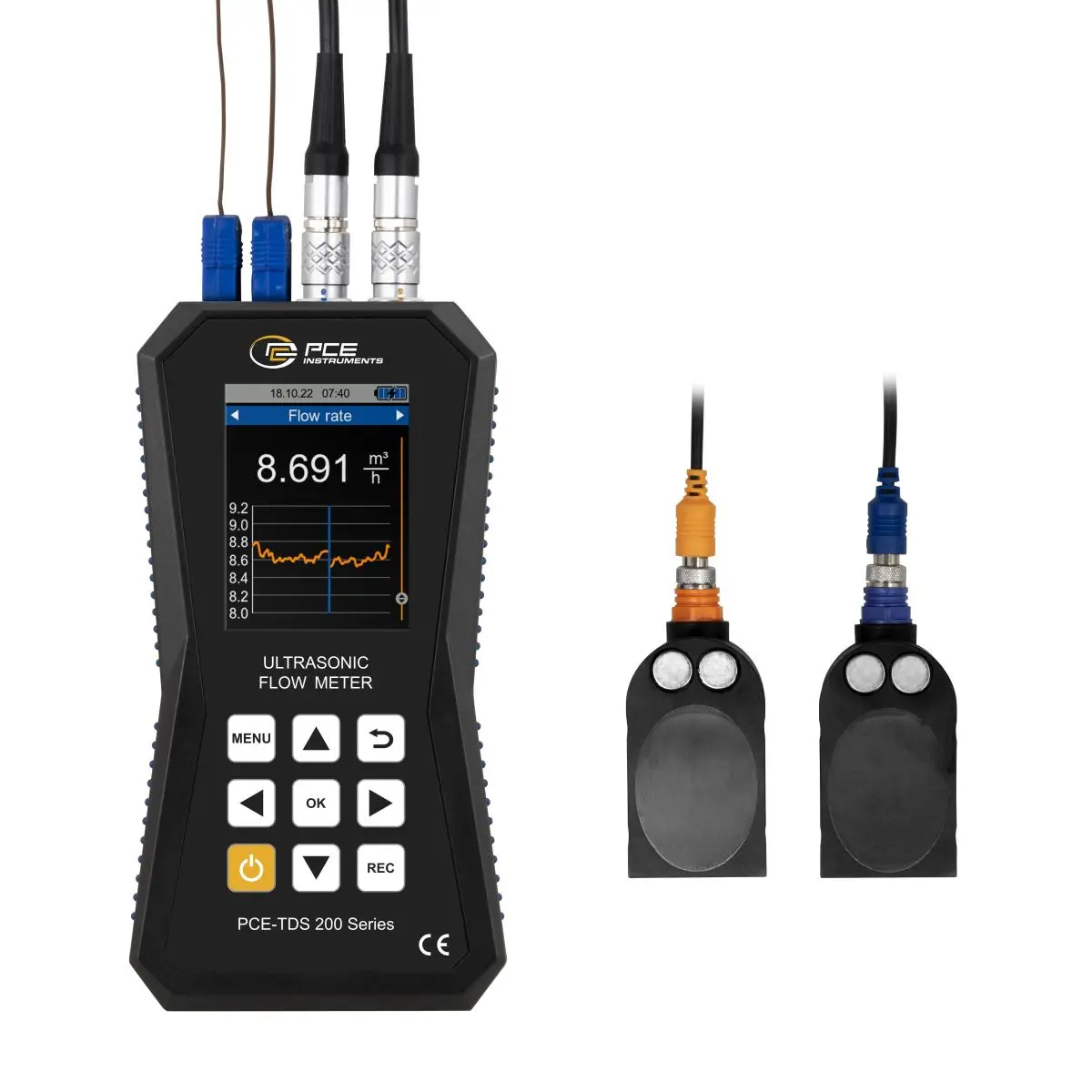

PCE-TDS 200 L SENSOR | Sensor pair |
Pipe diameter | DN 300 ... 6000 mm |
Dimension | 91 x 52 x 44 mm |
Measuring method | Z, V, N, W |
Medium | - water |
- sea water | |
- oil | |
- crude oil | |
- methanol | |
- ethanol | |
- diesel | |
- petrol | |
- petroleum | |
- user defined | |
(manual input of the sound velocity from the medium) | |
All liquids with an impurity | <5 % |
Pipe material | - copper CU |
- steel FE | |
- stainless steel VA | |
- aluminium AL | |
- brass ME | |
- cast iron CI | |
- iron FE | |
- nickel NI | |
- titanium TI | |
- zink ZI | |
- acrylic AC | |
- polyethylene PE | |
- polypropylene PP | |
- polyvinyl chloride PVC | |
- nylon NY | |
- user defined | |
(manual input of the transversal sound velocity | |
of the pipe material) | |
Inner pipe lining | - no lining |
- user defined | |
- epoxy resin | |
- rubber | |
- mortar | |
- polystyrene PS | |
- polyethylene PE | |
- polytetrafluoroethylene PTFE | |
- polyurethane PU | |
- polypropylene PP | |
- user defined | |
(manual input of the longitudinal sound velocity | |
of the inner lining of the pipe) | |
Measurement parameters | flow velocity, volume flow and volume |
Units (dimensions) | mm, in |
Units (flow velocity) | m/s, ft/s |
Units (volume flow) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
Time specification | seconds, minutes, hours, days |
Units (volume) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
Temperature measurement | |
Measuring range | Accuracy |
Type B: 600 ... 1800 °C | Type B: ±(0.5 % + 3 °C) |
Type E: -100 ... +900 °C | Type E: ±(0.4 % + 1 °C) |
Type J: -100 ... 1150 °C | Type J: ±(0.4 % + 1 °C) |
Type K: -100 ... +1370 °C | Type K: ±(0.4 % + 1 °C) |
Type N: -100 ... + 1150 °C | Type N: ±(0.4 % + 1 °C) |
Type R: 0 ... 1700 °C | Type R: ±(0.5 % + 3 °C) |
Type S: 0 ... 1500 °C | Type S: ±(0.5 % + 3 °C) |
Type T: -100 ... +400 °C | Type T: ±(0.4 % + 1 °C) |
Resolution | 0.1 °C |

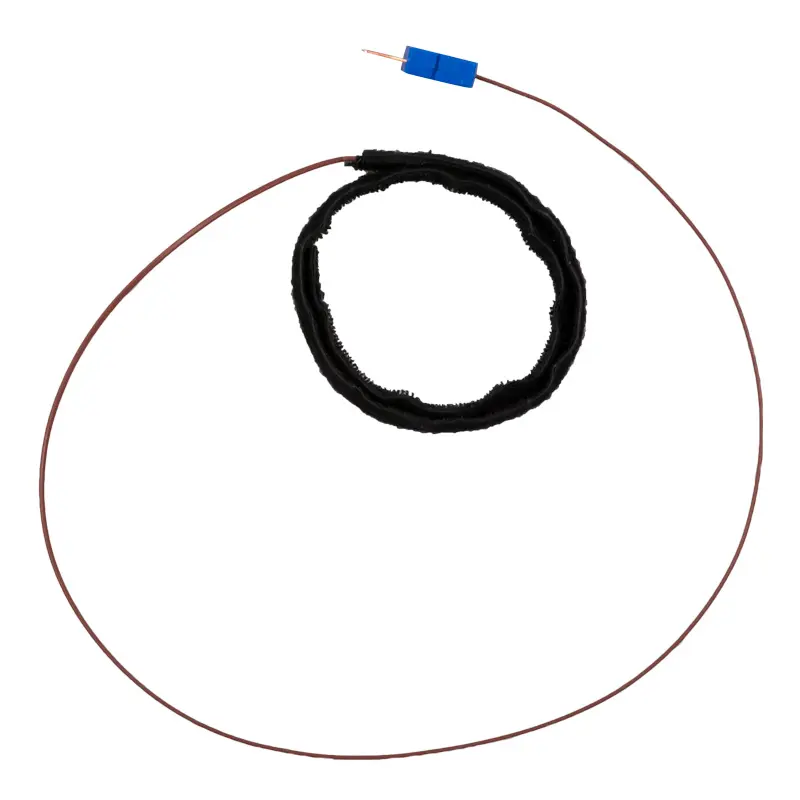

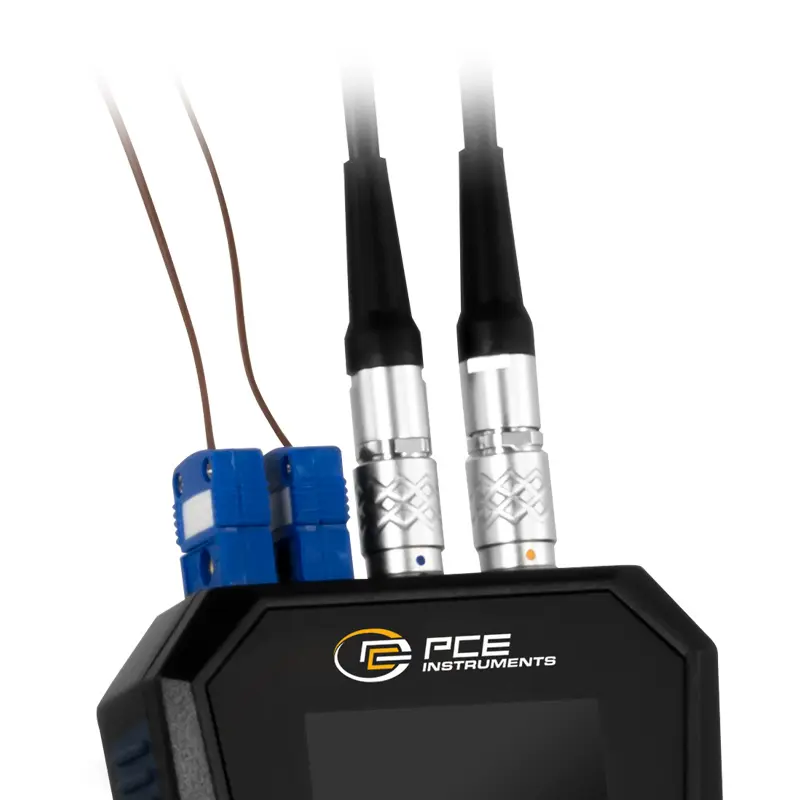

Connectable thermocouples | B, E ,J ,K ,N ,R ,S ,T |
Measuring parameters | flow rate, volume flow, volume, temperature, |
Heat output and heat quantity | |
Units (temperature) | °C / °F |
Units (heat quantity) | K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu |
Units (heat output) | W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h |
Cost display | EUR, Pound, USD, Turkish Lira, Zloty, Yen |
Further specifications | |

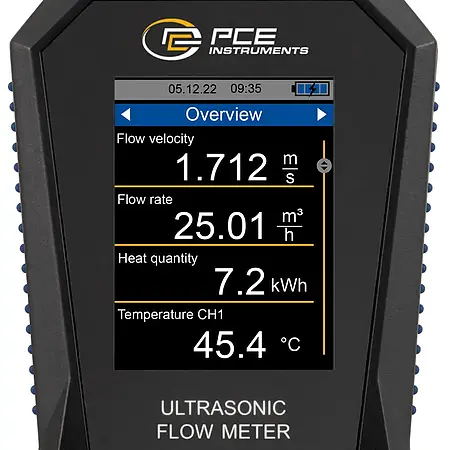

2.8" LCD | 2,8“ LCD |
Menu | metrisch / imperial |
Menu languages | German, English, French, Spanish, |
Italian, Dutch, Portuguese, Danish, Turkish, Polish, German | |
Turkish, Polish, Russian, Chinese, Japanese | |
Operating and storage conditions | Temperature: -20 ... +65 °C |
Humidity: 10 ... 95 % r. h., non-condensing | |
Data logger | 32 GB memory capacity / 10 million measuring points |
Unterface | USB (for online measurement, readout of the internal memory |
memory and for recharging the battery) | |
Protection class | IP52 |
Power supply Internal | Internal: LiPo battery (3.7 V, 2500 mAh) |
External: USB 5 VDC, 500 mA | |
Operating time | approx. 10 h |
Dimensions | 165 x 85 x 32 mm |
Weight | 255 g |
