Price excl. VAT &. delivery
2 year Warranty
- Usable up to 80°C / 176°F
- Improves contact between the transducer head and the material to be measured
- Protects material surfaces from the transducer head
- 100 ml size
- See downloads for MSDS

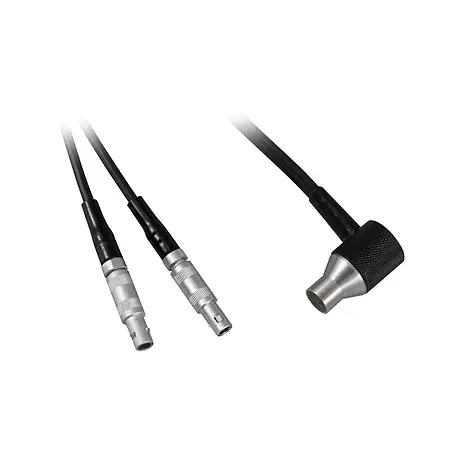

PCE-TG-NO7 sensor | |
Measuring range | 0.65 ... 200 mm / 0.025 ... 7.87" (steel) |
Minimum diameter of pipes | 15 x 2 mm / 0.59 x 0.07" |
Frequency | 7 MHz |
Diameter | 6 mm / 0.23" |
Description | for thin-walled or strongly curved pipes |

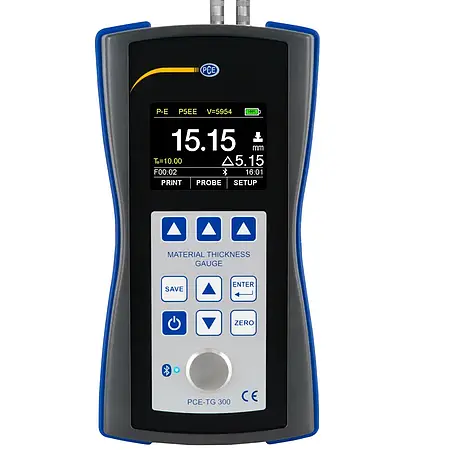

PCE-TG 300-NO7 device | |
Measuring range | P-E: pulse-echo mode 0.65 ... 600 mm / 0.025 ... 23.62" (steel)" |
(measurement range varies depending on the sensor) | |
E-E: Echo-Echo mode 2.50 ... 100 mm / 0.098 ... 2.36" | |
(only with PCE-TG 300-P5EE sensor) | |
Accuracy | ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) |
H refers to the material thickness of the workpiece | |
Resolution | 0.1 mm / 0.01 mm / 0.001 mm (adjustable) |
Measurable materials | metals |
plastics | |
ceramics | |
epoxy resin | |
glass | |
and all homogeneous materials | |
Working modes | Pulse-echo mode (fault and void detection) |
Echo-echo mode (hide layer thicknesses, e.g. paint) | |
Calibration | sound velocity calibration |
zero calibration | |
two-point calibration | |
View Mode | Normal Mode, Scan Mode, Difference Mode |
Units | mm / inch |

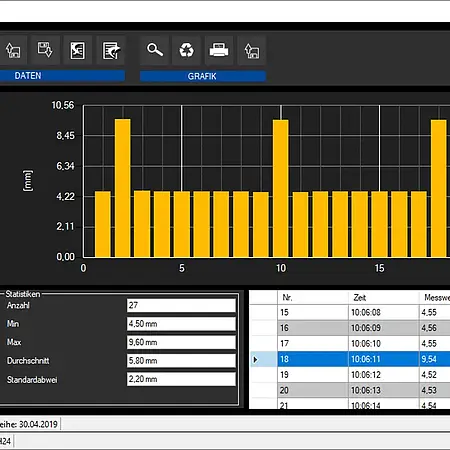

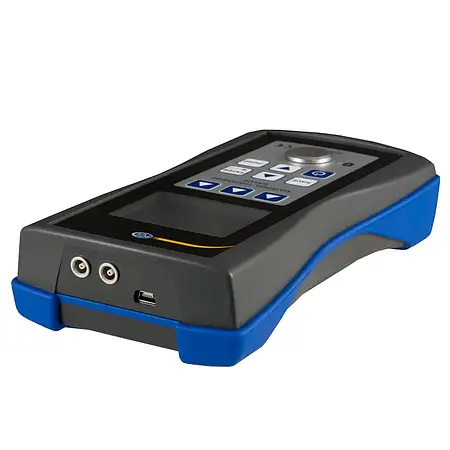

Data transfer | printing via Bluetooth / USB 2.0 |
Memory | non-volatile memory with 100 data groups with 100 data sets each |
Operating time | continuous operation 100 h |
automatic stand-by mode (adjustable) | |
auto power off mode (adjustable) | |

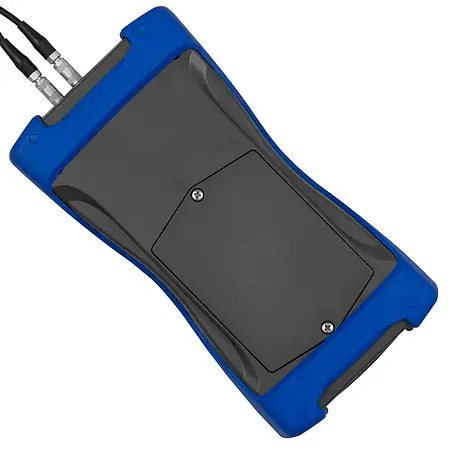

Power supply | 4 x AA battery 1.5 V |

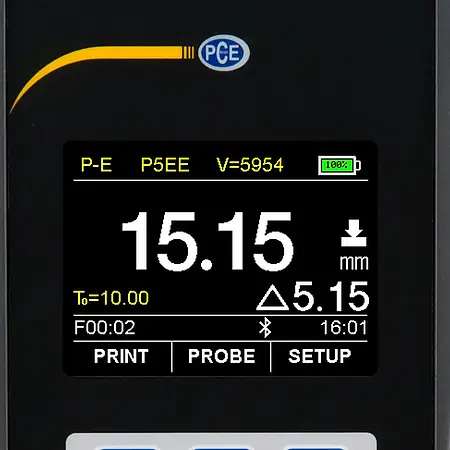

Display | 320 x 240 pixels TFT LCD color display with brightness adjustment |
Operating conditions | 0 ... +50 °C / 32 ... 122 °F, ≤80 % RH non-condensing |
Storage conditions | -20 ... +70 °C / -4 ... 158 °F, ≤80 % RH non-condensing |
Dimensions | 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5" |
Weight | 375 g / 13.2 oz |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
ISO re-calibration incl. certificate for material thickness meter. This is often required to comply with DIN ISO 9000.
Calibration points are: 5; 10; 20; 50 and 100 mmIf your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
Price excl. VAT &. delivery
2 year Warranty
Measurement accuracy: | five parallel gauge blocks with the thicknesses 5 mm; 10 mm; 20 mm; 50 mm and 100 mm |
N.B. The calibration certificate is issued by the PCE calibration service specifically for the customer and is excluded from the right of return.
Price excl. VAT &. delivery
2 year Warranty
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The high temperature contact gel can be used at temperatures up to 350°C / 662°F.
