Vibration Analyser for monitoring the vibration speed / 4 ... 20 mA output
MIL-C-5015 connection / 3 ... 1500 Hz bandwidth

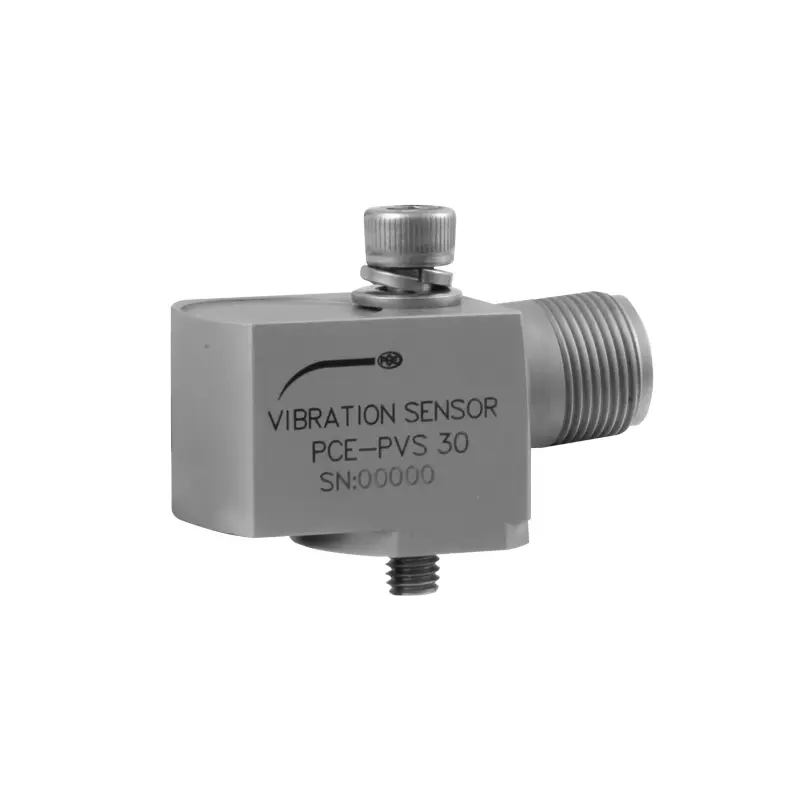

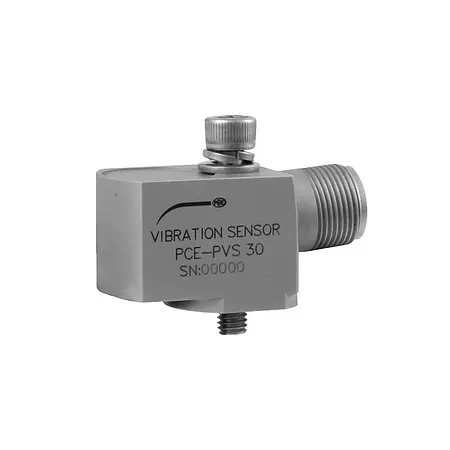

The Vibration Analyser has been developed for the continuous monitoring of the vibration speed. The Vibration Analyser is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Vibration Analyser measures the vibration speed in the range of ± 12.7 mm / s or ± 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz.

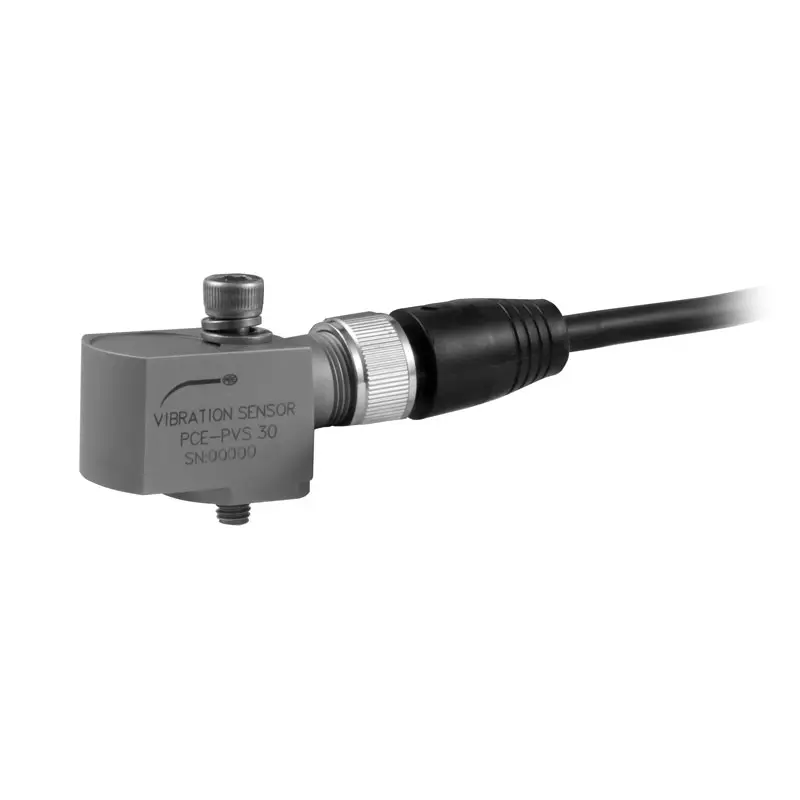

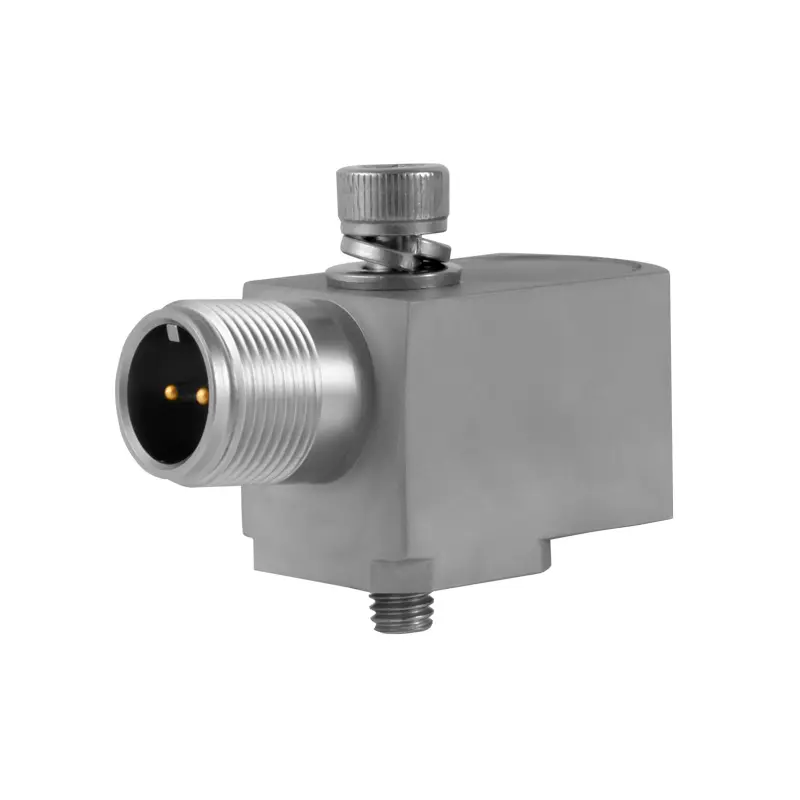

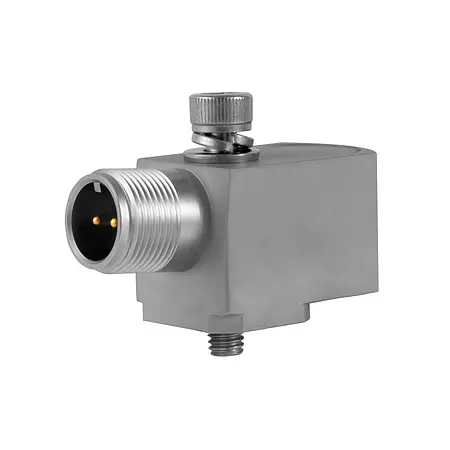

The measured vibration speed is output as a 4 ... 20 mA process current. The Vibration Analyser is looped through a MIL-C-5015 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Vibration Analyser can be operated with a voltage of 12 ... 24 V DC.
