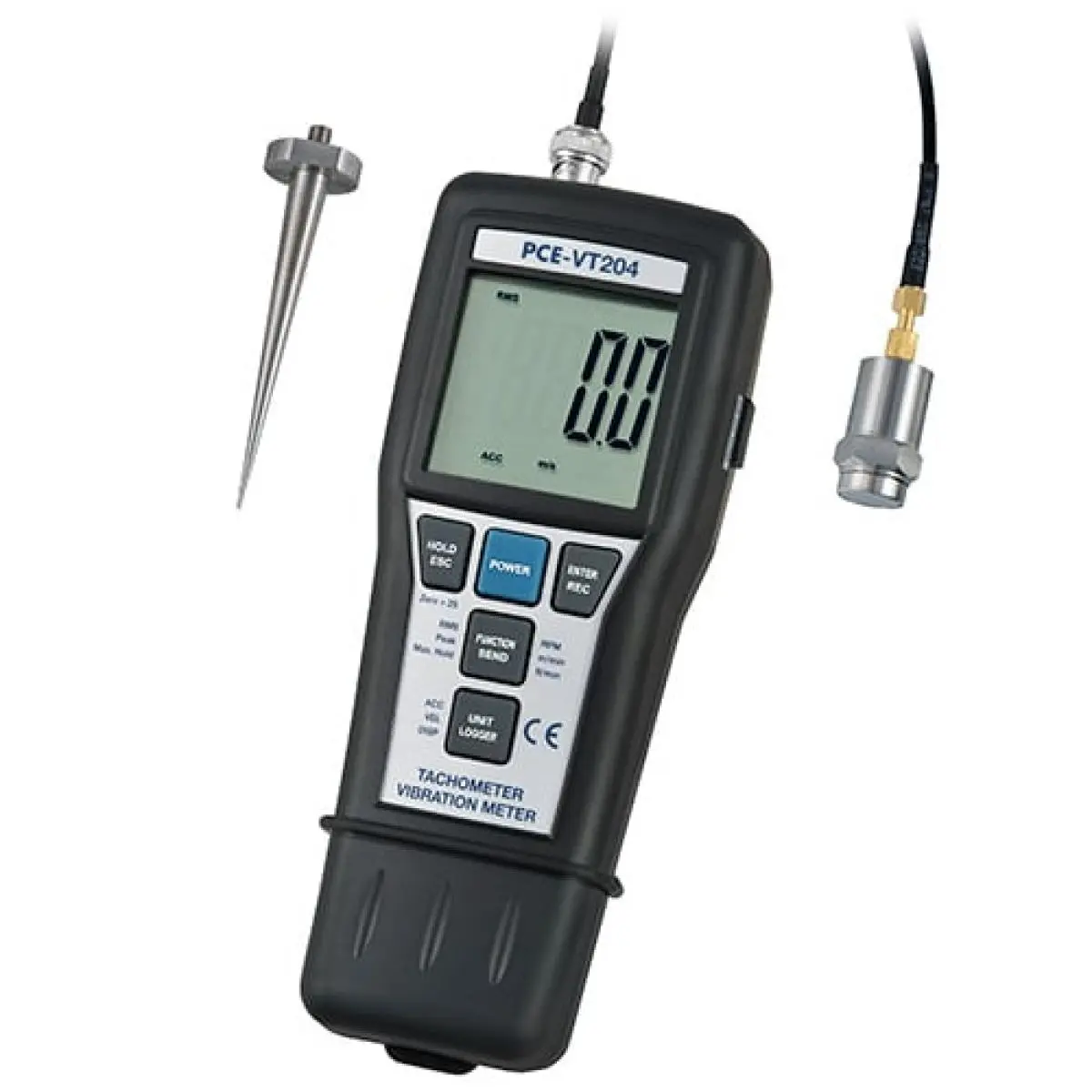

Vibration Analyser PCE-VT 204

Order no.: PCE-VT 204

GTIN (EAN): 4250348701534

Accessory

Calibration Certificate for PCE-VT 204 (Vibration Only)

₹42,393.00

Description

Vibration Analyser

Detects vibration velocity or speed, displacement and acceleration / Measures revolutions per minute (RPM) by contact or optically / Internal memory / RS-232 port

The Vibration Analyser stands out due to its multi-functionality and excels at its ability of accurately measuring three dimensions of vibration. The handheld portable device, as well as testing for vibration in motors, transmission, gears, wheels, and gear boxes, can also measure rotation of machine parts and rotating components.

The attached acceleration sensor can be set flat, equipped with a magnet, or you can combine the sensor with the included fastening screw. Moreover, the internal frequency filters eliminate the effects of background noise allowing the device to detect specific vibrations. If you desire to transfer the readings from the Tachometer to a computer, order the optional software package.

Highlights

Detects:
- Displacement, velocity, vibration acceleration and revolutions per minute (by contact or optically)

Includes:
    - Memory for 1000 readings
    - Easy-to-read LCD screen
    - Low-battery indicator
    - RS-232 port
    - Min / max and data hold functionality
    - Needle sensor, flat sensor, adjustable magnetic base, wheel and optical sensor for measuring rotation

Specification

Vibration measuring range
Acceleration	0.5 to 199.9 m/s², 0.05 to 20.39 g, 2 to 656 ft/s²
Velocity or speed	0.5 to 199.9 mm/s, 0.05 to 19.99 cm/s, 0.02 to 7.87 in/s
Displacement (peak to peak / p-p)	0.005 to 1.999 mm, 0.002 to 0.078 in
Resolution
Acceleration	0.1 m/s²
Velocity or speed	0.1 mm/s
Displacement (p-p)	0.001 mm
Accuracy
Acceleration	±5% ±2 digits
Velocity or speed	±5% ±2 digits
Displacement (p-p)	±5% ±2 digits
Frequency
Hertz (Hz)	10 to 1000 Hz
Kilohertz (kHz)	0.01 to 1 kHz
Revolutions per minute (RPM) measuring range
Optical or noncontact	10 to 99999 RPM
Mechanical or contact	0.5 to 19999 RPM
Velocity or speed	0.05 to 1999 m/min, 0.2 to 6560 ft/min
Resolution
0.1 RPM	<1000 RPM
1 RPM	≥1000 RPM
0.01 m/min	<100 m/min
0.1 m/min	≥100 m/min
0.1 ft/min	<1000 ft/min
1 ft/min	≥1000 ft/min
Accuracy	±0.05% ±1 digit
Optical measuring distance	50 to 1500 mm, 2 to 59 in (depending on surface)
General properties
Internal memory	Stores up to 1000 readings
Data output	RS-232 port
LCD	45 x 48 mm, 1.77 x 1.88 in
Power supply	4 x 1.5 V AA batteries
Dimensions	188 x 76 x 47 mm, 7.4 x 3.0 x 1.9 in
Operating conditions	0 ... 50 ºC, 32 ... 122 °F / <80% RH
Weight	400 g, 0.88 lb
Enclosure	Plastic

Delivery Scope

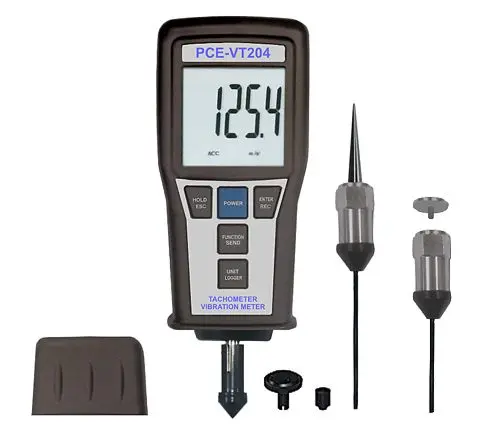

1 x Vibration Analyser PCE-VT 204

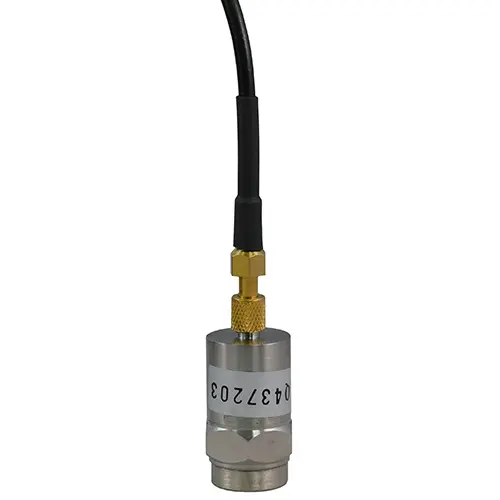

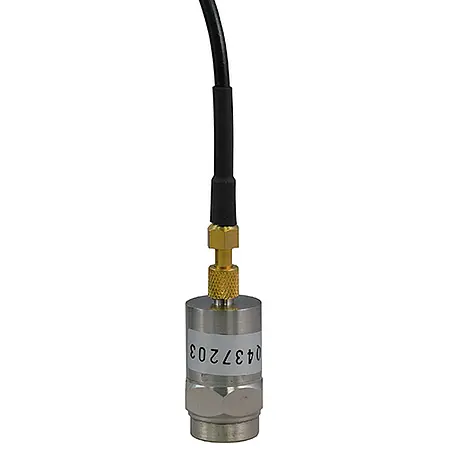

1 x Support sensor with 1.5 m / 4.92 ft cable

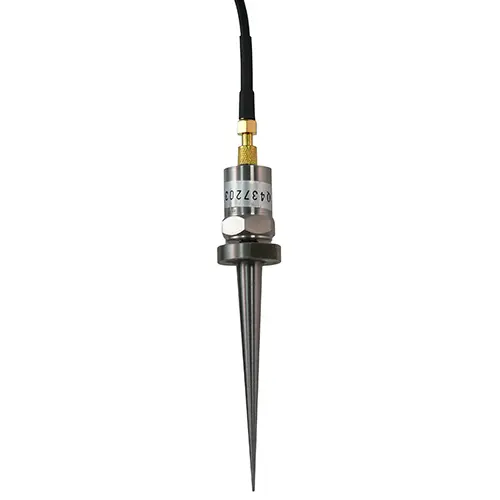

1 x 70 mm / 2.76 in needle sensor

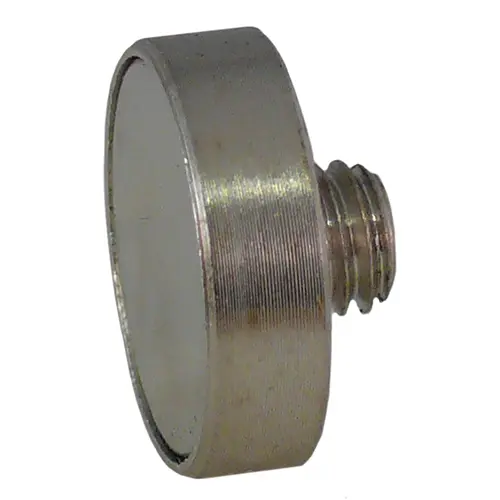

1 x Magnetic base
1 x Measuring cone
1 x 600 mm / 23.62 in of reflective tape
1 x Carrying case
4 x Batteries
1 x User manual
