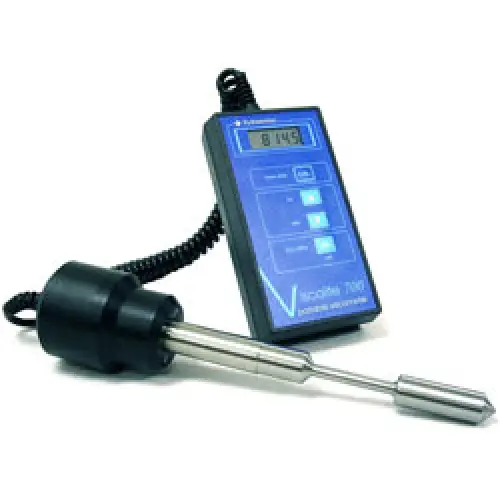

Viscolite d21 Portable Viscometer
Mobile viscosity meter for testing, development, manufacture and quality control in the food, chemical, paint and cosmetics industries as well as for the study of materials
Viscolite d21 is a portable resonant or vibrational viscometer used in industrial and research applications to measure viscosity in samples 100 ml (100 cc) / 3.39 oz and up. Featuring a built-in thermometer with automatic temperature compensation and a nearly maintenance-free design with no openly rotating parts, this handheld viscometer is delivered with one stainless steel measuring probe and displays measurements in centipoise (cP). The energy loss measurement during vibration yields very high accuracy in very small vessels.
Technical specifications |
|
Measuring principle |
Vibrational viscometer |
Automatic temperature compensation
|
Immediate via integrated thermometer |
Centipoise (cP) |
0 ... 10,000 cP (mPa.S) |
General specifications |
|
| Repeatability | Better than 1% |
| Temperature range | -20 ... +120 °C / -4 ... +248 °F |
| Power supply | 4 x AA (or equivalent) alkaline batteries |
| Min. sample volume | 100 ml (100 cc) / 3.39 oz |
| Probe weight | < 700 g / 1.55 lb |
| Display unit weight | 500 g |

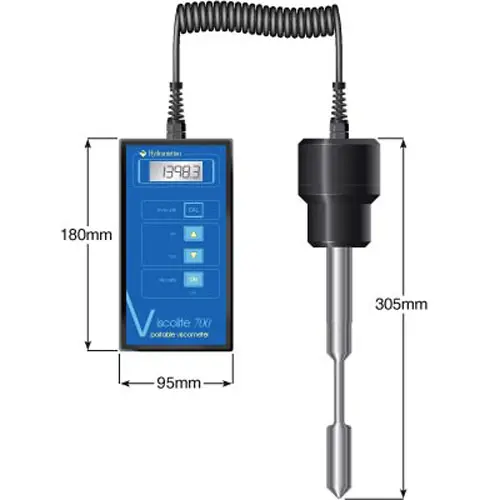

| Overall length | 305 mm / 12.01 in |
| Materials | Enclosure: Acetal (Delrin®) Wetted parts: 316L stainless steel |
| Enclosure ingress protection rating | IP65 |
| Safety certification | Safe area |
1 x viscolite d21 portable viscometer
1 x measuring probe
1 x ISO calibration certificate
1 x carrying case
1 x user manual
NOTE: The liquid to be measured needs to be specified at the time of ordering.
