Voltmeter PCE-DC2

Order no.: PCE-DC2

GTIN (EAN): 4250348703101

Accessory

Calibration certificate CAL-PCE-DC for clamp meters

₹20,073.00

Description

Digital Voltmeter for measuring AC/DC current, AC voltage and resistance,
with a maximum aperture of 18mm

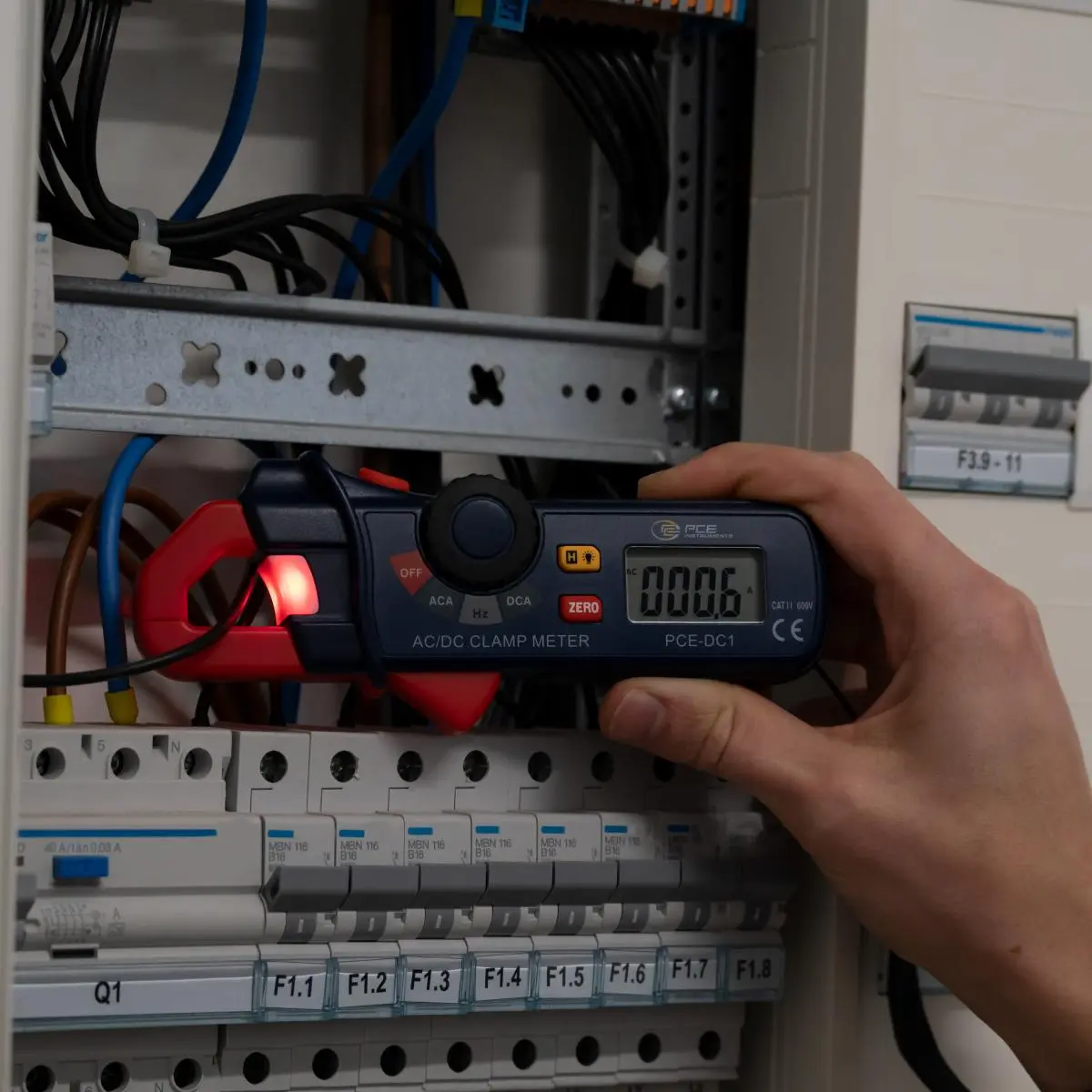

The PCE-DC1 Voltmeter has been designed to detect, indirectly, AC/DC current and ohms. The clamp has white LEDs integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this device allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it allows makes it easier to detect the location of cuts in power lines.

Highlights

- LCD with 3 2/3 positions, backlit, clamp for continuous current
- Measures AC/DC current, AC voltage and frequency
- Memory function, zero reset for the DCA, test voltage without contact
- Illumination of the point of measurement
- Automatic range selection
- Auto shut-off
- Aperture of the clamp: 18mm

Specification

Alternating current (50/60 Hz, TRMS)
Measuring range	0 ... 200.0 A
Resolution	0.1 A
Accuracy	±(2.5 % + 8 digits)

Direct current
Measuring range	0 ... 200.0 A
Resolution	0.1 A
Accuracy	±(2.0 % + 5 digits)

DC voltage
Measuring range	0 ... 600.0 V
Resolution	0.1 V
Accuracy	±(1.0 % + 2 digits)

AC voltage (50/60 Hz, TRMS)
Measuring range	0 ... 600.0 V
Resolution	0.1 V
Accuracy	±(1.5 % + 8 digits)

Resistance
Measuring range	0 ... 999.9 Ω
Resolution	0.1 Ω
Accuracy	±(1.5 % + 8 digits)

Further specifications
Current clamp opening	18 mm / 0.7"
Continuity test	<30Ω, test current <0.5 mA
Battery indicator	"BAT" low battery indicator
Measuring range exceeded	"OL" display when measuring range is exceeded
Measurement rate	10 Hz for the reading
	40 Hz for the bar graph at DC,
	DC voltage and resistance measurement
Input impedance	1.0 MΩ when measuring the voltage

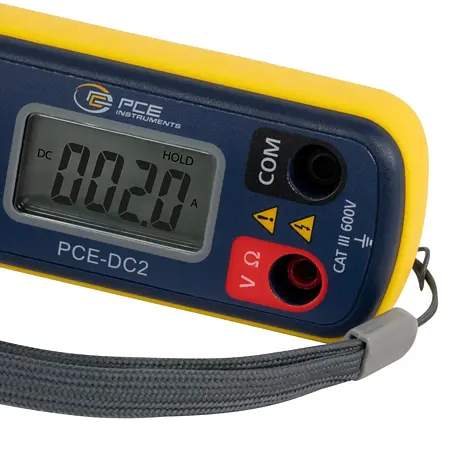

Display	LC display with backlight
Peak measurement response time	<10 ms
(PEAK Hold)
Response time of the largest and	<50 ms
smallest measured value (MAX / MIN hold)
Operating conditions	-10 ... 50 °C / 14 ... 122 °F, max. 3000 m / 9842 ft above sea level
Storage conditions	-30 ... 60 °C / -14 ... 140 °F, max. 10,000 m / 32,808 ft above sea level
Ambient humidity	max. 90 % (0 ... 30 °C / 32 ... 86 °F)
(RH, non-condensing)	max. 75 % (30 ... 40 °C / 86 ... 104 °F)
	max. 45 % (40 ... 50 °C / 104 ... 122 °F)
Power supply	2 x 1.5 V AAA batteries
Automatic shutdown	after 10 minutes without operation
Degree of pollution	2
Standards	CAT III 600 V, CAT IV 300 V
Dimensions	164 x 65 x 32 mm / 6.45 x 2.56 x 1.26"
Weight	175 g / 6.17 oz

Delivery Scope

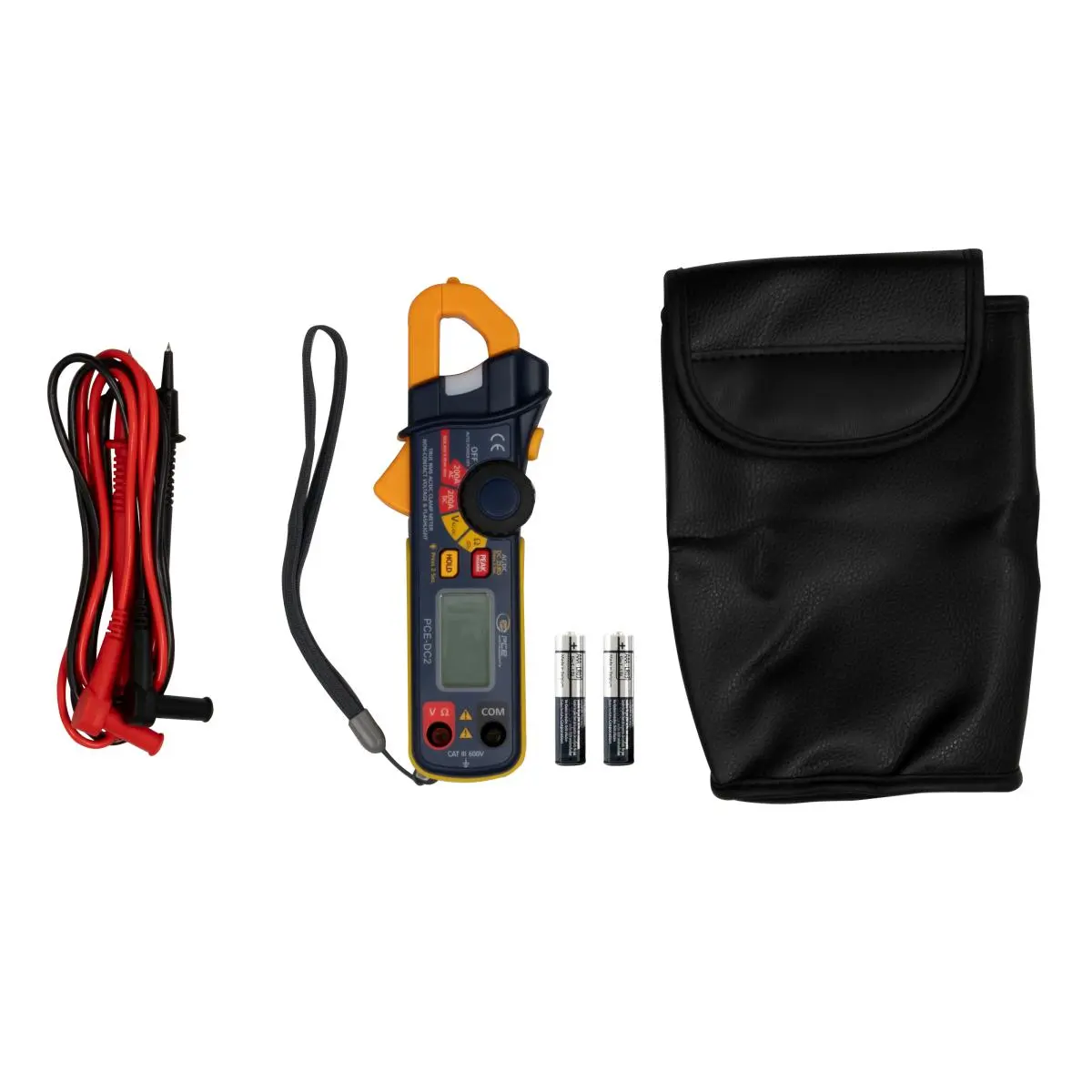

Delivery contents:
1 x PCE-DC2 Clamp Meter
2 x Measurement cables
1 x Bag
2 x Batteries
1 x User's manual
