Water Hardness Tester PCE-CP 20

Order no.: PCE-CP 20
GTIN (EAN): 4250348722997

₹50,131.00
₹59,154.58
Wireless
price ex. (VAT / delivery)
:
4250348722997
PCE-CP 20
Delivery time: 1-2 working days

Description


water hardness tester with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values ​​/ Up to 7 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

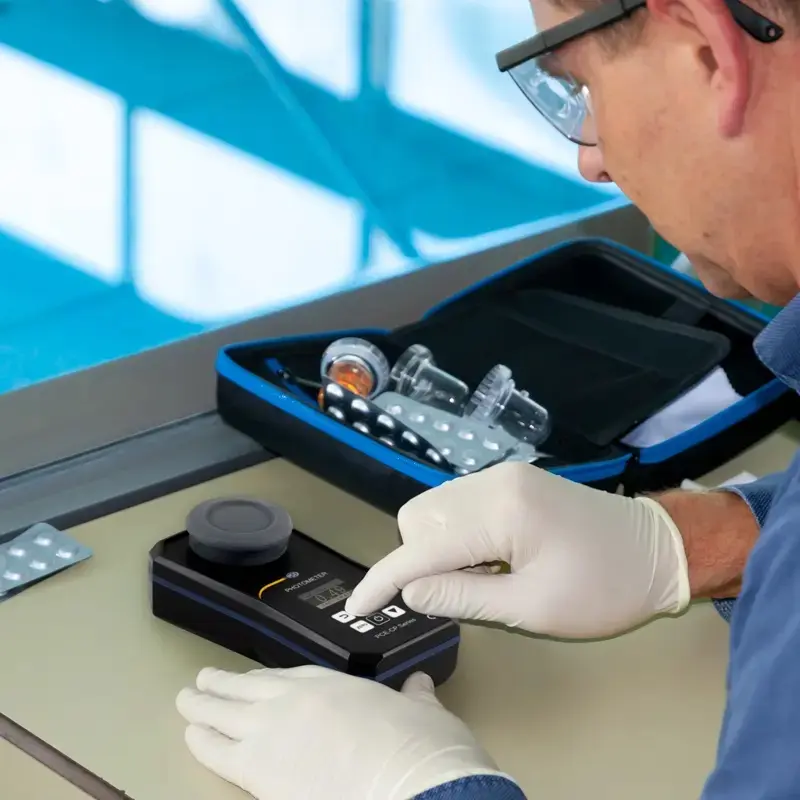

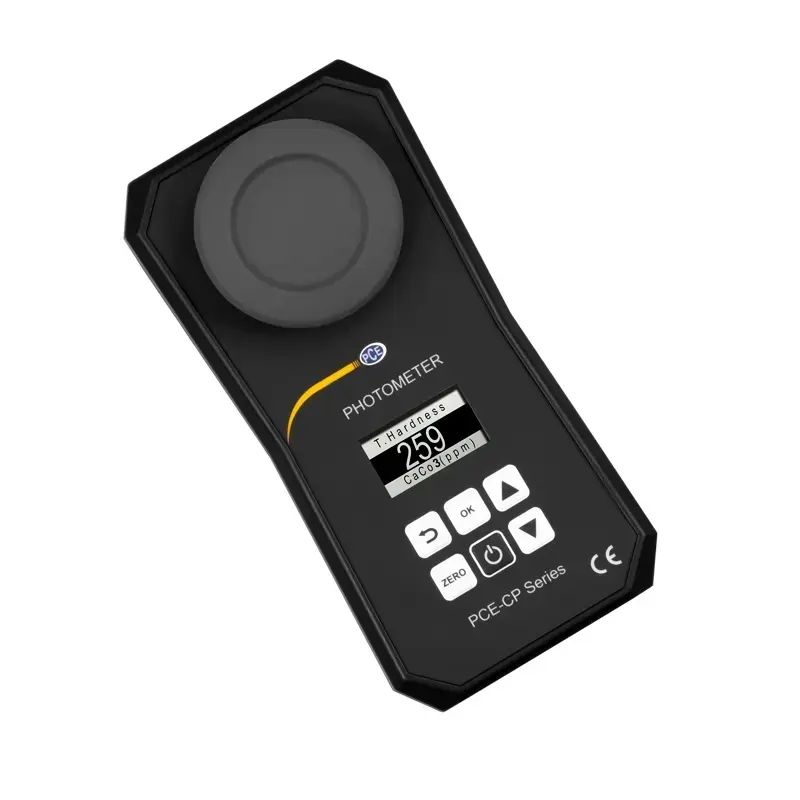

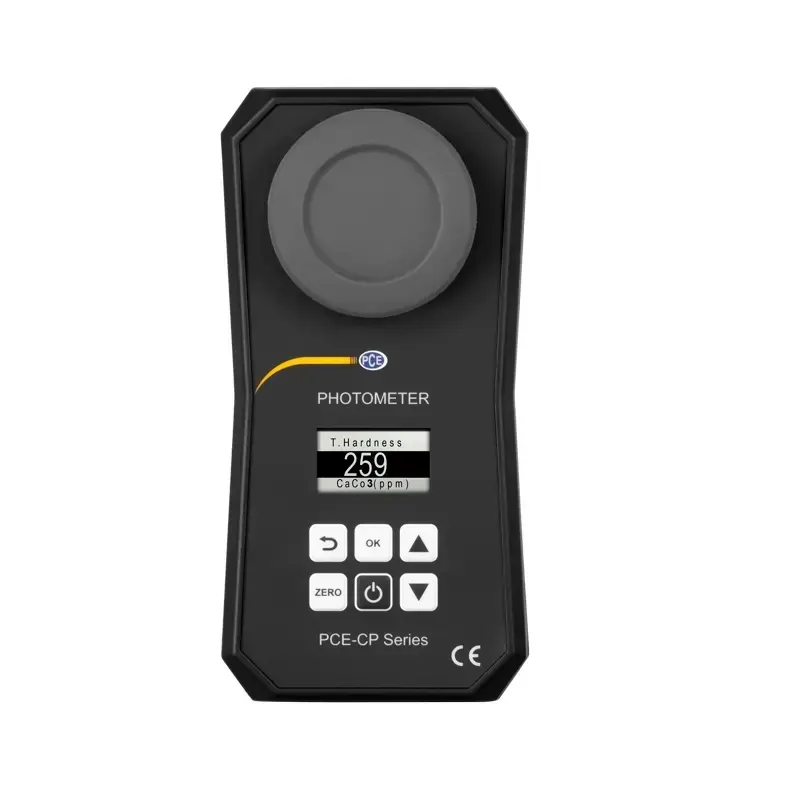

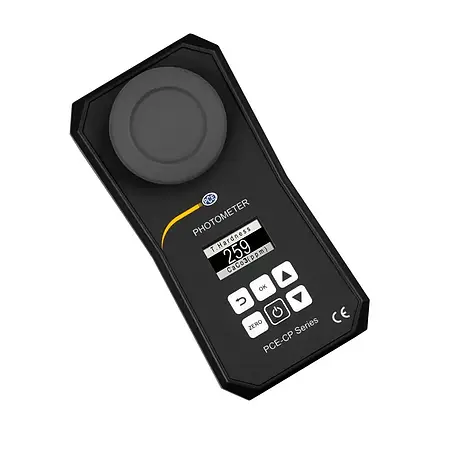

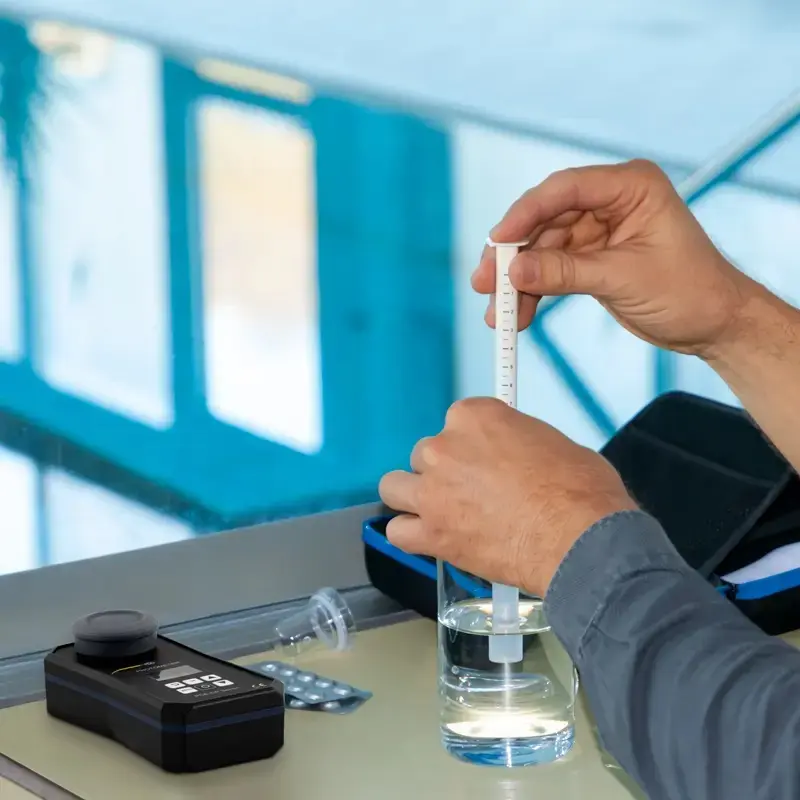

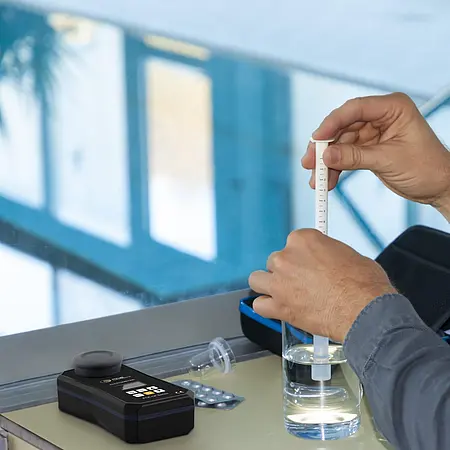

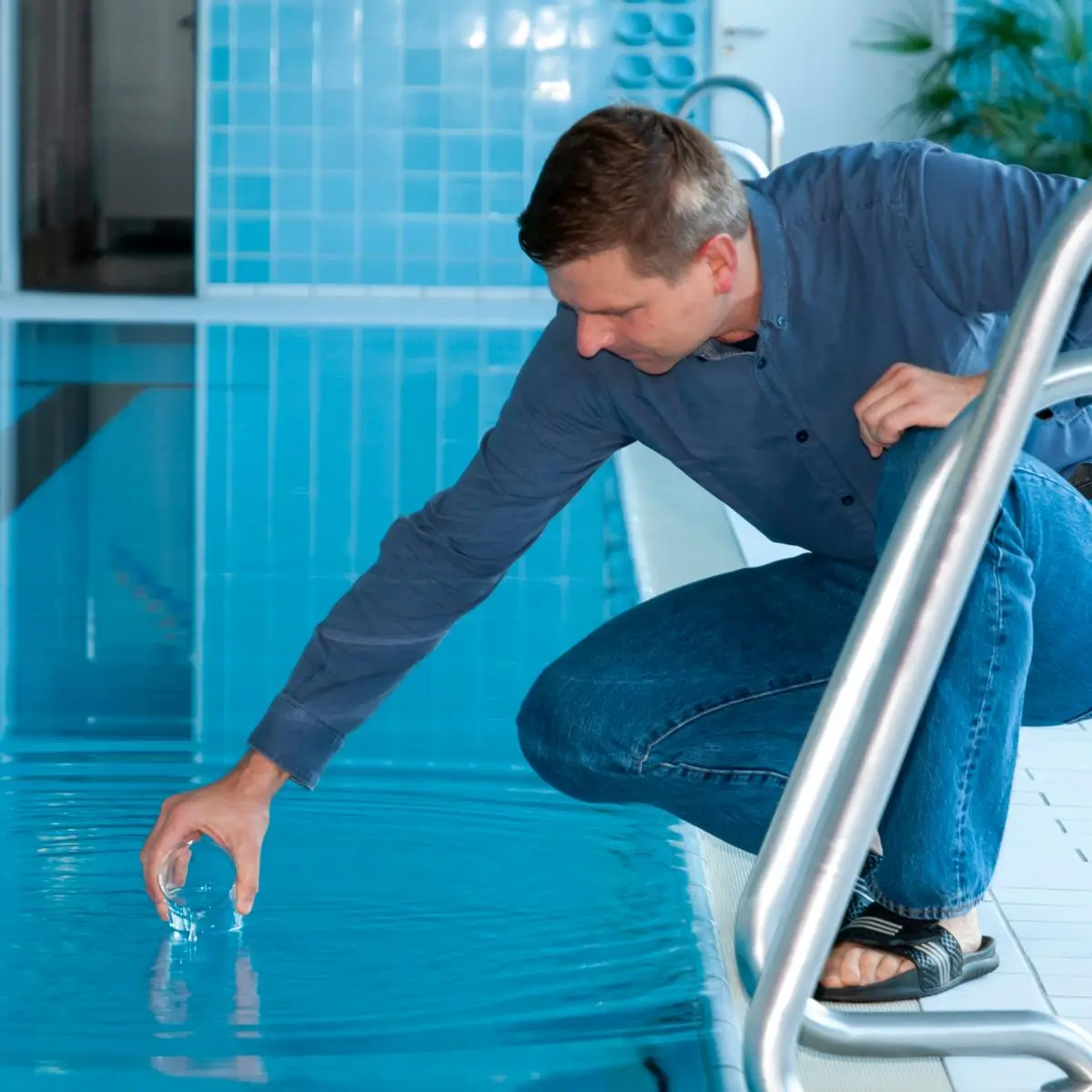

The water hardness tester is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the water hardness tester. With this water hardness tester, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the water hardness tester, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the water hardness tester generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

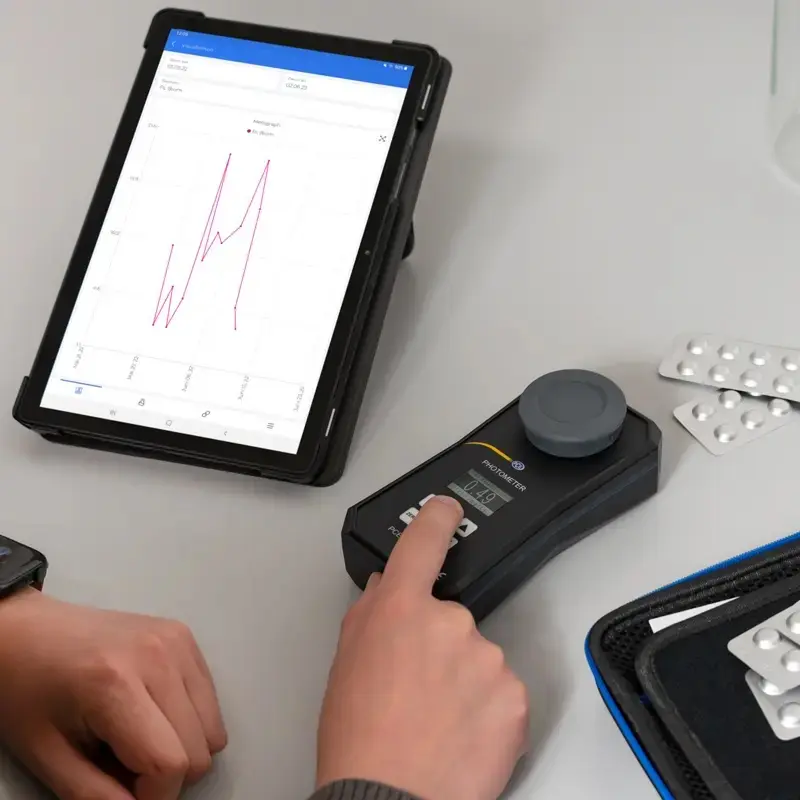

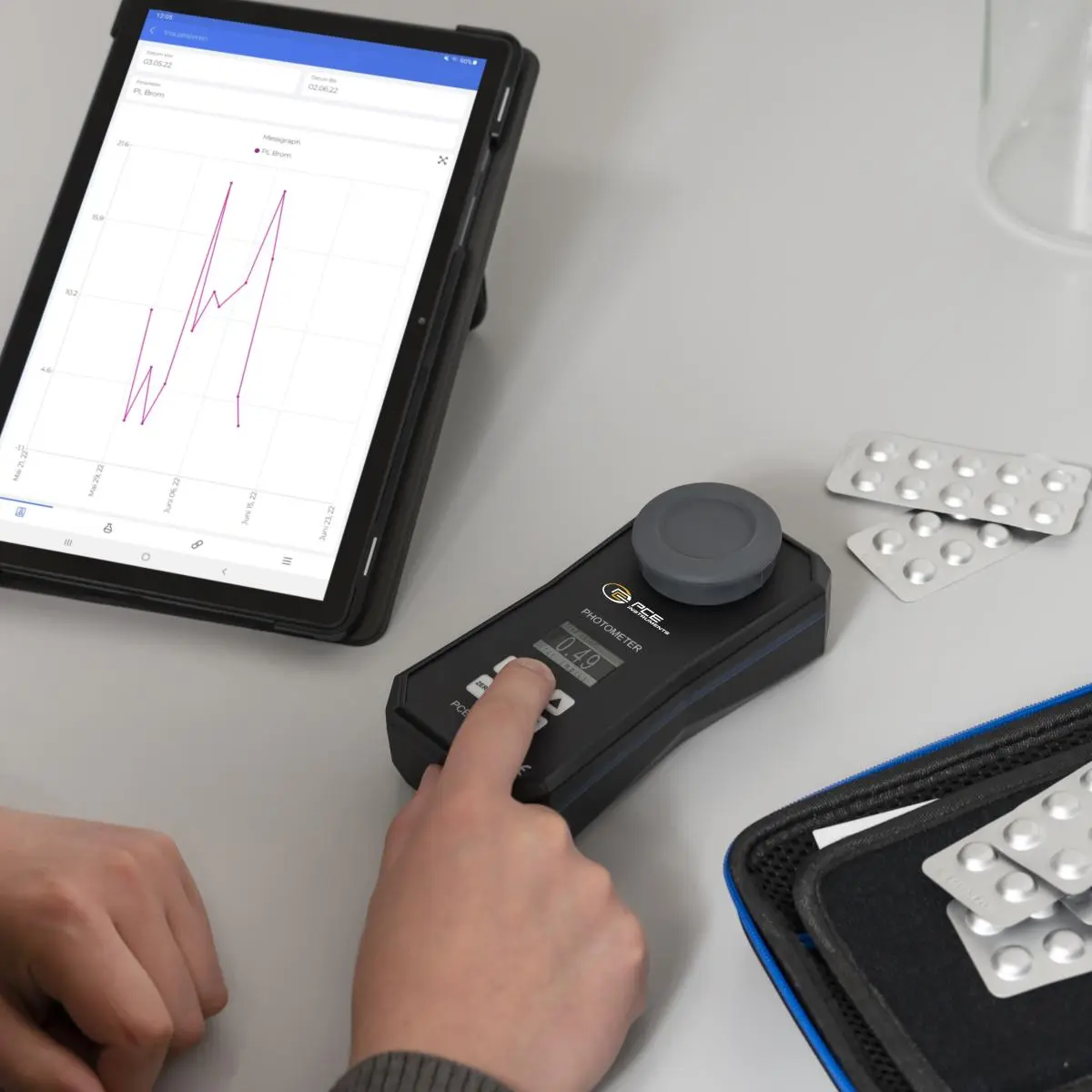

Each measurement is automatically saved by the water hardness tester. The stored measured values ​​can then be read out, for example, via a mobile device via the Bluetooth interface built into the water hardness tester. A free app is available to analyze the measured values ​​from the water hardness tester. It is also possible to establish a Bluetooth connection between the water hardness tester and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the water hardness tester, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the water hardness tester is also free of charge.

Highlights


- Up to 7 selectable parameters
- Bluetooth connection with app

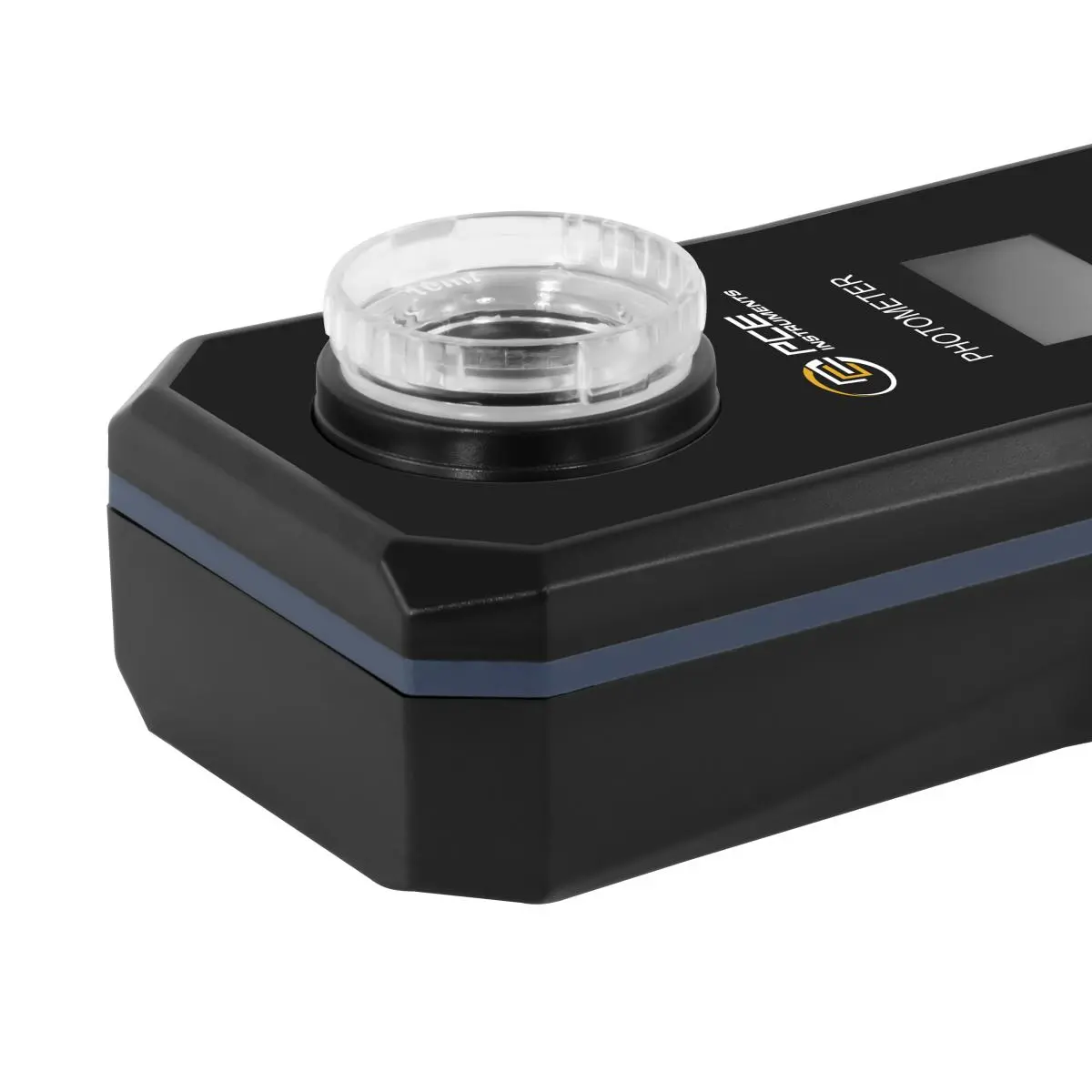

- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)

Specification

Alkalinity
Measuring range     0… 30 mg / l
    30… 60 mg / l
    60… 100 mg / l
  100… 200 mg / l

Accuracy   3 mg / l
    7 mg / l
  12 mg / l
  18 mg / l

Resolution   1 mg / l

Chlorine
Measuring range 0.00 ... 2.00 mg / l
  2.00 ... 3.00 mg / l
  3.00 ... 4.00 mg / l
  4.00 ... 8.00 mg / l

Accuracy 0.10 mg / l
  0.23 mg / l
  0.75 mg / l
  1.00 mg / l

Resolution 0.01 mg / l

Cyanuric acid
Measuring range     0… 15 mg / l
    15… 50 mg / l
    50… 120 mg / l
  120… 160 mg / l

Accuracy   1 mg / l
    5 mg / l
  13 mg / l
  19 mg / l

Resolution   1 mg / l

pH
Measuring range 6.50 ... 8.40 pH
Accuracy 0.11 pH
Resolution 0.01 pH

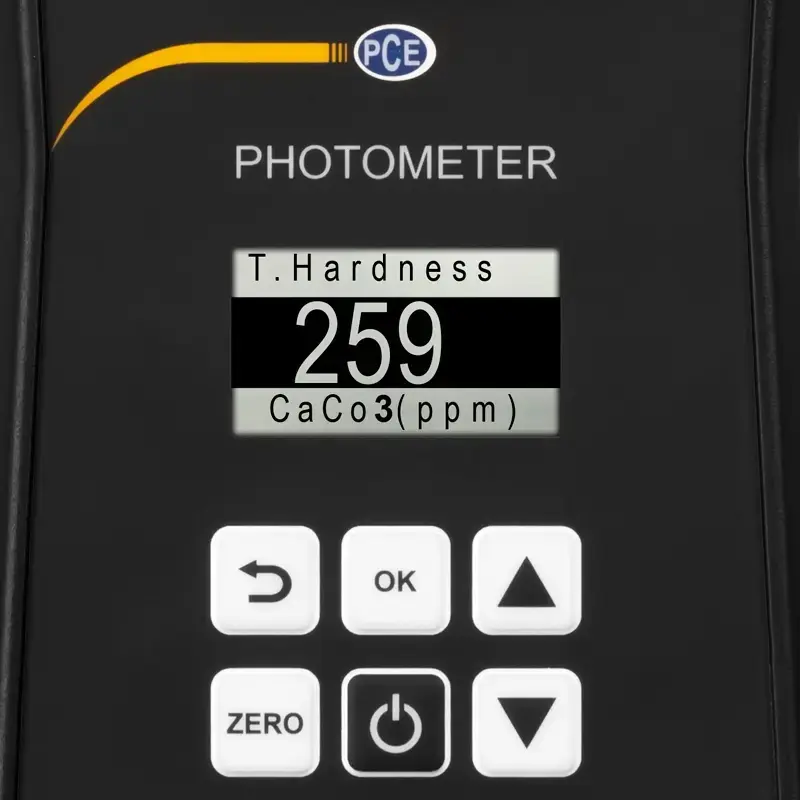

Total hardness
Measuring range     0… 30 mg / l
    30… 60 mg / l
    60… 100 mg / l
  100… 200 mg / l
  200 ... 300 mg / l
  300 ... 500 mg / l

Accuracy   3 mg / l
    5 mg / l
  10 mg / l
  17 mg / l
  22 mg / l
  58 mg / l

Resolution   1 mg / l

Calcium hardness
Measuring range     0… 25 mg / l
    25… 100 mg / l
  100 ... 300 mg / l
  300 ... 500 mg / l

Accuracy   8 mg / l
  22 mg / l
  34 mg / l
  45 mg / l

Resolution   1 mg / l

Further specification

Calibration Zero point calibration
Light source
503 nm / 570 nm / 620 nm LED
Light detector Photodiode
Power supply
4 x 1.5V AA batteries
Dimensions of the cuvette 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Menu languages English, German, French, Spanish and Italian
Storage Automatic storage of measured values ​​and readout
Storage space 256 values
Interface Bluetooth connection with app and PC software
Automatic shutdown After 300 seconds of inactivity
Operating conditions 5… 45°C, 20 ... 90% RH non-condensing
Storage conditions 5… 45°C, 20 ... 90% RH non-condensing
Dimensions 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in
Weight 230 g / < 1 lb

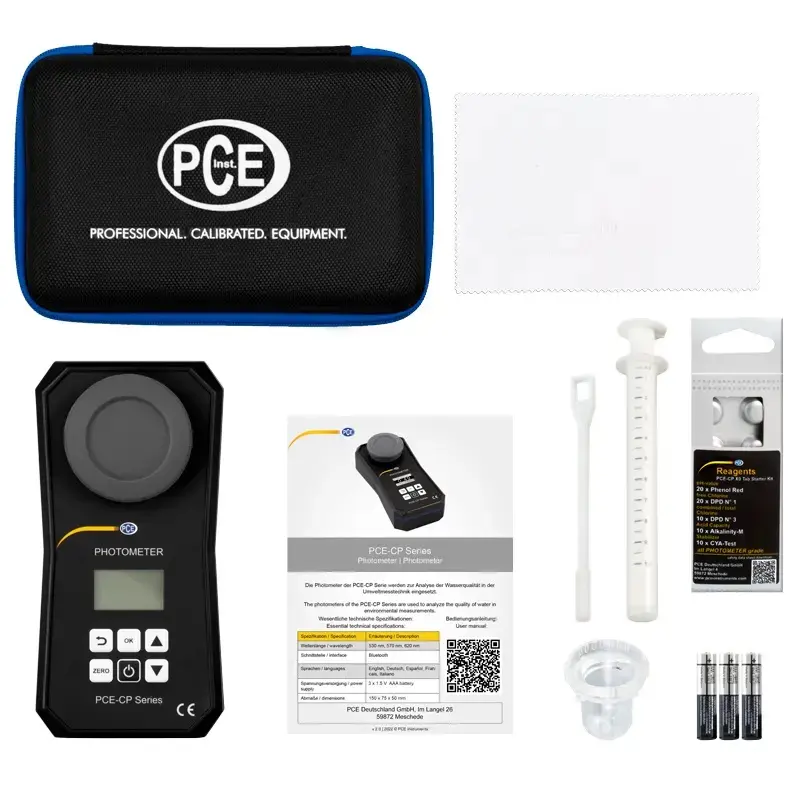

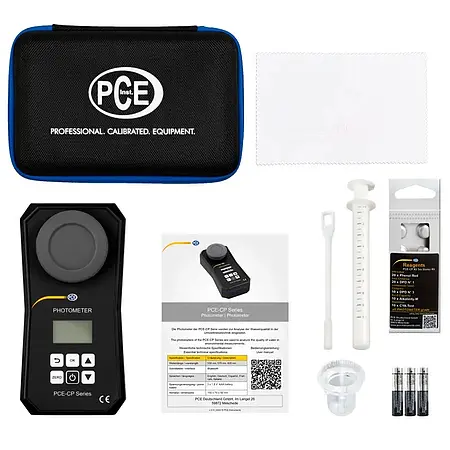

Delivery Scope

1 x Multi-parameter water hardness tester PCE-CP 20 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
