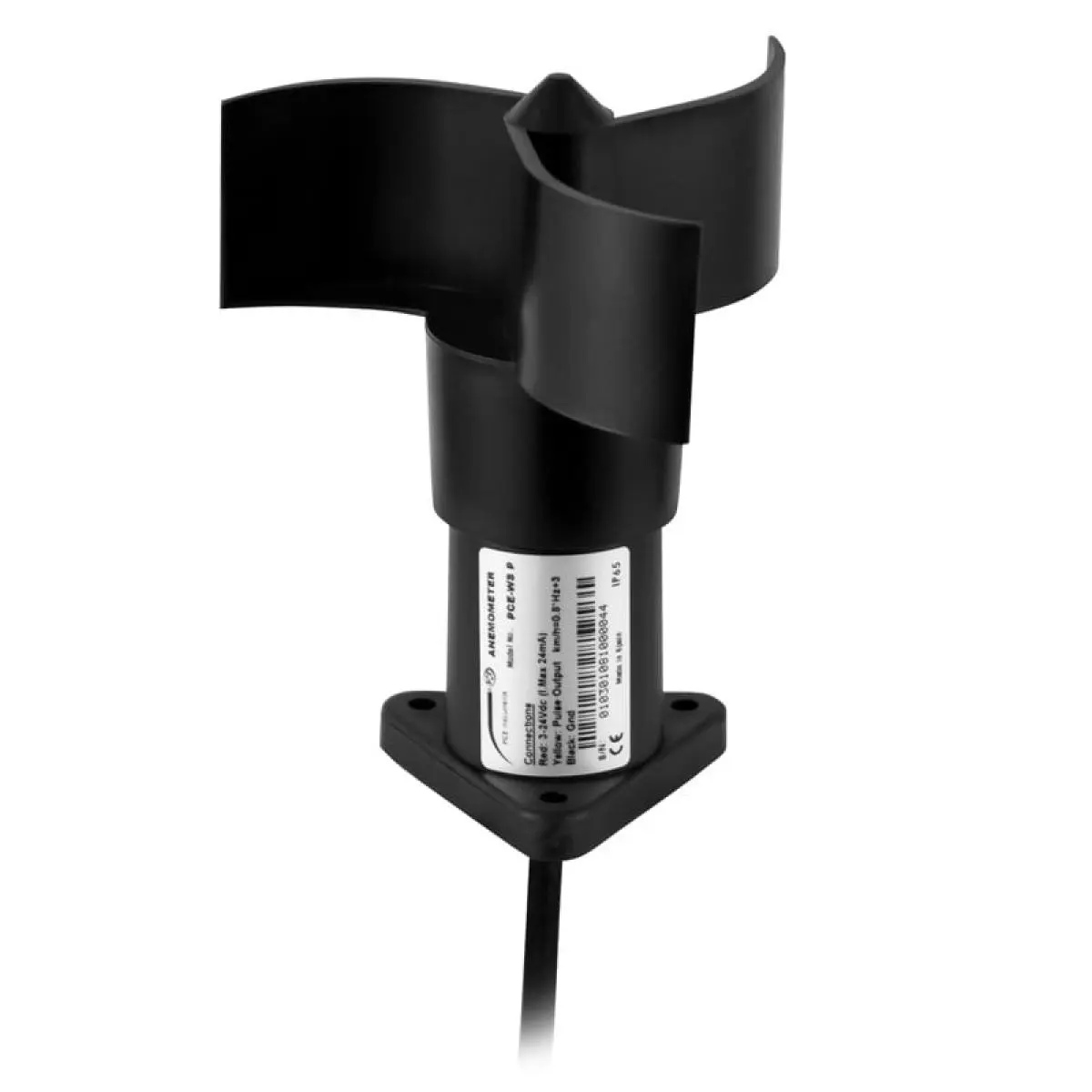

Weather Station PCE-WS P

Order no.: PCE-WS P

GTIN (EAN): 4250348722447

Accessory

Optional Mounting Kit PCE-WS/MOUNT

₹11,308.00

Description

Robust Weather Station for fixed installation / various output signals /

for wind warning systems, building services and building automation

The Weather Station impresses with its compact design and various output signals. The Weather Station can be used for applications in warning technology, building automation and home technology. Depending on the Weather Station, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Weather Station is designed as a star, so that operation independent of the wind direction is guaranteed.

The Weather Station is made of robust plastic and is therefore resistant to rust and corrosion. The Weather Station is also protected to IP65. The design of the Weather Station also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Weather Station has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Weather Station is optionally available.

Highlights

- Robust PA plastic housing

- IP 65 protection

- mA, V, pulse or Modbus output

- Long lifetime

- Direct measurement of wind speed

- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range	2.62 ... 164.04 ft/s, 0.8 m / s ... 50 m / s
Measurement from	≤2.62 ft/s, 0.8 m / s
Output	pulses (reed contact)
Accuracy	<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
	> 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage	12 ... 30 V DC
Operating temperature range	-4 ... +185 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Maximum wind speed	180.45 ft/s, 123 mph, 55 m / s
Electrical connection	65 ft, 20 m connection cable
Protection class	IP65

Delivery Scope

1 x Weather Station PCE-WS P

1 x instruction manual

Downloads

Manual

Datasheet
