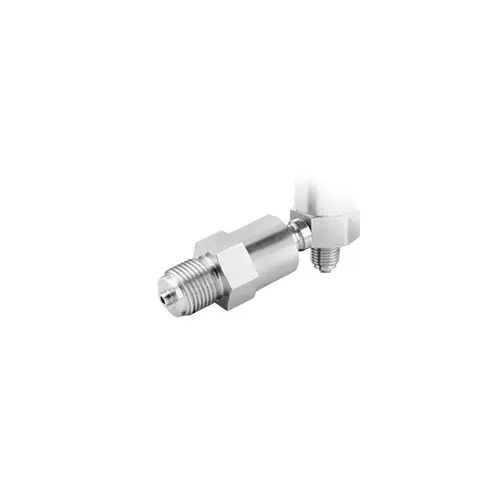

Single Pressure Sensor PCE-DMM 60-SENS

Order no.: PCE-DMM 60-SENS
GTIN (EAN):
₹14,396.05
₹16,987.34
price ex. (VAT / delivery)
PCE-DMM 60-SENS

Description

The pressure sensor and the pressure transmitter can be purchased without a display. This is always an advantage if the pressure to be checked sporadically. Thus, the sensor can remain permanently installed in the system and the display can be taken from measurement point to measurement point with the test engineer.

Specification

Nominal pressure relative in Bar 0.1 0.16 0.25 0.40 0.60 1 1.6 2.5 4 6
Nominal pressure absolute in bar       0.40 0.60 1 1.6 2.5 4 6
Overpressure in bar 0.5 1 1 2 5 5 10 10 20 40
Burst pressure in bar 1.5 1.5 1.5 3 7.9 7.5 15 15 25 50

Nominal pressure relative / absolute in bar 10 16 25 40 60 100 160 250 400
Overpressure in bar 40 80 80 108 210 210 600 1050 1050
Burst pressure in bar 50 120 120 210 420 420 1000 1250 1250

Negative pressure -1 ... 0 bar; Overload: 5 bar; Burst pressure: 7.5 bar
Vacuum resistance P ≥ 1 bar: unlimited
General Specifications
Accuracy ≥ 0.4 Bar: ≤ ± 0.05 % FSO
< 0.4 Bar: ≤ ± 0.125 % FSO
Measuring rate 1/s or 2/s (adjustable)
Long term stability < ±0.1 % FSO
Media

gas
water
Temperature ranges Fluid: -10 ... 55 °C
Operating: -10 ... 55 °C
Storage: -20 ... 70 °C
Pressure port / housing Stainless steel 1.4404
Seal FKM
Diaphragm Stainless steel 4.4435
Parts exposed to liquid Pressure port, seals, diaphragm
Display Graphic LCD
Digit height 5.5 mm (gauge)
Reading: max. 7 points, depending on the pressure range
Temperature display, time, 100-segment bar graph,
Adjustable backlighting
Memory Storage of pressure units and sensor temperature (min, hrs., daily for a set time) max. 8,500 values modes: cyclical, linear measurement interval adjustable
Power supply 3 x 1.5V Duracell Plus battery, AA
Battery life 1.5 years standby
Protection IP67
Weight ca. 680 g / 1.5 lbs




Delivery Scope

1 x Pressure Transmitter PCE-DMM 60-SENS
