₹212,025.00

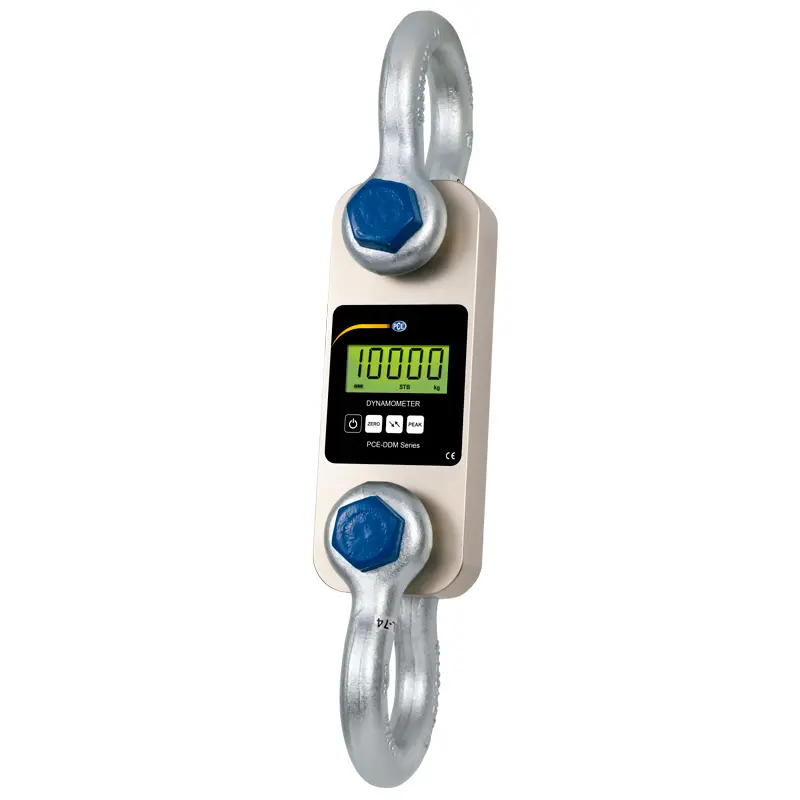

Hanging Scale
Measurement range up to 10 t / Peak hold function / Includes shackles and protective carrying case
The PCE-DDM 10WI Hanging Scale is the ideal tool for weighing big loads and for measuring strong tensile forces. The PCE-DDM 10WI Hanging Scale is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Hanging Scale is a compact portable device with a low net weight. Interesting functions of the Crane Scale are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.
| Measuring range | 10000 kg / 100 kN / 22046 lbs |
| Resolution | 5 kg / 50 N / 11 lbs |
| Min. range | 100 kg / 220 lbs |
| Weight (with shackle) | 11 kg / 24 lbs (25 kg / 55 lbs) |
| Accuracy | ±0.1 % of measurement range |
| Tare range | Max. 20 % of measurement range |
| Display | LCD with 22 mm / 0.9 in digit height |
| Units of measurement | kg / t / lb / N / kN |
| Sampling rate | 2.5 Hz |
| Operating temperature | -10° C ... +40° C / +14° F ... +104° F |
| Power supply | 3 x 1.5 V AA batteries |
| Operating time | Approx. 50 hours |
| Technical drawing | ||||||||||||||||||
 |
||||||||||||||||||
|

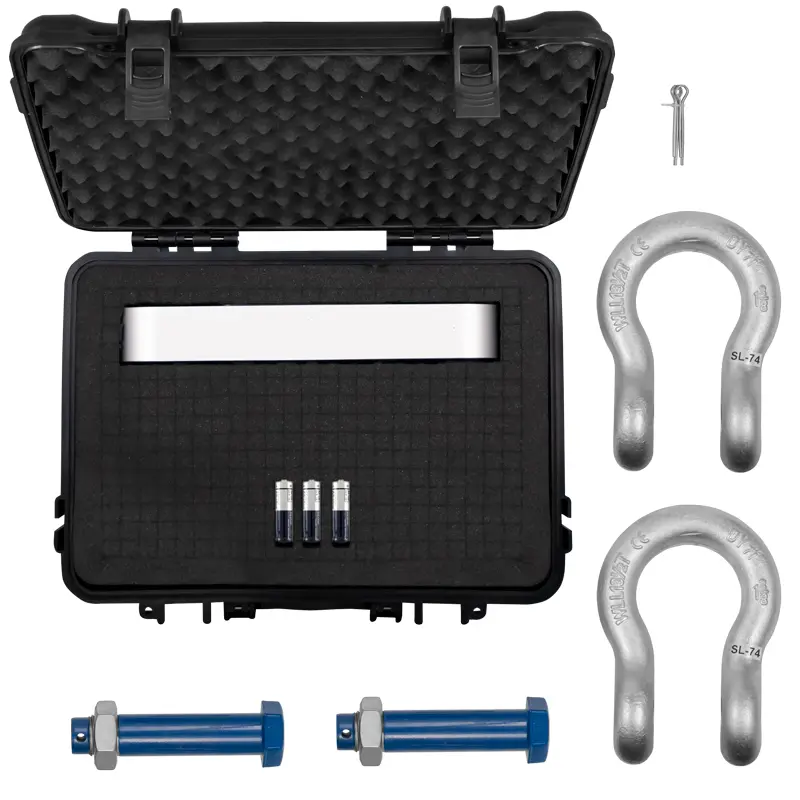

1 x PCE-DDM 10WI-ICA Hanging Scale

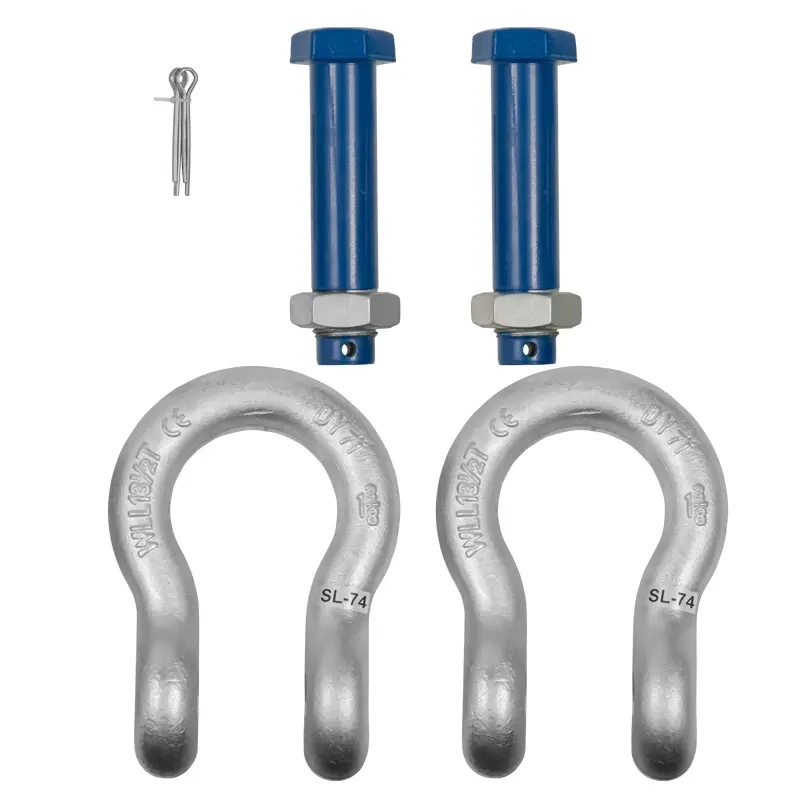

2 x shackles
1 x carrying case
3 x batteries
1 x user manual

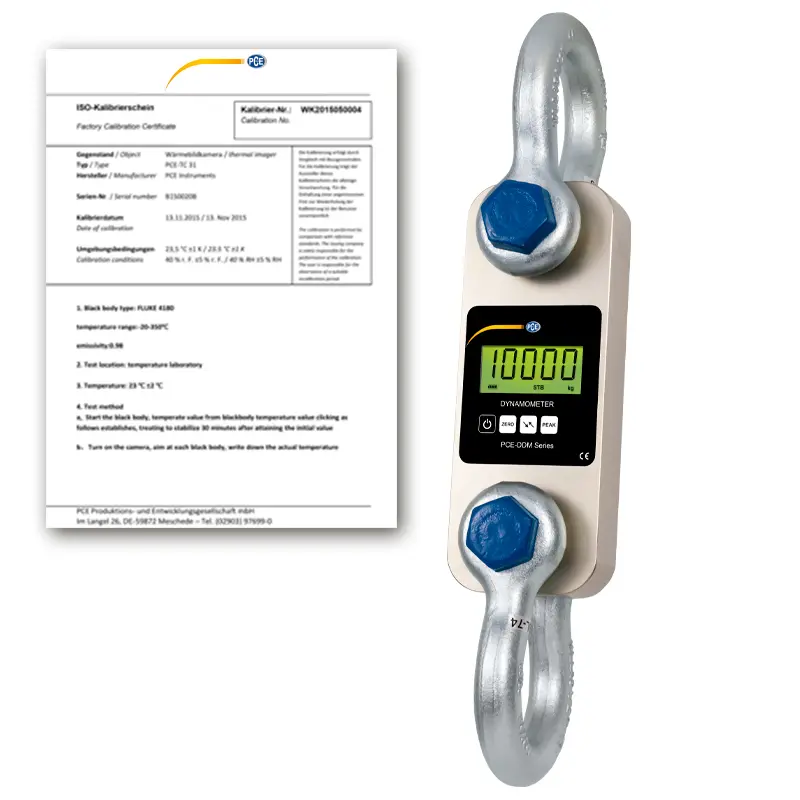

1 x ISO calibration certificate
