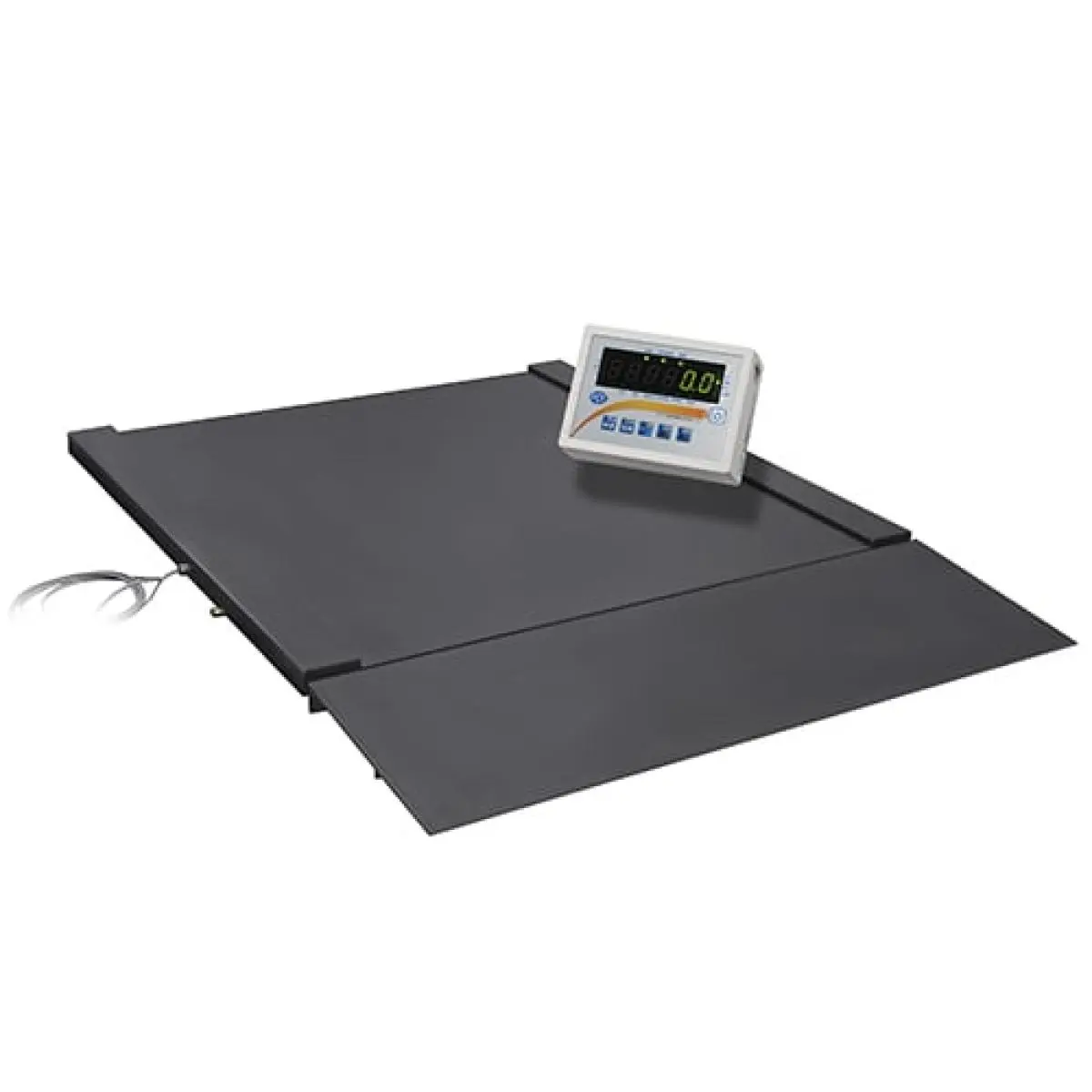

Industrial Scale PCE-SD 1500

Order no.: PCE-SD 1500
GTIN (EAN): 4250348712615
₹535,516.00
₹631,908.88
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348712615
PCE-SD 1500
Delivery time: up to 10 working days

Description

Verifiable throughout weighing up to 1,500kg / Resolution 0.5 kg / Low overall height / Includes a ramp / Bi-directional RS-232 Interface / Summing function / Piece counting function / Tolerance weighing / Optional 4-20 mA, 0-10 V or OC switching outputs

The calibrated industrial scale is ideal if you do not want to put a scale into the ground. Simply place the industrial  scale in the room, fix the industrial scale to the ramp with the fixing plates included in the delivery, connect the operating terminal to the socket and you can start weighing. We carry out the verification of the industrial scale before shipping, so the industrial scale can be used immediately in the custody of goods traffic. The industrial scale have a small height of only about 5 cm and allow easy loading even with heavy goods. A drive-on ramp is included in the delivery contents, and a second ramp can be ordered as an option. The display of the industrial scale has a bracket which allows it to be mounted on the wall or on the table, optionally a tripod is also available for the industrial scale. The functions of the industrial scale are: piece count function, max. min weighing, recipe weighing, percentage weighing, average weight determination, summing function, tare weight memory and adjustable RS-232 interface.

Highlights

- Piece counting function
- Percentage % comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value can be stored
- Tolerance detection weight min / ok / max
- Multiple weighing summing
- Average weight determination
- Recipe weighing
- Adjustable bidirectional RS-232 interface
- Printer languages line mode and EPL2
- Adjustable automatic shutdown
- Gross / net key on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA.

Specification


Model

Weighing range

Resolution

Min. *

Weight

Usable area

PCE-SD 1500

1.500 kg

0.5 kg

10 kg

250 kg

1250 x 1500 mm

*The minimum load is the load from which the calibration authority checks the accuracy. The verifiable scale also indicates smaller weights, but these must not be used in legal traffic.
Certification Certified according to class M III (certified delivered)
Tare range over the full weighing range
Settling time <4 s
Display LED with 20 mm digit height
Interface RS-232 bi-directional
Optional: USB / LAN / 4-20 mA / 0-10 V / OC
Calibration external (not in the calibrated throughput scale)
Operating temperature -10°C ... +40°C
Power supply ~230V 50Hz 8VA (safety plug)
Protection Display IP 54 / Cell IP 67

Delivery Scope

1 x Industrial Scale PCE-SD 1500
1 x display
1 x access ramp
4 x floor fixing plates
1 x manual
