Livestock Scale PCE-SD 150C

Order no.: PCE-SD 150C
GTIN (EAN): 4250348712349
₹90,753.00
₹107,088.54
Verification for Trade / conformity assessment
price ex. (VAT / delivery)
:
4250348712349
PCE-SD 150C
Delivery time: 5-7 working days

Description

Calibratable livestock scale / platform 400 x 500 mm or 500 x 600 mm  / bi-directional RS- 232 interface /
item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0 - 10 V optional

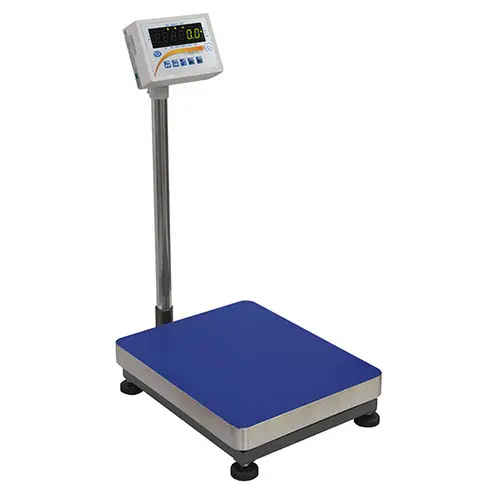

The calibratable livestock scale is a solid calibratable platform scale that is reasonably priced. The calibration of the animal weighing scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable animal weighing scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable animal weighing scale also has pedestals that can be alternated in their height, assuring a firm stand.

The navigation display of the livestock scale is placed on a stand mounted within a reachable height and fixed to the animal weighing scale. In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable animal weighing scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable animal weighing scale are: e.g. analogue output 4 ... 20 mA or 0 ...  10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.

Highlights

- Calibratable (delivery incl. calibration)
- Bi-directional RS-232 interface
- Unit counter
- Summation function
- Max. / min. display
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / net function
- Tare data storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

Specification

Technical specifications of the animal weighing scale PCE-SD C series
Edition Measurement range Accuracy Calibration value minimal load* platform size

PCE-SD 30C

30 kg 10 g 10 g 200 g

400 x 500 mm

PCE-SD 60C

60 kg 20 g 20 g 400 g

400 x 500 mm

PCE-SD 150C

150 kg 50 g 50 g 1 kg

400 x 500 mm

PCE-SD 300C

300 kg 100 g 100 g 2 kg

400 x 500 mm

PCE-SD 33C

30 kg 10 g 10 g 200 g

500 x 600 mm

PCE-SD 63C

60 kg 20 g 20 g 400 g

500 x 600 mm

PCE-SD 153C

150 kg 50 g 50 g 1 kg

500 x 600 mm

PCE-SD 303C

300 kg 100 g 100 g 2 kg

500 x 600 mm

* the minimal load is defined here as the load above which the calibration authorities test their accuracy. The calibratable scale shows even lower weights, but these are not allowed to be used for custody transfer.
Calibration Class M III (is delivered calibrated)
Unit Counterthrough counting by reference value
Tare functionMultiple tare function for whole measurement range
InterfaceRS-232 bi-directional
Description of interface
RS-485, LAN and USB optional
DisplayLED with 20 mm digit height
Power Supply12 V / 1.4 A incl. adapter
IP CodeIP 54
Operational temperature- 10 °C ... + 40 °C

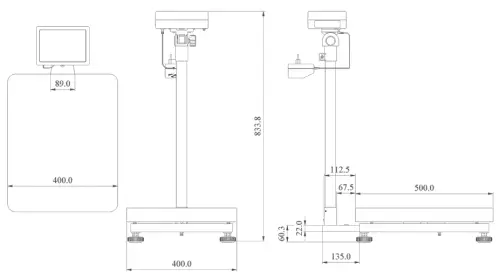

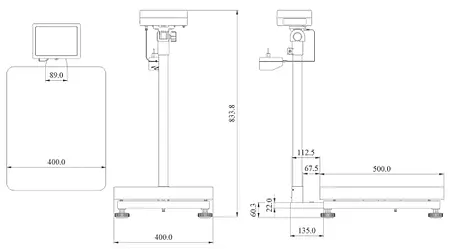

Diameters400 x 620 x 850 - 870 mm
Weightapprox. 12 kg

Delivery Scope

1 x Livestock Scale PCE-SD 150C incl. calibration
1 x adapter
1 x instruction manual
