Description

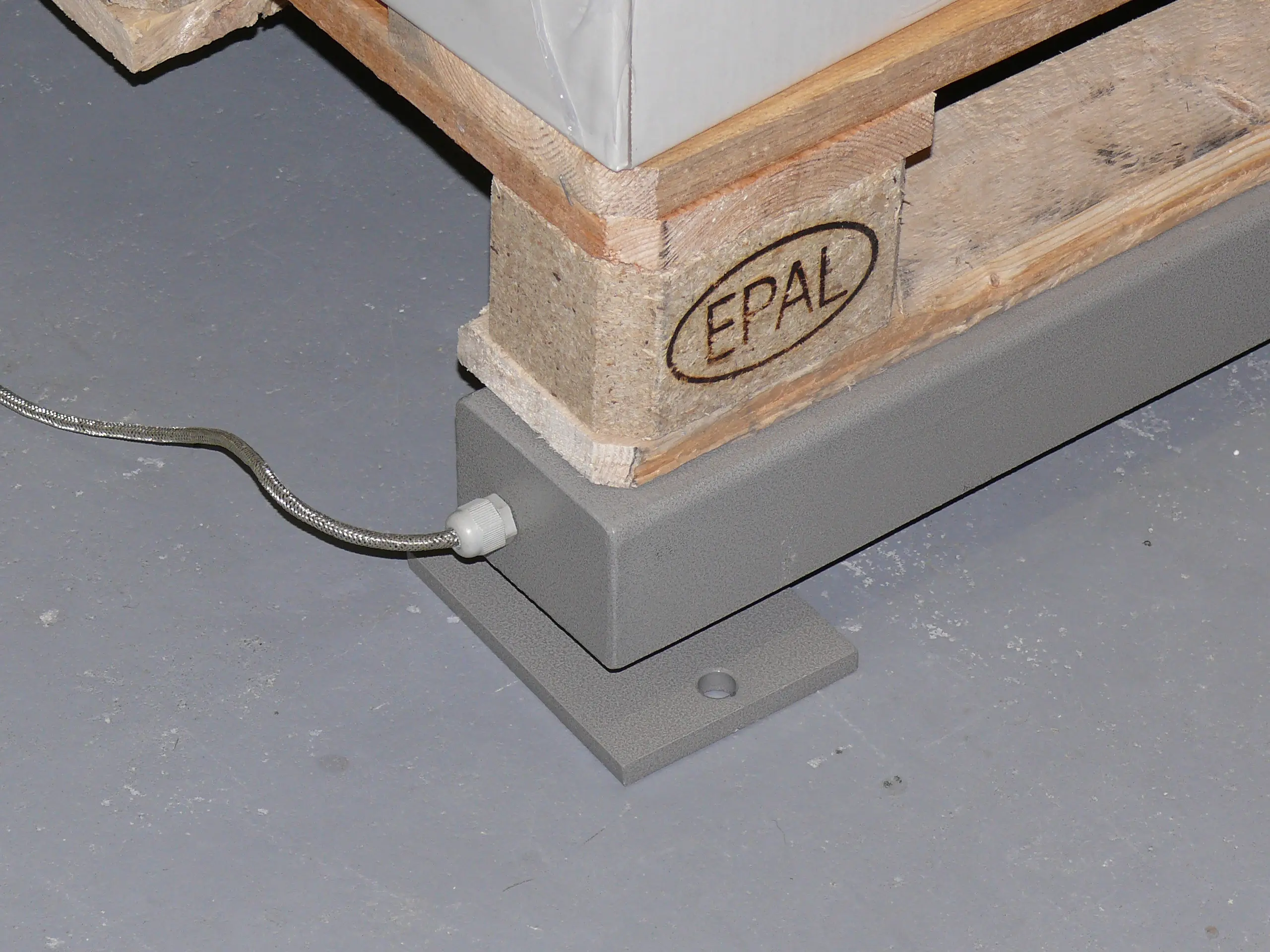

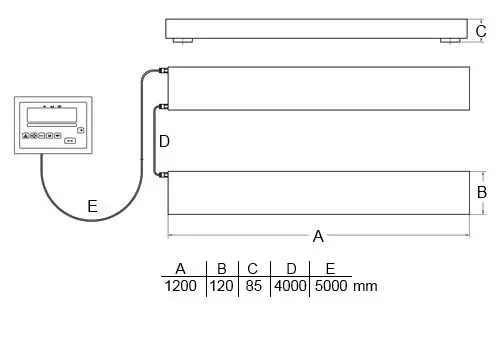

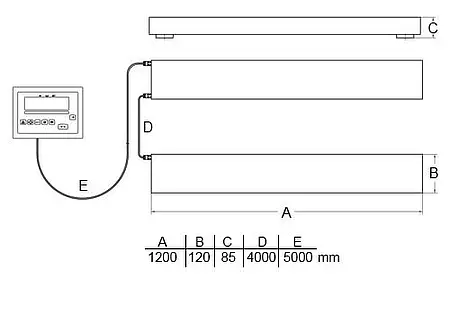

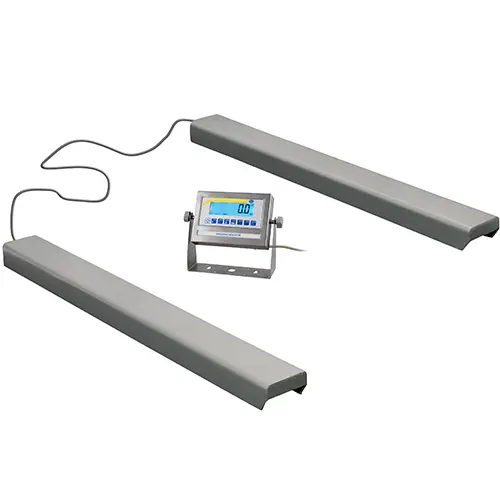

PCE-SW 3000N is a portable battery-powered industrial pallet scale or floor scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the weighing beams, allowing for wall mounting.
Highlights
- Bi-directional RS-232 interface for PC or printer connection
- Multiple TARE for whole weighing range
- Threshold, sum-up and counting functions
- 6V rechargeable battery inside display
- Ingress protection rating: IP 54

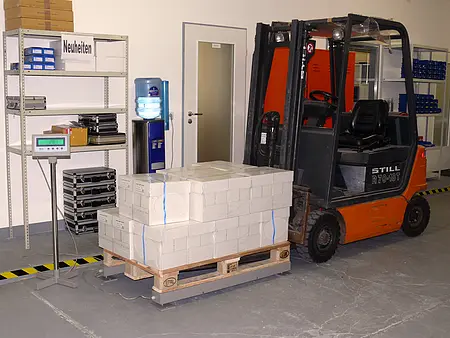

- Ideal for use in warehouse, storage facility, shipping, receiving, loading dock, logistical, supply chain, retail, inventory and stock room applications
- Software, USB to RS-232 adapter and ISO calibration certificate sold separately - see accessories for details
Specification
| Weighing range |
3000 kg / 6613 lb (=3.3 T) |
| Resolution |
1 kg |
| Accuracy |
±4 kg |
| Tare range |
Multiple tare across entire weighing range |
| Display |
LCD with 25 mm / 1" digit height |
| Cable length to display |
ca. 5 m / 16 ft |
| Interface |
Bi-directional RS-232 |
| Calibration |
Multi-point calibration possible |
| Power supply |
6V battery installed in the display (BAT-6V-4.5Ah) |
| Housing |
Scale: painted steel / Display: stainless steel |
| Protection |
IP 54 |
| Environment |
0 ... +40 °C / +32 ... +104 °F / 10 ... 80% r.H. |
| Weight |
ca. 55 kg / 121.3 lb |
Delivery Scope
1 x PCE-SW 3000N industrial pallet scale (includes 2 x weighing beams and 1 x display)
1 x battery charger
1 x user manual
