Reasonably
priced Platform Scale up to 30 kg / accuracy down to 0.05 g /
operation by battery possible / bi-directional RS232 interface /

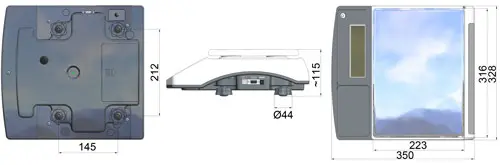

platform size 300 x 210 mm / optionally purchasable: LAN, 4-20
mA, 0-10 V or 3 potential-free contacts

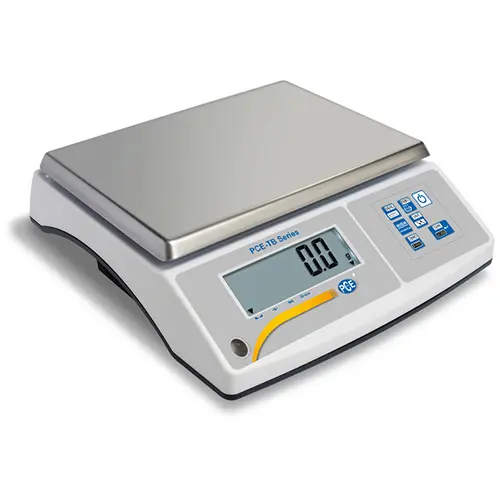

The Platform Scale PCE-TB series stands out due to its multifunctional
range of application. But not only the large range of functions of the Platform Scale is outstanding, the communication options of the Platform Scale are interesting as well. The Platform Scale features a
bi-directional RS-232 interface and USB interface. Thus the Platform Scale provides a very good foundation for every programmer
(description of interface in instruction manual). The Platform Scale
sends the information via keypress automatically to a computer either
every time the weighing value is stable, continuously (approx. 10 values
per second) or on demand. Another option to integrate the Platform Scale into a system would be the optionally purchasable interfaces,
e.g. LAN-, analogue output 4 ... 20 mA or 0 ... 10 V as well as
the weightlimit function with three potential-free contacts. Interesting
functions of the Platform Scale are item-counting, percentage -
calculation, formulation weighing, animal weighing, statistical
weighing, summation function, threshold function, various weighing
functions etc. The Platform Scale can operate by battery as well as via
adapter, and is also applicable for mobile weighing tasks. Via the
optional ProCell software you can import the weighing data of the Platform Scale into any system, where the data can be fed-in by
keypress, such as Excel, Word, DHL, SAP etc. since the software
simulates a manual data feed-in.
