Vehicle Weighing Pads PCE-WWSB8-S

Order no.: PCE-WWSB8-S
GTIN (EAN):
₹393,576.00
₹464,419.68
price ex. (VAT / delivery)
PCE-WWSB8-S
Delivery time: 10 - 14 days
5 kg

Description

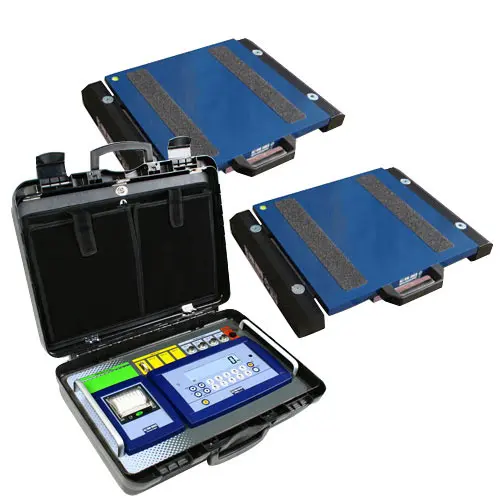

PCE-WWSB8-S Vehicle Weighing Pads
Portable platform scale with display and printer / Designed for weighing trucks and other vehicles / Sum function for calculating vehicle weight plus trailer

PCE-WWSB8-S are vehicle weighing pads, portable weighbridge or floor scale consisting of two weighing platforms and a carrying case with a built-in display and printer. Featuring connections for up to four weighing platforms (additional weighing platforms sold separately - see accessories), this floor scale calculates the total weight, wheel load and axle load of a vehicle. The floor scale also has a sum function for calculating vehicle weight plus trailer.

The load cell of the floor scale has an IP65 ingress protection rating and is suitable for outdoor use. The display of the floor scale is located inside the carrying case along with a printer. The digit height on the display is 25 mm / 0.98". Printouts include the time and date.


Highlights

- Portable platform scale designed for weighing trucks and other vehicles
- Calculates total weight, wheel load and axle load
- Sum function for calculating vehicle weight plus trailer
- IP65 ingress protection rating on load cell for outdoor use
- Dimensions per weighing platform: 300 x 400 x 58 mm / 11.8 x 15.7 x 2.3"
- Display and printer are built into the carrying case
- Display digit height: 25 mm / 0.98"
- Printouts feature date / time stamp
- Rechargeable battery

Specification

Platform specifications

Weighing per platform (wheel load)

8000 kg / 17636 lbs / 8.8 T

Readability

5 kg

Repeatability

10 kg

Dimensions per platform 300 x 400 x 58 mm / 11.8 x 15.7 x 2.3"
Protection class of load cells IP65
Housing Heavy-duty aluminum
Connection cable length 10 m / 32.8'
Weight per platform 14.5 kg / 31.97 lbs
Overall dimensions 400 x 410 x 58 mm / 15.7 x 16.1 x 2.3"

Display specifications

Display LCD with backlight
Digit height 25 mm / 0.98"
Power supply Rechargeable battery
Operating time Approx. 10 hours of continuous use at full charge
Charging time Approx. 8 hours

Connections

Up to 4 weighing platforms
Printouts All weight values including time and date
Weight 5 kg / 11.1 lbs
Dimensions 325 x 460 x 170 mm / 12.8 x 18.1 x 6.7"

Delivery Scope

2 x weighing pads
1 x carrying case with built-in display and printer
1 x user manual
