Weighing Beam PCE-TPWLKM (calibrated)

Order no.: PCE-TPWLKM
GTIN (EAN): 4250348701893
1 pc.

Description

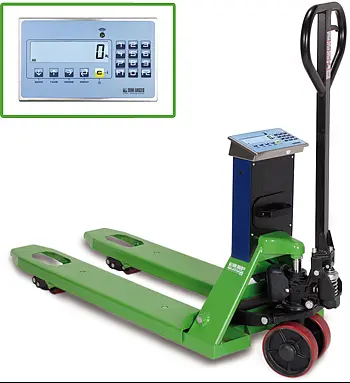

 PCE-TPWLKM Weighing Beam (Pallet Truck Scale. class III)
Weighing Beam with resolution 0.5 kg to 1000 kg and 1 kg to 2000 kg / accuracy: 0.1% max. 2000 kg, IP 68, stainless steel screen, interchangeable and rechargeable battery, operating time approx. 80 h
The PCE-TPWLKM Weighing Beam is a verified forklift that integrates a scale of two ranges. It is  verified by Trade Class M III, with a weight range up to 2000 kg. The Weighing Beam has a resolution of 0.5 kg to 1000 kg and between 1000 kg and 2000 kg a resolution of 1kg. The accuracy of the Industrial Scale is very high, as the tolerance value is 0.1% of the weighed value. This accuracy is confirmed by the verification. The Weighing Beam has a high contrast LCD display, with 25 mm digits, and it is integrated in a stainless steel housing with IP 68. Therefore, the Weighing Beam is ideal to use in adverse conditions. The internal battery of the Weighing Beam  has an operating time of approx. 80 h. There is the possibility of equipping the Industrial Scale with a spare battery, which lets you work without interruption. The Weighing Beam wheels are coated with polyurethane, which allows them to slide better. The highlight of the Weighing Beam is the many features it has,  net / gross weighing, addition of weights, weighing with limit value monitoring, weighing in percent, piece counting and display of the maximum value. This lets you use the Weighing Beam in trade deals that require a verified scale, but also for applications and internal weights. Transport and weigh your goods during shipment in the cargo

Highlights

- Verifiable according to Trade Classl
M III Two weighing ranges for high accuracy
- Accuracy of ±0,1 % of the weighed value
- IP 68 protection type
- 25 mm stainless steel screen
- Automatic substraction of the tare, manual introduction of the tare
- Piece counting
- Net / gross counting
- Percentage weighing
- Tolerance range weighing
- Addition function
- Auto swtich off to save battery
- Accumulator operated
- Low wears of wheels
- RS-232 port for printing

Specification

Weighing range0 ... 2000 kg
Readibility0,5 kg to 1000 kg / 1 kg to 2000 kg
Verification value0,5 kg to 1000 kg / 1 kg to 2000 kg
RTare range100 %
Unit weightmín. 2 kg
Response time< 10 s
Weighing unitkg / lb
DisplayLCD,  25 mm digits stainless steel housing
Maximum overload200 %
Operating temperature-10 ... +40 °C
Power supplyinternal accumulator, 6 V, 4,5 Ah
Housingmethal (thermolacquered)
TProtection typeIP 68
Dimensions1170 x 550 x 85 mm
Weight125 kg

Delivery Scope

1 x PCE-TPWLKM Weighing Beam
1 x accumulator
1 x charger
1 x instructions of use
Attention: the Weighing Beam is sent verified.
