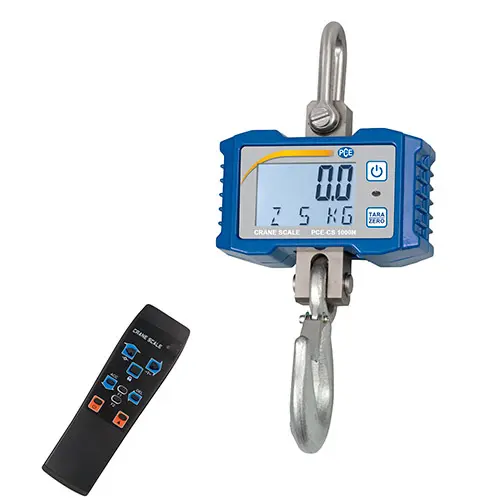

Weighing Hook PCE-CS 1000N

Order no.: PCE-CS 1000N
GTIN (EAN): 4250348712097
₹30,787.00
₹36,328.66
price ex. (VAT / delivery)
:
4250348712097
PCE-CS 1000N
Delivery time: 1-2 working days

Description

Light weighing hook for in-house use / Summing function / Hold function / Gross - Net Weighing / Freely adjustable weighing unit / Weighing ranges up to 1,000 kg

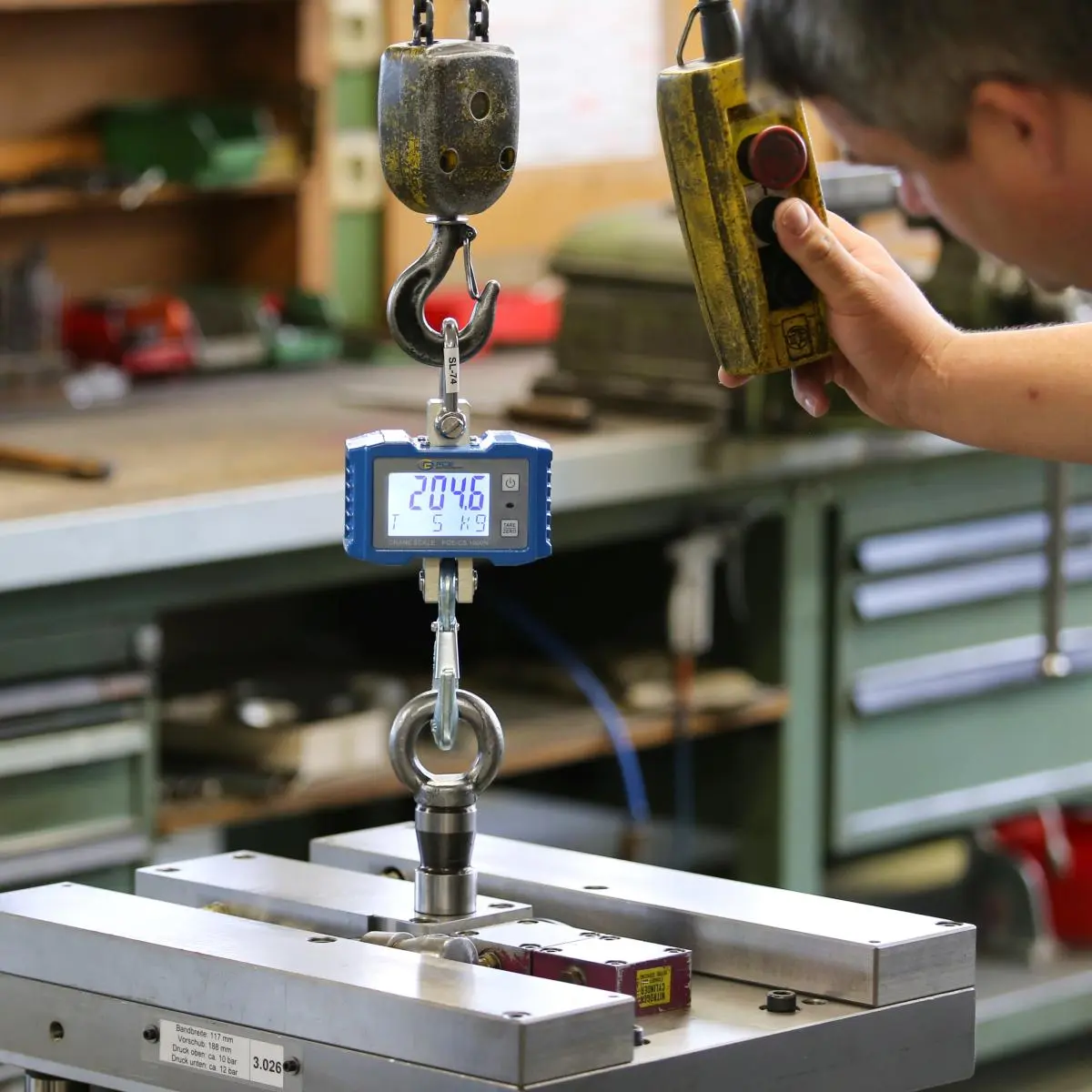

The weighing hook PCE-CS 1000N is a compact, mobile crane scale for in-house applications. The robust aluminum housing of this weighing hook allows weighing in even the harshest industrial environments. The weighing hook is operated with three commercially available 1.5 V AA batteries, which allow a continual operating time of approx. 65 hours. The display of the weighing hook is a backlit LCD display with a digit height of 20 mm.



The background lighting of the weighing hook can be regulated and thus help to extend the operating time. Other functions of the weighing hook are: gross / net weighing, summing function, hold function, autozero OFF function as well as the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the weighing hook , so that the weighed product is not in kg but e.g. in meters (1 kg = 1.25 m). The weighing hook has a linear calibration and thus ensures particularly high accuracy.


Highlights

- Crane scale up to 1 t
- Measuring deviation of max. 1% possible
- Summing function
- Gross/net weighing
- Freely adjustable measuring unit, e.g. M³, etc.
- LCD display with 20 mm digits
- Battery operation up to 65 hours
- Compact dimensions
- Linear calibration possible

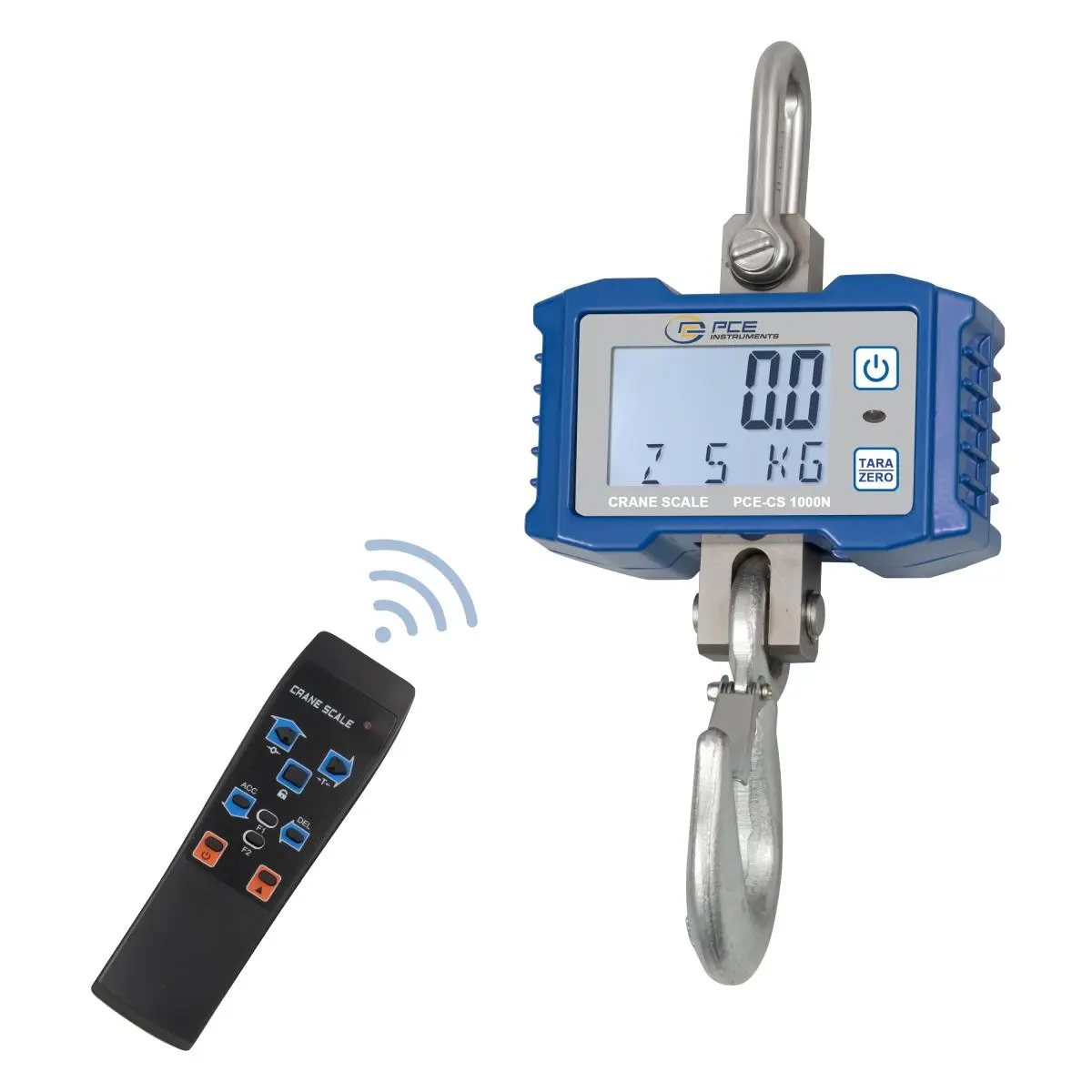

- Including hook / shackle and remote control

Specification

Maximum weighing capacity 1000 kg / 2200 lbs ≈ 1 Ton
Resolution 0.2 kg / 0.4 lbs
Tare range 100% full scale
Accuracy ± 1% of the measuring range
Minimum load 10 kg / 23 lbs
Measuring units kg / lb
Response time Less than 1 second
Safety load 150% (do not exceed)
Functions Zero, tare, data hold, power-saving automatic shutdown and timed backlighting
Display LCD with backlight, 20 mm / 0.79 in. digit height
Power supply 3 x 1.5 V AA batteries (operating time up to 65 hours), 2 x AA batteries (remote)
Operating conditions -10° C ... +40° C / +14° F ... +104° F

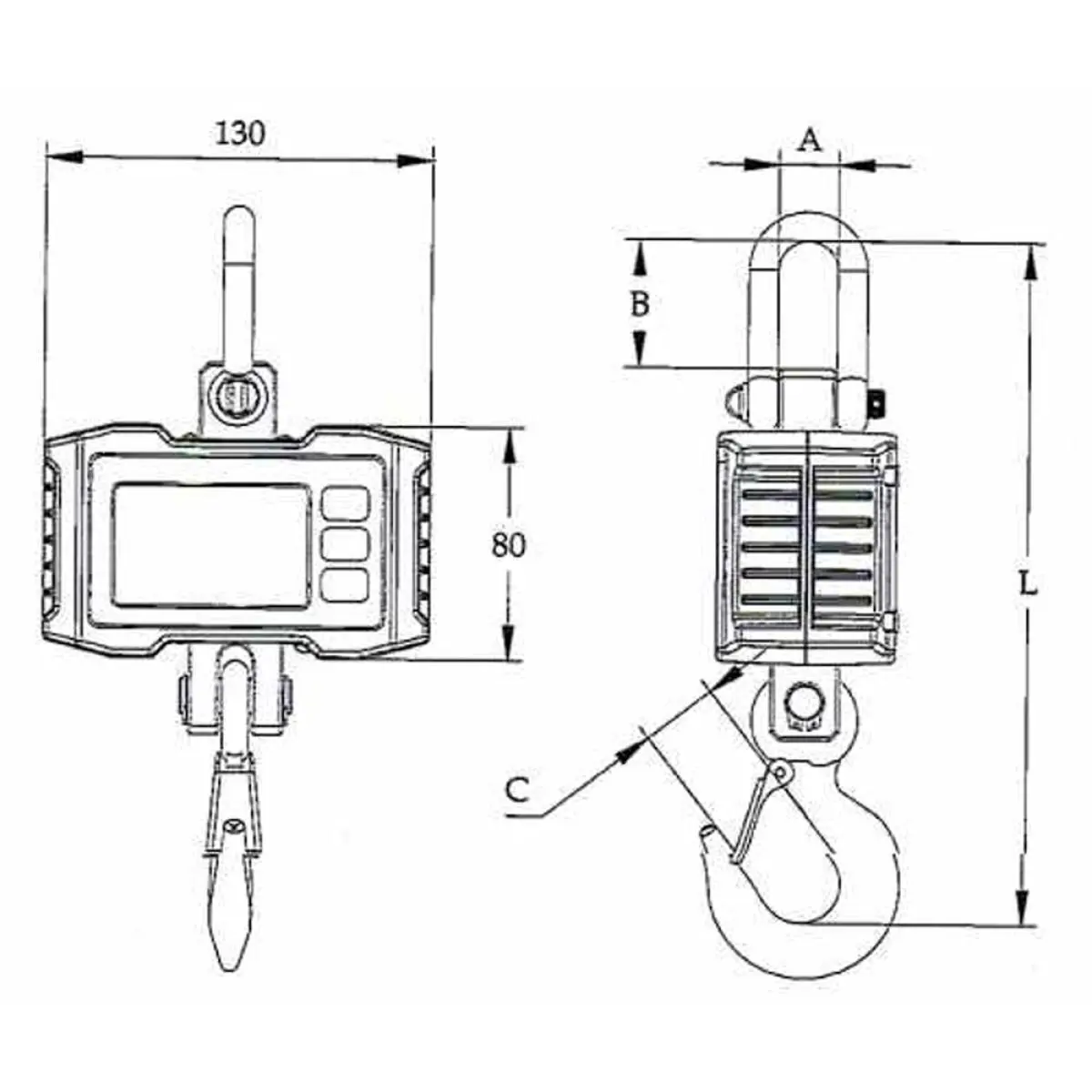

Overall dimensions: See table below
L 230 mm / 9.1 in
A 20 mm / 0.8 in
B 43 mm / 1.7 in
C 27 mm / 1.1 in
Approx. weight 1.4 kg / 3.1 lbs

Delivery Scope

1 x PCE-CS 1000N Weighing Hook
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries
1 x user manual
