  6. Panel Indicator PCE-DPD-Cx Series

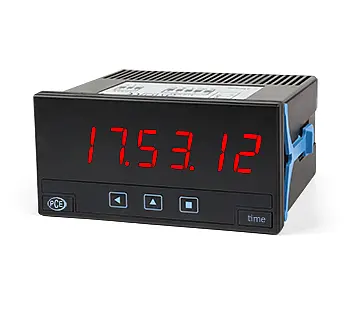

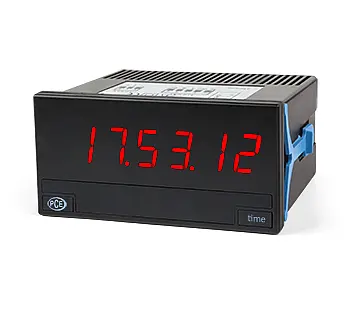

Panel Indicator PCE-DPD-Cx Series

Order no.: PCE-DPD-C
GTIN (EAN):
US$ 343.00
ex. VAT, ex. delivery costs
PCE-DPD-C
Available in: 10 - 14 days
–
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Table Housing PCE-TGH450
Table Housing PCE-TGH450
US$ 174.00
Transistor module for PCE-DPD Series
Transistor Module for PCE-DPD Series
US$ 70.00
SSR-Module for PCE-DPD Series
SSR-Module for PCE-DPD Series
US$ 70.00
RS485 Module for PCE-DPD Series
RS485 Module for PCE-DPD Series
US$ 132.00
RS232 Module for PCE-DPD Series
RS232 Module for PCE-DPD Series
US$ 132.00
Modbus RTU Module for PCE-DPD Series
Modbus RTU Module for PCE-DPD Series
US$ 132.00
Analog output module for PCE-DPD series
Analog Output Module for PCE-DPD Series
US$ 132.00

Description

Panel indicator PCE-DPC-Cx Series
Stopwatch function with Start, Stop and Reset control / 6 mm red LED display of 14 mm

This digital panel indicator with stopwatch with start, stop and reset input functions. The digital panel indicator has a size of 96 x 48 mm and displays the values ​​on a 6-digit red LED display of 14 mm. It has different reading formats available in both decimal and sexagesimal format, with a configurable preset value and different counting functions. It also provides excitation voltage for sensors. The digital panel indicator has universal high or low AC / DC power. It also has options for relay, transistor, SSR control, analog output and Modbus RTU communications.

Highlights

- Digital panel indicator with stopwatch function
- LED display 6 digits red 14 mm
- Dimensions 96 x 48 mm
- Functions: Start / Stop / Reset inputs, On power-up, Trigger sense, ...
- Two Power versions 85/265V AC / DC / 11/60V AC / DC

Specification

Sexagesimal indication mm.ss.cc / hh.mm.ss / dd.hh.mm mmmm.ss / hhhh.mm / dddd.hh
Decimal indication ssssss /sssss.s / ssss.ss / mmmmmm / mmmmm.m / mmmm.mm / hhhhhh / hhhhh.h / hhhh.hh
Screen6-digit 7-segment LED
Colour Red or green (check availability)
Digits height14 mm
Function Ascending or descending stopwatch
ControlsStart, stop, reset
Default Controls*Potential free contact
*Configurable for push-pull, NPN, PNP, inductive, ...
Excitation voltage +5V DC, +9V DC, +15V DC, +18V DC (max. 70-mA)
Vdc maximum at the input± 30V DC
Precision100 ppm
Display refresh12 times / second
Resetfront, rear and alarm activation
Counting memorymaintained in case of loss of power
Power '1'
85 to 265V AC / DC (isolated 2500 Veff)
Power '2'11 to 60V DC and 24/48V AC (isolated 1500 Veff)
Output and control options                                        relays, analog outputs, serial communications, ...
Consumption< 1.5W (indicator only)
< 4.0W (indicator with options)
Electric connectionsScrew plug-in terminal
ProtectionFront: IP65
Mounting Panel
Panel cut92 x 44 mm / 3.6 x 1.7 in
Dimensions96 x 48 x 91 mm / 3.8 x 1.9 x 3.6 in
WeightApprox. 150 g / < 1 lb
Operating temperature0 ... 50°C / 32 ... 122°F
Storage temperature-20 ... 70°C / -4 ... 158°F


Delivery Scope

1 x Panel indicator PCE-DPC-C
1 x Power terminal
1 x Signal terminal
1 x Unit board
1 x Instruction manual
