  6. Panel Indicator PCE-DPD-Px Series

Panel Indicator PCE-DPD-Px Series

Order no.: PCE-DPD-P
GTIN (EAN):
US$ 229.00
ex. VAT, ex. delivery costs
PCE-DPD-P
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Table Housing PCE-TGH450
Table Housing PCE-TGH450
US$ 174.00
RS485 Module for PCE-DPD Series
RS485 Module for PCE-DPD Series
US$ 132.00
RS232 Module for PCE-DPD Series
RS232 Module for PCE-DPD Series
US$ 132.00
Modbus RTU Module for PCE-DPD Series
Modbus RTU Module for PCE-DPD Series
US$ 132.00
Analog output module for PCE-DPD series
Analog Output Module for PCE-DPD Series
US$ 132.00
Transistor module for PCE-DPD Series
Transistor Module for PCE-DPD Series
US$ 70.00
SSR-Module for PCE-DPD Series
SSR-Module for PCE-DPD Series
US$ 70.00

Description

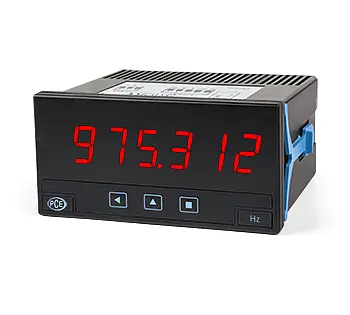

PCE-DPD-Px Series digital pulse panel indicator
Pulse counter, tachometer and periodometer / LED display 6 digits red 14 mm

This multifunction digital panel indicator is a pulse counter, tachometer and and periodometer, for all types of pulse signals, and for all types of applications in the industry. The digital panel indicator has pulse type input signals, and the most common types in the industry are NPN, PNP, Namur, push-pull, inductive, potential free, quadrature, ... The digital panel indicator has a size 96 x 48 mm / 3.8 x 1.9 in and displays the values ​​on a 6-digit red LED display of 14 mm. The digital panel indicator has functions to quickly configure the sensor, multiple types of counting (addition, subtraction, inhibition, quadrature, ...), shortcuts to alarm setpoints, "trigger sense" function and configurable alarm delays, between Other functions

Highlights

- Digital panel indicator with pulse counter, tachometer and periodimeter function
- LED display 6 digits red 14 mm
- Dimensions 96 x 48 mm / 3.8 x 1.9 in
- Functions: Push-pull, NPN, PNP, Namur, pick-up inputs , TTL, inductive, mechanical contact, quadrature signals (encoder)
- Two power versions 85/265 V AC / DC, 11/60V AC / DC

Specification

Screen6-digit 7-segment LED
Indication999999 / -199999
Decimal pointConfigurable
Color Red or green (check availability)
Digits height14 mm
Signals AcceptedNPN, PNP, Namur, pick-up, TTL, inductive, mechanical, quadrature, ...
Excitation voltage +5V DC, +9V DC, +15V DC, +18V DC (max. 70-mA)
V DC maximum at the input                 ± 30V DC
Quartz Accuracy± 0.01%
Thermal stability20 ppm / ºC / °F
Display refresh15 times / second
Maximum frequencies   Count up to 250 KHz
Tachometer and periodometer up to 500 KHz
Minimum frequencies  Tachometer and periodimeter up to 1 mHz (0.001 Hz)
Power '1'85 to 265V AC / DC (isolated 2500 Veff)
Power '2' 11 to 60V DC and 24/48V AC (isolated 1500 Veff)
Output and control optionsRelays, analog outputs, serial communications, ...
Consumption< 1.5 W (indicator only)
< 4.0 W (indicator with options)
Electric connections  Screw plug-in terminal
Protection Front: IP65
Mounting Panel
Panel cut92 x 44 mm / 3.6 x 1.7 in
Dimensions96 x 48 x 91 mm / 3.8 x 1.9 x 3.6 in
WeightApprox. 150 g
Operating temperature   0 ... 50°C / 32 ... 122°F
Storage temperature-20 ... 70°C / -4 ... 158°F


Delivery Scope

1 x PCE-DPD-Px Series digital panel indicator
1 x Power terminal
1 x Signal terminal
1 x Sheet of units
1 x Instruction manual
