Voltage Indicator PCE-N20U

Order no.: PCE-N20U
GTIN (EAN):
US$ 135.00
ex. VAT, ex. delivery costs
PCE-N20U
Available in: 5-7 working days
built-in
No
5-Digit LED
Yes (OC 24 V / 20 mA)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Voltage Indicator PCE-N20U for System Integration
0 ...10 V, 0 ... 60 mV or ±10 V input / 2 open collector outputs / 24 V power supply system for sensors and transducers

The PCE-N20U is a voltage indicator used for signal processing. Designed for quick and easy system integration, the digital voltage indicator features a large 5-digit LED display with tricolor coding dependent on the measured values. The voltage indicator also can output signals via two open collector outputs when a threshold value is exceeded.

The two open collector outputs allow for the usage of external alarm systems in combination with the voltage indicator. The threshold values and other settings can be adjusted using the free software LPCon and the PCE-PD 14 programming adaptor (sold separately - see accessories for details). An integrated power supply system of 24 V allows for the direct connection of sensors and transducers to the voltage indicator. In addition, the face of the voltage indicator has an IP65 ingress protection rating against dust and water.


Note: Before ordering, please configure the voltage indicator using the drop-down menus above. Choose desired input, power supply and measuring unit.

Highlights

- 0 ...10 V, 0 ... 60 mV or ±10 V input
- Accuracy: ± (0.2 % FS + 1 digit)
- Two open connector outputs
- Integrated 24 V power supply system for direct connection of sensors and transducers
- IP65 ingress protection rating (on face) against dust and water
- 5-digit LED display with tricolor coding dependent on measured values

Specification

Input (selectable)0 ... 10 V
0 ... 60 mV
± 10 V
Input impedance1 MΩ
Accuracy± (0.2 % FS + 1 digit)
Scale2 points
Averaging time0.5 ... 20 s
Outputs2 x open collector outputs, 30 V, 20 mA
Sensor power supply24 V, 30 mA
Display 5-digit, 7-segment, three-color LED display, 14 mm (0.55") high
Display range-19999 ... 99999
Ambient temp. rangeDuring operation: -10 °C ... +55 °C (+14 °F ... +131 °F)
During storage: -25 °C ... +85 °C (-13 °F ... +185 °F)
Max. humidity95 % RH non-condensing
Dimensions96 x 48 x 64 mm (Approx. 3.78 x 1.89 x 2.52")
Panel installationAccording to DIN standard: 92 x 45 mm (Approx. 3.62 x 1.77")
Power supply (selectable)85 ... 253 V AC/DC
20 ... 40 V AC/DC
Power consumption< 6 VA
Ingress protection ratingFace: IP65
Weight< 250 g (0.56 lb)

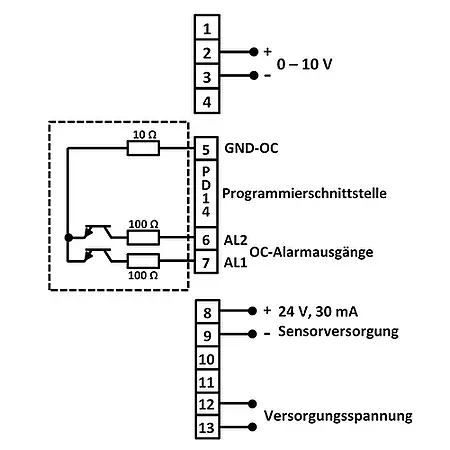

MountingMounting clips with screws, connection via screw terminals (connection plan on the housing)
HousingSolid plastic

Delivery Scope

1 x Voltage Indicator PCE-N20U
1 x package of mounting clips
1 x gasket seal
1 x user manual
