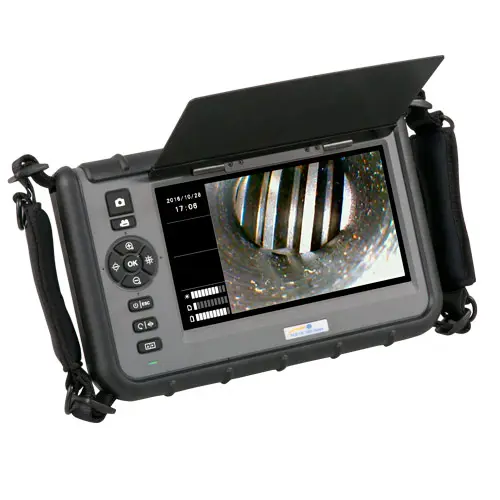

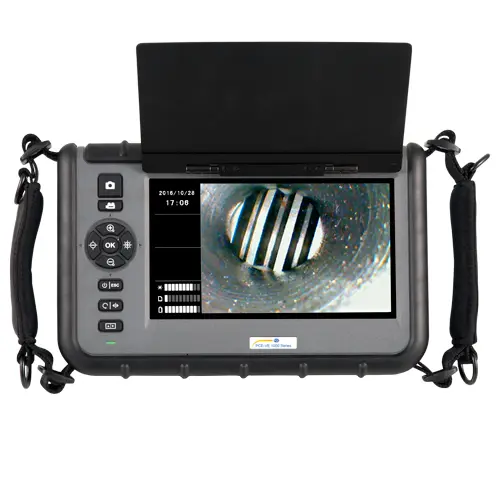

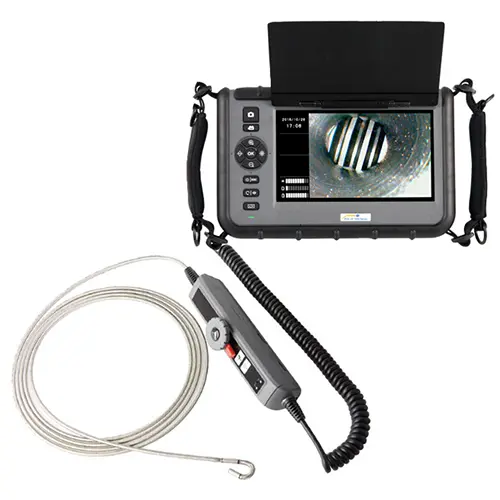

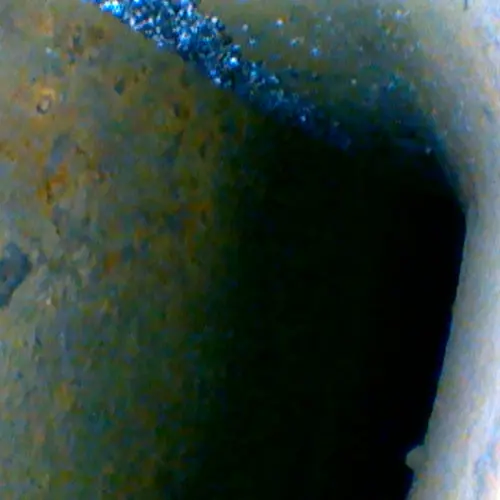

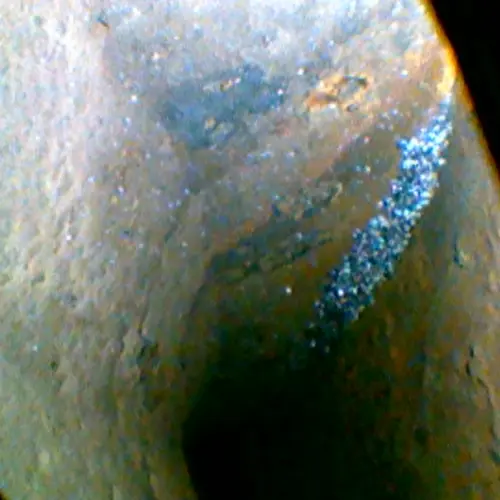

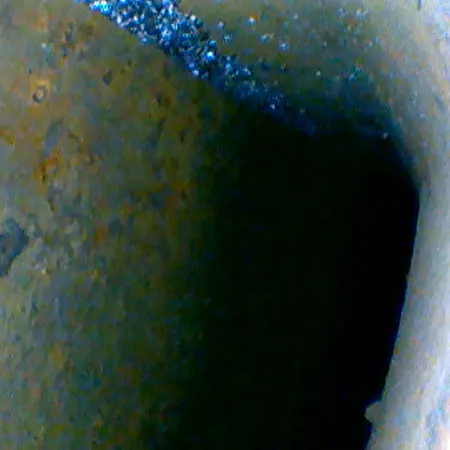

The NDT test instrument is a versatile inspection instrument. Various videoscope cables with different characteristics can be connected to the videoscope. A special advantage of the videoscope is the large display, which offers the user the best possible overview of the area to be viewed due to its dimensions and resolution. The videoscope allows the recording of images and videos, and the videos are additionally stored with an audio recording. The clear resolution becomes evident when you view the images which can be saved to the videoscope's SD card by a keystroke. When the SD card is read from the computer, the recorded images and videos are clearly displayed. Due to the fact that the recordings are stored on an external mass storage device, it is possible to select which SD card is inserted into the videoscope. The maximum capacity, however, should be 32 GB. An 8 GB memory card allows you to store more than 60000 images or more than 530 minutes of video material.
|
Display |
7" LCD (800 x 480) |
|
Image resolution |
640 x 480 JPEG |
|
Video recording |
640 x 480 MPEG (with sound recording) |
|
Drop test |
1 m / 3.3 ft |
|
Power supply |
Li-Ion rechargeable battery |
|
Interface |
USB |
|
Image and video storage |
on SD card (maximum 32 GB) |
|
AV output |
NTSC / PAL |
|
Audio input |
built-in microphone |
|
Brightness adjustment |
10-step adjustable on the main unit |
|
Runtime per battery charge |
5 hours |
|
Battery charging time |
3 hours |
|
Charging temperature |
10 ... 40°C / 50 ... 104°F |
|
Operating temperature |
0 ... 60°C / 32 ... 140°F |
|
Storage temperature |
0 ... 60°C / 32 ... 140°F |
|
Protection class |
IP57 |
|
Dimensions |
240 x 154 x 47 mm / 9.4 x 6 x 1.9 n |
|
Weight |
1.3 kg / 2.9 lb |
|
|
|
|
Cable length |
1.5 m / 4.92 ft |
| 2-way borescope cable | 90° |
|
Functions on the control unit of the cable |
Lighting improvements |
|
Lighting |
5 white LEDs on camera head |
|
Camera head length |
ca. 13 mm / 0.5 in |
|
Camera head material |
stainless steel |
|
Camera head diameter |
4.5 mm / 0.18 in |
|
Resolution |
VGA (640 x 480) |
|
Depth of field |
10 ... 60 mm / 0.4 ... 2.4 in |
|
Operating and storage temperature |
-20 ... 60°C / -4 ... 140°F |
|
Protecton class |
IP67 |
|
Video output |
NTSC |
|
Viewing angle |
135° |
|
Control unit dimensions |
228 x 35 x 53 mm / 9 x 1.4 x 2.1 in |
|
Weight |
ca. 400 g / < 1 lb |
1 x NDT Test Instrument PCE-VE 1014N-F
1 x SD memory card (8 GB)
1 x Cleaning kit for camera head
1 x USB cable
1 x Power supply for monitor
1 x Video cable

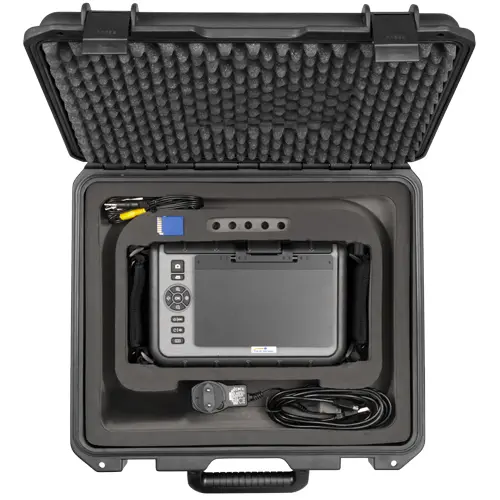

1 x Robust plastic case
