Electric Vehicle EVSE Tester PCE-EVSE 310+

Order no.: PCE-EVSE 310+

GTIN (EAN): 4250348732323

Accessory

Measuring connection adapter for wallboxes PCE-EVSE ADP

£ 117.00

Description

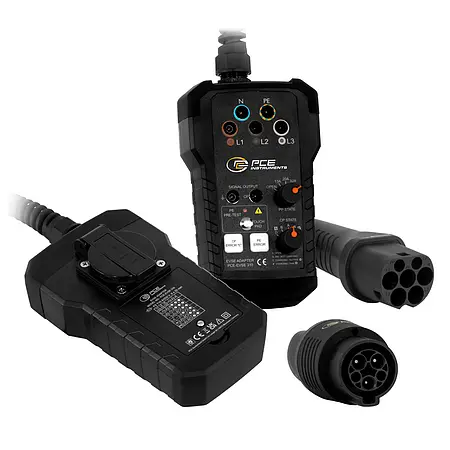

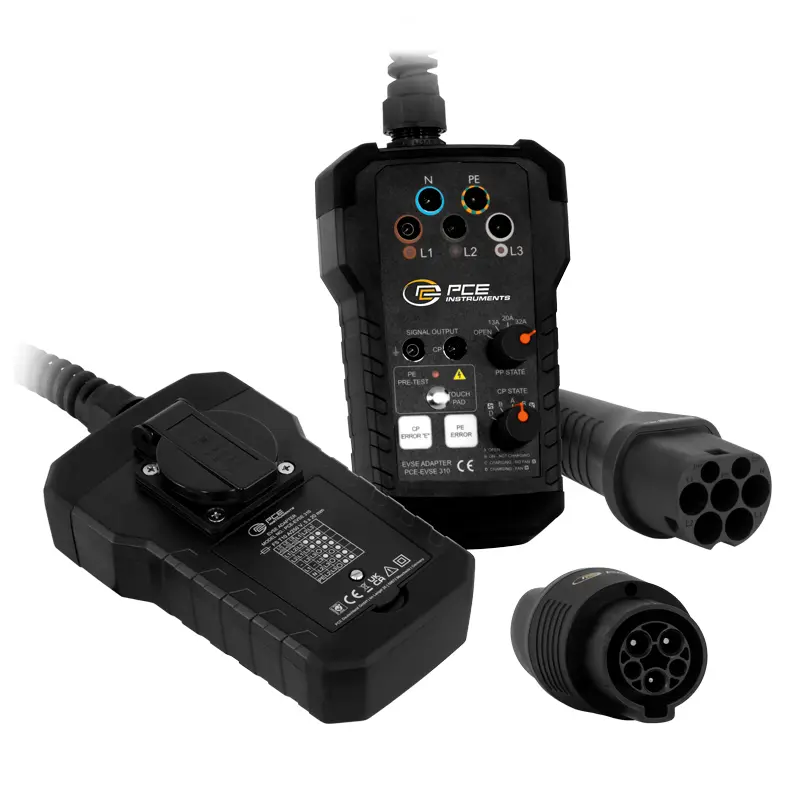

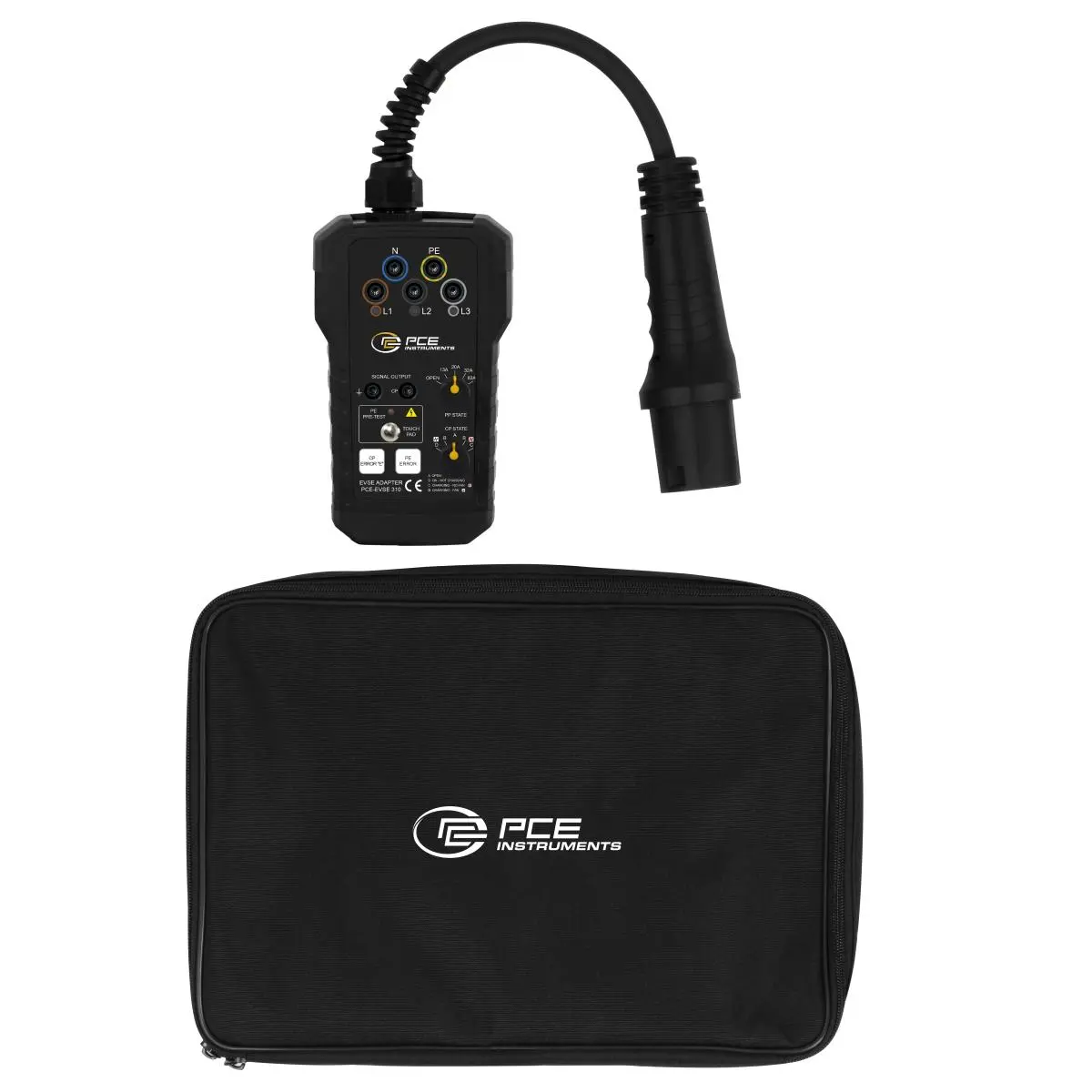

Electric Vehicle EVSE Tester / vehicle simulation / cable simulation / CP output and mains socket for measuring purposes / incl. transport bag

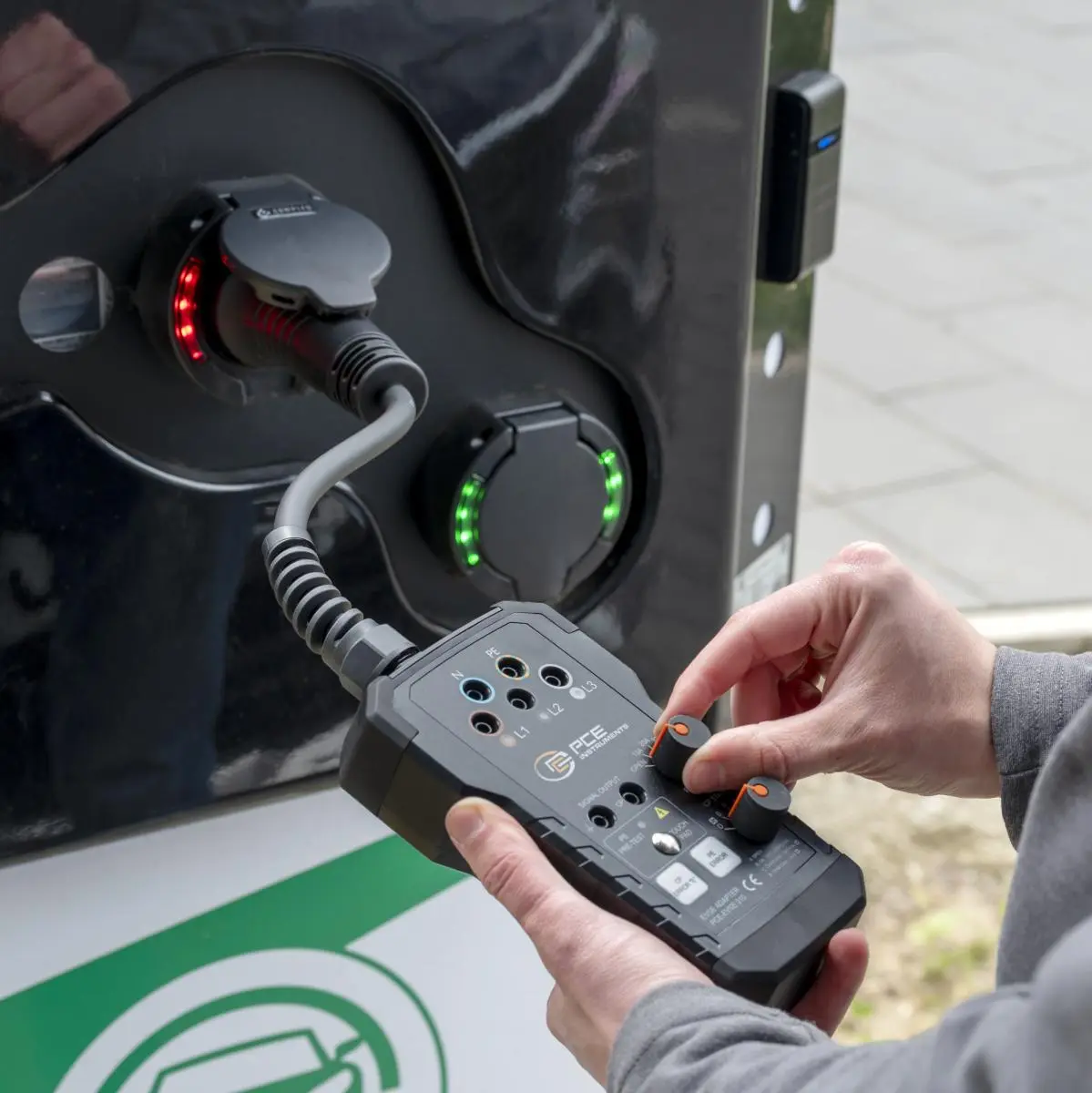

The electric vehicle EVSE tester is for VDE 0100 testers to test charging stations (charging mode 3) for electric cars. This adapter can be used with the PCE-ITE 55B installation tester or with most other standard VDE 0100 testers. Thanks to the LEDs for voltage detection on the 3 phases, it can be quickly determined if there is an installation error.

The PP State rotary switch can be used to simulate the current carrying capacity of the charging cable. The current carrying capacity is simulated with various resistors in the electric vehicle EVSE tester, which are connected between PP and PE conductors. Various vehicle states can be simulated using the CP State rotary switch. The vehicle states are simulated with different resistors connected between the CP and PE conductors.

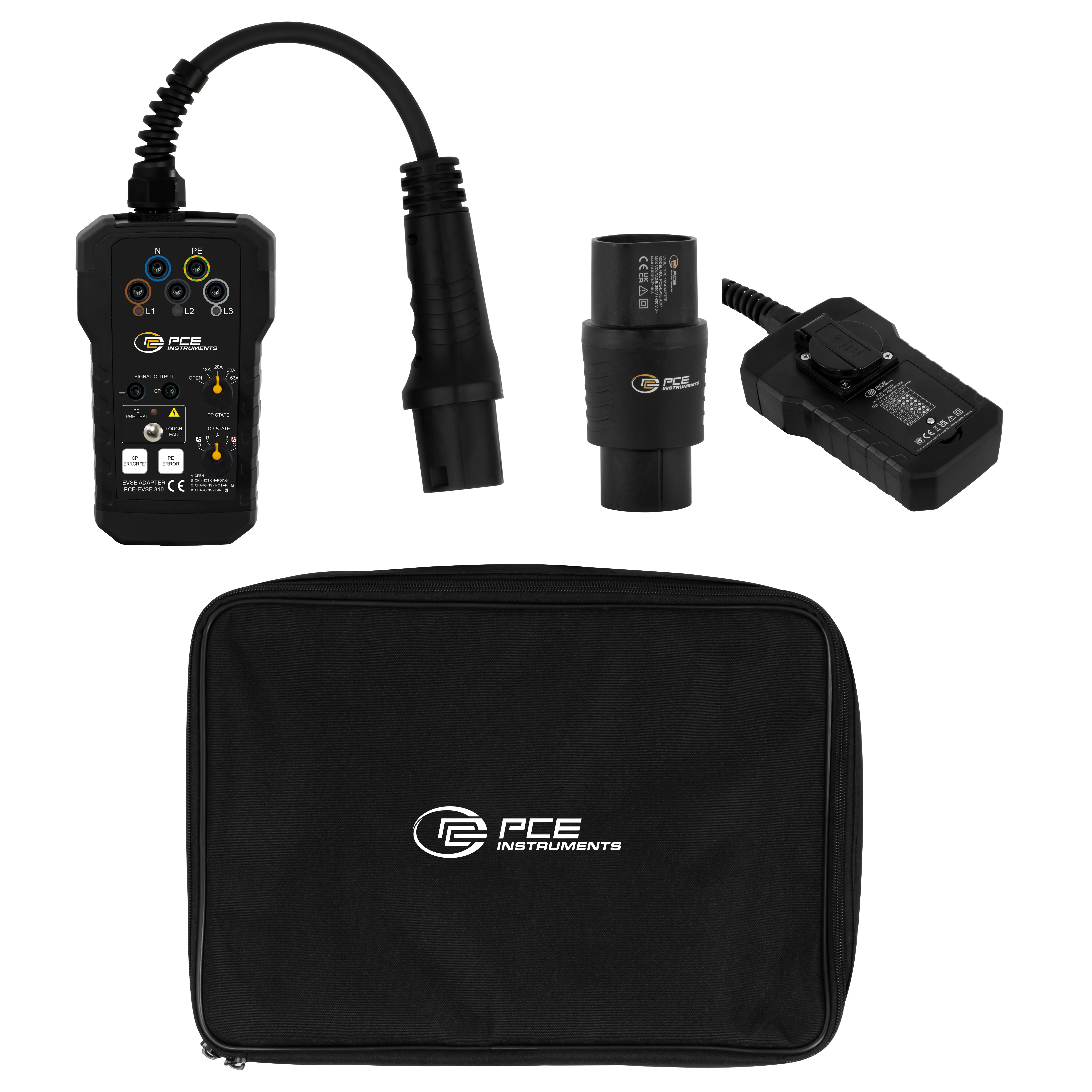

An external load can be connected to the socket. This output is only intended for measuring purposes and offers the option of checking the function of the electricity meter. The electric vehicle EVSE tester can also be used to simulate a PE fault (earth fault). The electric vehicle EVSE tester is supplied in a device bag. There is also an optional adapter for wallboxes with a type 1 connection.

Highlights

- PE pre-test

- Status of the Proximity Pilot PP and the Control Pilot CP

- Simulation of CP fault "E" and PE fault

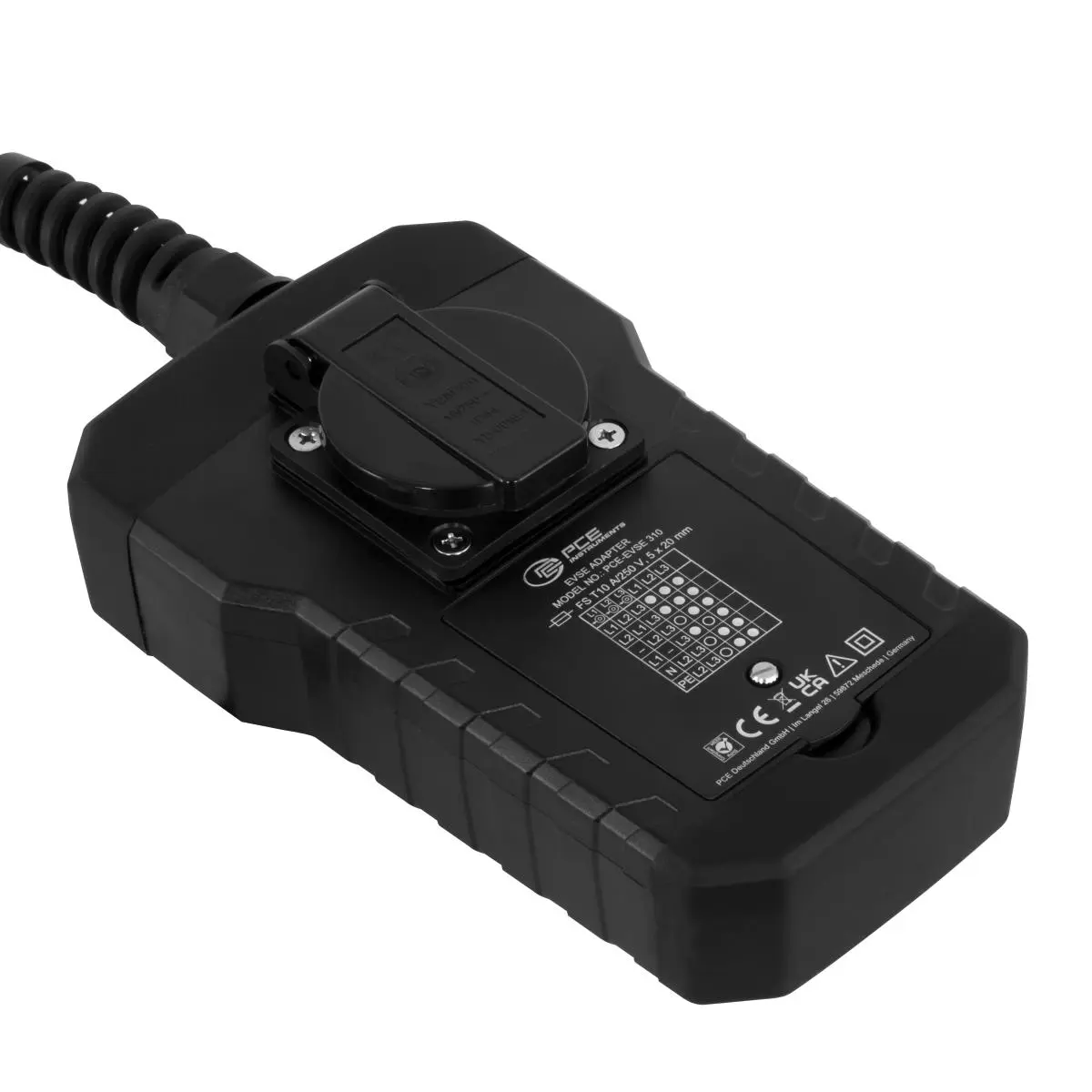

- Mains socket for measuring purposes

- Safety measuring sockets

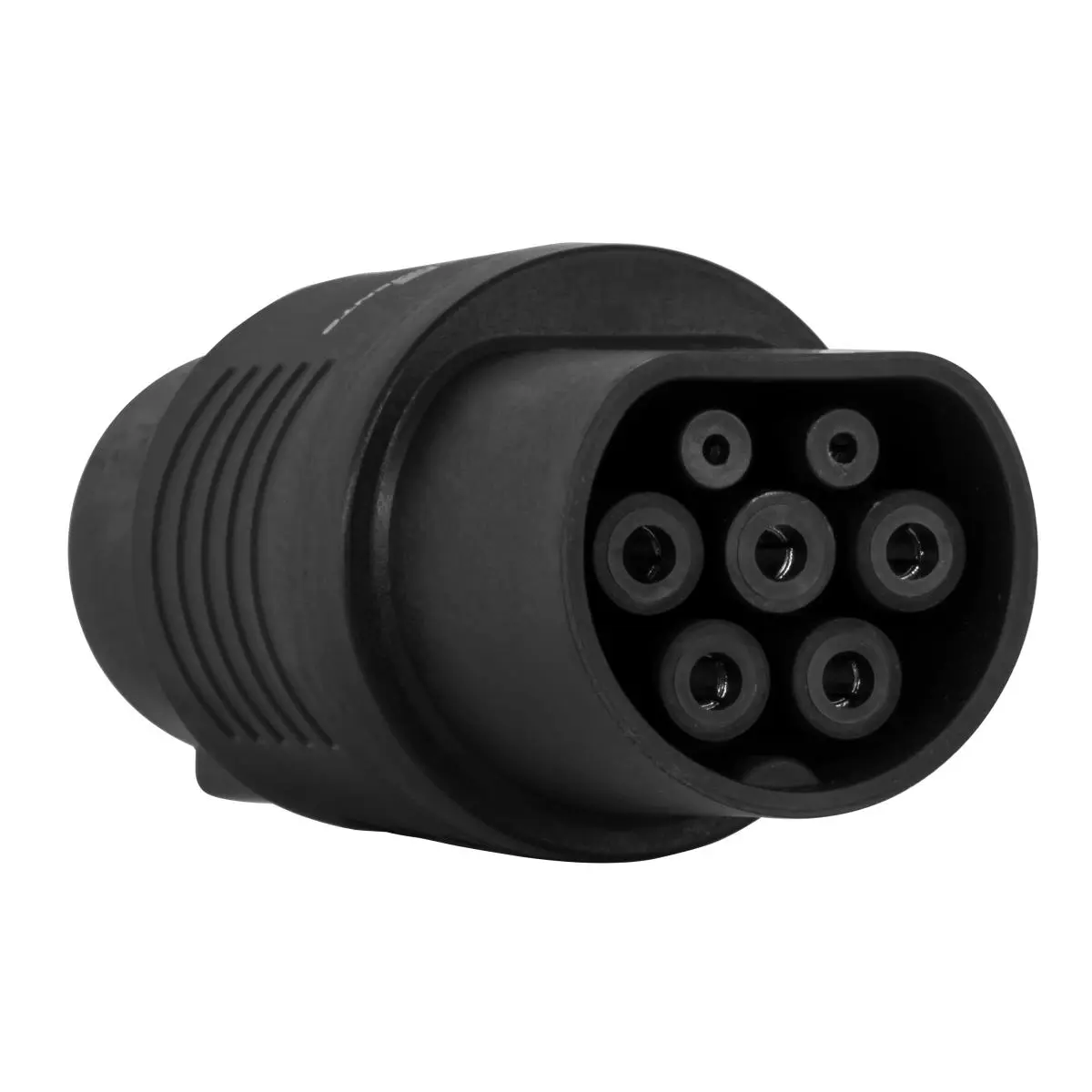

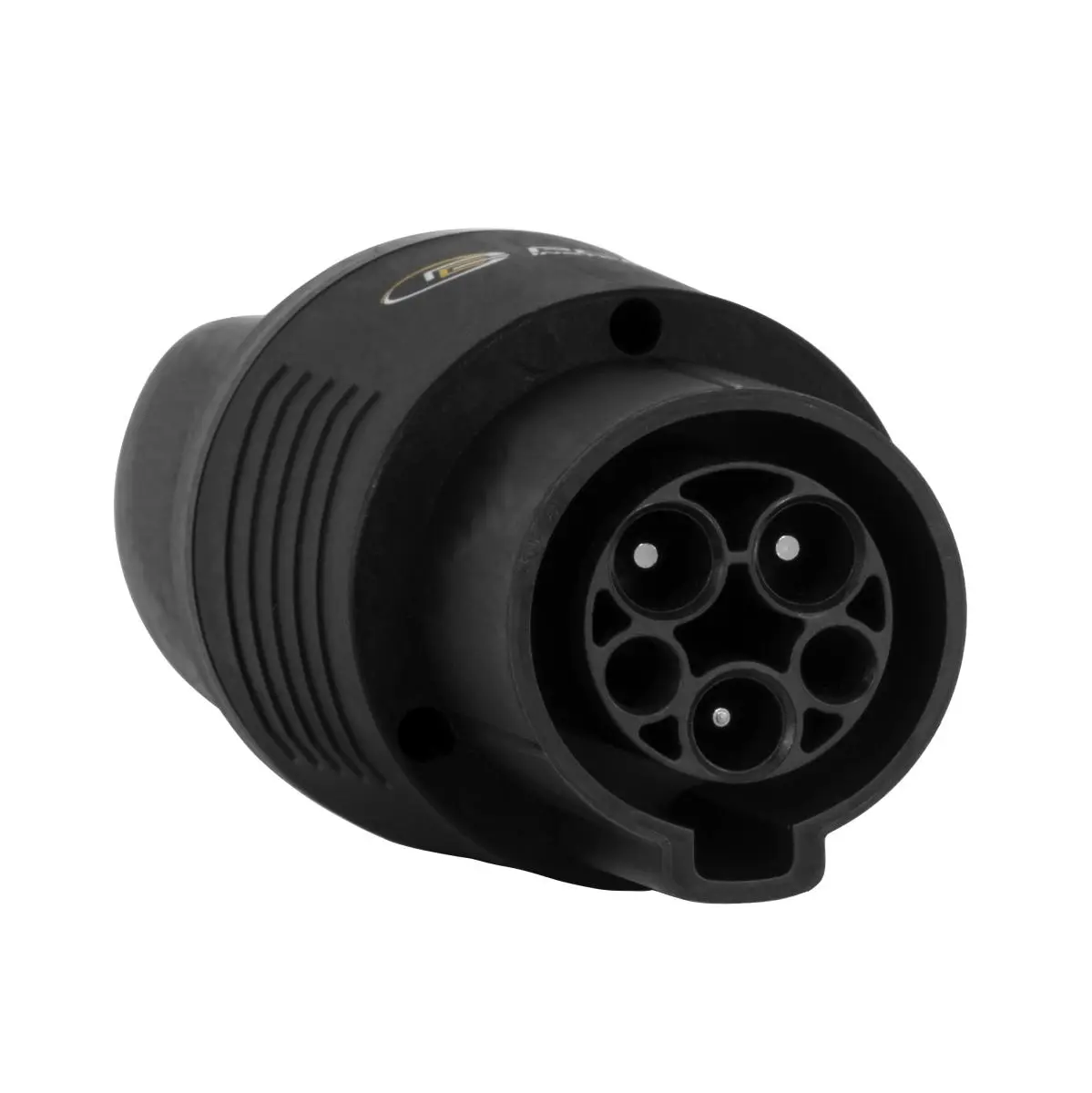

- incl. adapter to type 1

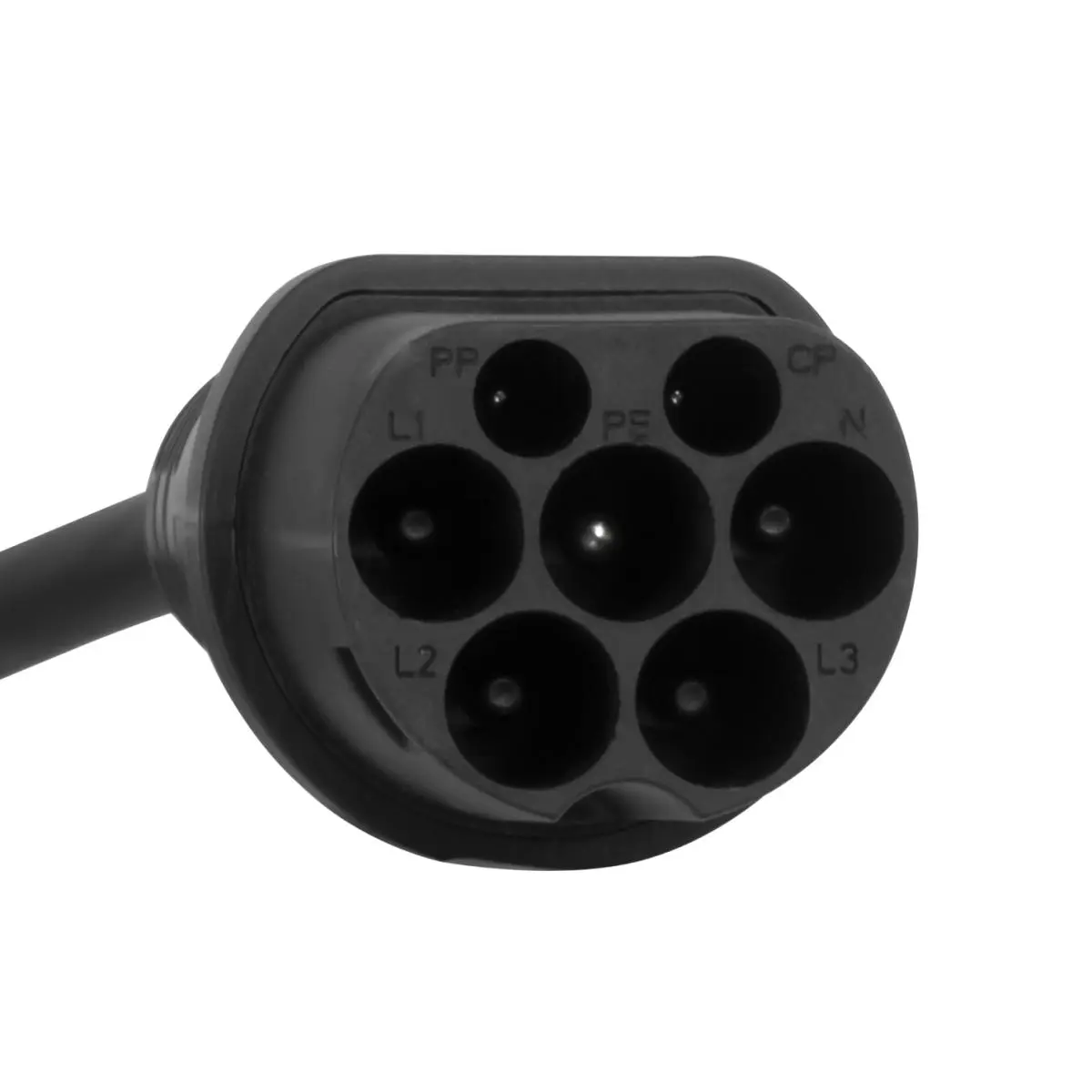

- incl. type 2 plug

Specification

. . . . . . . . . . . . . . . . . . . . .

Test Functions
PE pre-test	yes, with capacitive electrode
PP Simulation	open, 13 A, 20 A, 32 A, 63 A
CP Status	A, B, C, D
CP error "E"	E
PE fault / earth fault	Yes

General technical data
Connections	L1, L2, L3, N, PE
Connections Additional information	max. 230V (1-phase) / 430V (3-phase) ; 50 / 60Hz 10A / 250 V Type 2 plug fixed to the cable (optional adapter required for type 1)
Standard(s)	IEC62196-2 Type 2 connector
Cable length	25 cm
Safety standard	CAT II / 300V
Power socket	max. 250 V; 50/60 Hz; 10 A
Outputs	2 x 4mm sockets (signal output terminals)
Fuse(s)	Power socket T10A/250V
Protection class (device)	IP40
Weight	643 g
Dimensions (L x W x H)	600 x 105 x 73 mm
Operating conditions	0 ... 40 °C , 80 % r.H.
Storage conditions	-10 ... 50 °C , 80 % r.F
Languages of instructions	German, English
