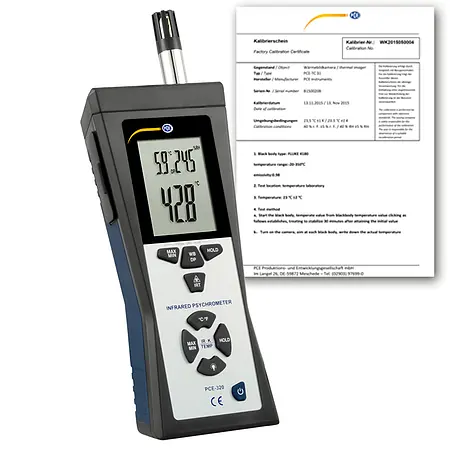

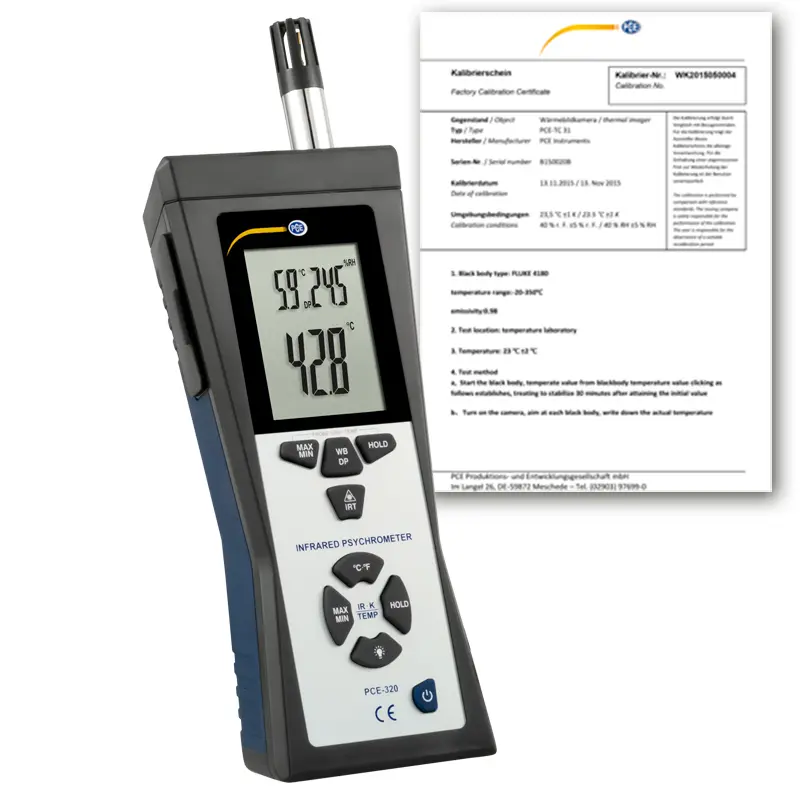

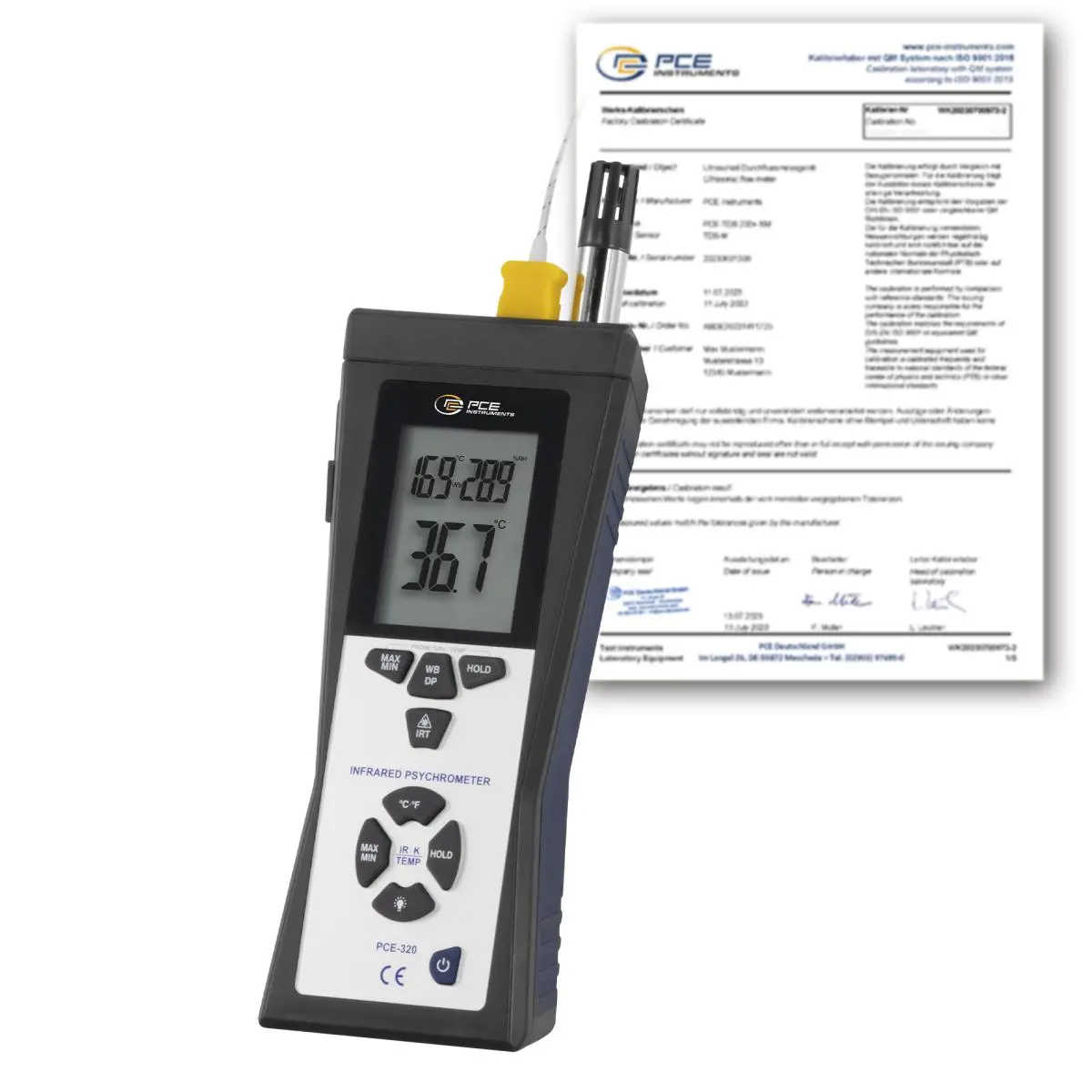

Psychrometer PCE-320-ICA incl. ISO Calibration Certificate
Humidity / Temperature / Dew point / Wet bulb globe temperature / Surface temperature

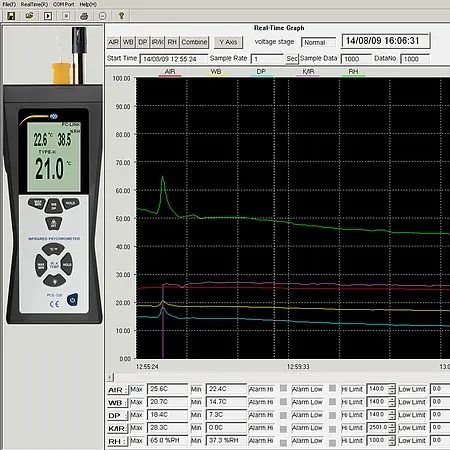

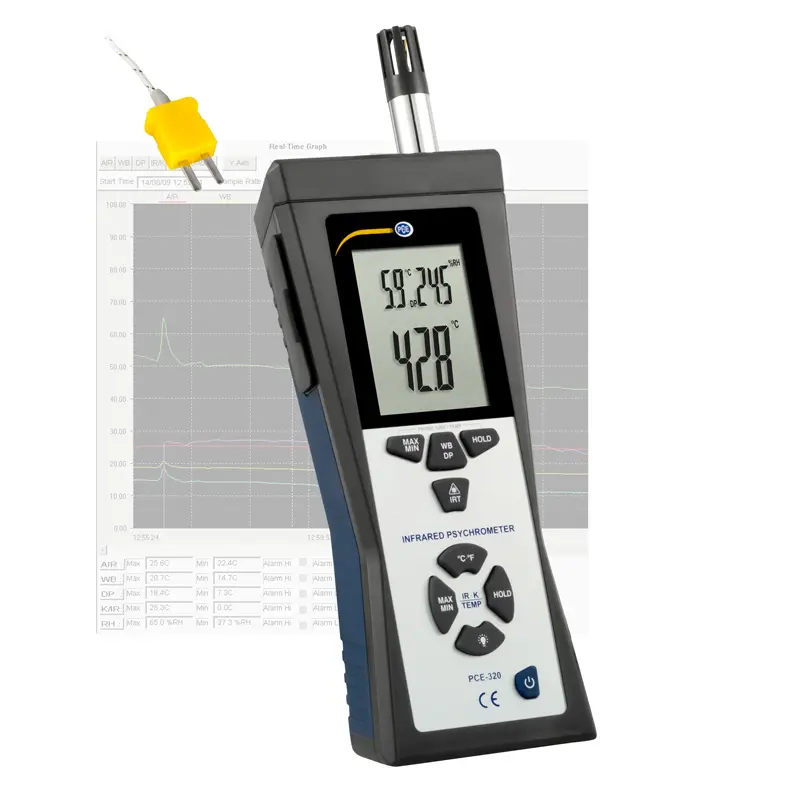

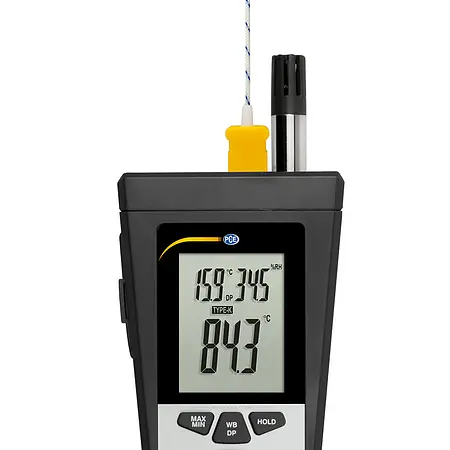

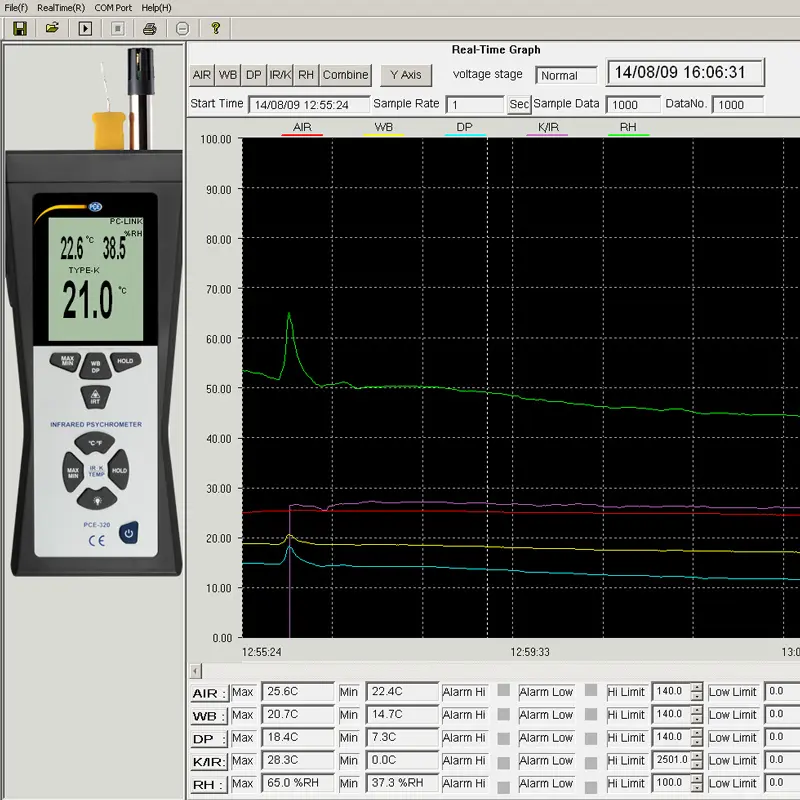

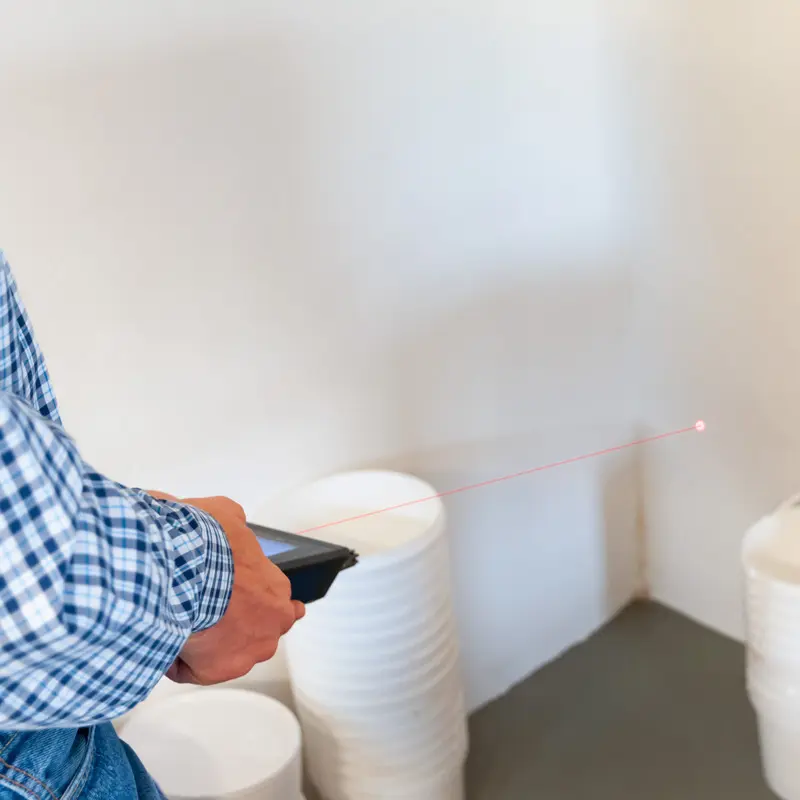

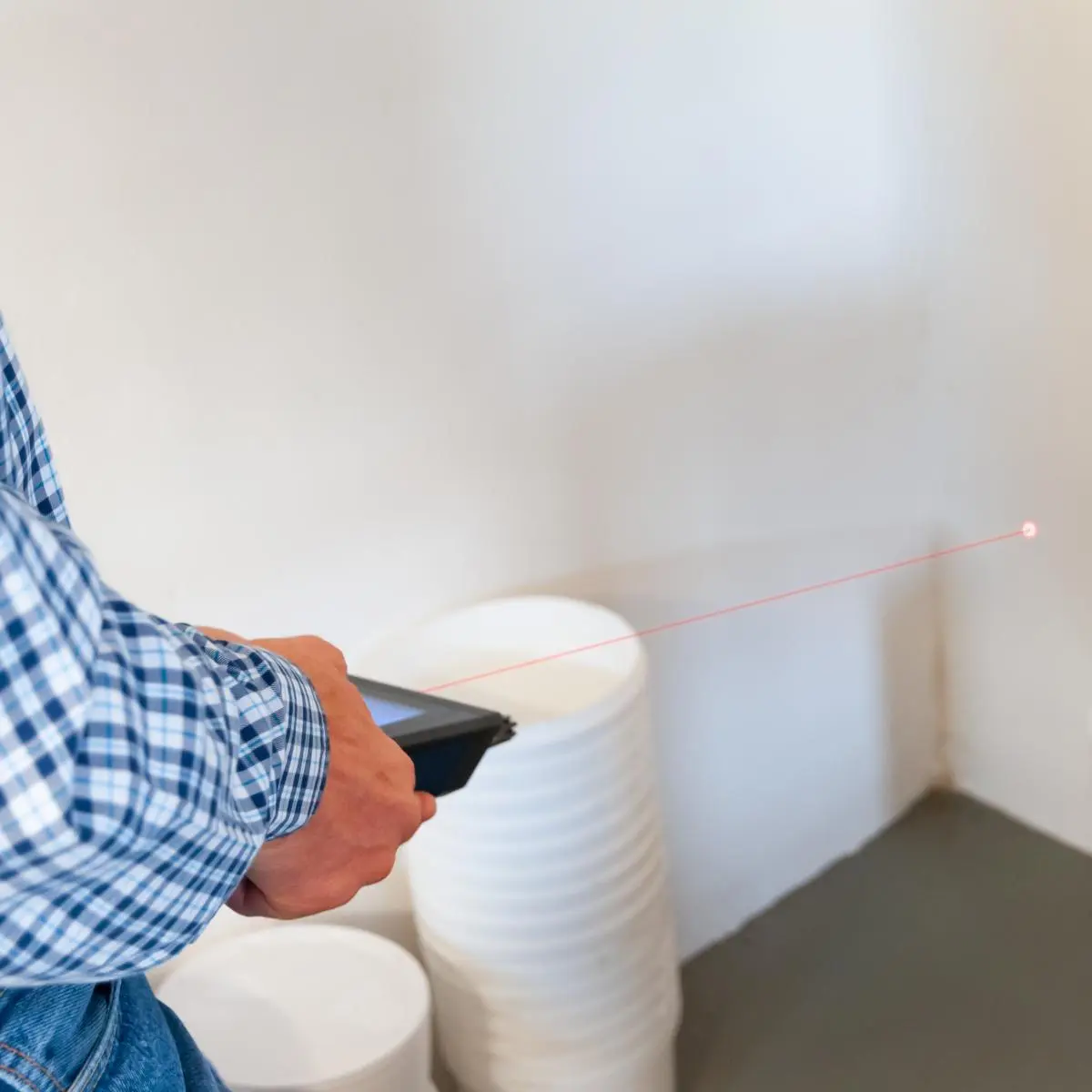

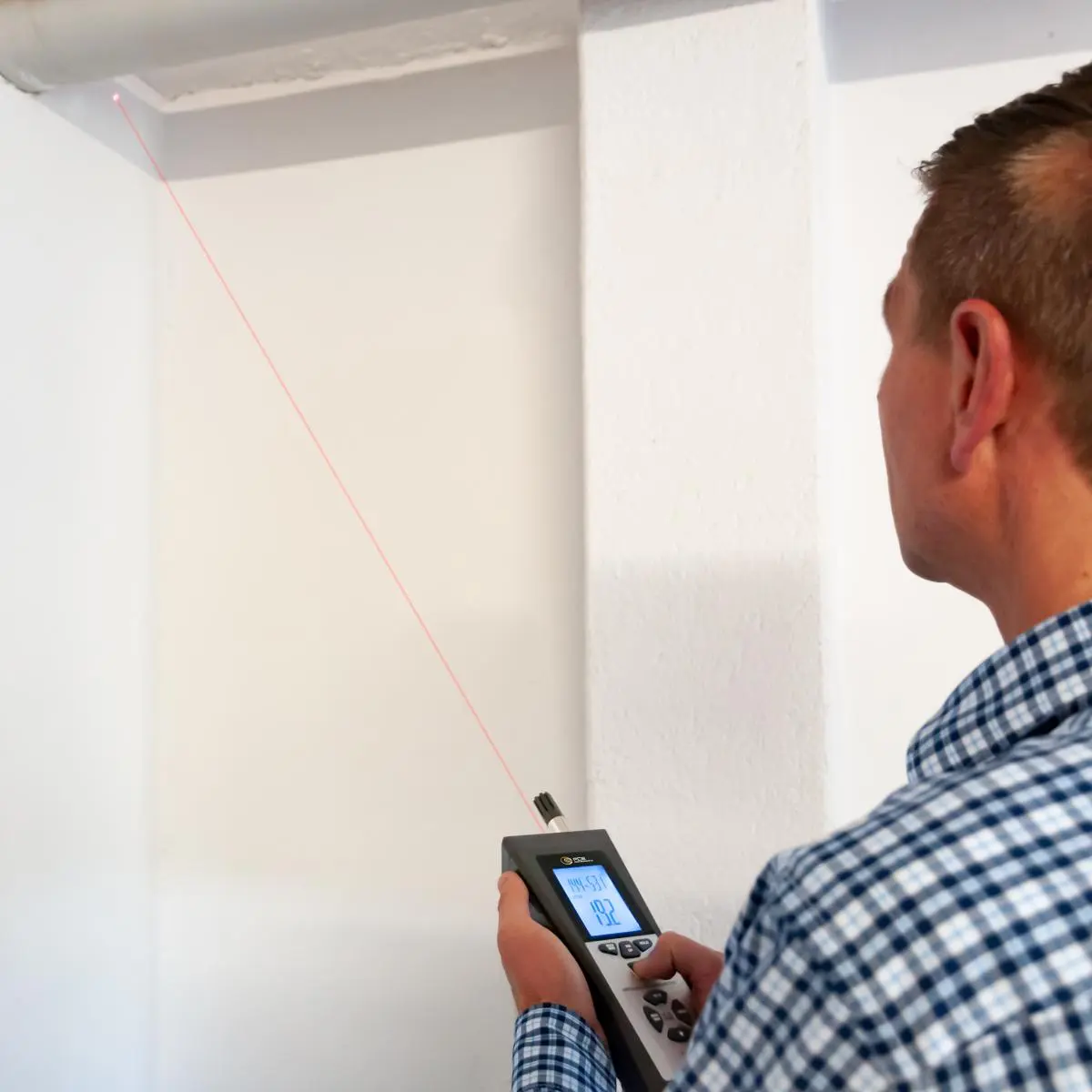

With the psychrometer it is possible to measure climate conditions such as temperature and relative humidity, as well as determining surface temperature of objects simultaneously by using the included external temperature sensor or using an infrared measurement. The psychrometer offers features such as average value, maximum, minimum, and hold functions. The psychrometer provides additional information relating to dew point temperature and the global humidity temperature. Measurement values can be directly seen on the device's LCD display, and maximum and minimum values can be registered or transferred to a PC or portable computer for further analysis.

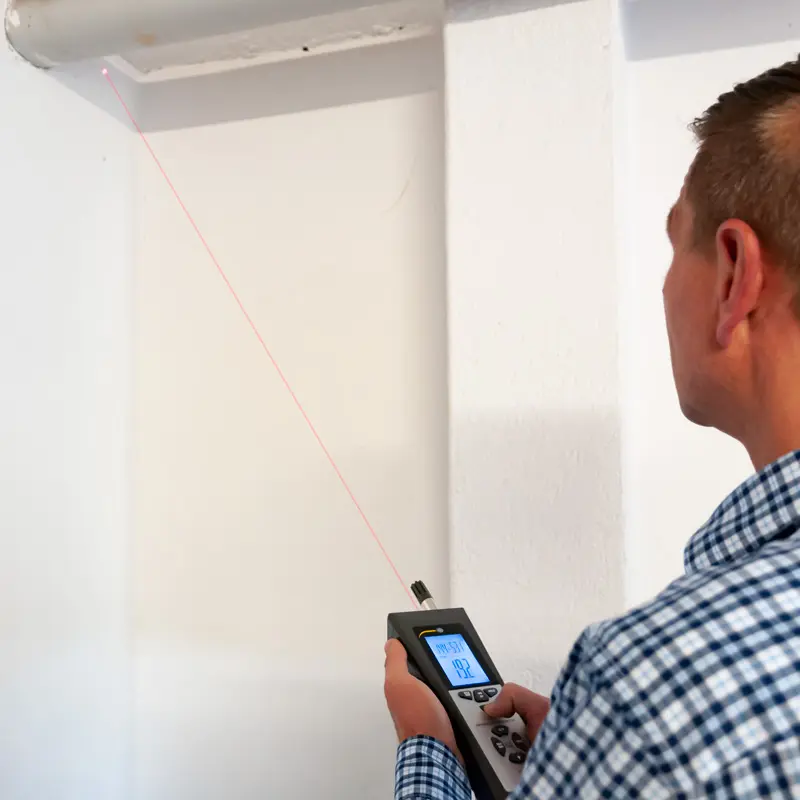

The psychrometer helps prevent damage to products, such as allowing for the elimination of fungus in food when being stored and during transportation. The psychrometer is also very useful in the construction industry, industrial sector, or in product development. Customers frequently complain about not having a tool available that can measure ambient conditions and surface temperature of a wall both inside and outside.

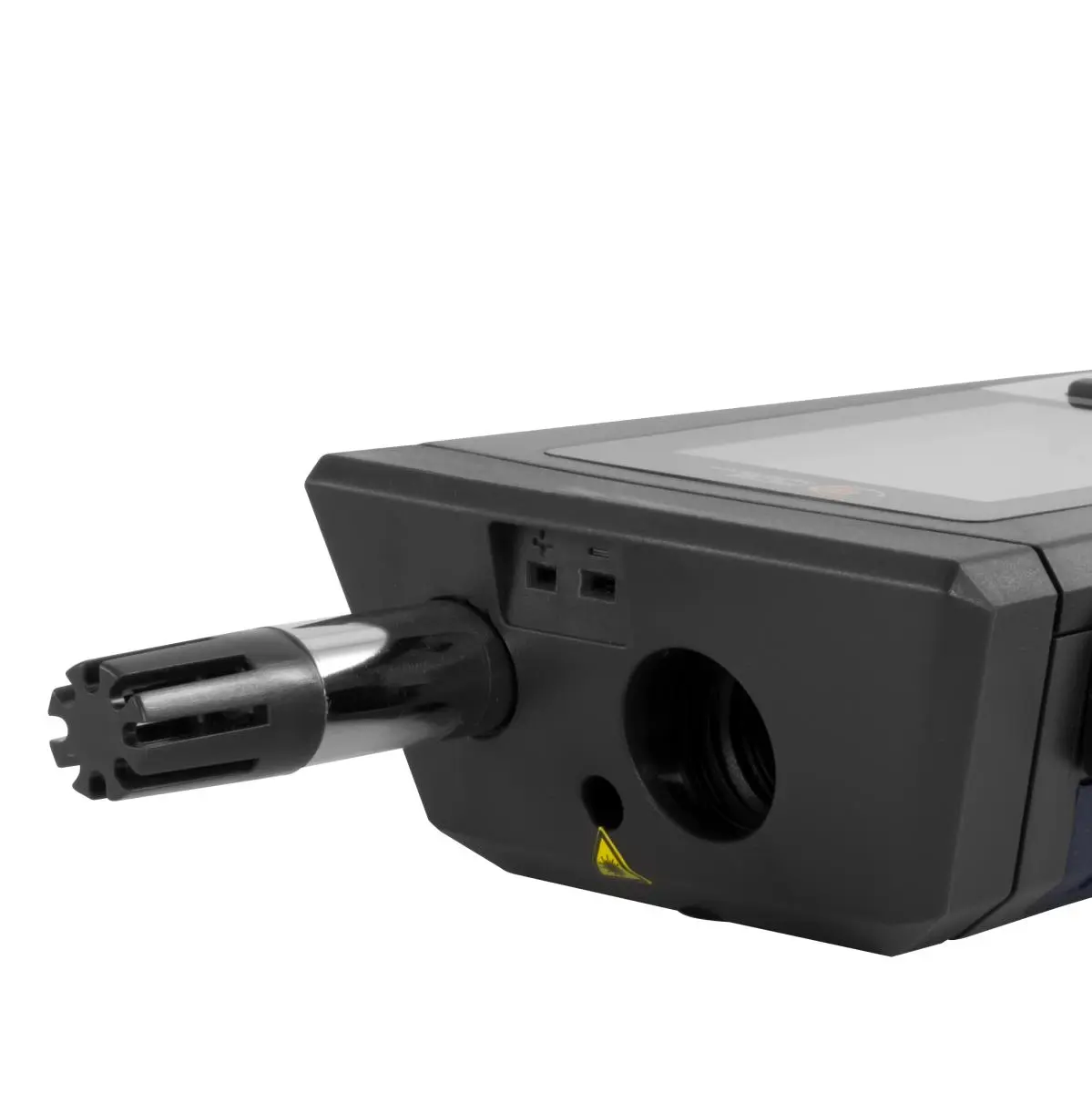

Internal probe | |
Temperature | -20º... 60°C / -4 ... 140°F |
Relative humidity | 10 ... 90% H.r. |
Temperature of global | -21.6 ... 60°C / -6.8 ... 140°F |
Humidity | -68 ... 60°C / -90.4 ... 140°F |
Dew point temperature | depending on the sensor |
External | |
Temperature | -50 ... 500°C / -58 ... 932°F |
Infrared | |
Temperature resolution | 0.1°C / 0.18°F |
Relative humidity resolution | 0.1% |
Accuracy (Internal) | |
Temperature | ± 1.0°C / 1.8°F |
Relative humidity | ± 3% |
Wet bulb temperature | ± 1.0°C / 1.8°F |
Dew point temperature | ± 1.0°C / 1.8°F |
Accuracy (External) | |
Temperature | ± 1% ± 1.0° C / 1.8°F |
Infrared | |
-50 ... -20ºC / -58 ... -4ºF | ± 5.0°C / 9°F |
-20 ... 500ºC / -4 ... 932ºF | ± 2.0°C / 33.6°F o ± 2% |
Response time | < 4 s |
Humidity sensor type | Resistance sensor |
Software | From Windows 98 |
Memory | Maximum and minimum value |

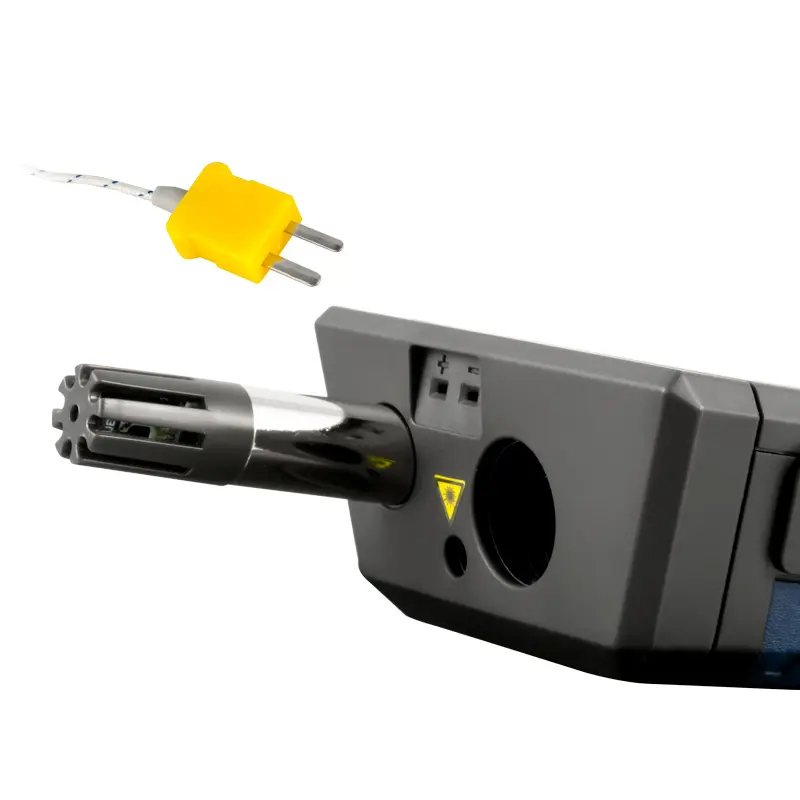

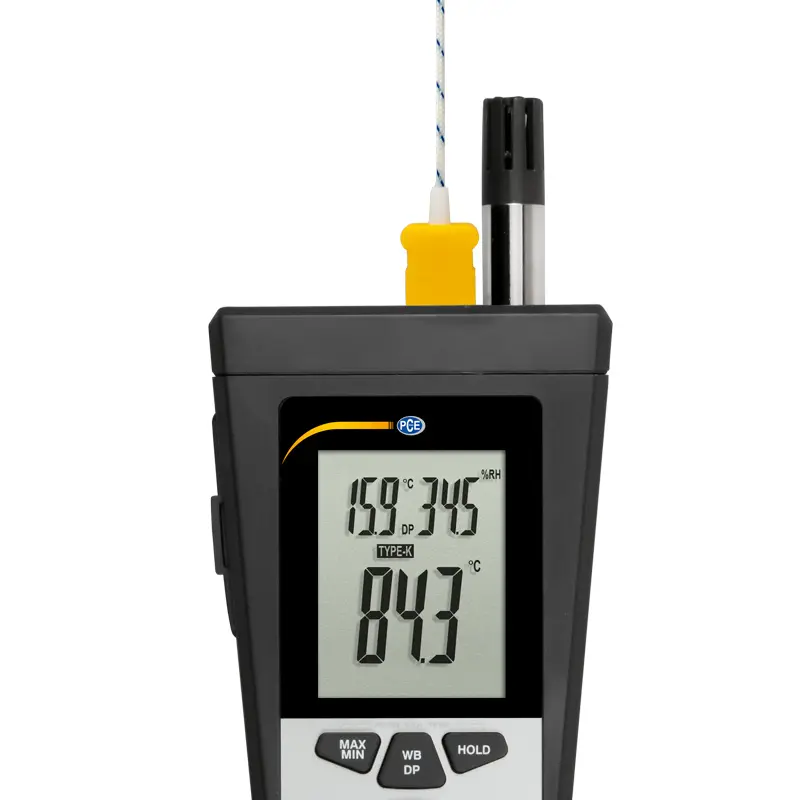

External temperature sensor | 1 m / (3.3 ft) long hot wire sensor and many other available to order |

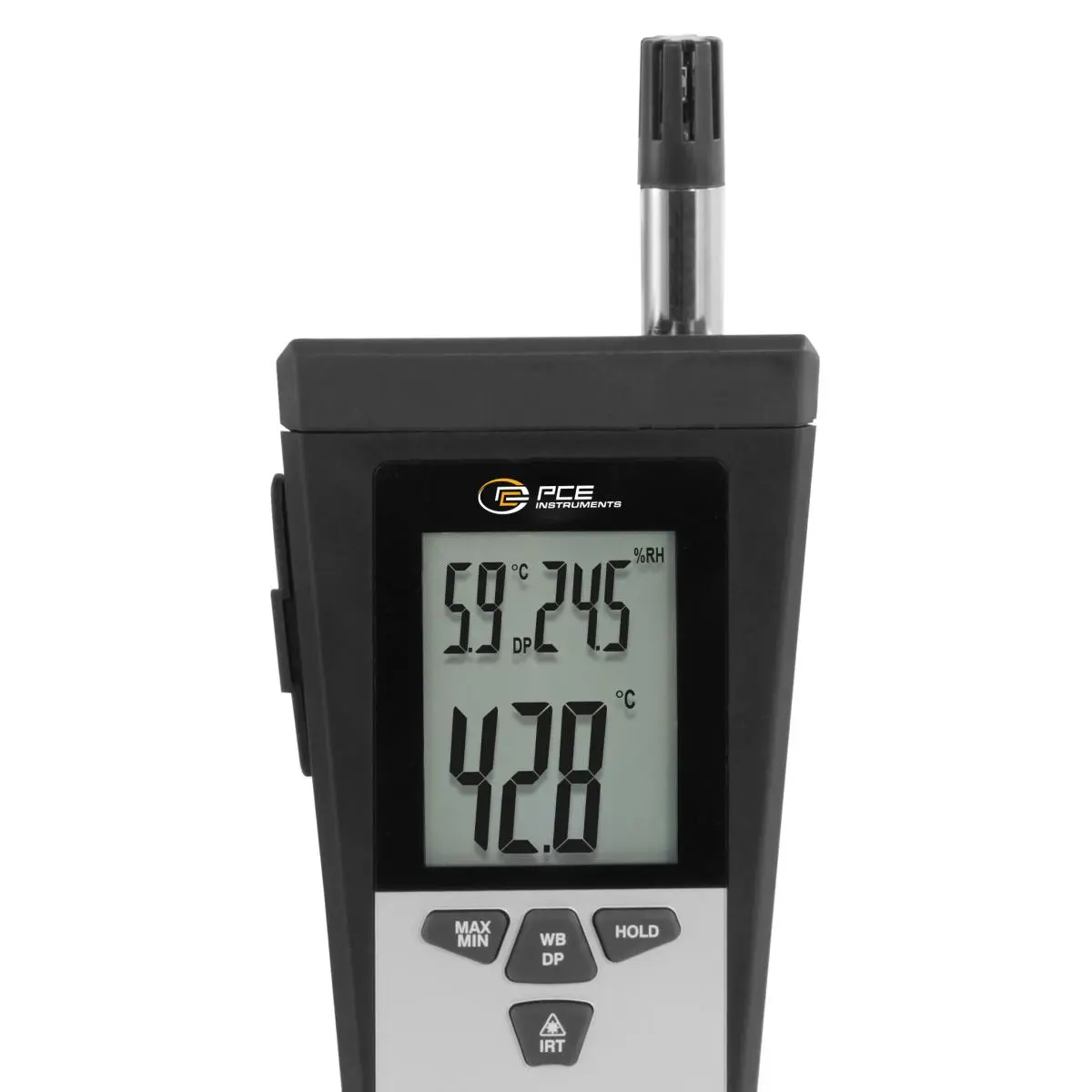

Display | Multiple LCD for diplaying a variety of different readings |

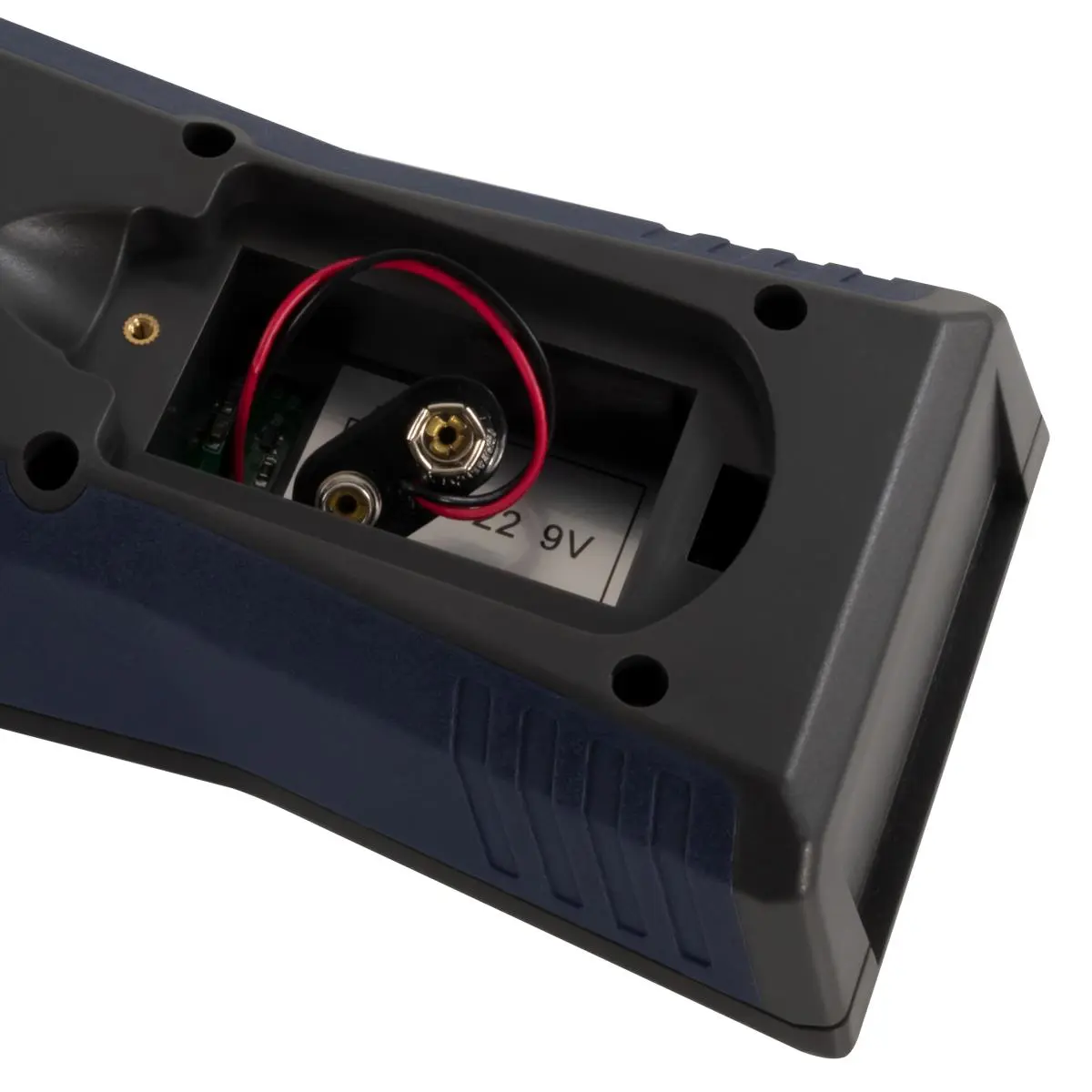

Power | 9V battery |
Operating conditions | -20 ... 60°C / -4 ... 140°F 0 ... 90% H.r. |
Dimensions | 257 x 76 x 53 mm / 10.1 x 2.9 x 2 in |
Weight | 355 g / < 1 lb |

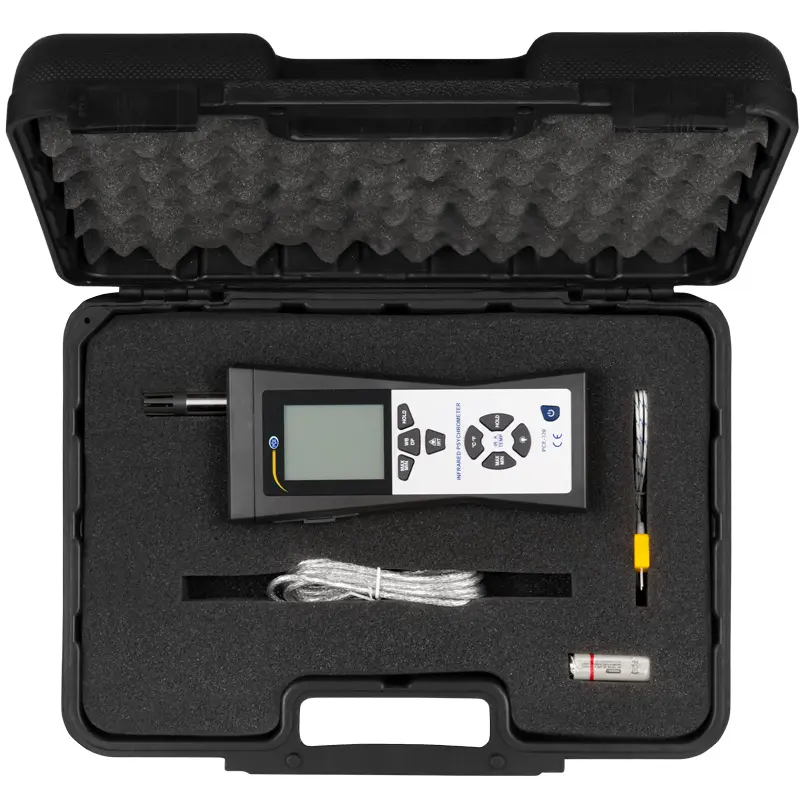

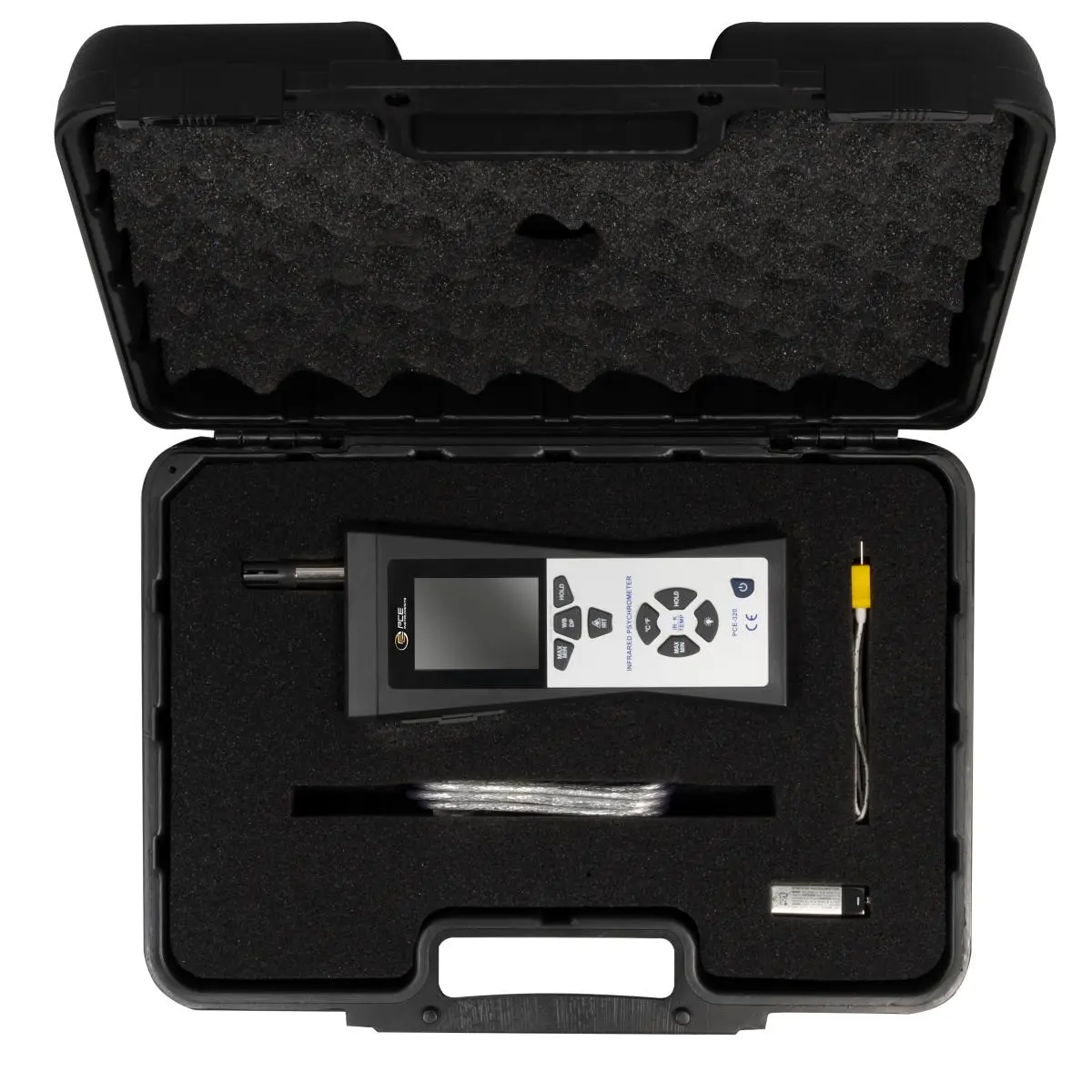

1 x Psychrometer PCE-320
1 x External temperature sensor

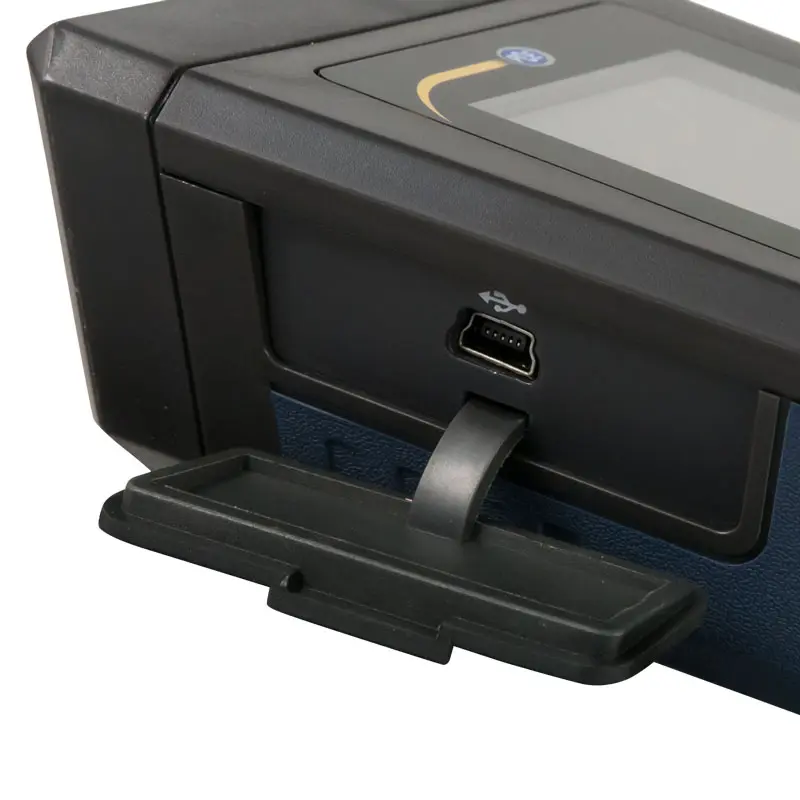

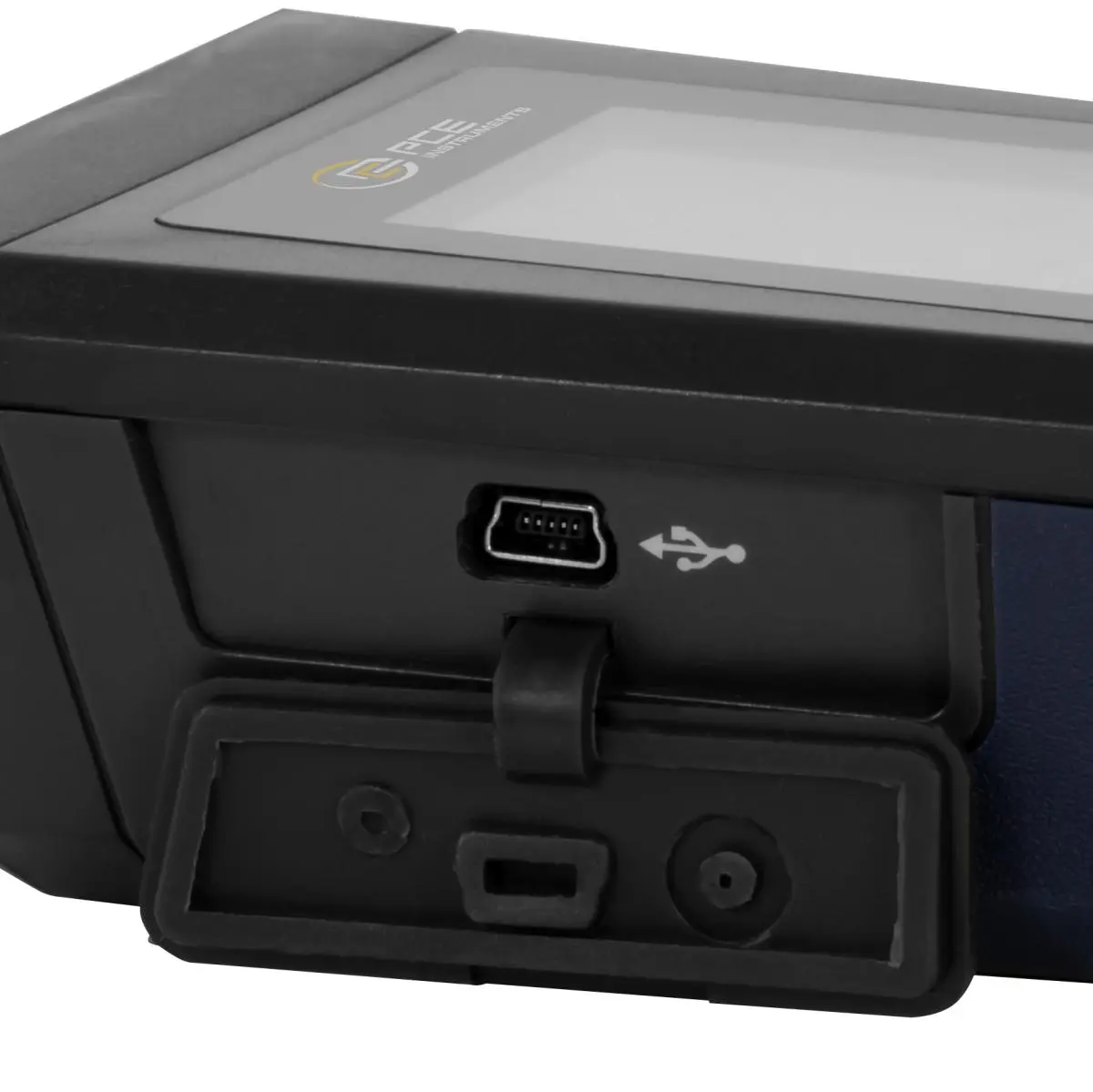

1 x Software and data cable

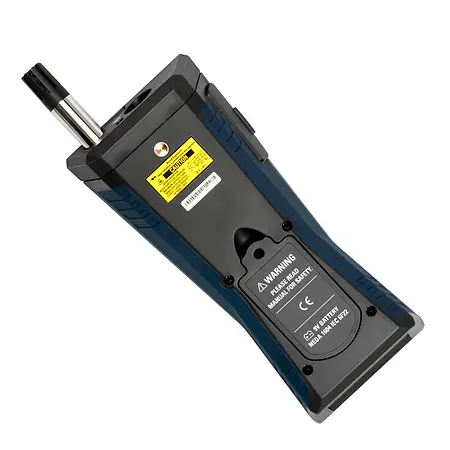

1 x 9V battery
1 x User's manual
1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
