Description

BTU Meter / Clamp on Heat meter with 32 GB data memory / measuring range ±32 m/s /

reproducibility ±0.5 % of measured value / different measuring probes / alarm limit values /

2.8 " LC display / for all media / optionally with DAkkS or ISO calibration certificate

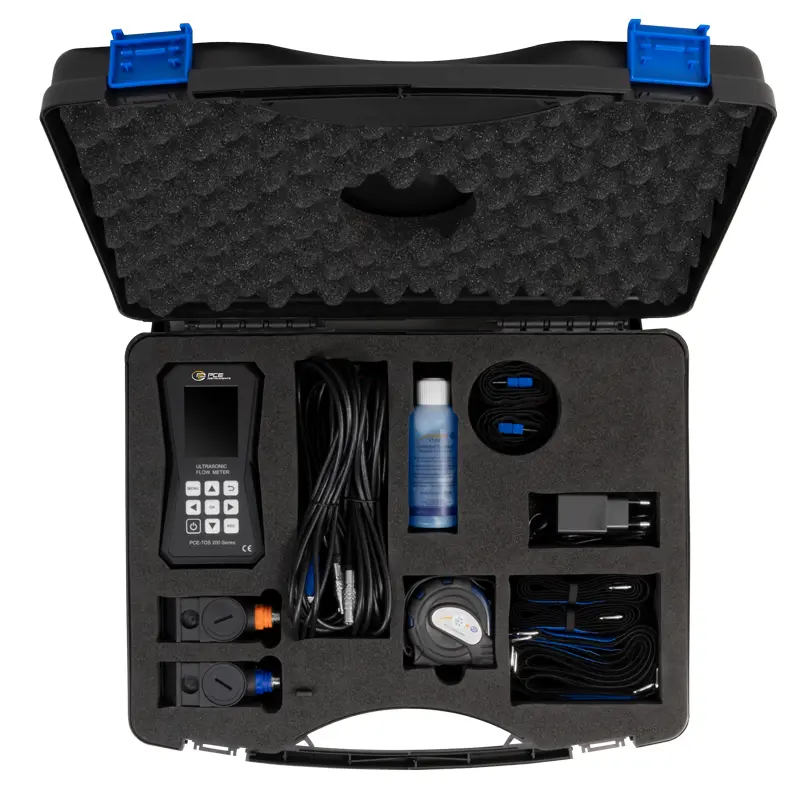

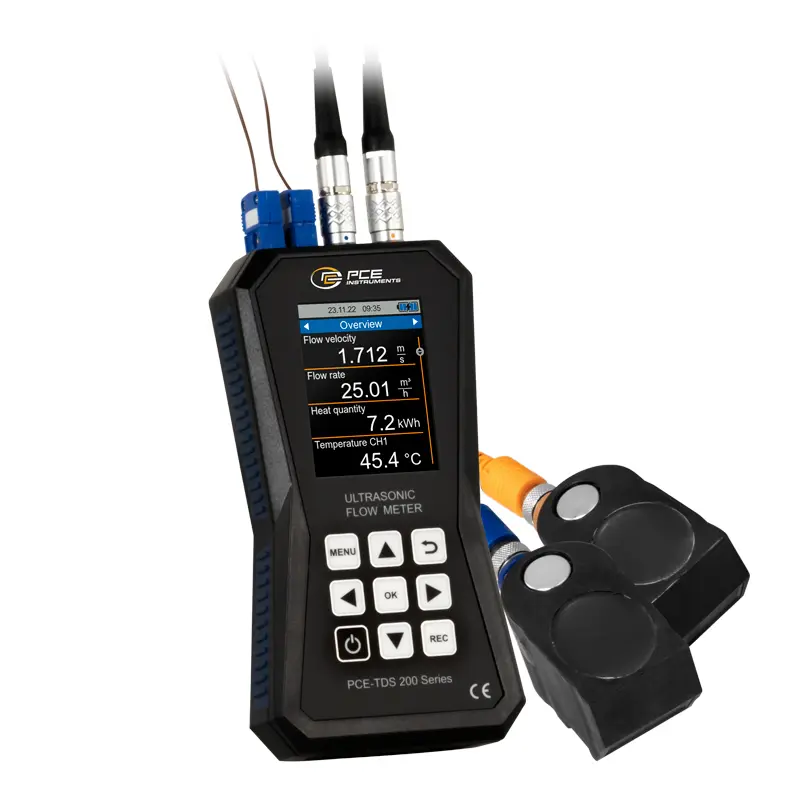

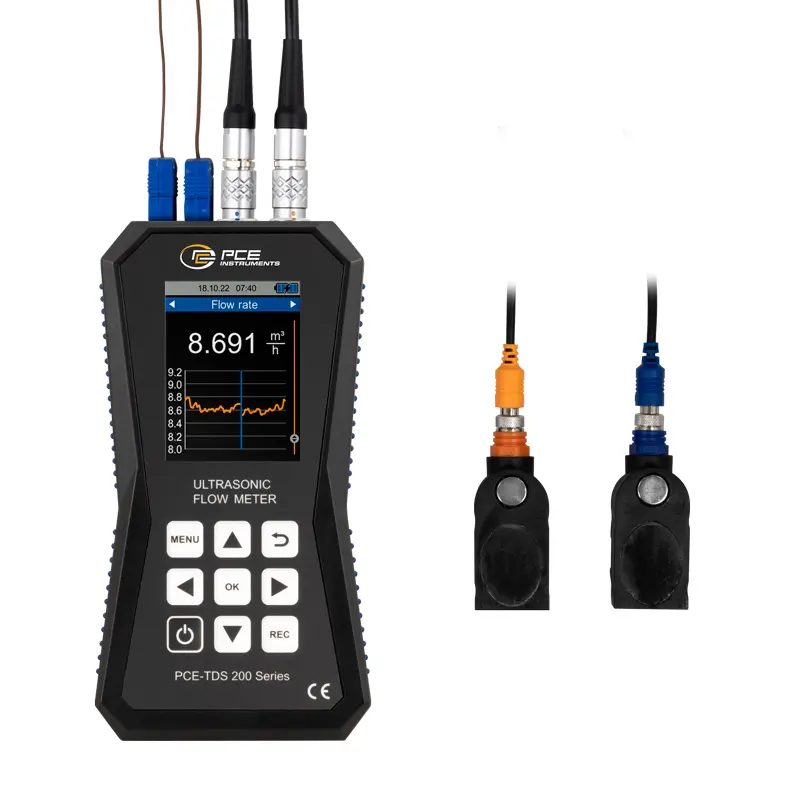

The BTU Meter / Clamp on Heat meter has a measuring range of ±32 m/s. With an accuracy of ±1.5 % f.s. for a pipe diameter of DN ≥50, ±3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of ±0.5 % f.s., the BTU Meter / Clamp on Heat meter is a particularly precise measuring device. An installation aid is available for installing the sensors of the BTU Meter / Clamp on Heat meter. The installation aid graphically displays the signal quality of the BTU Meter / Clamp on Heat meter. In addition, it is graphically displayed whether the sensors of the BTU Meter / Clamp on Heat meter are positioned at the correct distance from each other. To carry out flow measurements with the BTU Meter / Clamp on Heat meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications. The BTU Meter / Clamp on Heat meter displays the measured values in a wide range of units. For example: m³, l, gal, igl, mgl, cf, bal, ib and ob.

During a measurement, it is possible to record the measured values via the data logger function of the BTU Meter / Clamp on Heat meter. Start and stop conditions and the storage interval from 1 second to 12 hours can be set for the BTU Meter / Clamp on Heat meter. A memory point of the BTU Meter / Clamp on Heat meter contains all measured values once. The measured values are stored on the 32 GB built-in memory of the BTU Meter / Clamp on Heat meter. 10 million measuring points can be stored on the BTU Meter / Clamp on Heat meter.

With the optional software, the recorded measured values can be read out from the BTU Meter / Clamp on Heat meter. For analysis, the measured values from the BTU Meter / Clamp on Heat meter can be displayed in tabular and graphic form. For further processing of the measured values from the BTU Meter / Clamp on Heat meter, they can be exported in .csv file format. Alternatively, a PDF report can be created via the software. For simplified operation, the BTU Meter / Clamp on Heat meter can be set via the software. A live view of the measured values from the BTU Meter / Clamp on Heat meter is also possible with the software.

In order to determine the amount of heat with the BTU Meter / Clamp on Heat meter, two additional thermocouples are required. These are available with the PCE-TDS 200+. The two thermocouples of the BTU Meter / Clamp on Heat meter are connected to the flow and return of a pipe system. Based on the temperature difference and the measured flow rate, the BTU Meter / Clamp on Heat meter can determine the amount of heat. If required, the BTU Meter / Clamp on Heat meter can calculate and display the costs per heat quantity unit simultaneously during the measurement. Thus, the BTU Meter / Clamp on Heat meter is used, for example, in the inspection of heating systems.

The LC colour display of the BTU Meter / Clamp on Heat meter has a size of 2.8" and is therefore easy to read. Optionally, the BTU Meter / Clamp on Heat meter can be equipped with an ISO or DAkkS calibration certificate.

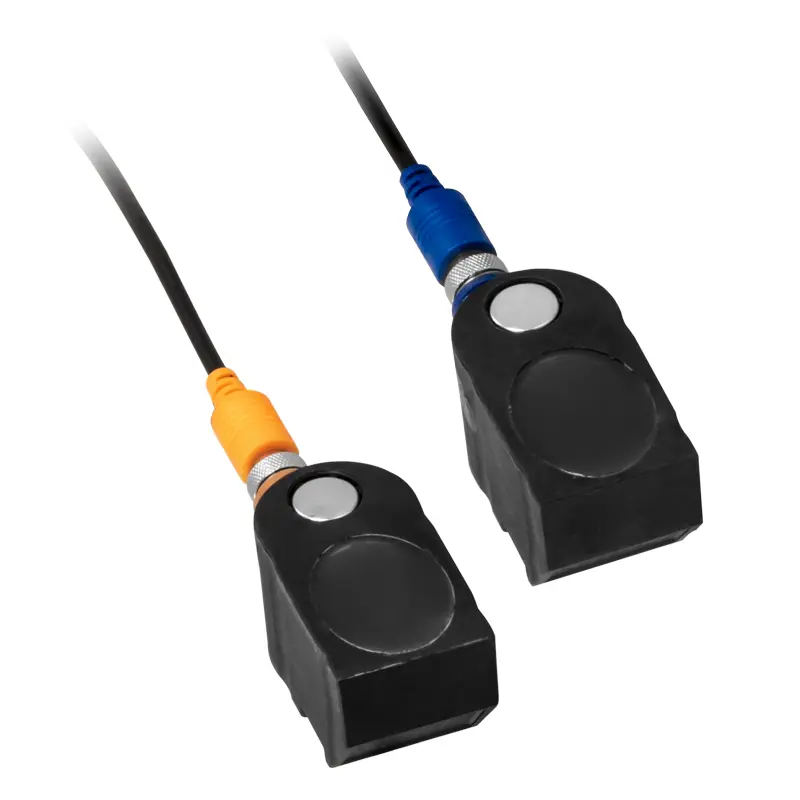

PCE-TDS 200 M SENSOR

Medium sensor pair for pipe diameters DN 50 ... 700 / 57 ... 720 mm. Suitable for flow measurement on medium-sized pipes. The sensors of the BTU Meter / Clamp on Heat meter can be attached to ferrous pipes with the built-in magnets. Alternatively, the sensors can be mounted to the pipe with detachable cable ties. The temperature resistance is between -30 ... 160 °C.

Highlights

- Measuring range ±32 m/s

- USB-C interface for data transfer

- Optional software for analysing the measured values

- Reproducibility ±0.5 % of measured value

- Heat quantity measurement

- Data memory for 10 million measuring points

- individually adjustable alarm limits

- optionally with ISO or DAkkS calibration certificate

Specification


Flow measurement
Measuring range	±32 m/s
Accuracy	0,001 m/s
	DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s
	DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s
Reproducibility	±0.5 % of measured value

PCE-TDS 200 M SENSOR	Sensor pair
Pipe diameter	DN 50 ... 700 / 57 ... 720 mm
Temperature resistance	-30 ... 160 °C


Measuring method	Z, V, N, W
Medium	- water
	- sea water
	- oil
	- crude oil
	- methanol
	- ethanol
	- diesel
	- petrol
	- petroleum
	- user defined
	(manual input of the sound velocity from the medium)

All liquids with an impurity	<5 %
Pipe material	- copper CU
	- steel FE
	- stainless steel VA
	- aluminium AL
	- brass ME
	- cast iron CI
	- iron FE
	- nickel NI
	- titanium TI
	- zink ZI
	- acrylic AC
	- polyethylene PE
	- polypropylene PP
	- polyvinyl chloride PVC
	- nylon NY
	- user defined
	(manual input of the transversal sound velocity
	of the pipe material)

Inner pipe lining	- no lining
	- user defined
	- epoxy resin
	- rubber
	- mortar
	- polystyrene PS
	- polyethylene PE
	- polytetrafluoroethylene PTFE
	- polyurethane PU
	- polypropylene PP
	- user defined
	(manual input of the longitudinal sound velocity
	of the inner lining of the pipe)

Measurement parameters	flow velocity, volume flow and volume
Units (dimensions)	mm, in
Units (flow velocity)	m/s, ft/s
Units (volume flow)	m³, l, gal, igl, mgl, cf, bal, ib, ob
Time specification	seconds, minutes, hours, days
Units (volume)	m³, l, gal, igl, mgl, cf, bal, ib, ob

Temperature measurement
Measuring range	Accuracy
Type B: 600 ... 1800 °C	Type B: ±(0.5 % + 3 °C)
Type E: -100 ... +900 °C	Type E: ±(0.4 % + 1 °C)
Type J: -100 ... 1150 °C	Type J: ±(0.4 % + 1 °C)
Type K: -100 ... +1370 °C	Type K: ±(0.4 % + 1 °C)
Type N: -100 ... + 1150 °C	Type N: ±(0.4 % + 1 °C)
Type R: 0 ... 1700 °C	Type R: ±(0.5 % + 3 °C)
Type S: 0 ... 1500 °C	Type S: ±(0.5 % + 3 °C)
Type T: -100 ... +400 °C	Type T: ±(0.4 % + 1 °C)

Resolution	0.1 °C
Connectable thermocouples	B, E ,J ,K ,N ,R ,S ,T
Measuring parameters	flow rate, volume flow, volume, temperature,
	Heat output and heat quantity
Units (temperature)	°C / °F
Units (heat quantity)	K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu
Units (heat output)	W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h
Cost display	EUR, Pound, USD, Turkish Lira, Zloty, Yen

Further specifications
2.8" LCD	2,8“ LCD
Menu	metrisch / imperial
Menu languages	German, English, French, Spanish,
	Italian, Dutch, Portuguese, Danish, Turkish, Polish, German
	Turkish, Polish, Russian, Chinese, Japanese
Operating and storage conditions	Temperature: -20 ... +65 °C
	Humidity: 10 ... 95 % r. h., non-condensing
Data logger	32 GB memory capacity / 10 million measuring points
Unterface	USB (for online measurement, readout of the internal memory
	memory and for recharging the battery)
Protection class	IP52
Power supply Internal	Internal: LiPo battery (3.7 V, 2500 mAh)
	External: USB 5 VDC, 500 mA
Operating time	approx. 10 h
Dimensions	165 x 85 x 32 mm
Weight	255 g
