Order no.: PCE-LDM 40N

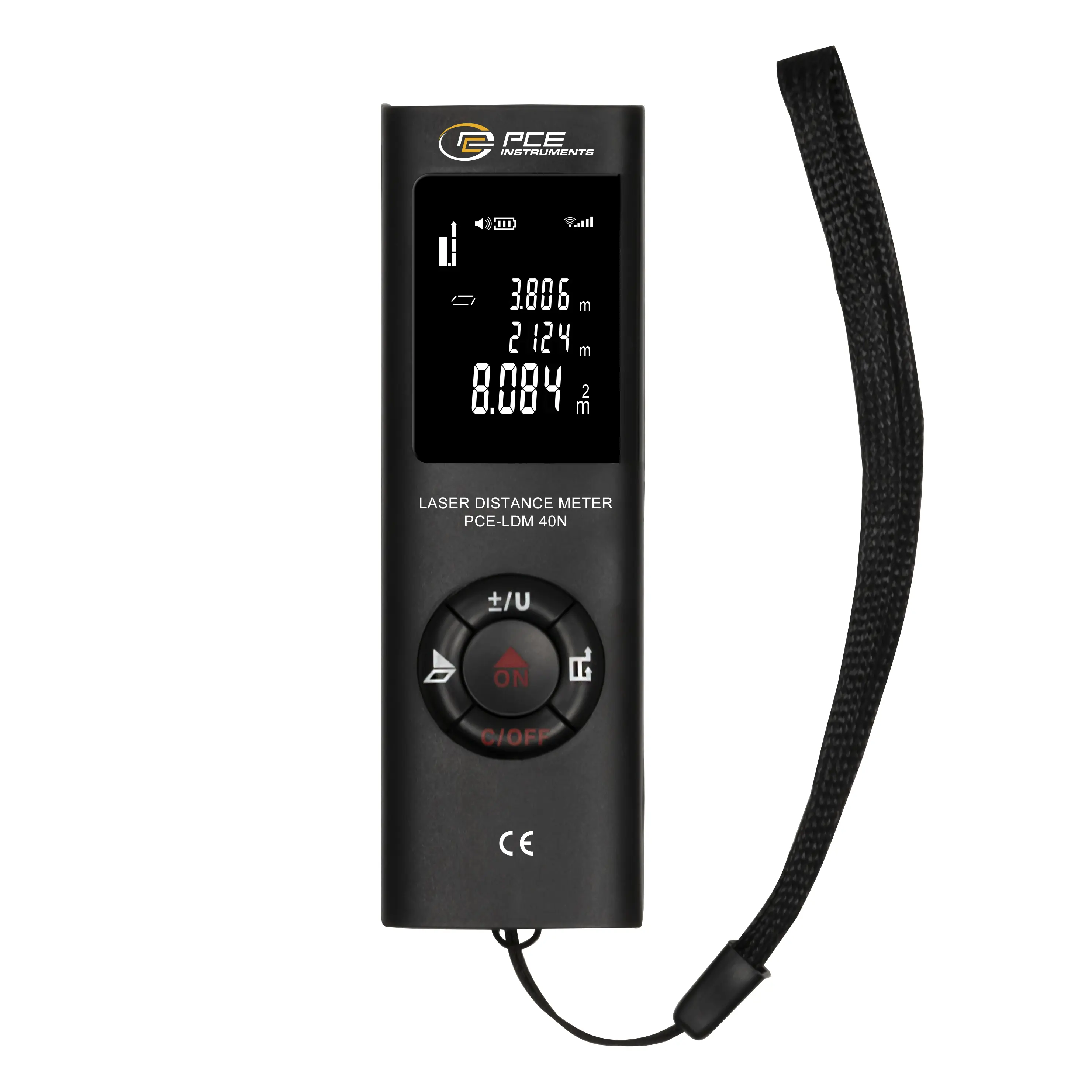

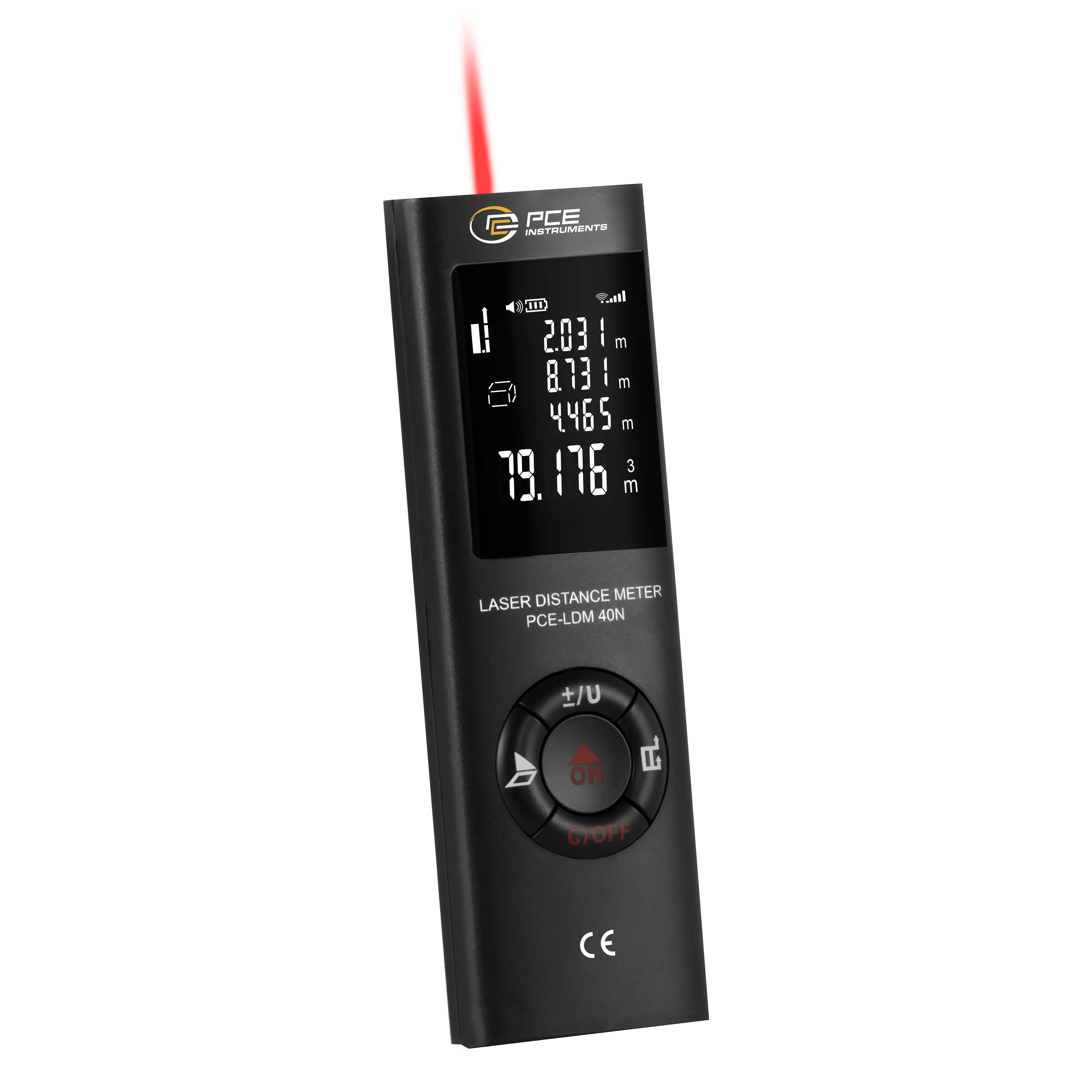

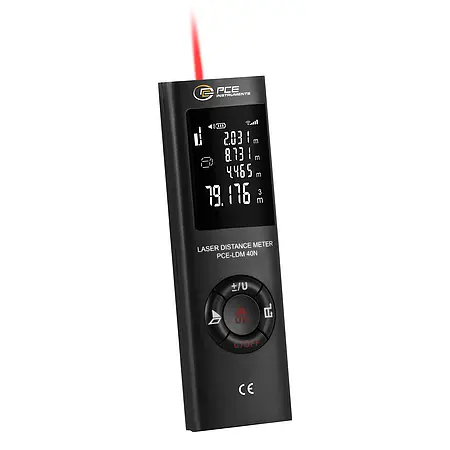

Laser Distance Meter PCE-LDM 40N

24,90 €
29,63 €
:
4250348735980
PCE-LDM 40N
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

Laser Distance Meter up to 40 m / Pythagoras function / addition of measured values / continuous distance measurements / area and volume determination / protection class IP54

The Laser Distance Meter is the ideal tool for precise and simple measurements. With a measurement range of 0.05 ... 40 m and a resolution of 0.001 m, the device provides reliable results for a wide range of applications. Whether in construction planning, interior design or simple DIY work - the Laser Distance Meter impresses with its versatility and ease of use.

In addition to simple distance measurement, the Laser Distance Meter can also determine the area and volume of a room. Thanks to the function for indirect distance measurement using the Pythagorean theorem, even hard-to-reach areas can be measured precisely. The device also enables continuous distance measurement as well as the addition and subtraction of distances. Equipped with an LCD, the distance meter is easy to read and operate. The user can choose between different units of measurement (metres, inches, feet) and thus optimally adapt the device to their needs. The automatic power-off function and automatic laser switch-off contribute to energy saving and safety.

Thanks to its compact dimensions of 100 x 30 x 17 mm and low weight, the Laser Distance Meter is particularly handy and easy to transport. The integrated lithium polymer battery with a capacity of 200 mAh can be easily recharged. Our Laser Distance Meter has a class II laser with a wavelength of 635 nm and an output of less than 1 mW. This makes it the ideal companion for professional users and DIY enthusiasts when carrying out renovation work, taking quantity surveys or other measurements.


Highlights

- measuring functions: volume, area
- indirect distance measurement via Pythagoras
- units of measurement: m, inch, ft
- continuous distance measurement
- max / min measurement
- addition / subtraction of distances
- automatic power-off
- automatic laser switch-off
- laser type: class || / 635 nm <1mW

Specification

Length
Measurement range up to  0,05 ... 40 m
Resolution  0,001 m
Accuracy  ± 2 mm

General technical data
Measuring functions  Pythagoras, Volume, Surfaces
Units  m, ft, inch
Display type  LCD
Display size  1,6 Inch

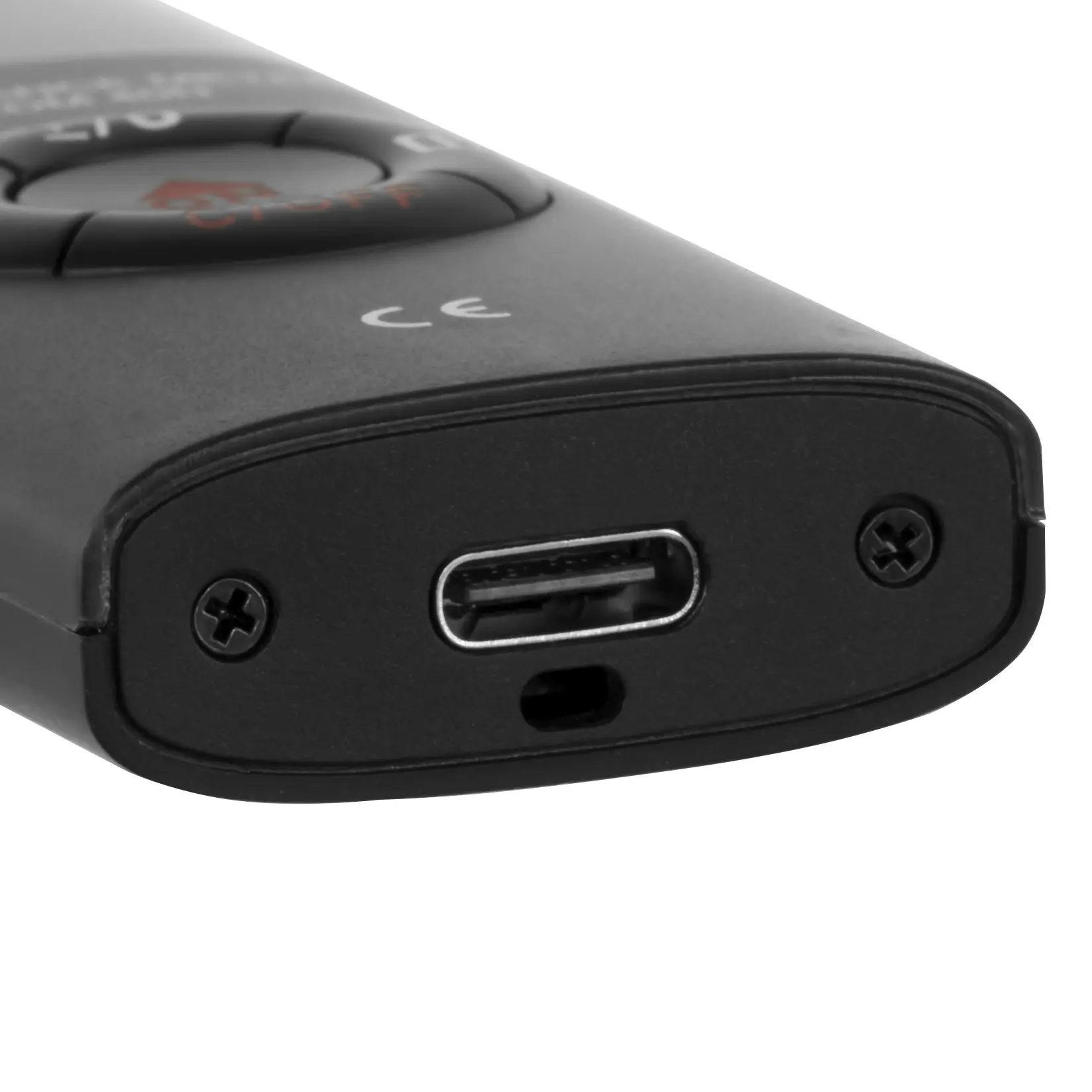

Interface  USB-C
Automatic power-off  45 s

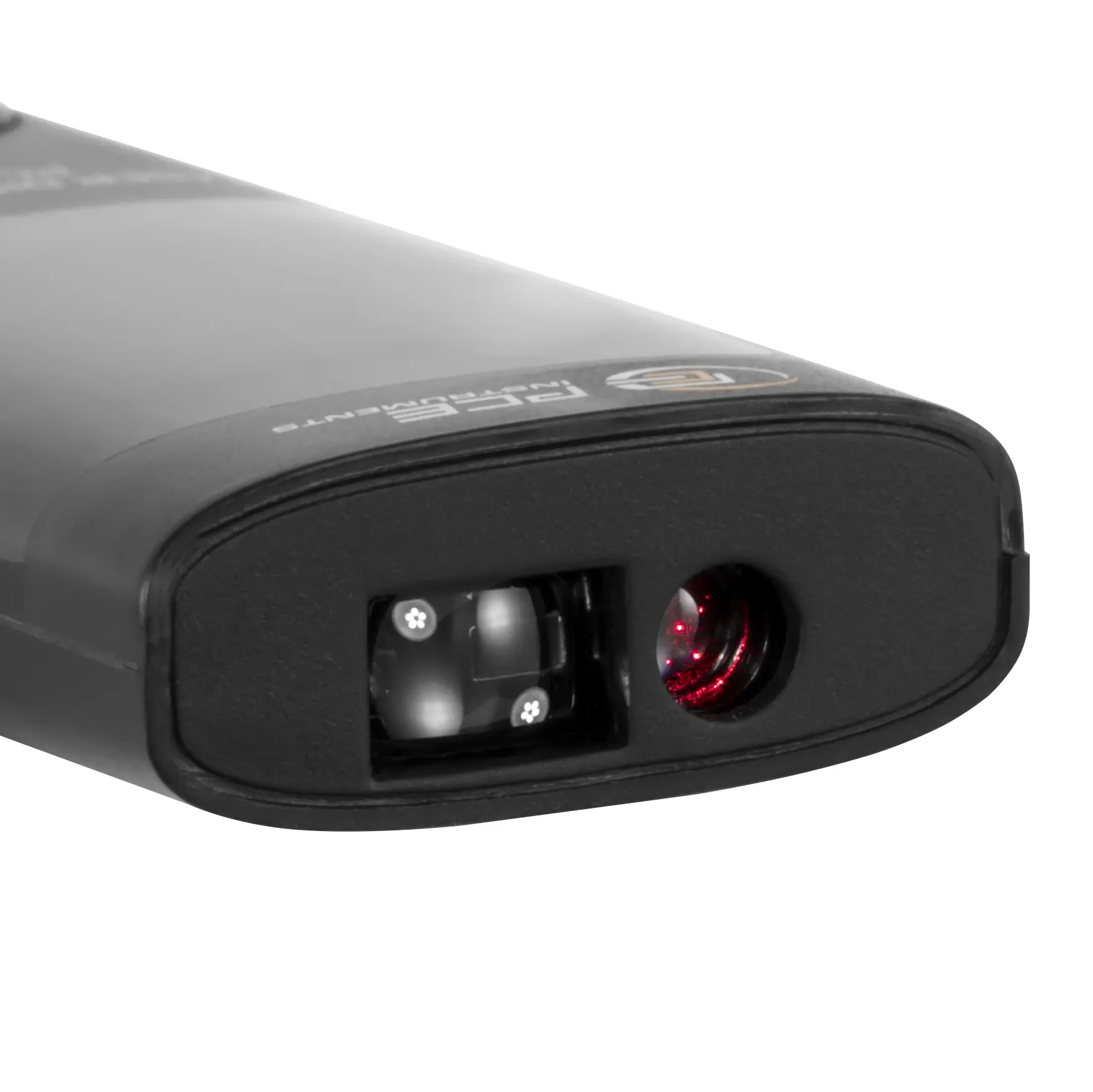

Laser  Class 2 / 635 nm <1mW
Protection class (device)  IP54
Power supply  5 V
Weight  30 g
Operating conditions  0 ... 40 °C , 10 ... 90 % RH
Storage conditions  -25 ... 60 °C , 10 ... 90 % RH
(Rechargeable) battery  1 x 3,7 V LP402030 , Lithium polymer battery
Capacity  200 mAh
Dimensions ( L x W x H )  100 x 30 x 17 mm

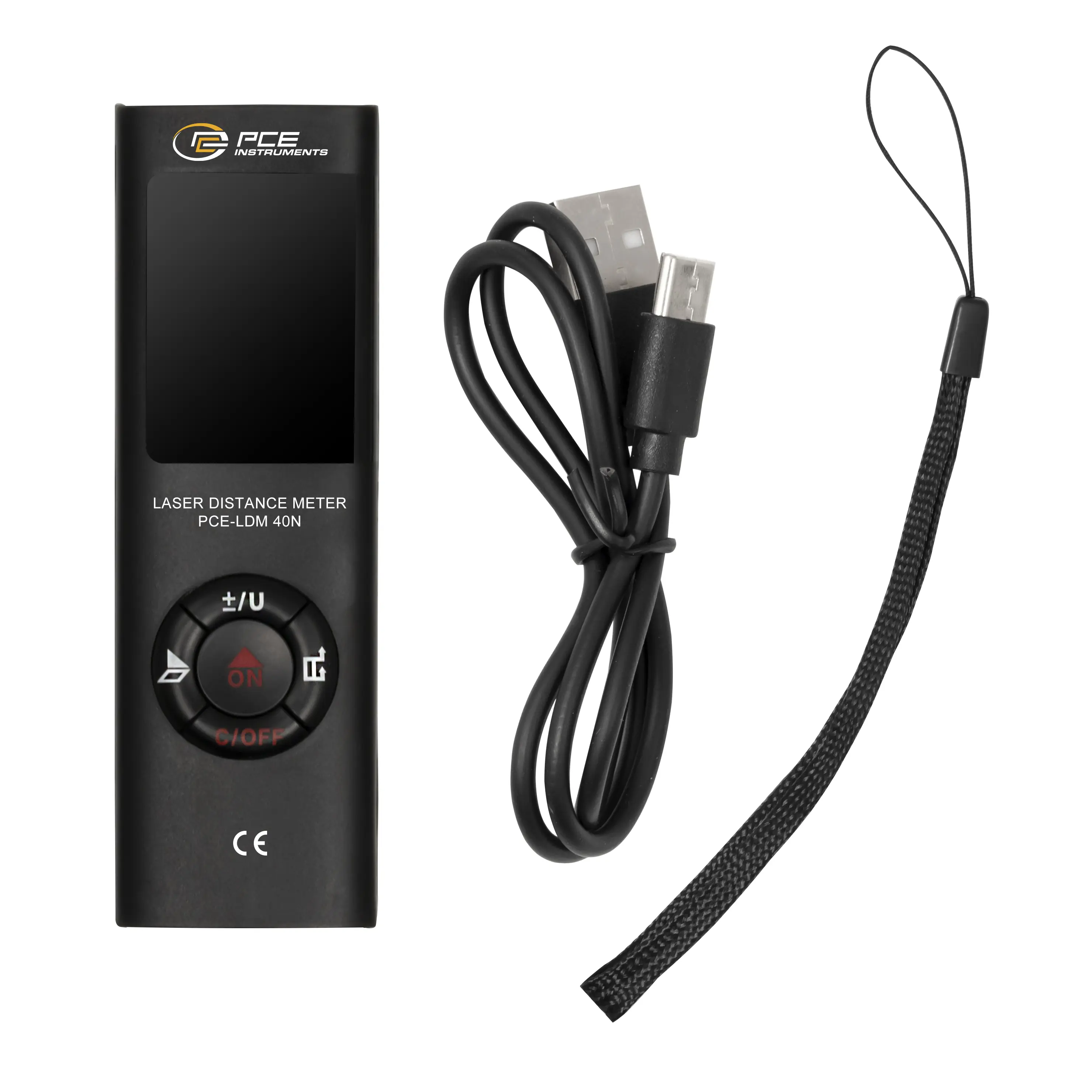

Delivery Scope

1 x PCE-LDM 40N Laser Distance Meter
1 x user manual
1 x USB-C cable (for charging)
1 x wrist strap
