Radiation Detector GS 1

Order no.: GS-1

GTIN (EAN):

Accessory

Re-calibration for GammaScout CAL-GS

359,90 €

Belt Pouch for Gamma-Scout

28,90 €

Description

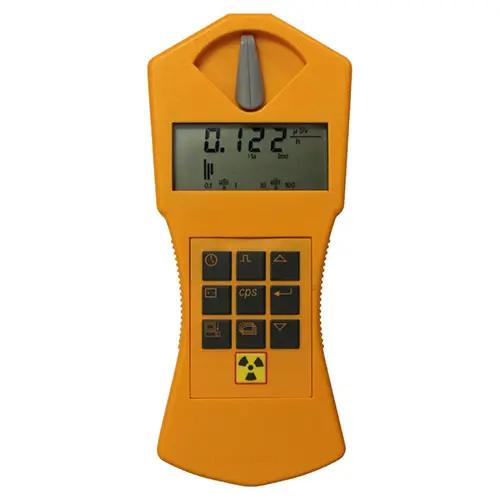

Radiation detector GS 1 with internal memory and software

This professional Radiation detector is a precise instrument to measure alpha, beta and gamma radioactivity. The Radiation detector has a wide measuring range and can be used for diverse measurements types as for sporadic measurements in situations, long-lasting measurements or for controls. The Radiation detector provides with a certified measurement of the environmental radiation as well as the radiation which is artificially increased up to 500 times over the limit value.

This Radiation detector has diverse applications. This Geiger meter has been usually used in nuclear power stations. Everyday it is most commonly used in the control of imported goods, as well as to measure the food which has been previously irradiated. This Radiation detector can be also used to measure natural radioactive radiation as the one which appears near the sea and it fulfills all the requirements when controlling building materials. Radiation values can be recorded in the Radiation detector memory or they can be transferred to a computer to be valued by means of a device included in the delivery (software and RS 232 data cable).

Highlights

- Accurate measuring instrument
(every Radiation detector has a final control, this control is carried out in the Institute for the protection
against radioactivity and inspected by a State Technical School with a control certification)
- Types of radiations
(the meter measures Alfa, beta and gamma radiations)
- Duration
(this meter can measures radiation during day and night/ it is not necessary to switch on/off the the
instrument/ battery does not need to be changed for 10 years)
- Big Display
- Data Memory
- Data can be valued in a PC
(the software included in the delivery allows data to be transferred to a computer to be valued)
- Certification
(GAMMA - SCOUT ^® security is controlled by the TÜV and it meets the CE standards and the American
standards FCC-15 / it can be also used in planes)
- Version (GS2)
(meter GAMMA-SCOUT^® w / ALERT produces an acoustic signal if the radiation is over the limit value)

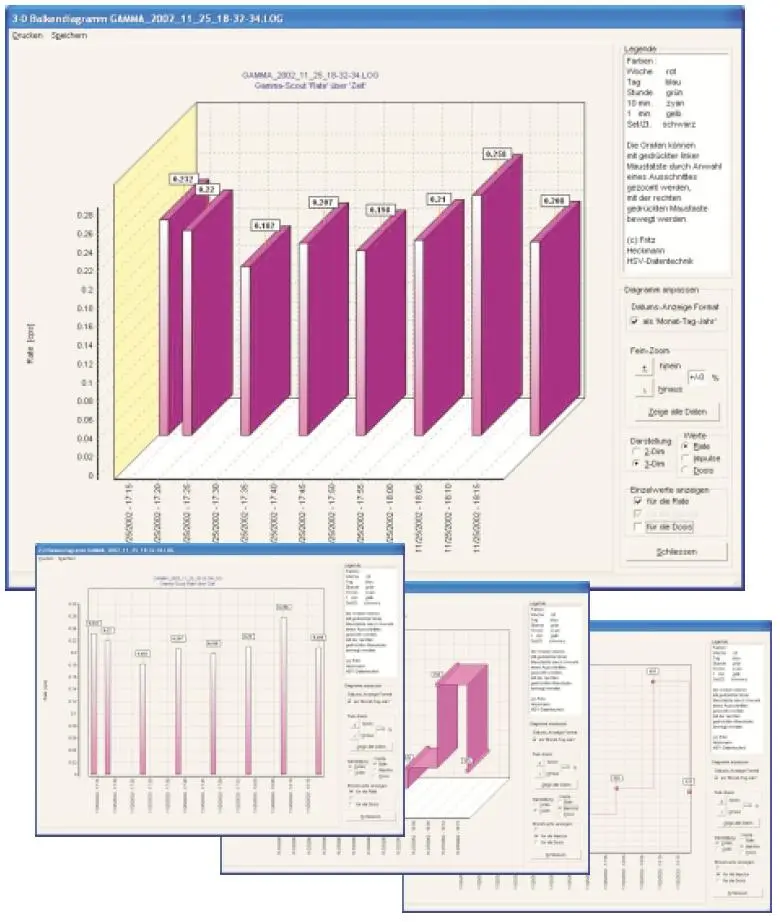

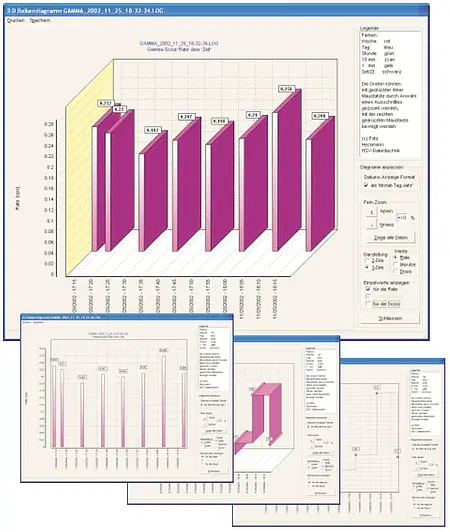

Software
The software is used to transfer radiation values which are recorded in the meter to a PC or a computer. Measuring data can also be transferred to other calculation programs such as Excel to be valued (see above the possibilities to download it).

Specification

Technical specifications
Measuring principle / Radiation detector	Geiger-Müller counting tube, auto shut-off, stainless steel case with halogen filler - Measurement length = 38.1 mm / 1.5 in - Measurement diameter = 9.1 mm / .4 in - Window = 1.5 ... 2.5 mg/m²
Radiation types	- Alfa radiation from 4 MeV - Beta radiation from 0.2 MeV - Gamma radiation from 0.02 MeV
Selection of the diaphragm	- Alpha + Beta + Gamma (without diaphragm) Beta + Gamma ( (approx 0,1 mm) alpha is totally protected) - Gamma (display Al (approx 3 mm) alpha and beta radiation are totally protected approx. 2 MeV, it attenuates Gamma under 7%)
Gamma Sensibility	95.0 impulses / min for radiation Co60
Null quota	< 10 impulses / min with protection 3 mm Al y 50 mm Pb
Measurement ranges	0.01 µSv / h - 1000 µSv / h
Measurement of the impulses	1 ... 99 s, 1 ... 99 min, 1 ... 99 h, Mean value 24 h in µSv / h
Internal recording of the impulses	Intervals to be selected. every 1 min., 10 min, 1 hour, 1 day y 7 days
Storage capacity of the internal memory	2 KB
Software / data cable	Yes, in the delivery
Power	Internal battery
Consumption	Under 10 micro-amp on average
Duration	More than 117000 h x 20 impulses / min (approx. 10 years)
Display	LCD display with 4 positions, numeric, with quasi-logarithmic denomination and representation and indication of functions.
Housing	Novodur plastic, shock resistant
Dimensions	161 x 72 x 30 mm / 6.3 x 2.8 x 1.2 in
Weight	153 g / < lb
Certification	Yes, in the delivery a quality certification is included for every numbered meter.
Standard	- European standard CE - USA standard FFC15

Delivery Scope

1 x Radiation detector GS1
1 x Software
1 x Data cable
1 x Battery
1 x User's manual

Downloads

Manual

Radiation detector GS 1 application

Radiation detector GS 1 software
