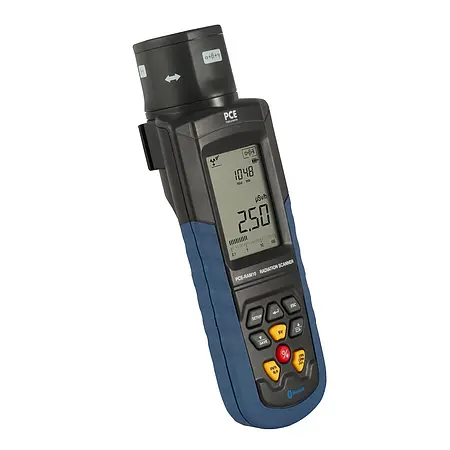

Radiation Detector PCE-RAM 10

Order no.: PCE-RAM 10
GTIN (EAN): 4250348714701
443,90 €
528,24 €
Wireless
price ex. (VAT / delivery)
:
4250348714701
PCE-RAM 10
Delivery time: Available soon!

Description

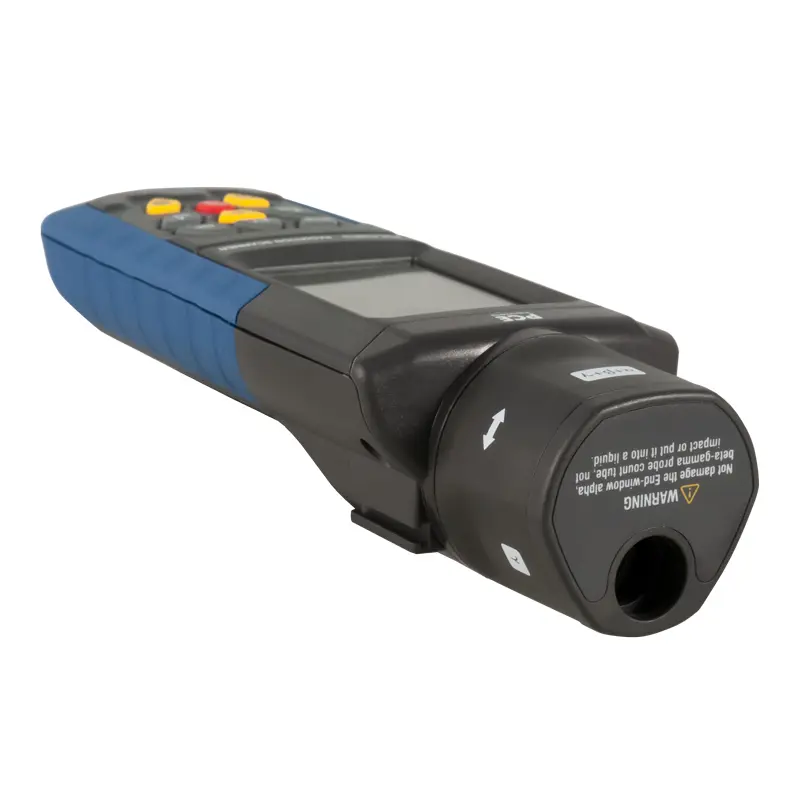

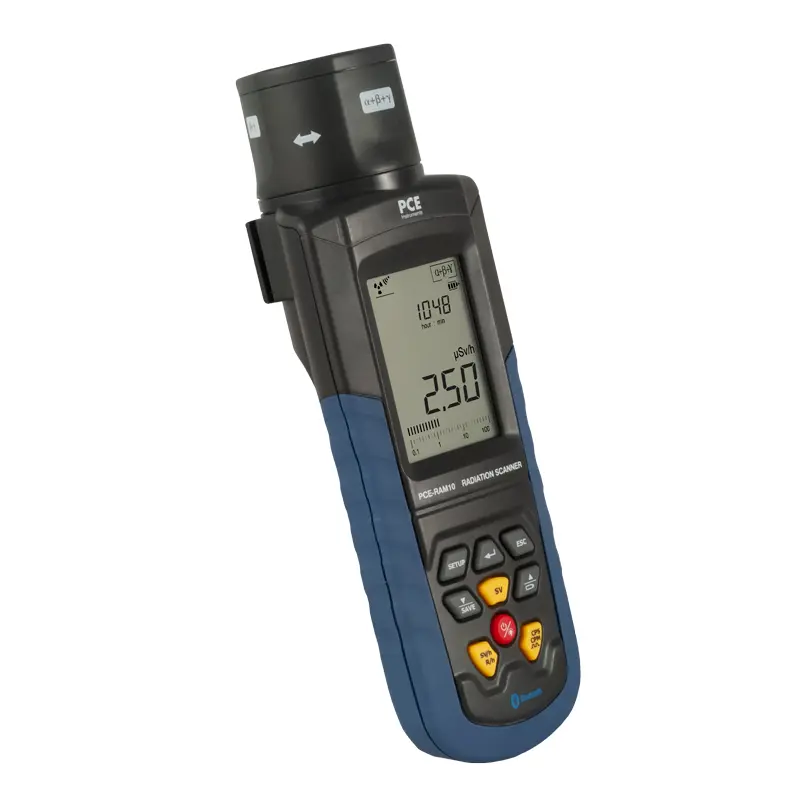

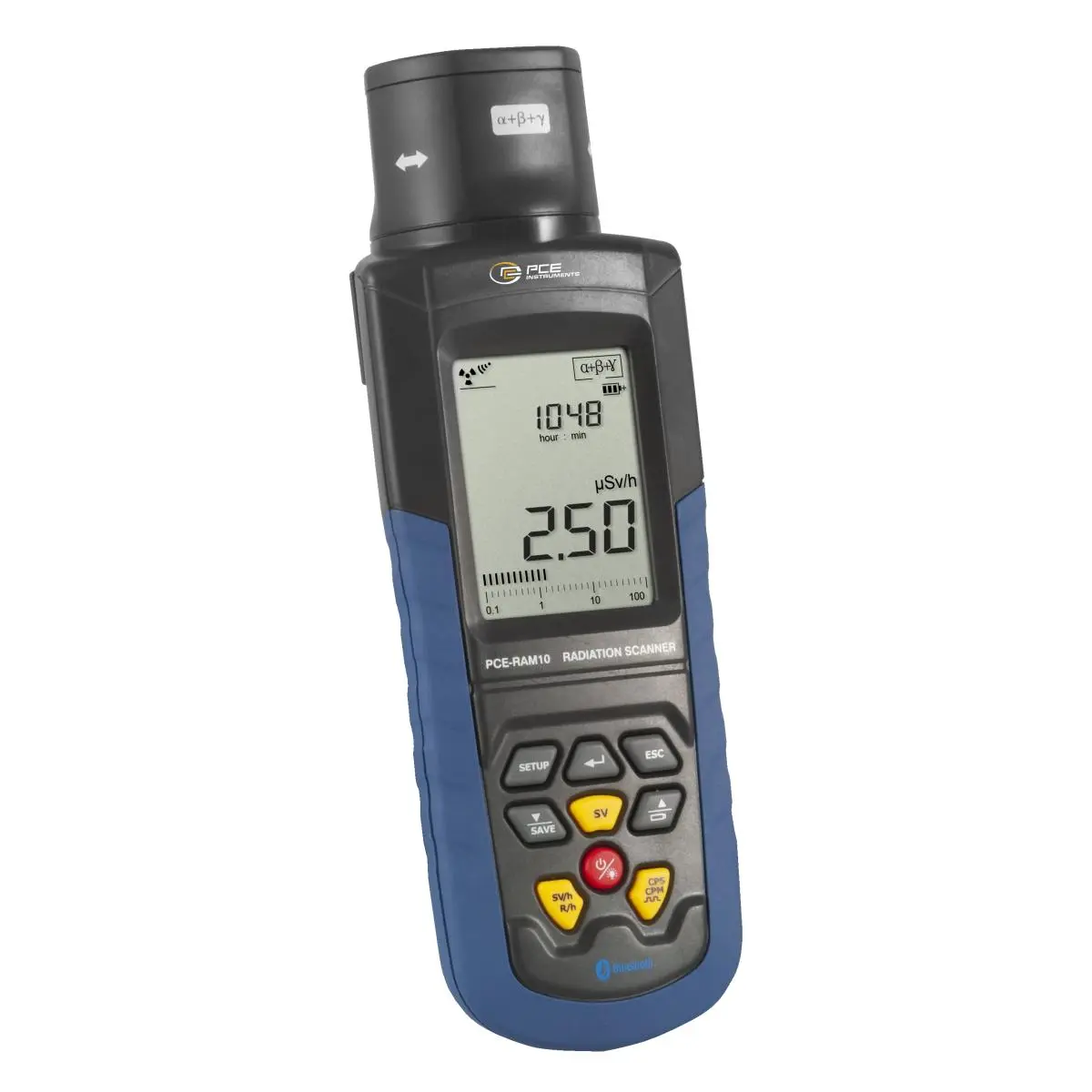

PCE-RAM 10 Radiation Detector
Measures α-, β-, γ- and x- radiation / High accuracy / Internal memory / Large, easy-to-read LCD screen / Data logging functionality / Bluetooth interface

The radiation detector measures α-, β-, γ- and x- radiation. The radiation detector provides many features including a large, high-resolution LCD screen with background lighting. The radiation detector has an internal memory for up to 2000 data sets, which are saved either manually or automatically. Furthermore, the radiation detector is equipped with a Bluetooth interface to transfer the measured data in real-time to a computer. With the PC software that is included in the delivery contents, the data can then be further processed and reviewed. The radiation detector stands out due to its high accuracy and convenient design. The radiation detector has many practical applications in pharmaceutical laboratories, power plants, quarries, oil and gas reservoirs, water treatment facilities, and more.


Highlights

- Detects α-, β-, γ- and x- radiation
- High measuring accuracy
- Internal memory for up to 2000 data sets
- Large, easy-to-read LCD screen
- Bluetooth interface
- PC software provided for data processing

Specification

Types of radiation α-, β-, γ- and x- radiation
Measurement ranges Radiation dose rate: 0.01 ... 1000 μSv / h
Pulse dose rate: 0 ... 30,000 cpm, 0 ... 5000 cps
Radiation dose accumulation: 0.001 ... μSv ... 9.999 Sv
Pulse dose accumulation: 0 ... 9,999
Sensitivity 108 pulses or 1000 cpm / mR / hr in Cobalt-60 irradiated environment with current of 1 μSv / h
Alpha rays: from 4 MeV
Beta rays: from 0.2 MeV
Gamma rays: from 0.02 MeV
X-rays: from 0.02 MeV
Accuracy

<10% (less than 500 μSv / hr)
<20% (less than 600 μSv / hr)

Radiation selection Combination of α-, β-, γ- and X-rays
Sensor Halogen compensation accumulator
Output port Bluetooth
Average process time Manual or automatic, adjustable between 2 ... 12 seconds

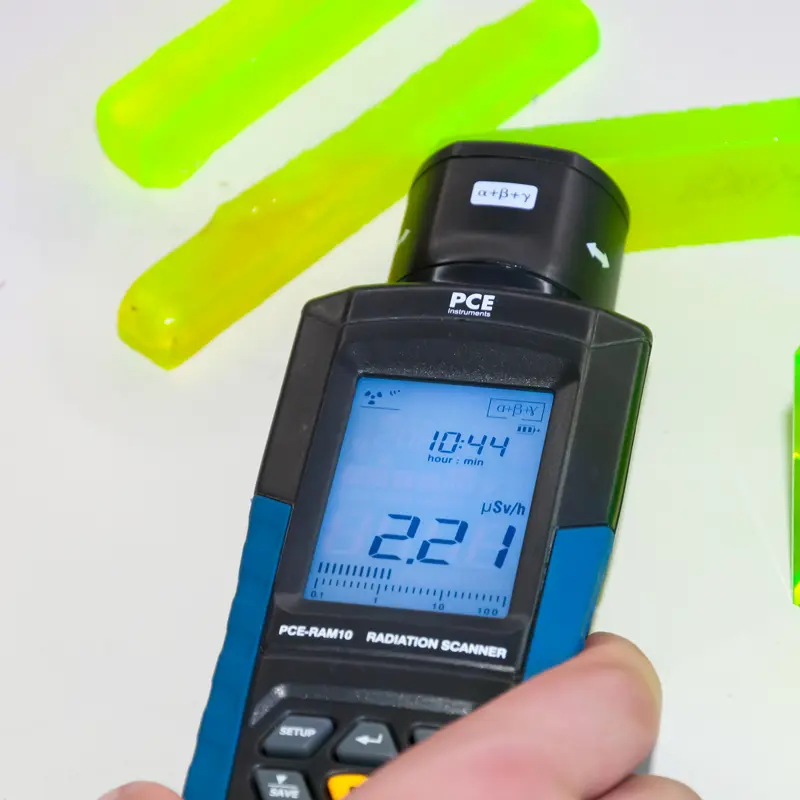

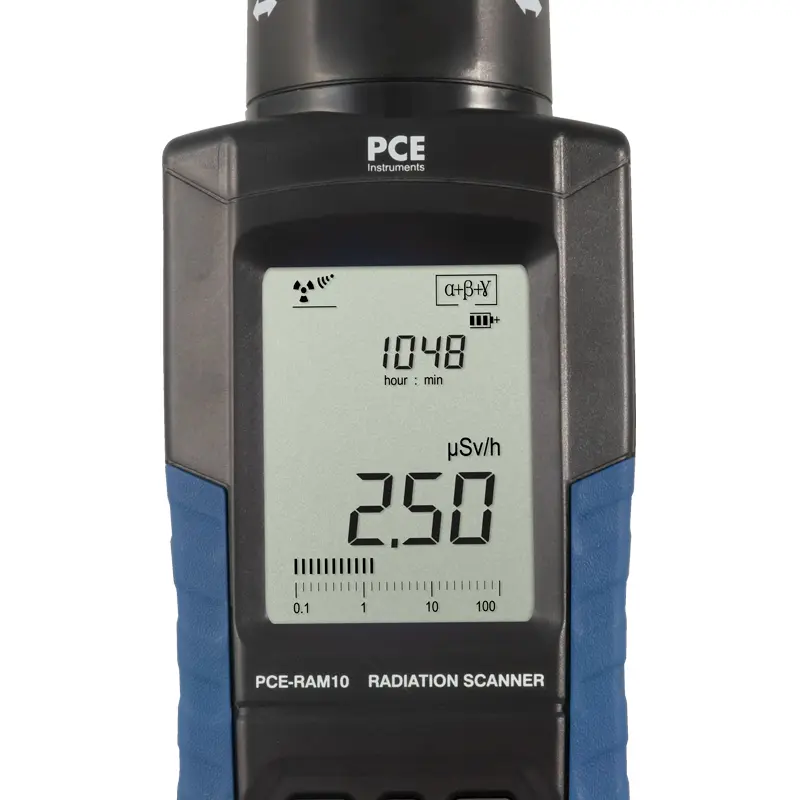

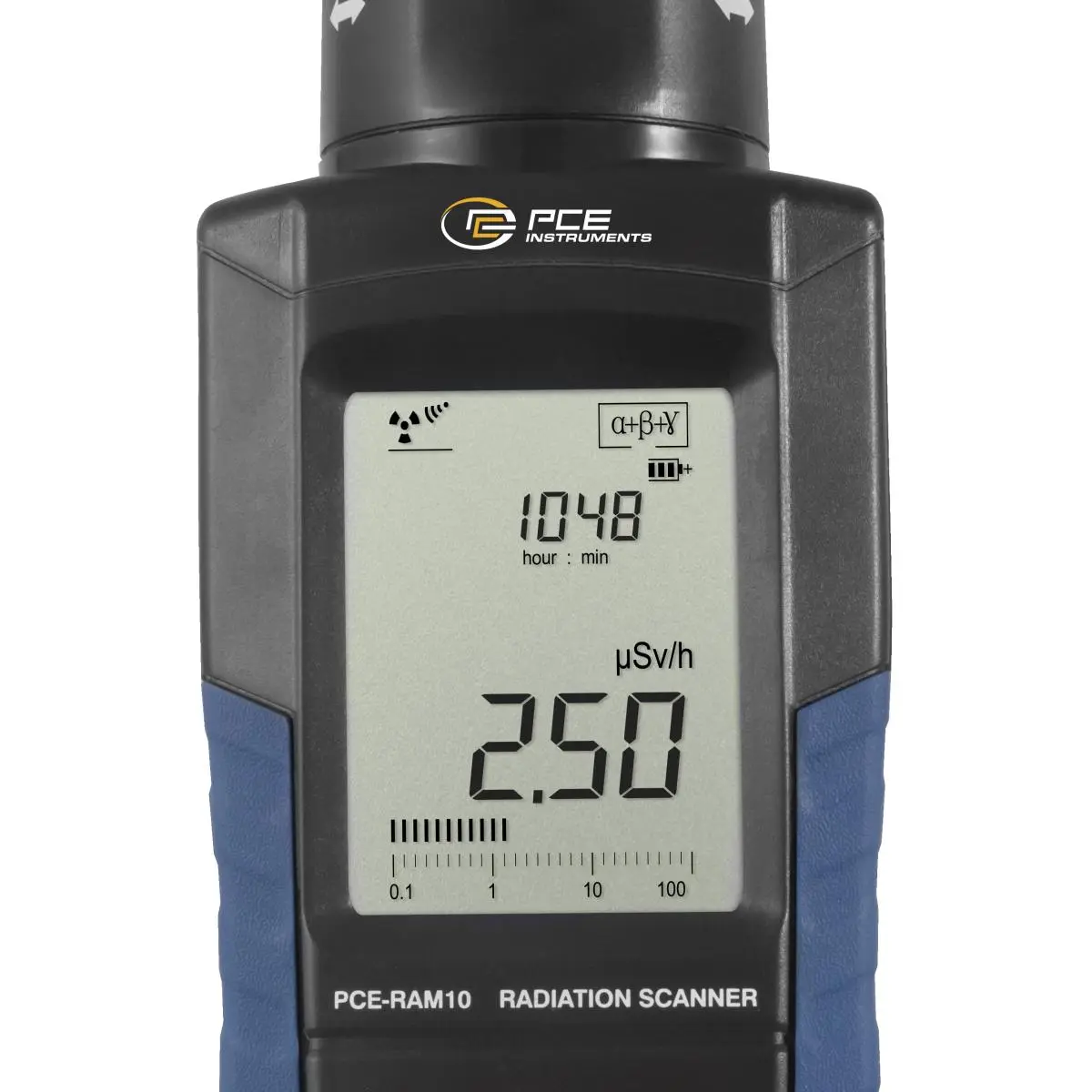

Display Digital LCD display, with bar graph display
Alarm function Acoustic alarm for manually selected value
Normal radiation value of natural environment Less than 0 ... 0.2 μSv / h
Internal data storage Automatic memory for <2000 measured values
Software Data transmission in real-time, analysis and recording
Operation temperature 0 ... +50°C / 0 ... 122°F
Power supply 4 x 1.5V AA Batteries
Dimensions 200 x 70 x 45 mm / 7.9 x 2.8 x 1.8 in
Weight 206 g / < 1 lb

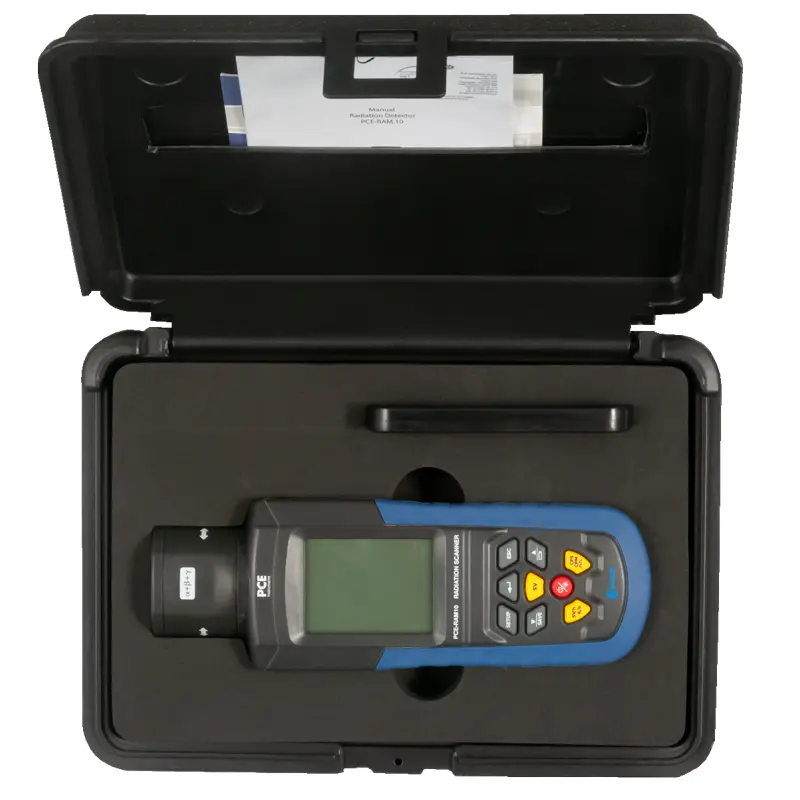

Delivery Scope

1 x PCE-RAM 10 radiation detector
1 x PC software
4 x 1.5 V AA batteries
1 x Carrying case
1 x User manual
