Radiation Detector PCE-RAM 5

Order no.: PCE-RAM 5
GTIN (EAN): 4250348732170
87,90 €
104,60 €
price ex. (VAT / delivery)
:
4250348732170
PCE-RAM 5
Delivery time: 1-2 working days

Description


Radiation Detector for dose measurement of X, ß and y radiation / simple operation / alarm function / battery operation.

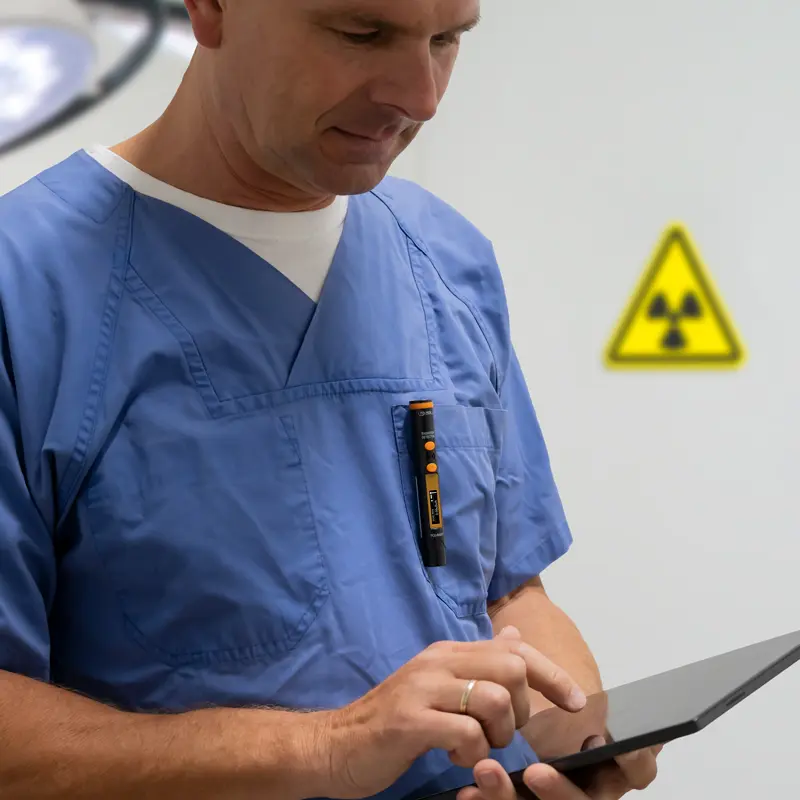

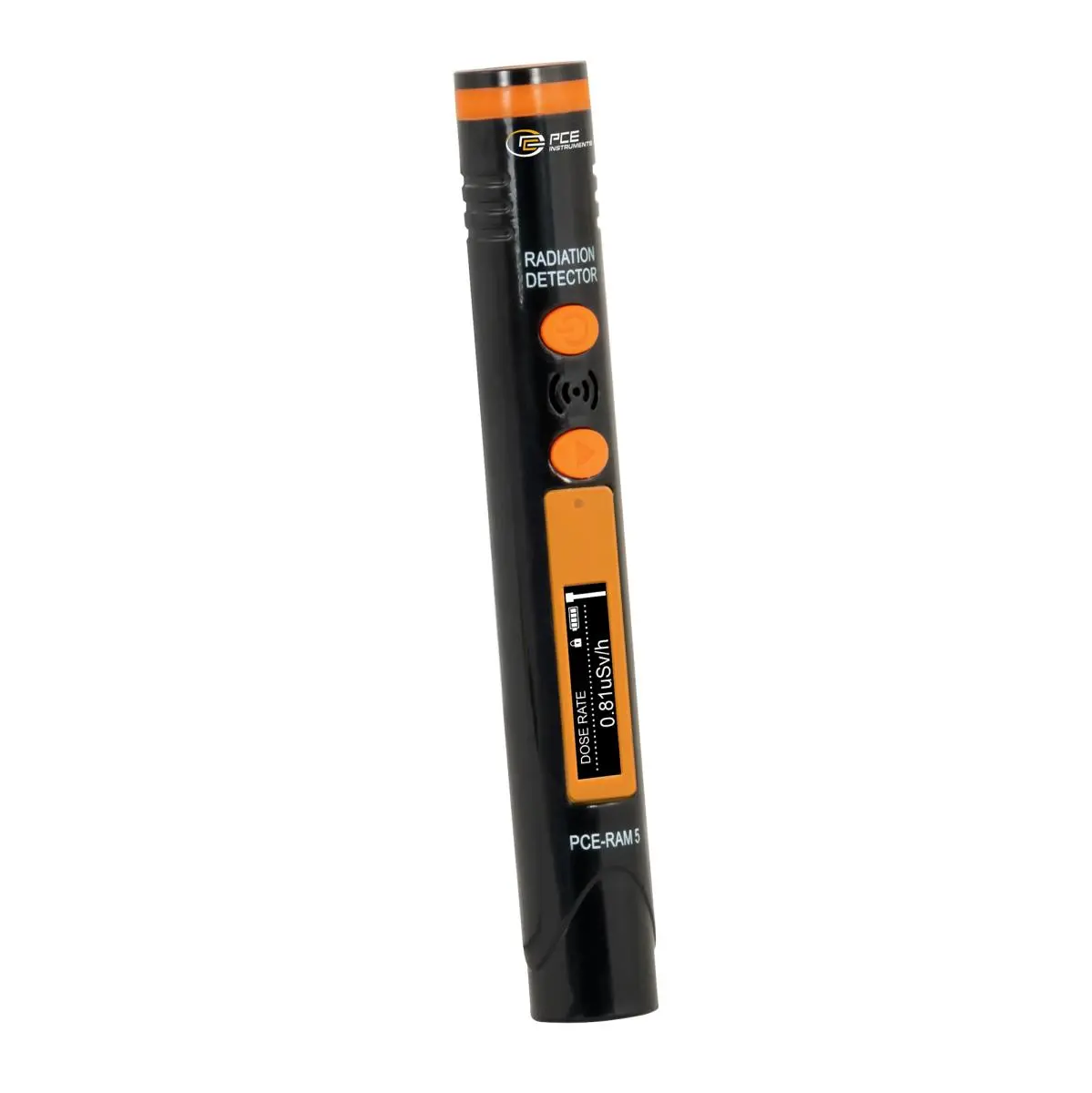

The radiation detector  is a small, highly sensitive radiation warning device mainly used for monitoring X, ß and y. Black and white illuminated OLED display that is clearly visible even at night. It has a warning flashing function.

The radiation detector  itself has two alarm modes: sound and LED light. The alarm limit can be set as desired. When the alarm limit is reached, an alarm is given, for protection. The main technical indicators of the device comply with the international standard.


Highlights

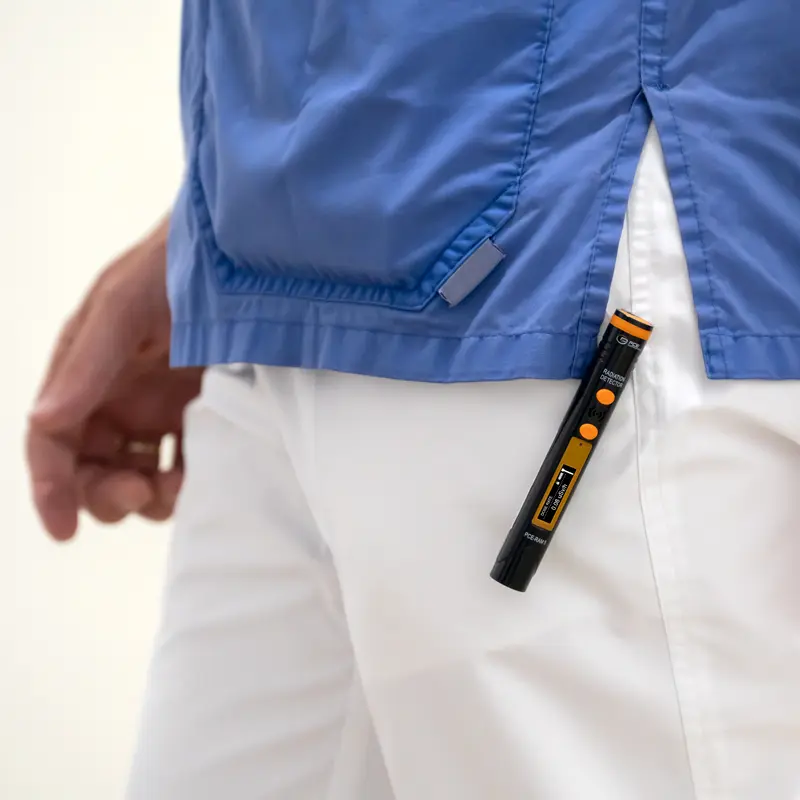

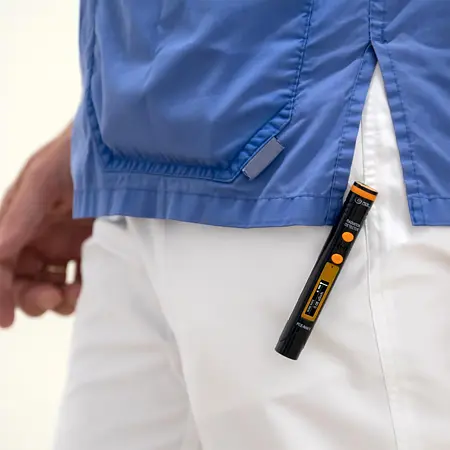

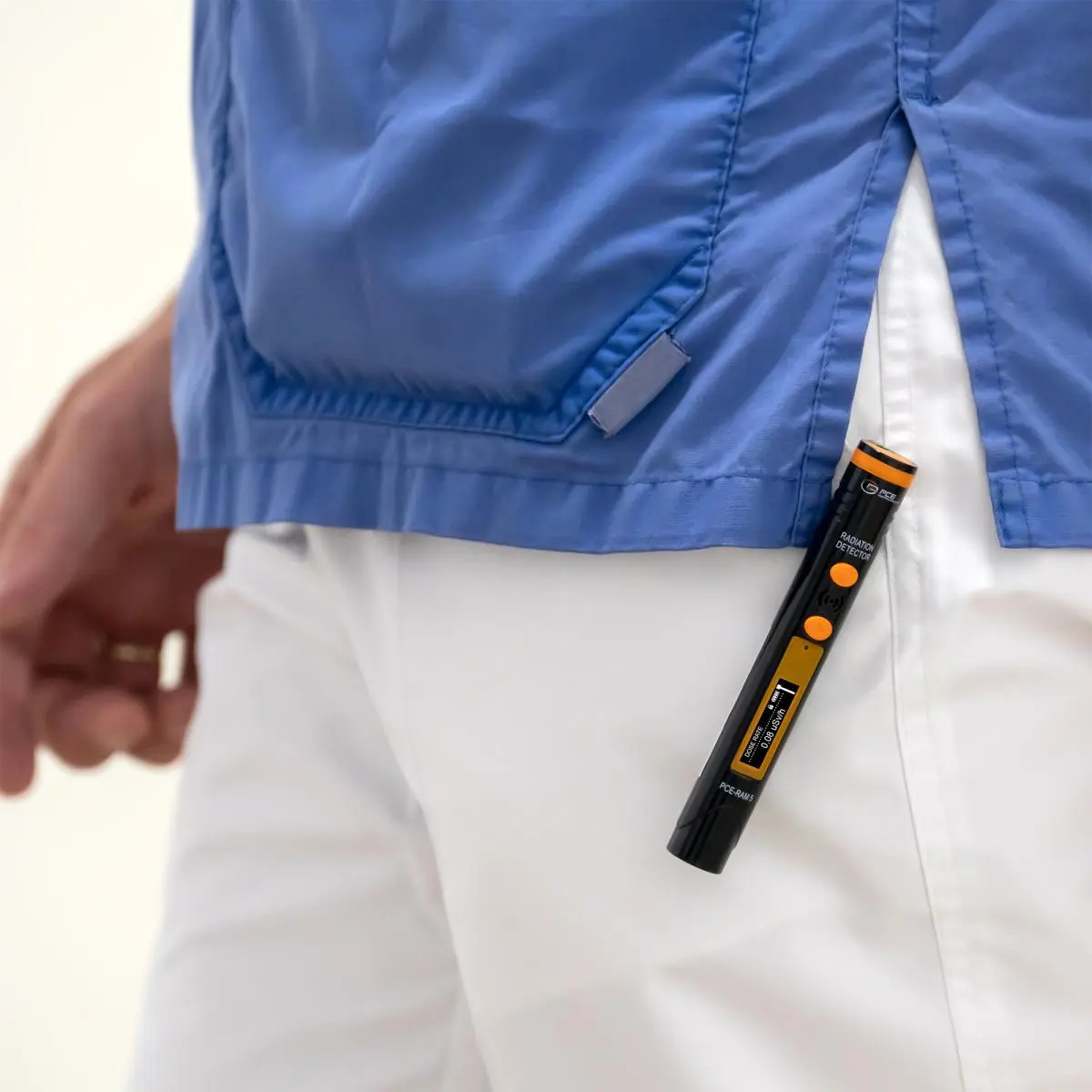

- Clip design

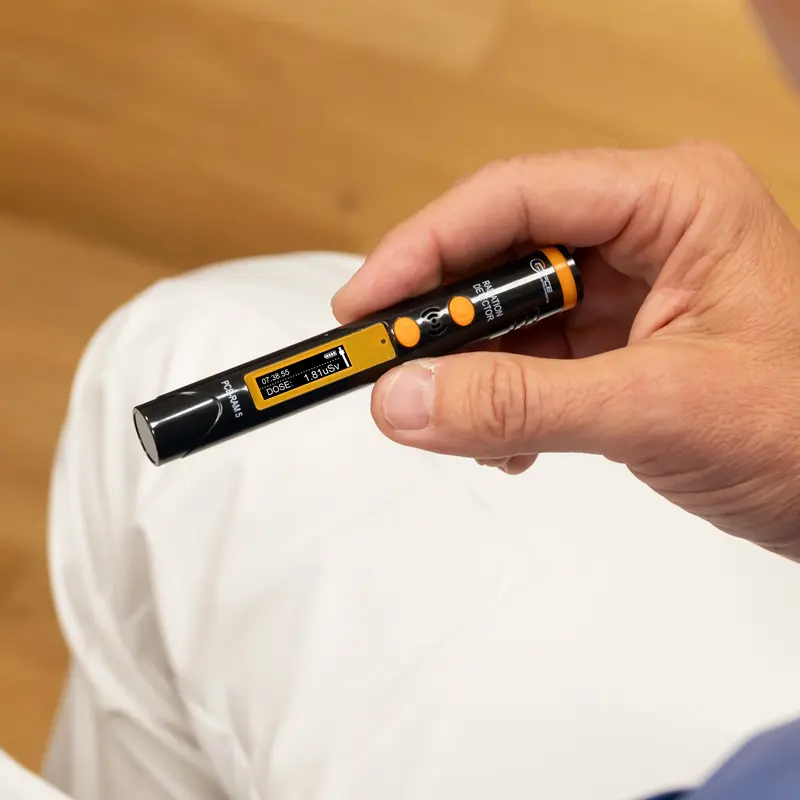

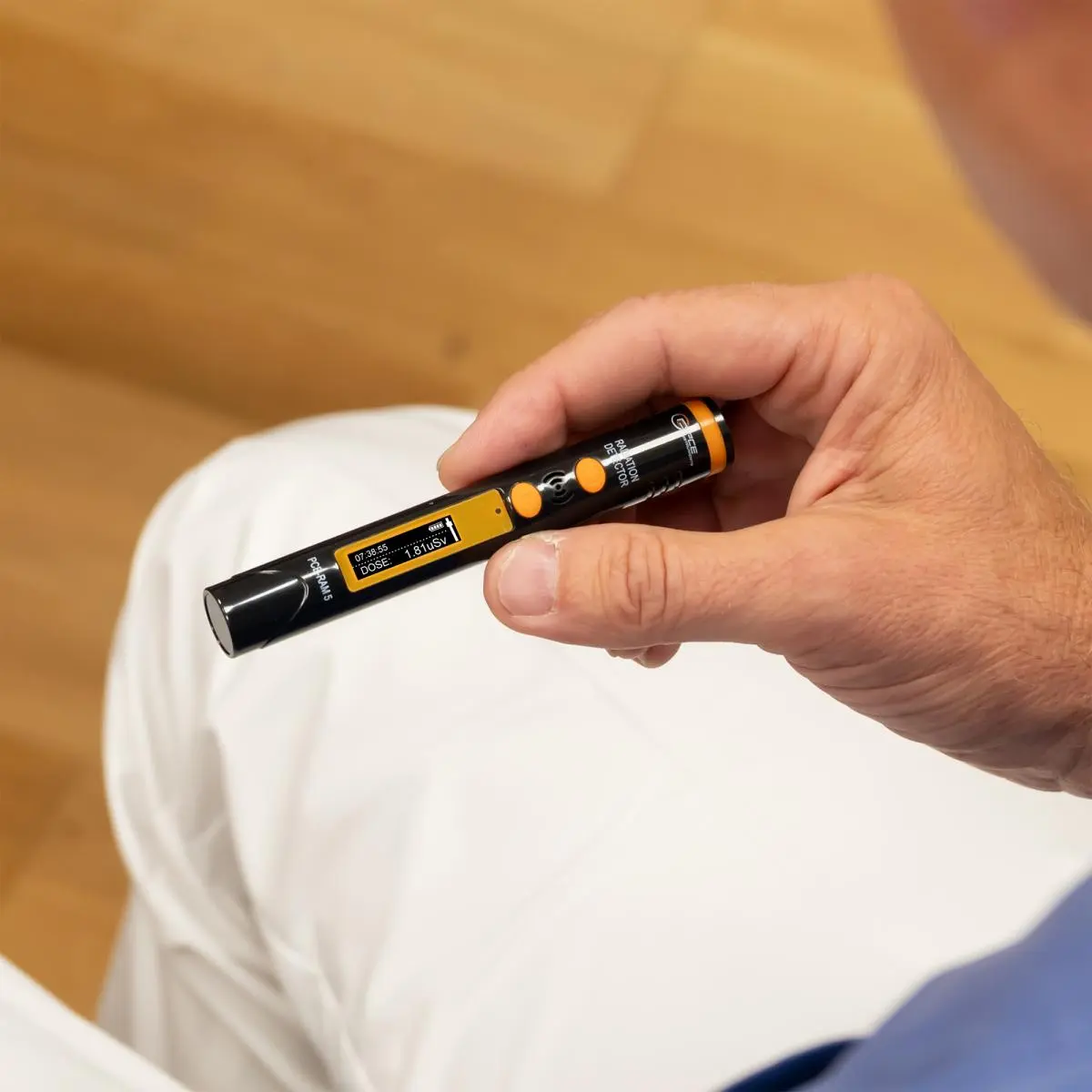

- OLED display

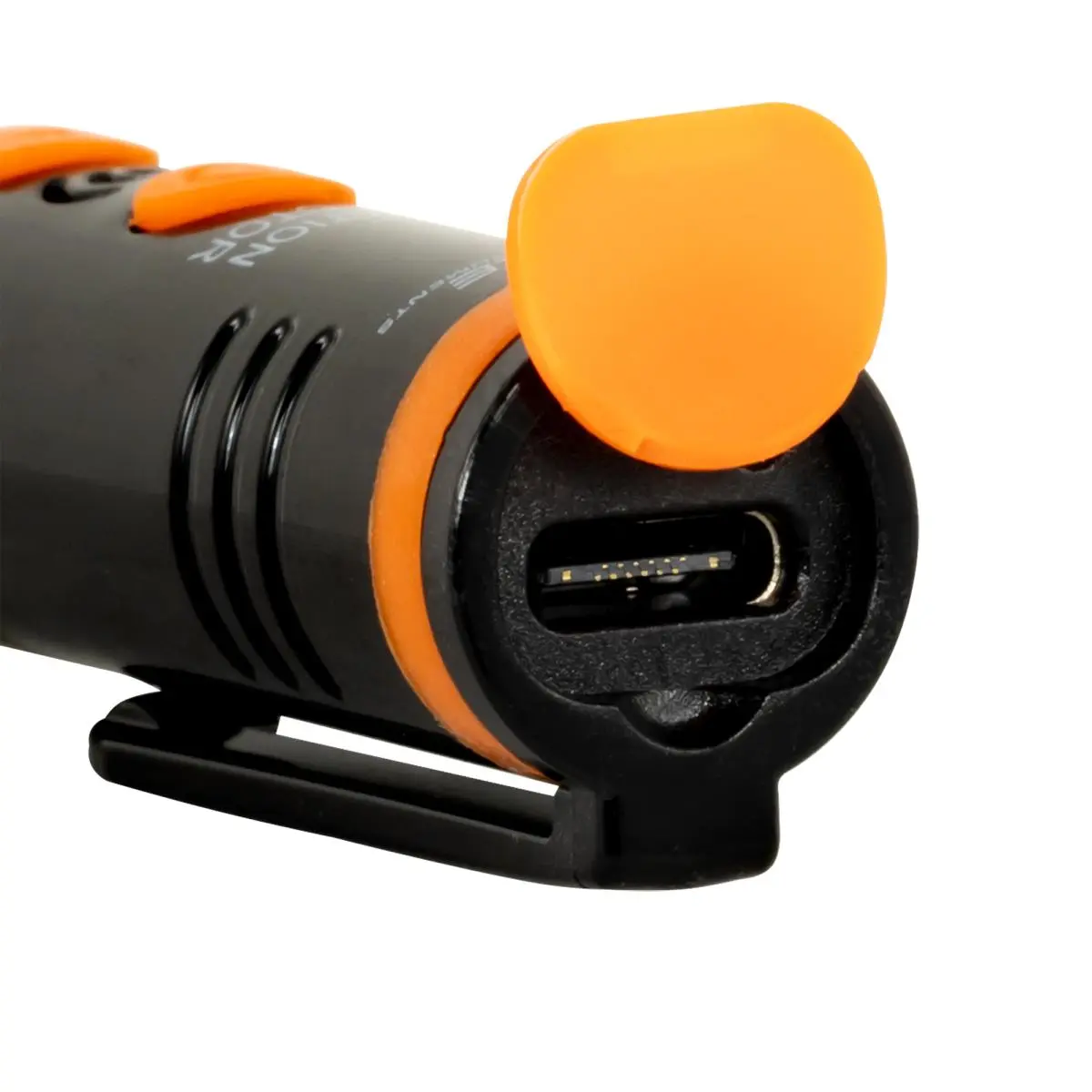

- USB-C charging socket

Specification

X-, ß- and y-rays
Measuring range0.05 usv ... 50 msv based on 137 Cs y
Accuracy-17 % ... + 25 %

Data interfaceUSB-C
Charging time2 - 3 hrs.
Operating timeapprox. 50 hrs.
Battery capacity400 mAh
Response5 s

General technical data
Menu languageEnglish
Protection classIP40
Weight19 g
Length108 mm
Diameter15,3 mm
Storage and operating conditions  -10 ... + 50 °C, 10 ... 95 %

Delivery Scope

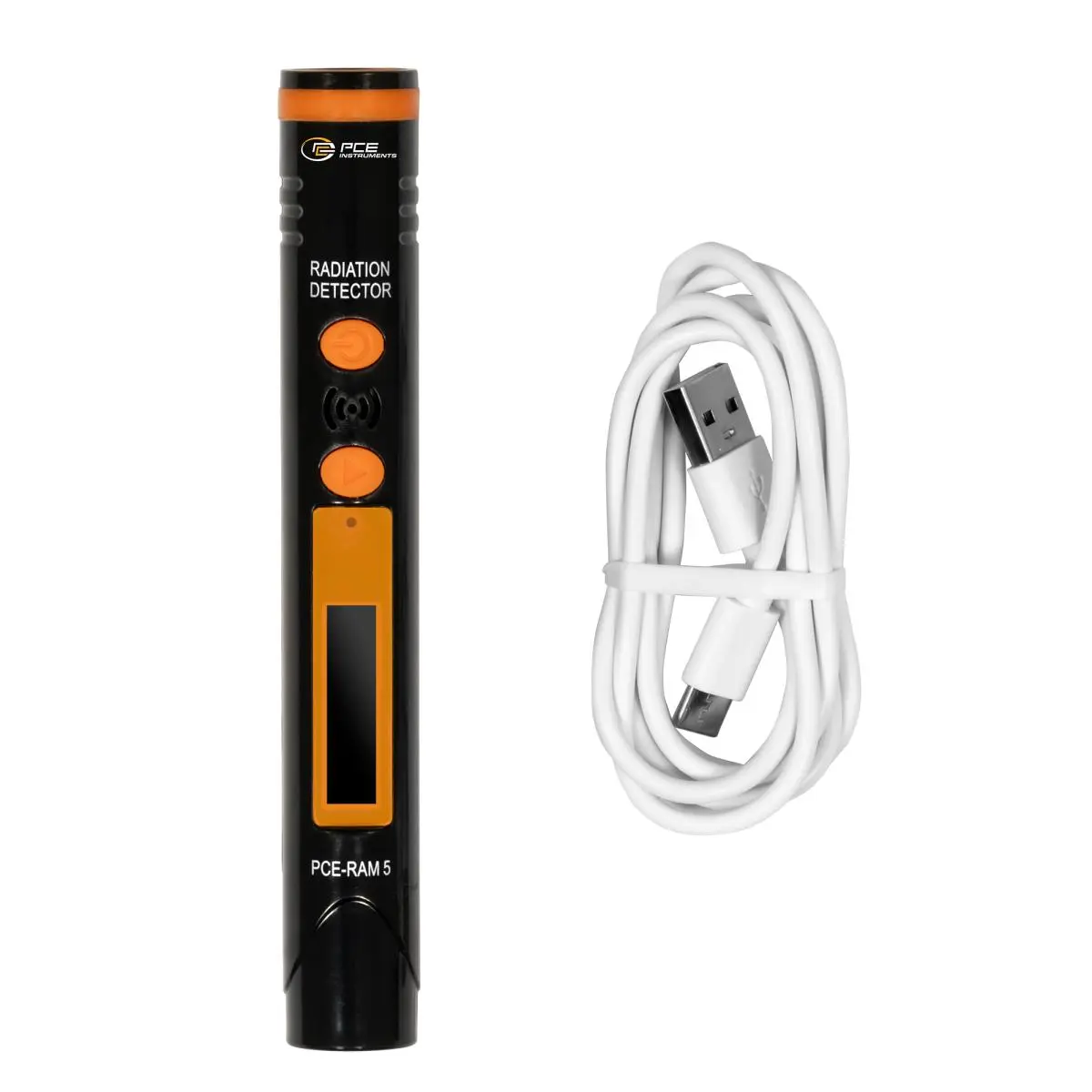

1 x PCE-RAM 5 radiation detector
1 x USB-C charging cable
1 x instruction manual
