Radiation Detector PCE-RAM 8

Order no.: PCE-RAM 8
GTIN (EAN): 4250348733184
181,90 €
216,46 €
price ex. (VAT / delivery)
:
4250348733184
PCE-RAM 8
Delivery time: 1-2 working days

Description

Radiation Detector with acoustic alarm / adjustable limit values / cumulative measurement / max value / battery operation

The radiation detector is a high-precision instrument developed for the detection of gamma, beta and X-rays. With its sensitive detection technology, it enables reliable measurement and monitoring of the radiation environment. Dose measurement is a central aspect of the radiation meter.

The radiation detector enables precise determination of the radiation dose and allows cumulative radiation measurement over a defined period of time. These functions are crucial for the assessment of radiation exposure and compliance with safety-related standards. The results of the radiation measurements are shown on the easy-to-read display in microsieverts per hour (µSv/h) and microroentgen per hour (µR/h).

The radiation detector is equipped with an adjustable acoustic alarm that alerts you if predefined radiation values are exceeded. The long battery life ensures reliable measurement over long periods of time without interruption. The field of application ranges from radiology to disaster control. Radiation measuring devices from PCE Instruments are also used in industry.


Highlights

- Gamma, beta and X-rays
- Dose measurement
- Accumulated radiation measurement
- Display in µSv/h and µR/h
- Adjustable acoustic alarm
- Battery operation

Specification

Radiation
Measuring range  0.01 µSv/h ... 9999 µSv/h
Resolution  0.01 µSv/h
Accuracy  <±10 % (137Cs 1 mSv/h)

General technical data
Measurement functions  Gamma rays, beta rays, X-rays
Energy range  48 ... 1500 keV
Display type  LCD
Display size  1.73 inch
Sensor  Geiger-Müller counter tube
Operating time  8 h
Alarm  Acoustic
Menu language  English, German
Protection class (device)  IP30
Power supply  5V DC
Weight  140 g
Dimensions (L x W x H)  160 x 55 x 33 mm
Operating conditions  0 ... 40 °C , 85 % r.H
Storage conditions  -10 ... 60 °C , 85 % r.H

Delivery Scope

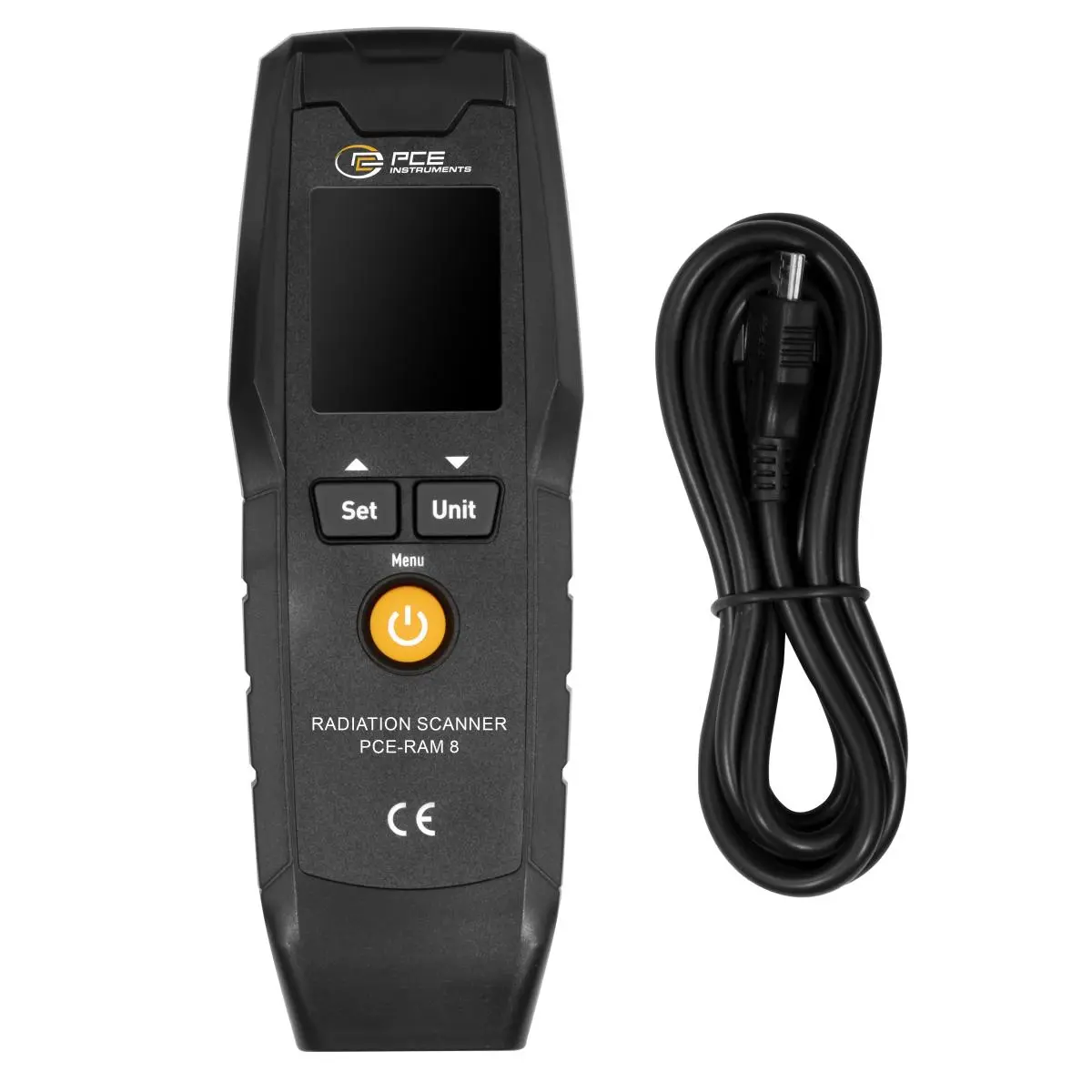

1 x Radiation Detector PCE-RAM 8
1 x USB-C cable
1 x Operating instructions
