Wherever the human body reaches its limits in terms of force measurement, the motorized test stand comes into play. The user of the motorized test stand is obliged to prepare a risk analysis. If it emerges from this that the type of application and the samples pose a risk to the user, a safety device may be required, especially in the case of the test stand operated by an electric motor.

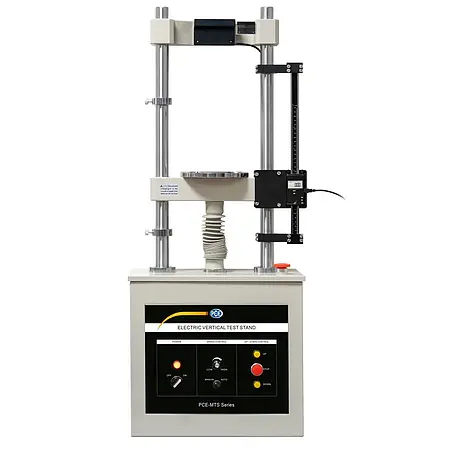

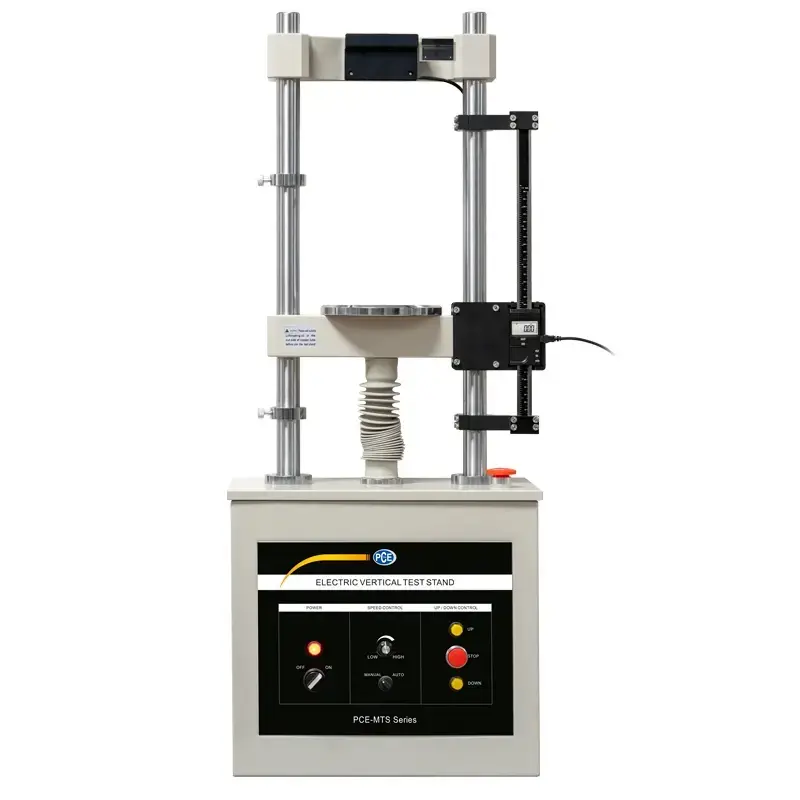

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***Motorized force test stand PCE-MTS500 | |
Force range | max. 5000 N (500 kg / 1100 lbs) |
Travel distance | max. 300 mm / 11.8" |
Feed rate | 30 ... 230 mm/min / 1.18 ... 9.05 in/min |
Test table | Ø 160 mm/ 6.3" |
Sample width | max. 200 mm / 7.9" |
Guide columns | Ø 32 mm / 1.3" |
Dimensions | 1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8" |
Weight | ca. 60 kg / 132 lbs |

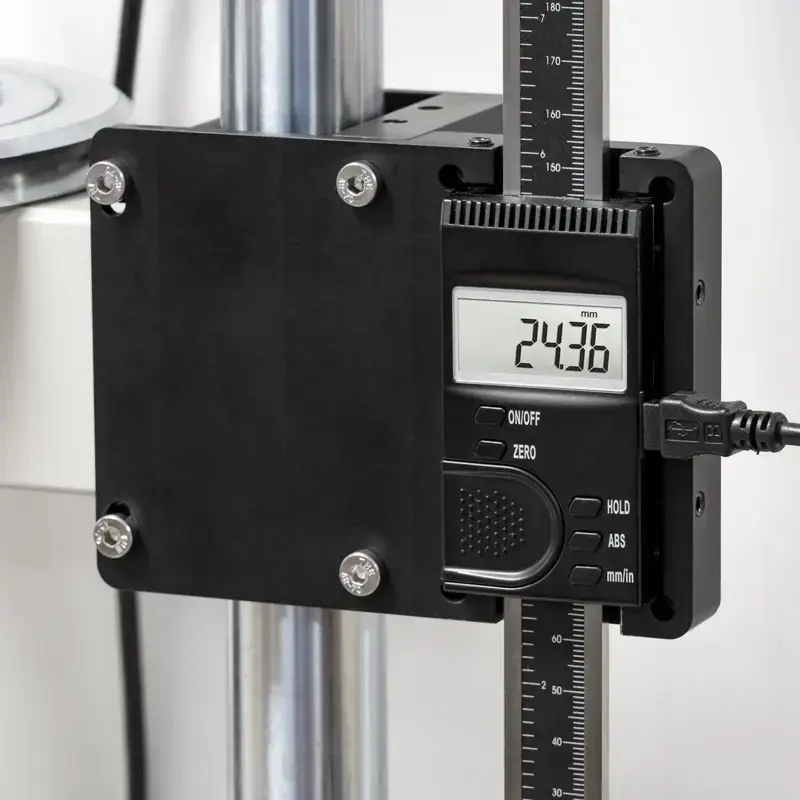

Length measuring device PCE-DFG FD 300 | |
Measuring range | -150 … 150 mm / -5.9 … 5.9" |
Resolution | 0.01 mm / 0.0004" |
Accuracy | ±0.03 mm / 0.001" |
Operating conditions | Temperature: 0 … +50 °C / 32 … 122 °F |
Storage conditions | Temperature: -20 … +65 °C / -4 … 149 °F |
Humidity: 10 … 95 % RH, non-condensing | |
Weight | 360 g / 12.7 oz |
Power supply | 3VCR 2032 |
Dimensions | 394 x 40 x 10 mm / 15.5 x 1.5 x 0.4" (HxWxD) |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
Price excl. VAT &. delivery
2 year Warranty
Force-displacement adapter is a useful extension to the material test stand in conjunction with a force gauge. This extension allows force-displacement diagrams and curves to be created.
Price excl. VAT &. delivery
2 year Warranty
Adapter for pressure force testing of sponge, foam glass, rock material, etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter-stamp for pressure force test of spring and sponge etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter clamps for tensile testing of wire and filaments.
Price excl. VAT &. delivery
2 year Warranty
Fork holder for tensile and pressure tests.
Price excl. VAT &. delivery
2 year Warranty
Tensioning device for tensile tests.
Price excl. VAT &. delivery
2 year Warranty
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.
Price excl. VAT &. delivery
2 year Warranty
Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.
Price excl. VAT &. delivery
2 year Warranty
Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.
Price excl. VAT &. delivery
2 year Warranty
Set of thrust washers (square) for engine test stand PCE-MTS500.
Price excl. VAT &. delivery
2 year Warranty
Thrust washer set (round) for engine test bench PCE-MTS500.
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for peel test of block, glass and cardboard.
Price excl. VAT &. delivery
2 year Warranty
Clamping device with large opening width for pull or push test of cable, rigid material or electronic components.
Price excl. VAT &. delivery
2 year Warranty
