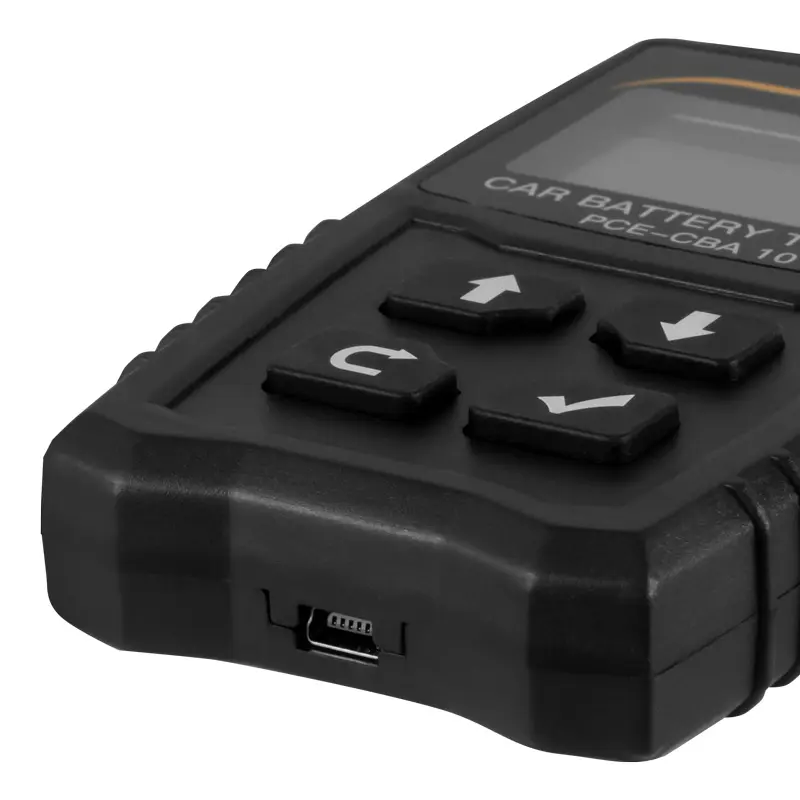

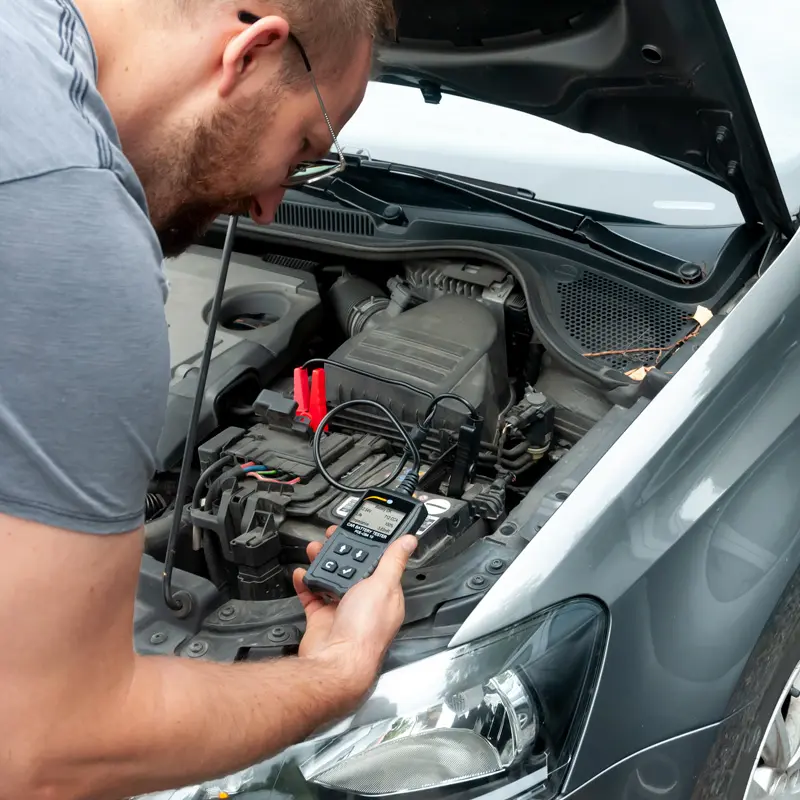

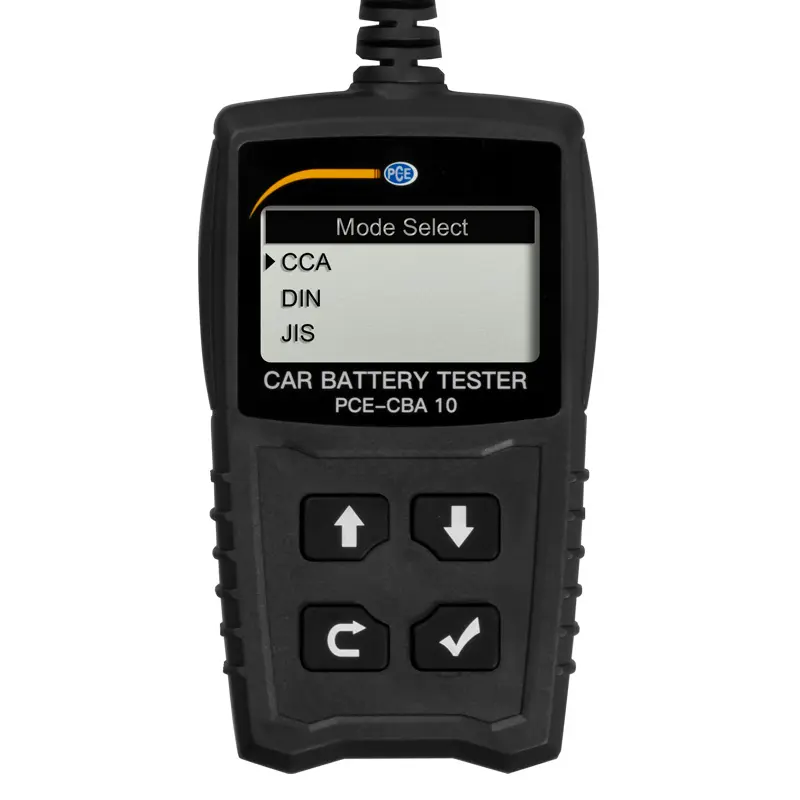

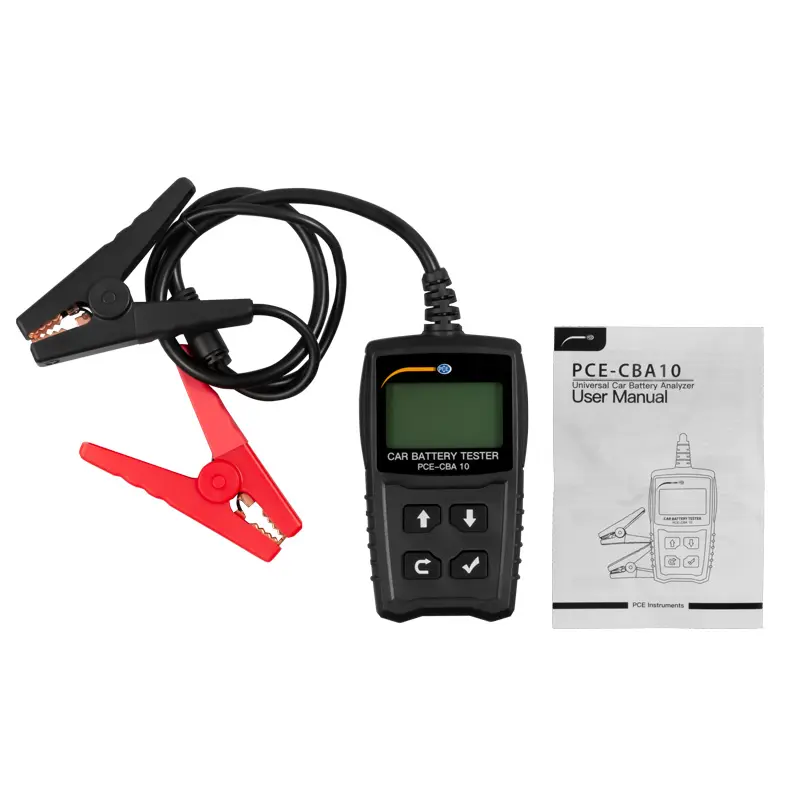

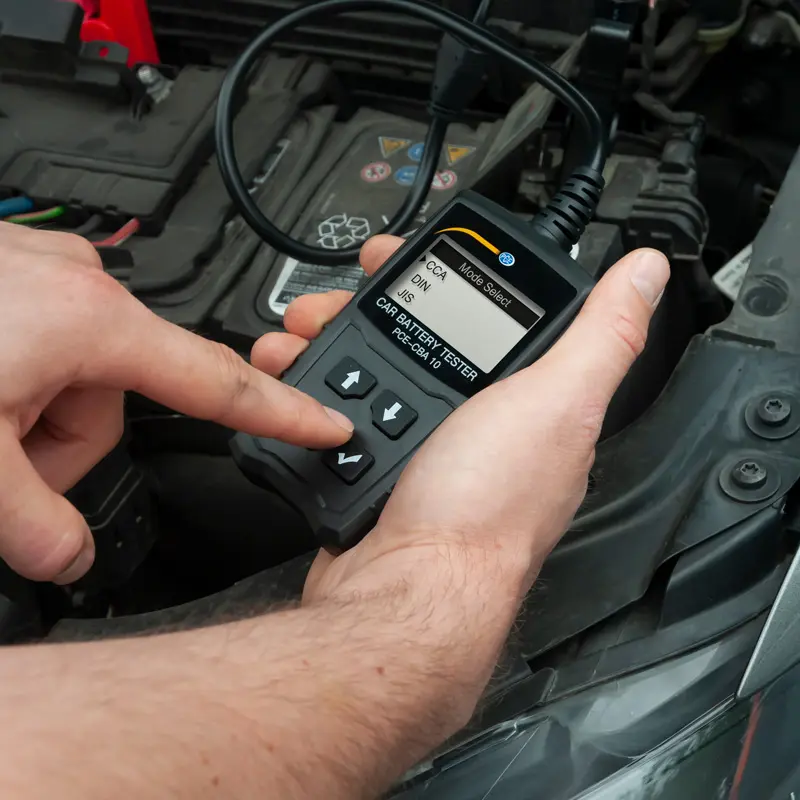

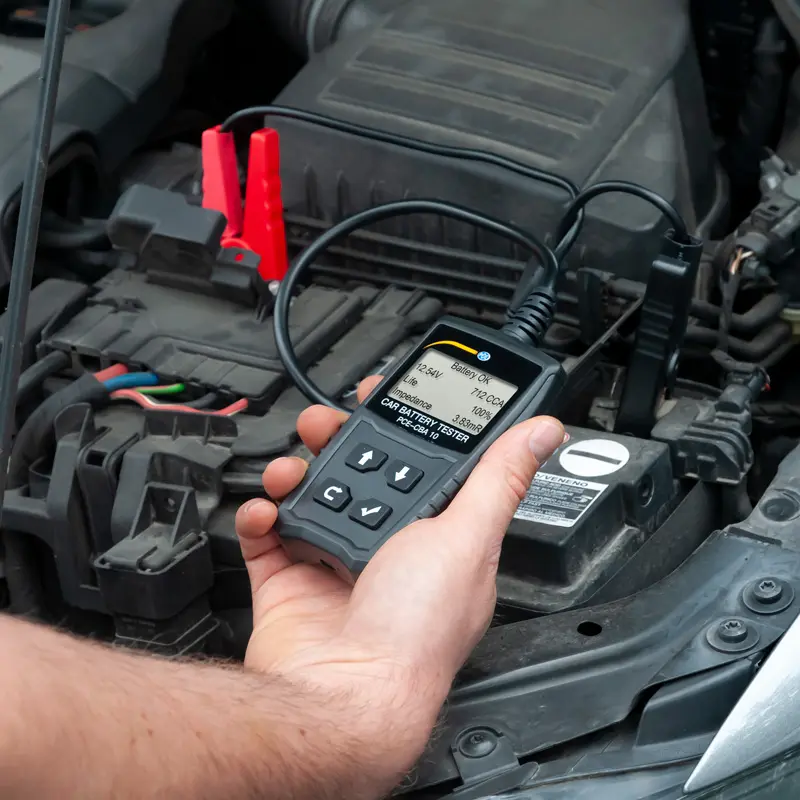

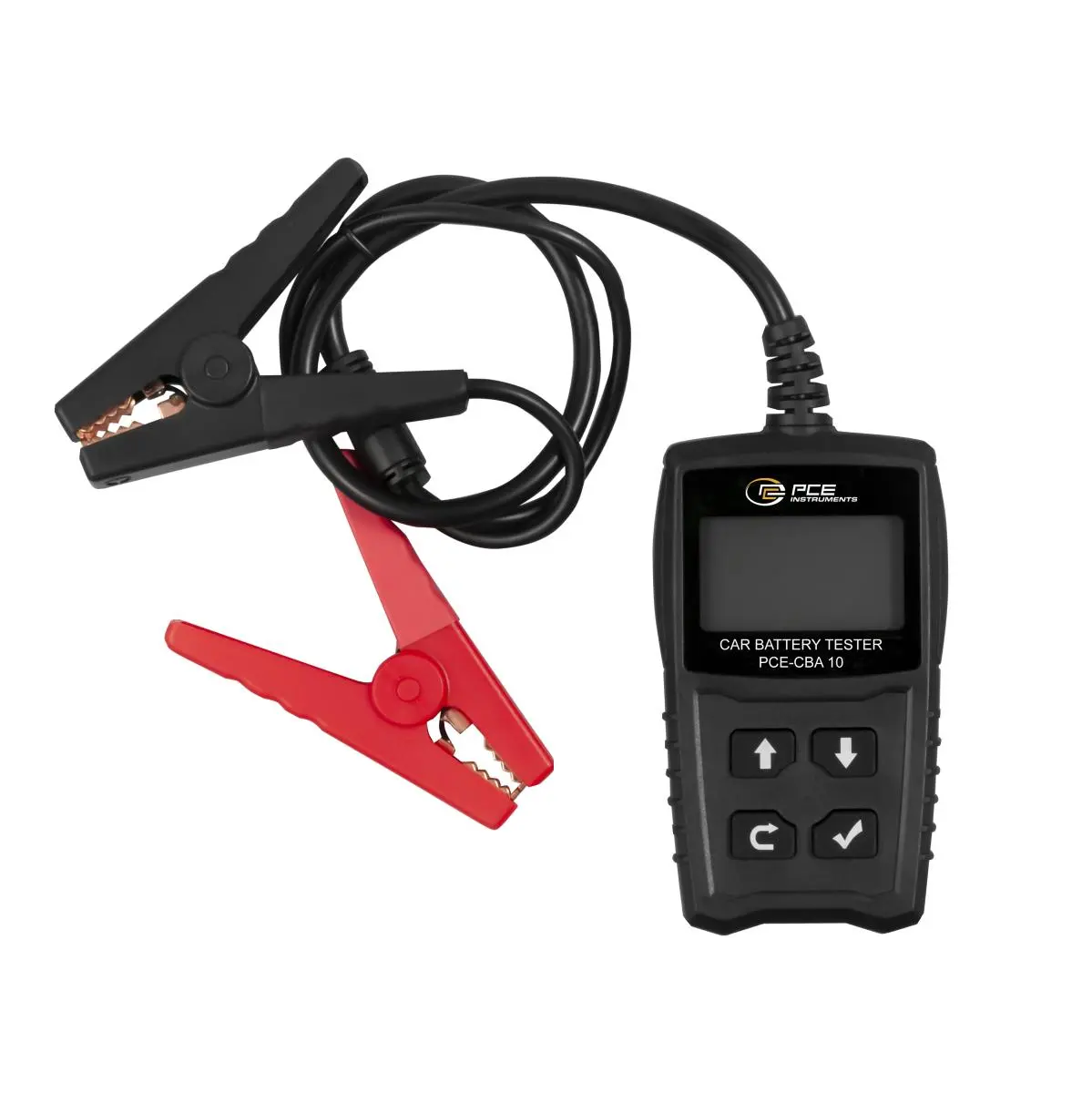

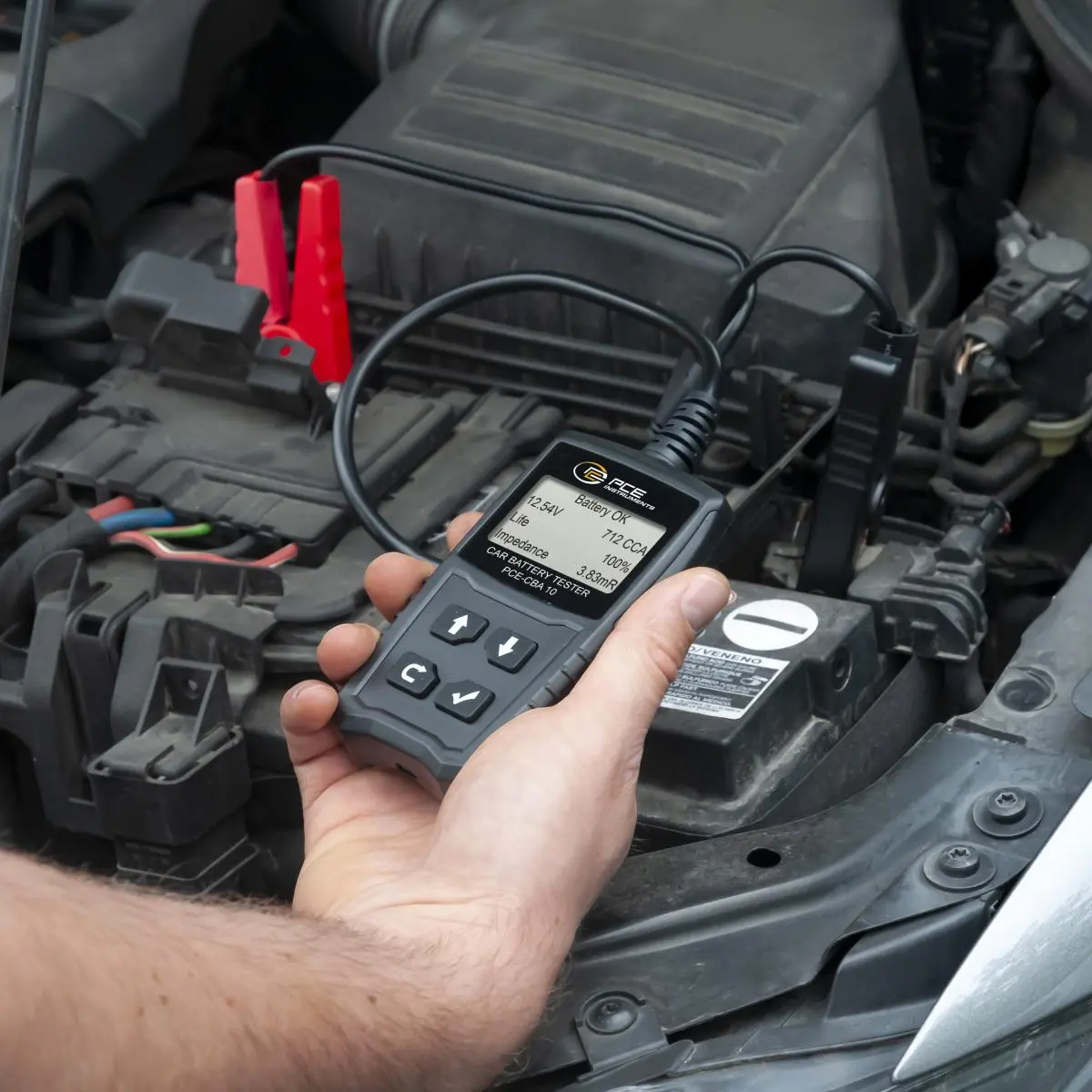

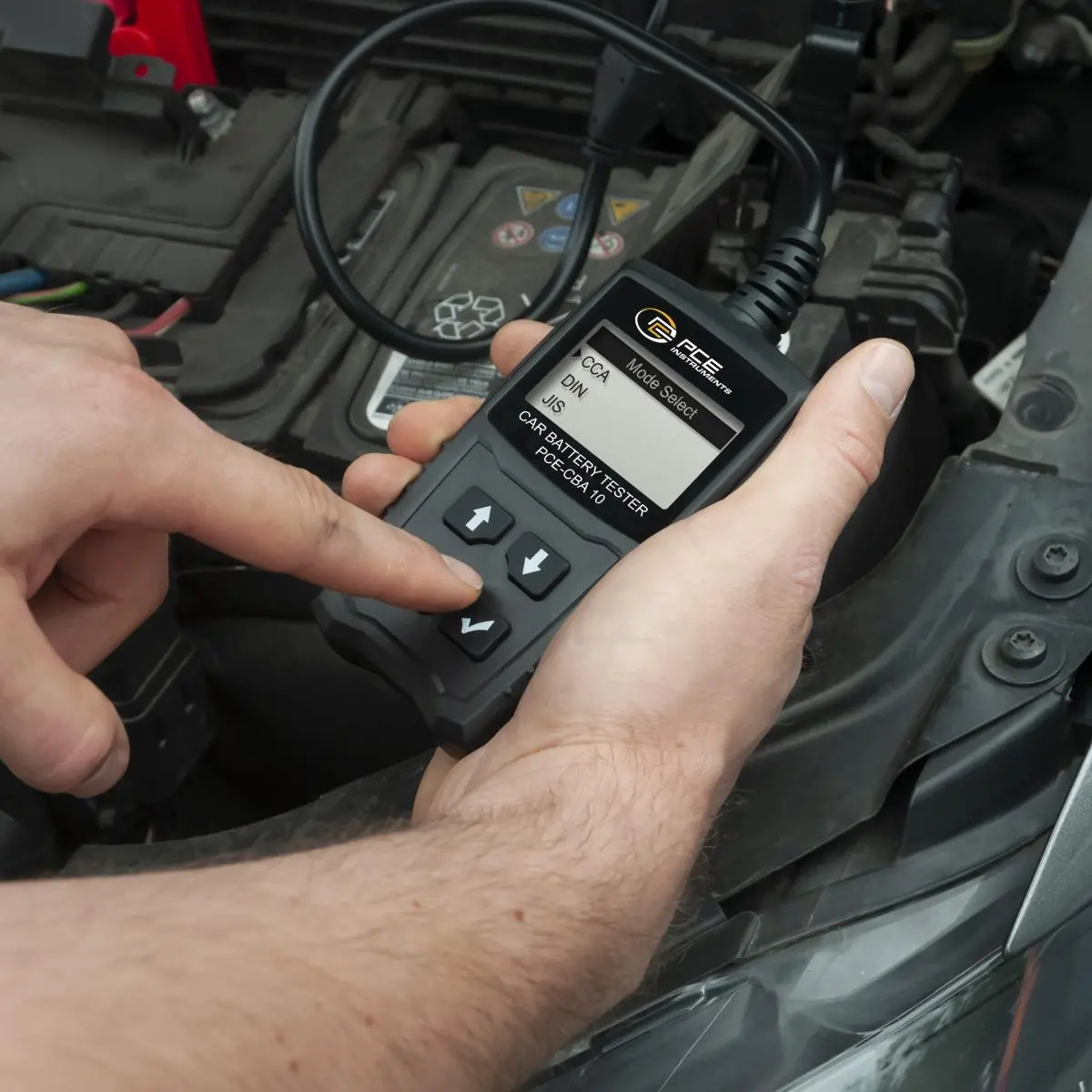

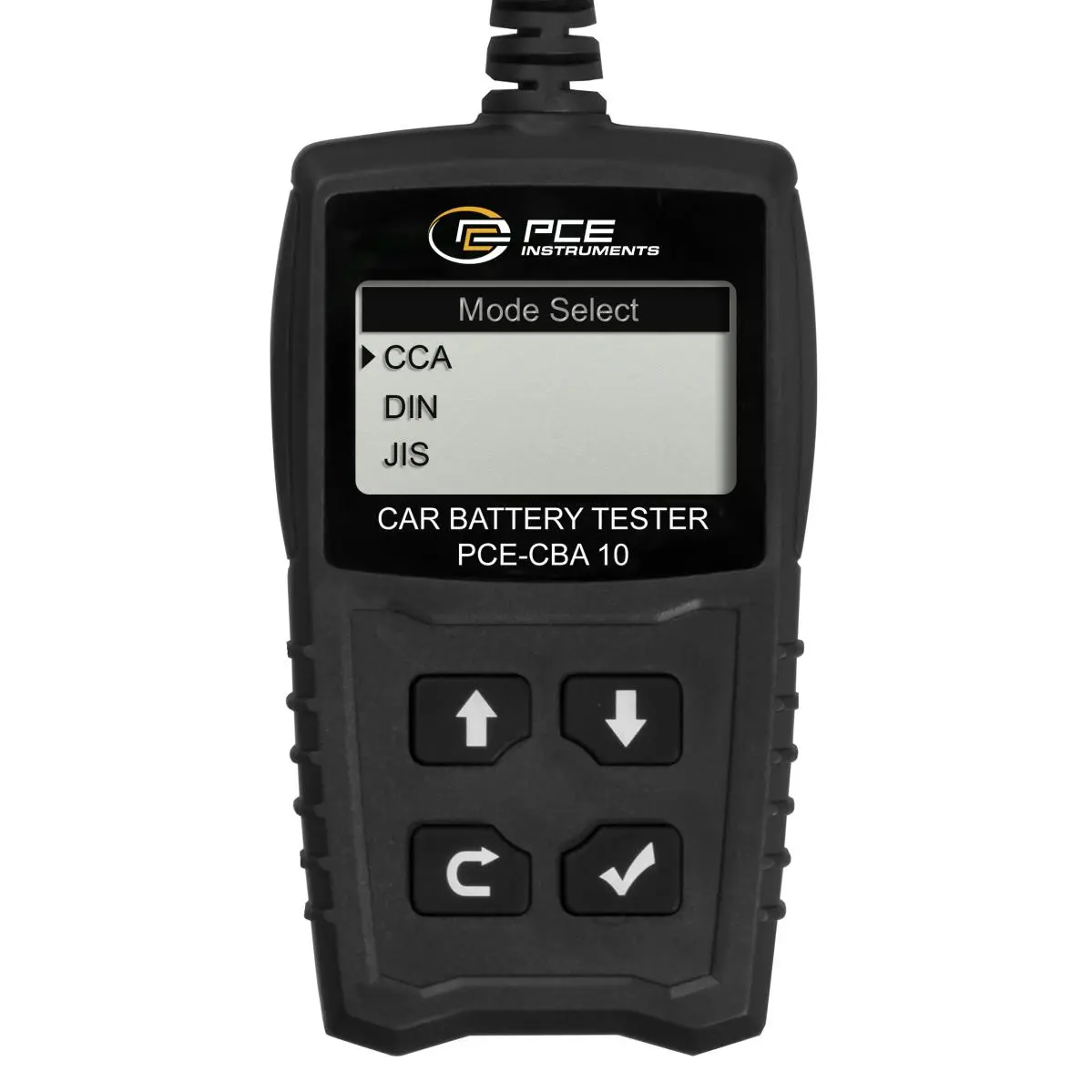

The voltage meter PCE-CBA 10 is a car battery tester and allows fast and easy testing of 12V voltage starting batteries. The voltmeter has various test modes to determine the condition of the car battery. The LC display of the voltmeter guides the user intuitively through the settings and various modes of operation.
The voltmeter is suitable for car batteries of the type DIN, KIS, IEC, EN, GB, SAE and MCA. To test the battery, the voltmeter can measure, inter alia, the starting current to determine the capacity of the car battery in the range between 30 and 100 Ah.
| Measurement object | 12V starter batteries |
| Battery standards | DIN, JIS, IEC, EN, GB, SAE, MCA |
| Test time | 3 ... 10 s |
| Cold start current CCA | 100 ... 1700 A |
| Battery capacity | 30 Ah ... 100 Ah |
| Display | 2.4" LC display |
| Power supply | 12V DC over test voltage |

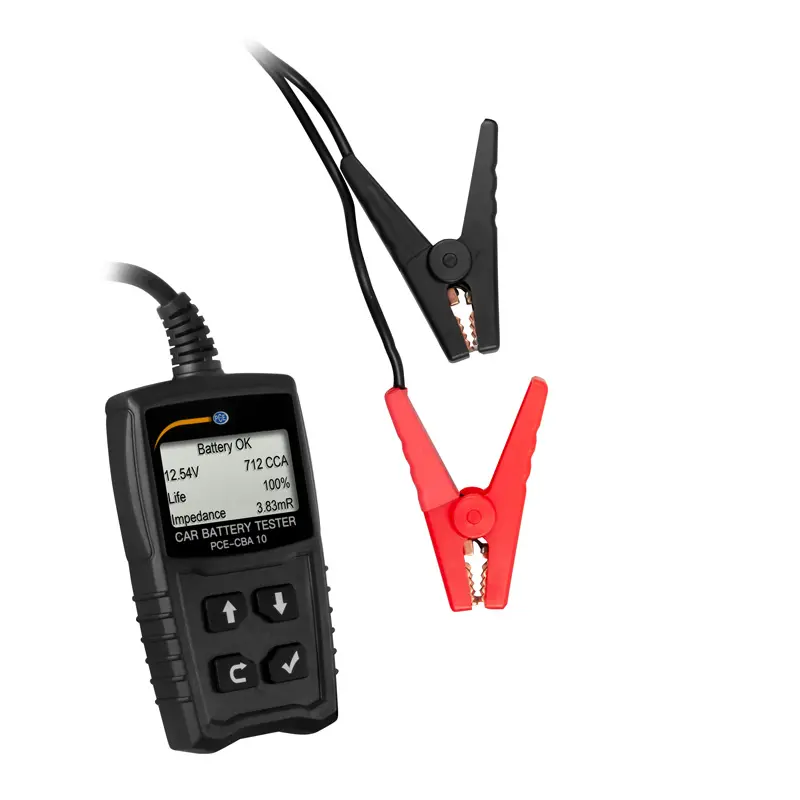

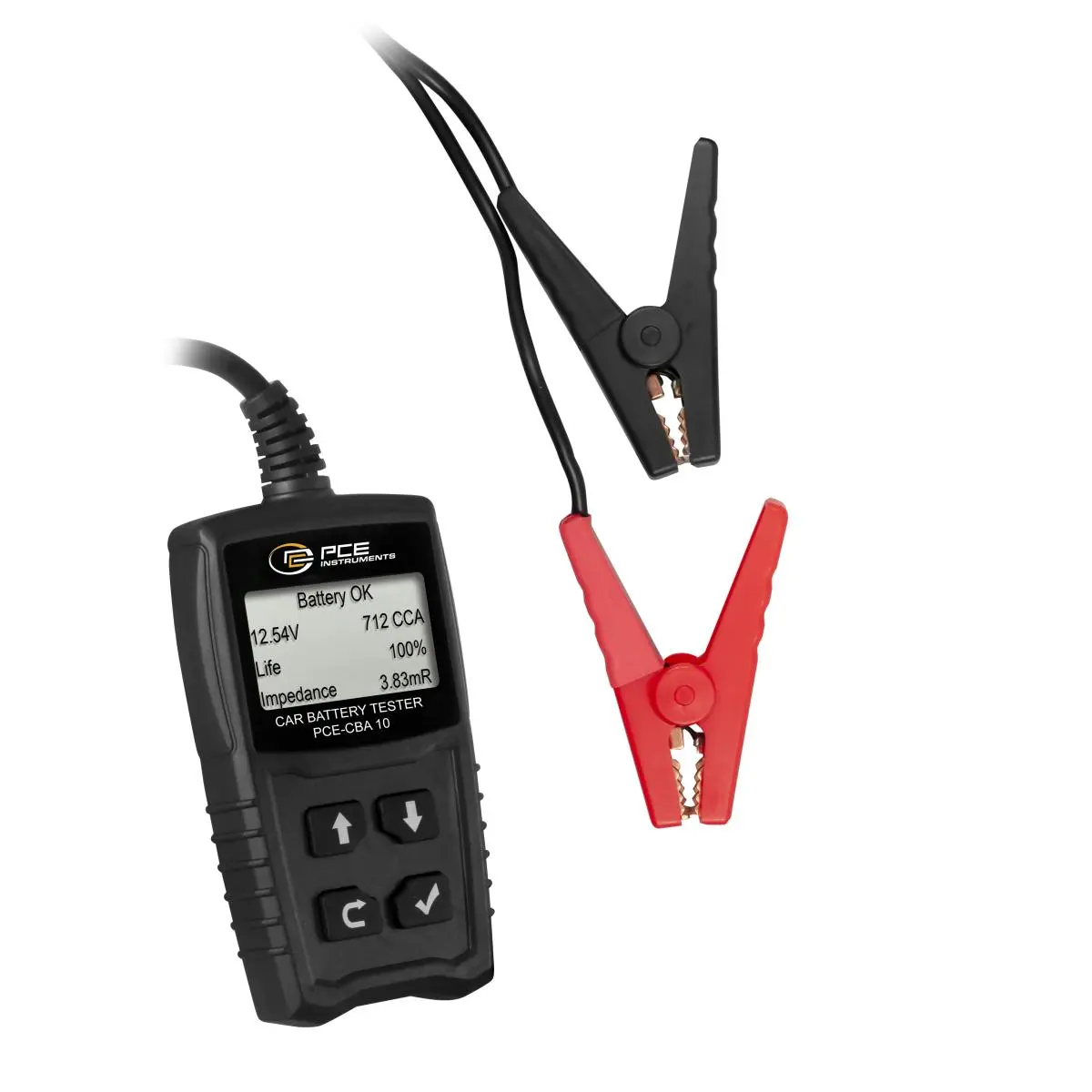

| Connection | Kelvin terminals |
| Dimensions | 124 x 73 x 22 mm / 4.8 x 2.8 x 0.8 in |
| Cable length | ca. 100 cm / 39 in |
| Weight | ca. 250 g / 8.8 oz |
