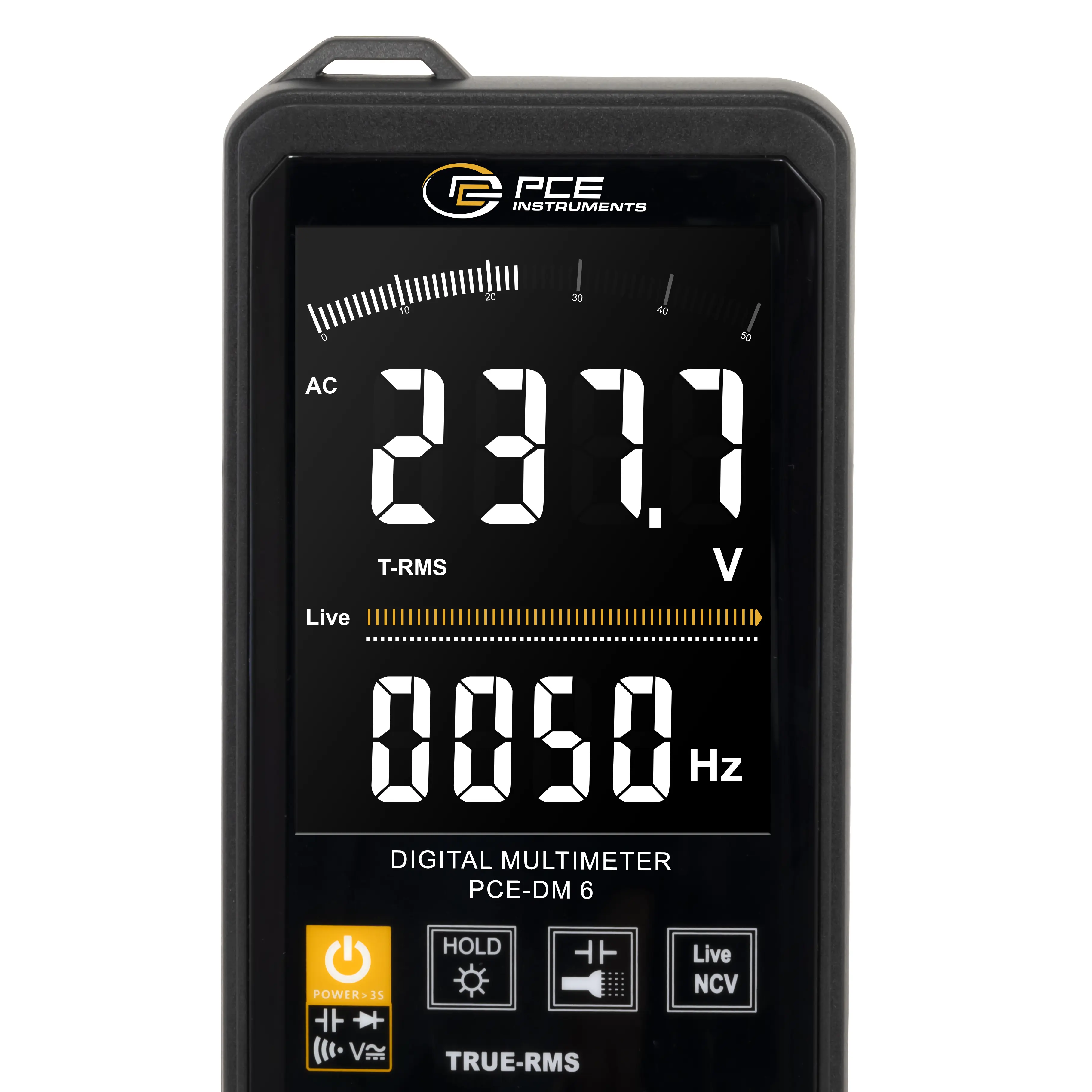

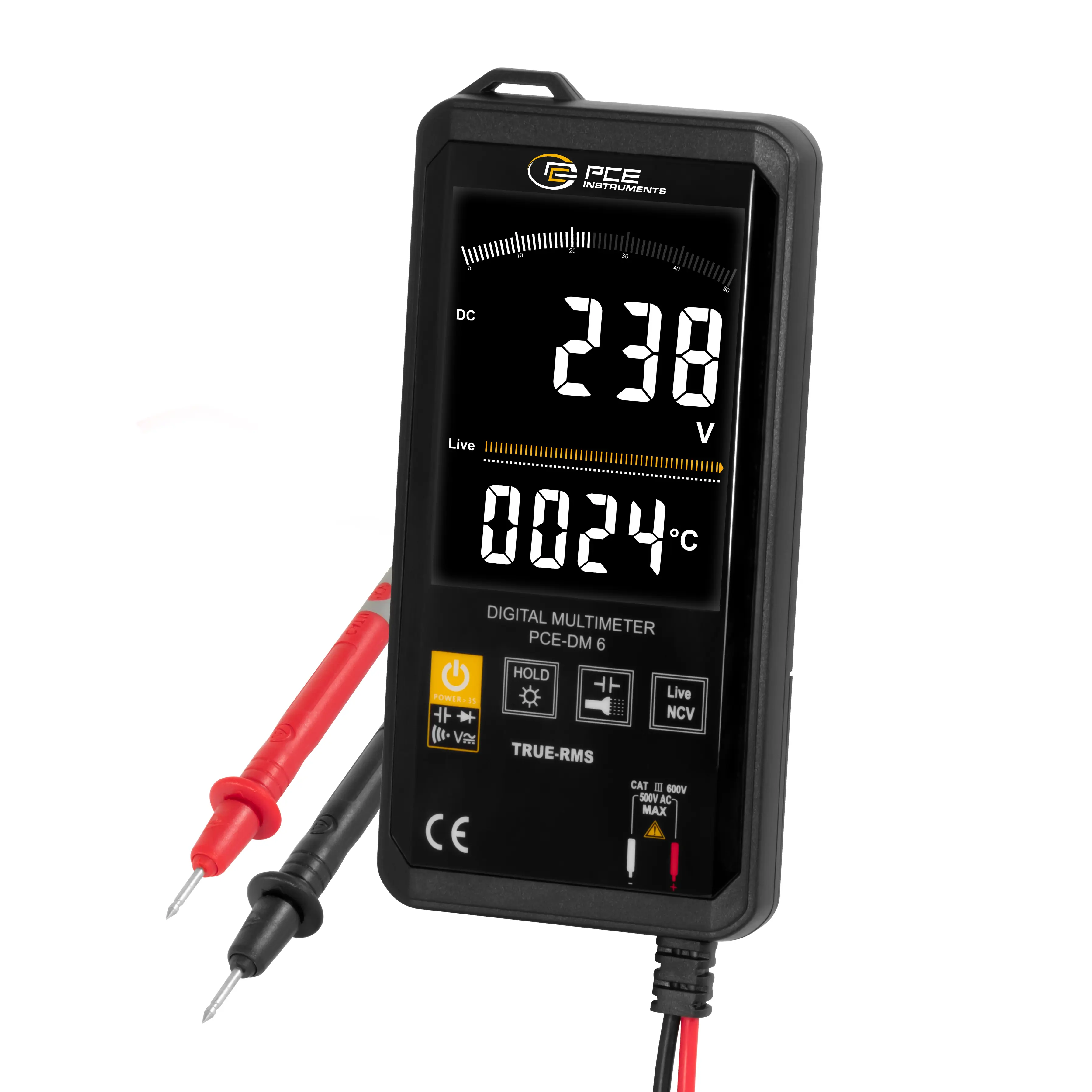

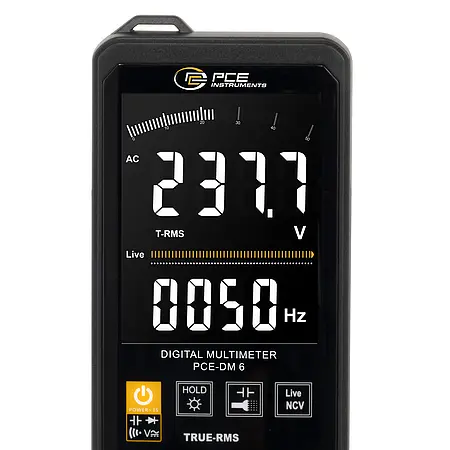

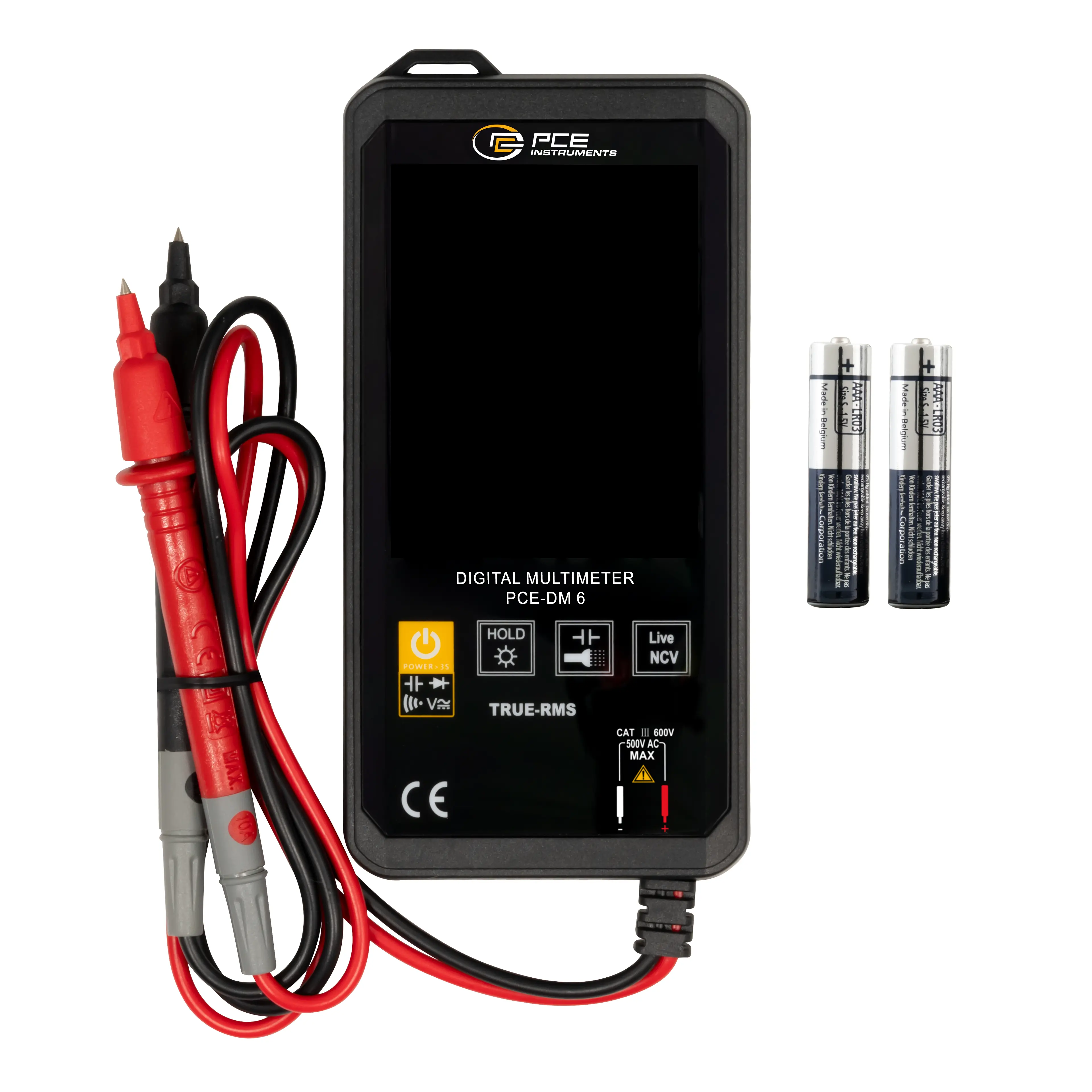

Thanks to its handy design, the smart TRMS Voltmeter fits in any pocket like a smartphone and yet is equipped with many advantageous features. It is a versatile meter for DC and AC voltage, resistance, capacitance and frequency measurements. The Voltmeter offers additional functions such as diode test, a hold function and live test. Furthermore, the Voltmeter has non-contact voltage detection and is equipped with a 3.1-inch LC display and touch keys.

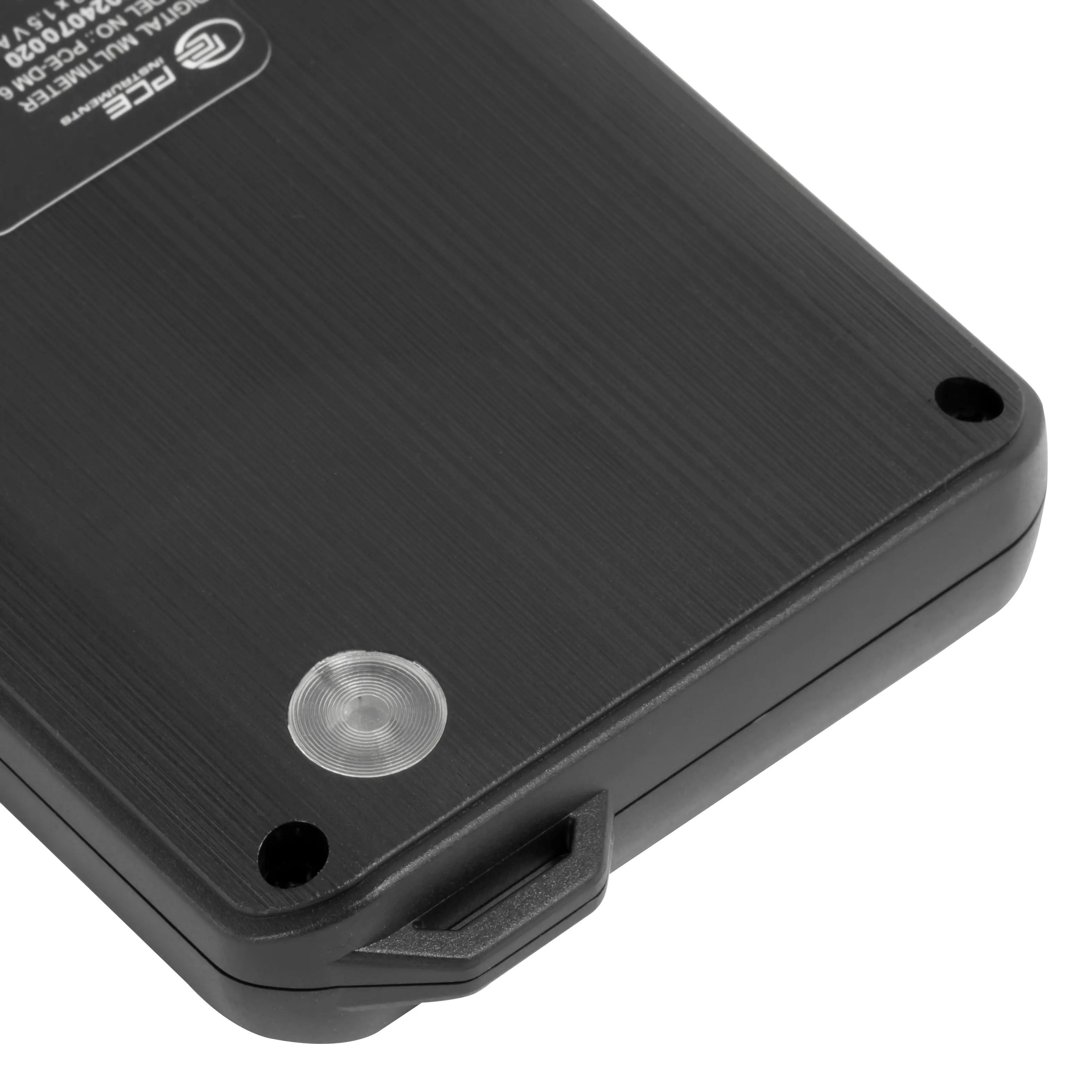

The flat Voltmeter has an automatic measurement range selection and a display range of 6,000 counts. The measured variable is recognised automatically, so there is no need to reconnect the test leads. The live test enables the detection of live conductors. An integrated LED on the back of the meter allows you to work in poorly lit environments. This smart Voltmeter also indicates when the batteries are low. To save battery power, the device switches off automatically after a long period of inactivity.

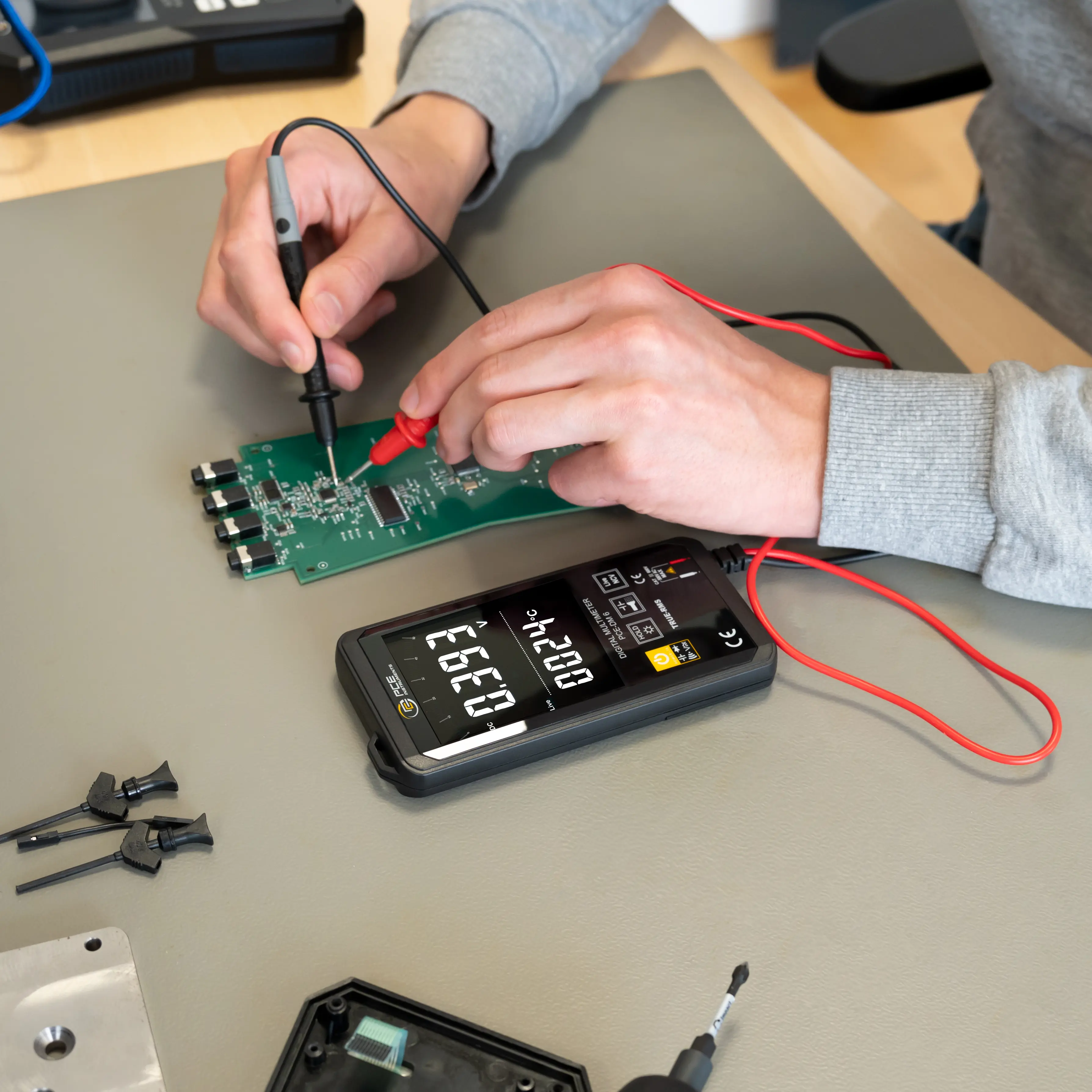

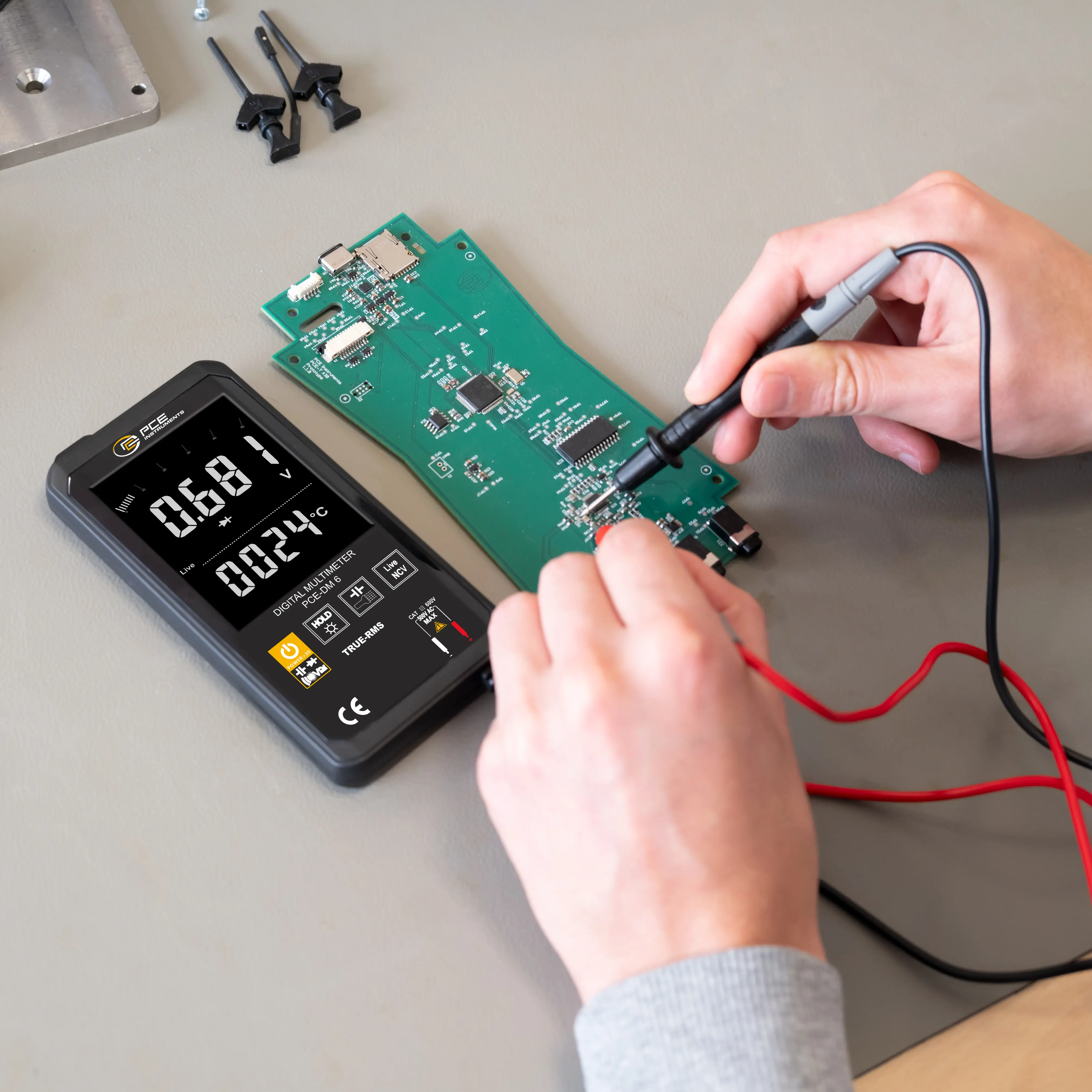

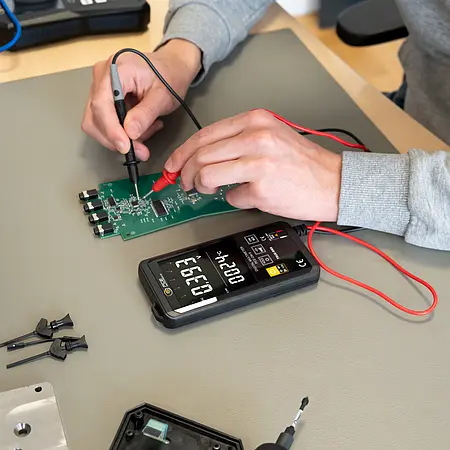

The Voltmeter is ideal for use in electronics repair, home and building wiring, electrical appliance maintenance and in laboratory and training environments.
| Direct voltage DC | |
| Measurement range up to | 0 ... 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Overload | 1000 V |
| Direct voltage DC | |
| Measurement range up to | 6 ... 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Direct voltage DC | |
| Measurement range up to | 60 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Direct voltage DC | |
| Measurement range up to | 600 ... 1000 V |
| Resolution | 1 V |
| Accuracy | ±(0.8 % of Rd +10 digits) |
| Capacity | |
| Measurement range up to | 0 ... 10 nF |
| Resolution | 10 pF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 ... 100 nF |
| Resolution | 100 pF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 0,1 ... 1 µF |
| Resolution | 1 nF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 1 ... 10 µF |
| Resolution | 10 nF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 ... 100 µF |
| Resolution | 100 nF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 0,1 ... 1 mF |
| Resolution | 1 µF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 1 ... 10 mF |
| Resolution | 10 µF |
| Accuracy | ±(3.5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 ... 60 mF |
| Resolution | 100 µF |
| Accuracy | ±(5 % of Rd +3 digits) |
| AC voltage | |
| Measurement range up to | 0 ... 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Overload | 750 V |
| Frequency range | 50 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 6 ... 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Frequency range | 50 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 60 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Frequency range | 50 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 600 ... 750 V |
| Resolution | 1 V |
| Accuracy | ±(0.8 % of Rd +10 digits) |
| Frequency range | 50 ... 1000 Hz |
| Resistance | |
| Measurement range up to | 0 ... 600 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(0.8 % of Rd +5 digits) |
| Resistance | |
| Measurement range up to | 0,6 ... 6 kΩ |
| Resolution | 1 Ω |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 6 ... 60 kΩ |
| Resolution | 10 Ω |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 60 ... 600 kΩ |
| Resolution | 100 Ω |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 600 ... 6000 kΩ |
| Resolution | 1 kΩ |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 6 ... 60 M Ω |
| Resolution | 10 kΩ |
| Accuracy | ±(2.5 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 0 ... 10 Hz |
| Resolution | 0,01 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 10 ... 100 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 0,1 ... 1 kHz |
| Resolution | 1 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 1 ... 10 kHz |
| Resolution | 10 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 10 ... 100 kHz |
| Resolution | 100 Hz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 0,1 ... 1 MHz |
| Resolution | 1 kHz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| Frequency | |
| Measurement range up to | 1 ... 10 MHz |
| Resolution | 10 kHz |
| Accuracy | ±(0.1 % of Rd +3 digits) |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD |
| Display size | 3,1 Inch |
| Measuring rate | 3 x per second |
| Standard(s) | IEC 1010 |
| Automatic power-off | 5 min |

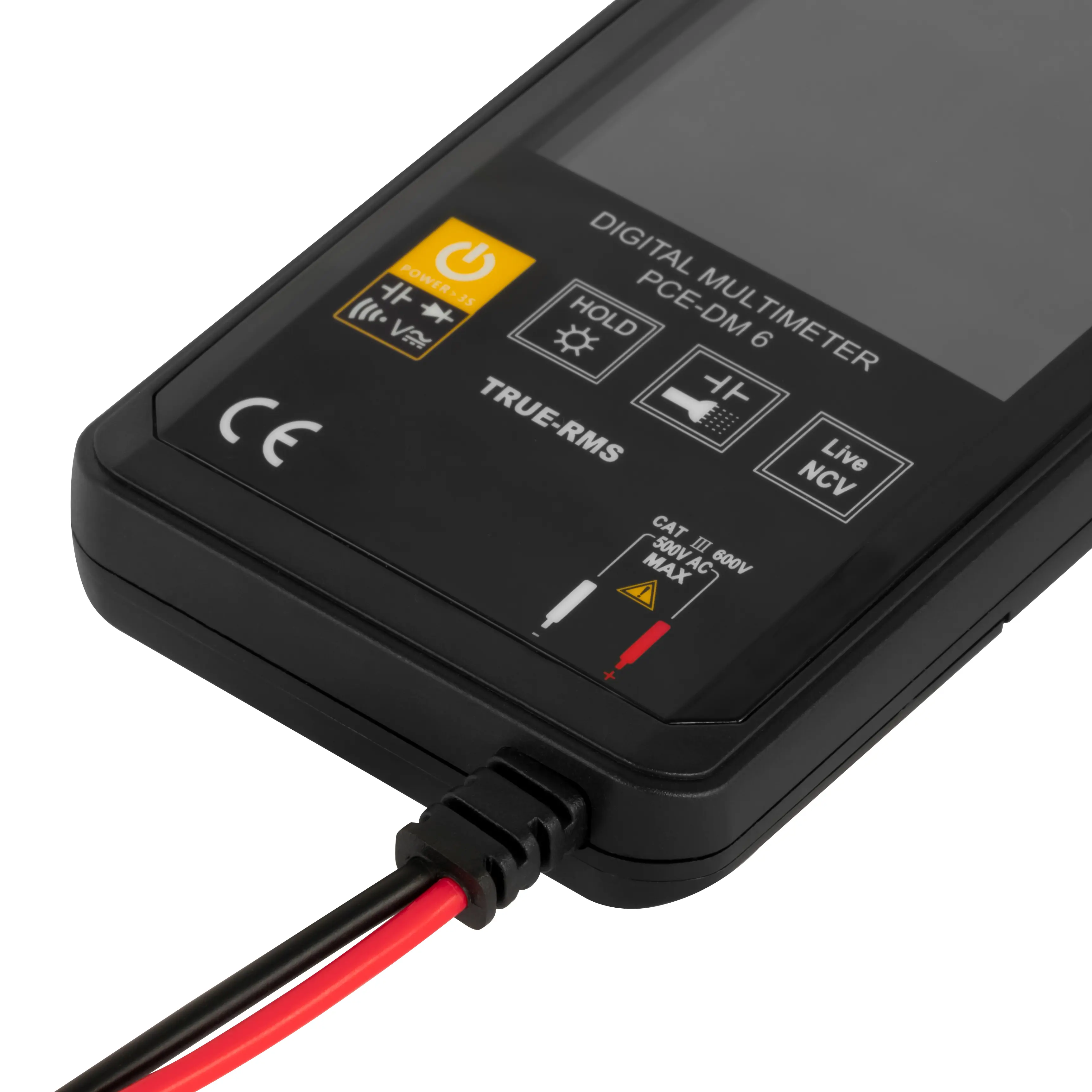

| Safety standard | CAT III 600 V |
| max. input impedance | 10 M Ω |
| Measurement range selection | Automatic, Manual |
| Diode test | Test current: 1 mA max. voltage: 3 V |
| Display range | 6000 counts |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Weight | 149 g |
| Operating conditions | 0 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 80 % RH |

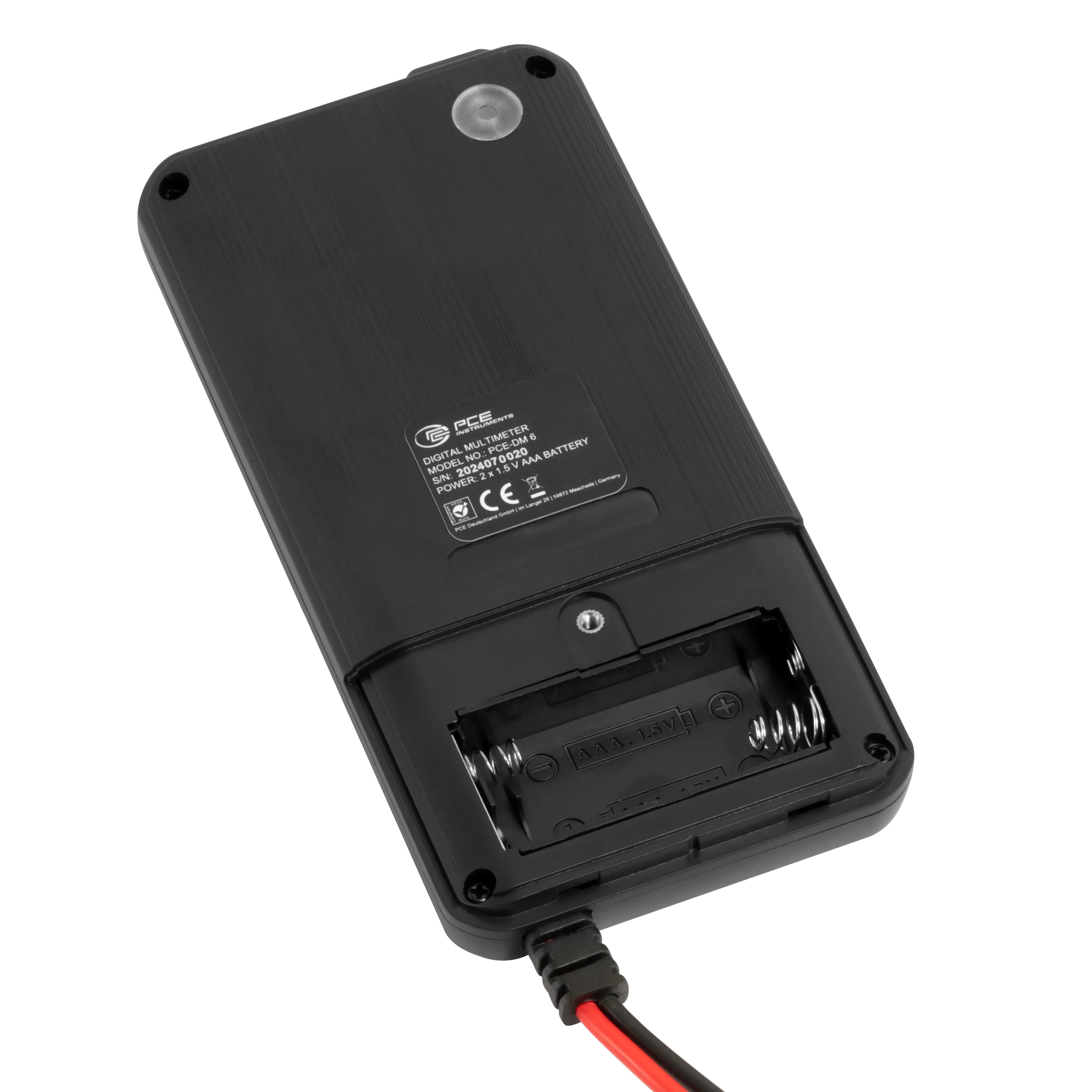

| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Dimensions ( L x W x H ) | 138 x 68 x 18 mm |
