₹20,817.00

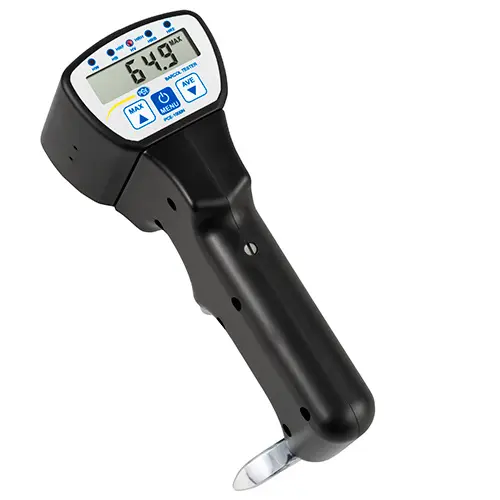

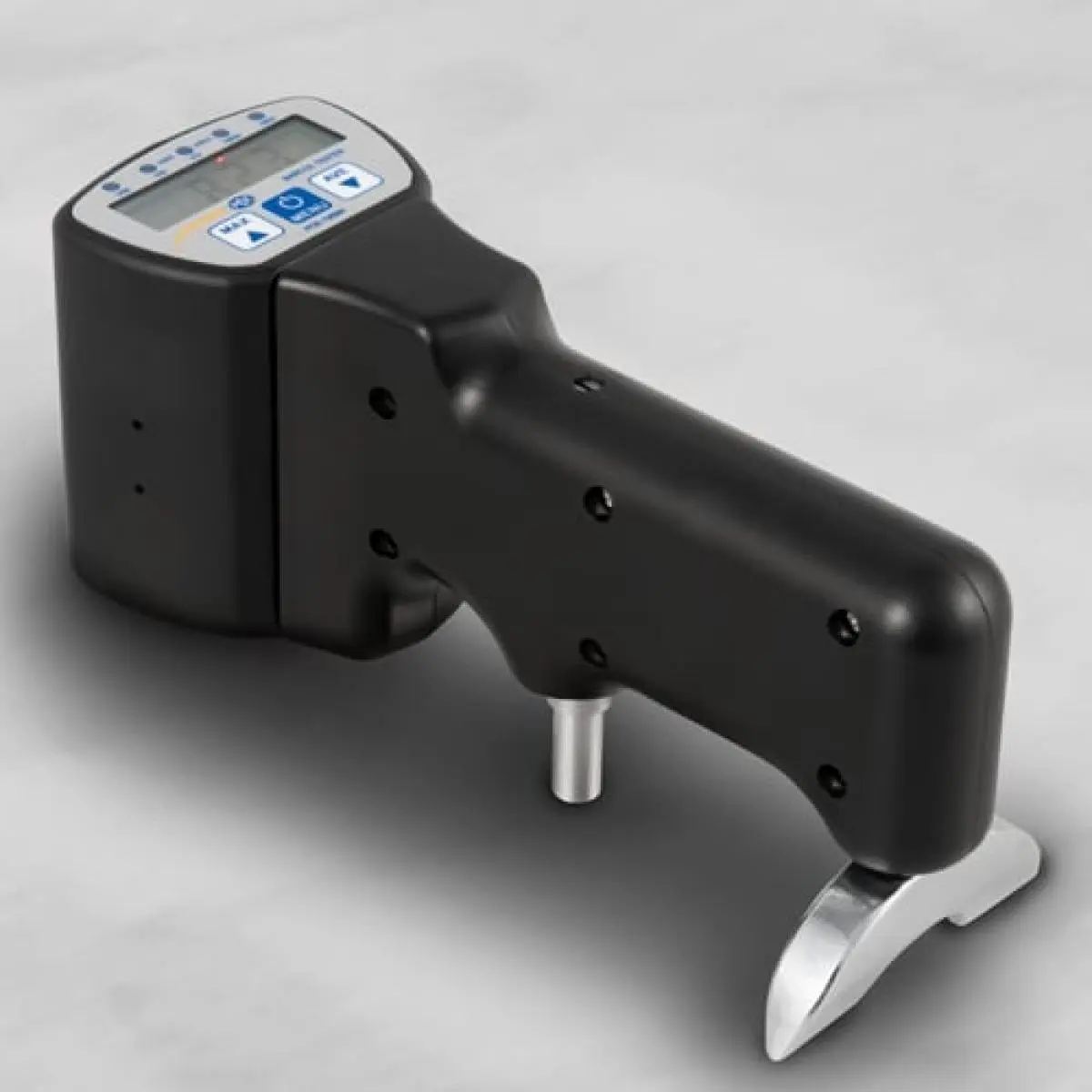

PCE-1000N Barcol Hardness Tester
Barcol impressor hardness meter with backlit LCD, power-saving automatic shutdown, maximum and average functions
PCE-1000N is a portable handheld Barcol hardness tester used to measure the hardness of pure aluminum, soft aluminum, thick aluminum alloy and aluminum sheets, strips, rods, castings and forgings. The hardness of fiber-reinforced (FRP) plastics, glass-reinforced (GRP) plastics, hard plastics and soft metals (such as copper or lead) also can be tested using this battery-powered digital Barcol impressor hardness meter. The digital meter offers a wide measuring range, high accuracy and direct display of the measured values on the built-in backlit LCD. In addition to Barcol (HBA) hardness units, the meter displays hardness measurements in Brinell (HB), Vickers (HV), Webster (HW) and Rockwell (HRB / HRE / HRF / HRH) hardness units. Adding to the meter's versatility is its sleek design, allowing for quick and easy one-handed operation.
| Measurement parameters |
Barcol (HBA) Brinell (HB) Vickers (HV) Webster (HW) Rockwell (HRB / HRE / HRF / HRH) |
| Measuring range | 0 ... 100 HBA / 25 ... 150 HB |
| Resolution | 0.1 HBA |
| Accuracy |
81 .. 88 HBA: ± 1 HBA 42 ... 48 HBA: ± 2 HBA |
| Repeatability |
81 .. 88 HBA: ± 1.5 HBA 42 ... 48 HBA: ± 2.5 HBA |
| Operating conditions |
0 ... 50°C / 32 ... 122°F < 80 % relative humidity (RH) |
| Power supply | 2 x 1.5V AAA batteries |
| Dimensions | 170 x 63 x 82 mm / 6.6 x 2.4 x 3.2 in |
| Weight | 390 g / < 1 lb (without batteries) |
