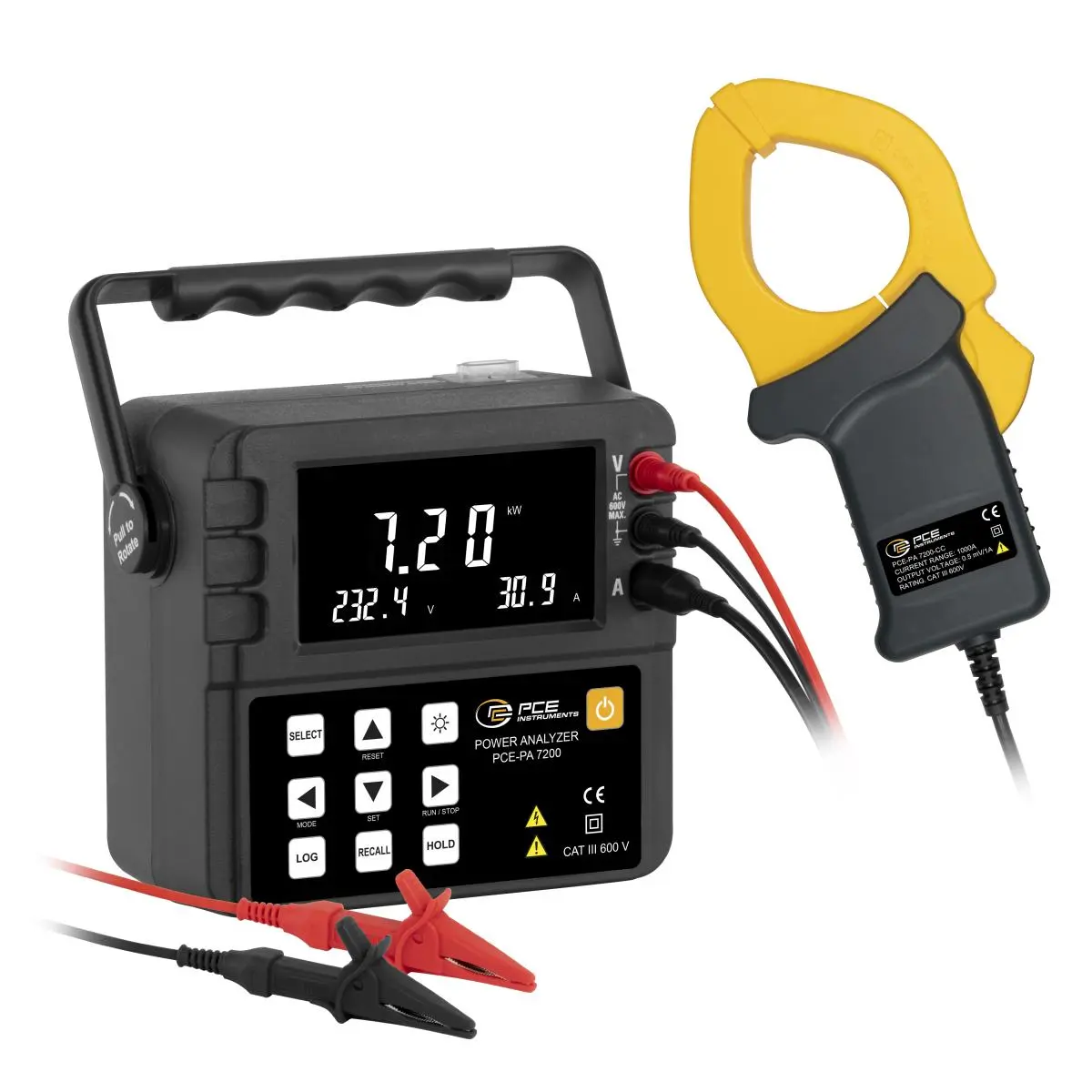

Power Analyzer PCE-PA 7200

Order no.: PCE-PA 7200
GTIN (EAN): 4250348734396
₹97,598.00
₹115,165.64
Topseller
price ex. (VAT / delivery)
:
4250348734396
PCE-PA 7200
Delivery time: 1-2 working days

Description

Power Analyzer up to 9999 kW / Internal memory up to 2000 data records / HOLD function / PC software for data transfer / Alarm / Min/Max function

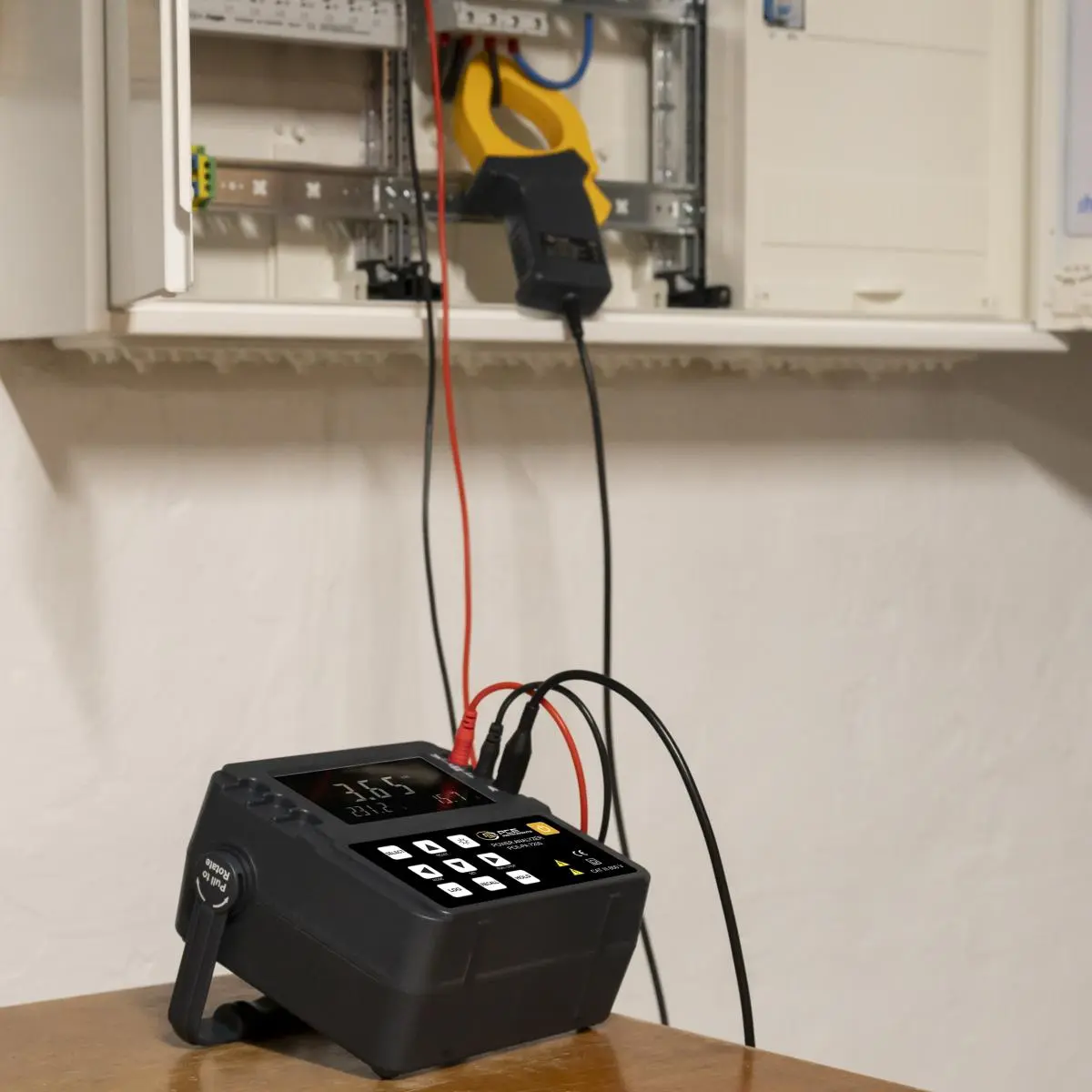

The power analyzer is a useful tool for precisely recording various electrical parameters. With a measuring range of 0 to 600 V for AC voltage and 0 to 1000 A for AC current, it offers sufficient flexibility for various applications. In addition to measuring active power, power factor, active energy and frequency, the power analyzer also allows you to monitor power consumption and the associated costs. With its compact dimensions of 220 x 195 x 105 mm, it is handy and easy to use.

The device's internal memory can store up to 2000 data records, which can be conveniently called up via the LC display. To transfer the data to a PC, however, it is necessary to install the supplied software, which enables both tabular and graphical visualisation of the data. The data can also be exported to a text document. Continuous data recording, which can be started via the power analyzer, takes place at intervals of one second until the memory is full. This memory can only be called up in the device. In addition, alarm functions can be set for upper and lower limit values for the measured power, AC voltage and AC current.

The integrated "cost function" allows the operator to set a cost factor to display the total cost of consumption. In addition, a weight factor can also be set to determine gas consumption, for example.
All in all, the power analyzer offers a wide range of applications and functionality for measuring and controlling electricity and energy consumption.



Highlights

- Energy measurement in kWh
- Real-time data transmission and display on PC
- Internal memory for up to 2000 data records
- Storage interval of 1s
- Maximum current 1,000 A
- Adjustable alarms
- Log and recall function
- HOLD function

Specification

AC voltage AC
Measuring range  0 ... 600 V
Resolution  0.1 V
Accuracy  ±1 % v.Mw. ±5 digits

Alternating current AC
Measuring range  0 ... 1000 A
Resolution  0.1 A
Accuracy  ±1.5 % v.Mw. ±5 digits (>10A)

Effective performance
Measuring range  0 ... 9999 kW
Resolution  0.01 kW
Accuracy  ±2.5 % v.Mw. ±5 digits

Power factor
Measurement range  0.001 ... 1
Resolution  0.001

Apparent power
Measuring range  0 ... 9999 kVA
Resolution  0.01 kVA
Accuracy  ±2.5% v.Mw. ±5 digits

Effective energy
Measuring range  0 ... 9999 kWh
Resolution  0.01 kWh
Accuracy  ±2.5 % v.Mw. ±5 digits

Frequency
Measuring range  45 ... 65 Hz
Resolution  0.1 Hz
Accuracy  ±0.5 % v.Mw. ±5 digits

General technical data
Measurement functions  HOLD, MIN, MAX
Display type  LCD with illumination
Display size  4.7 inch
Storage medium  Internal memory
Storage capacity  2000 data records
Storage interval of  1 s
Storage interval to  1 s

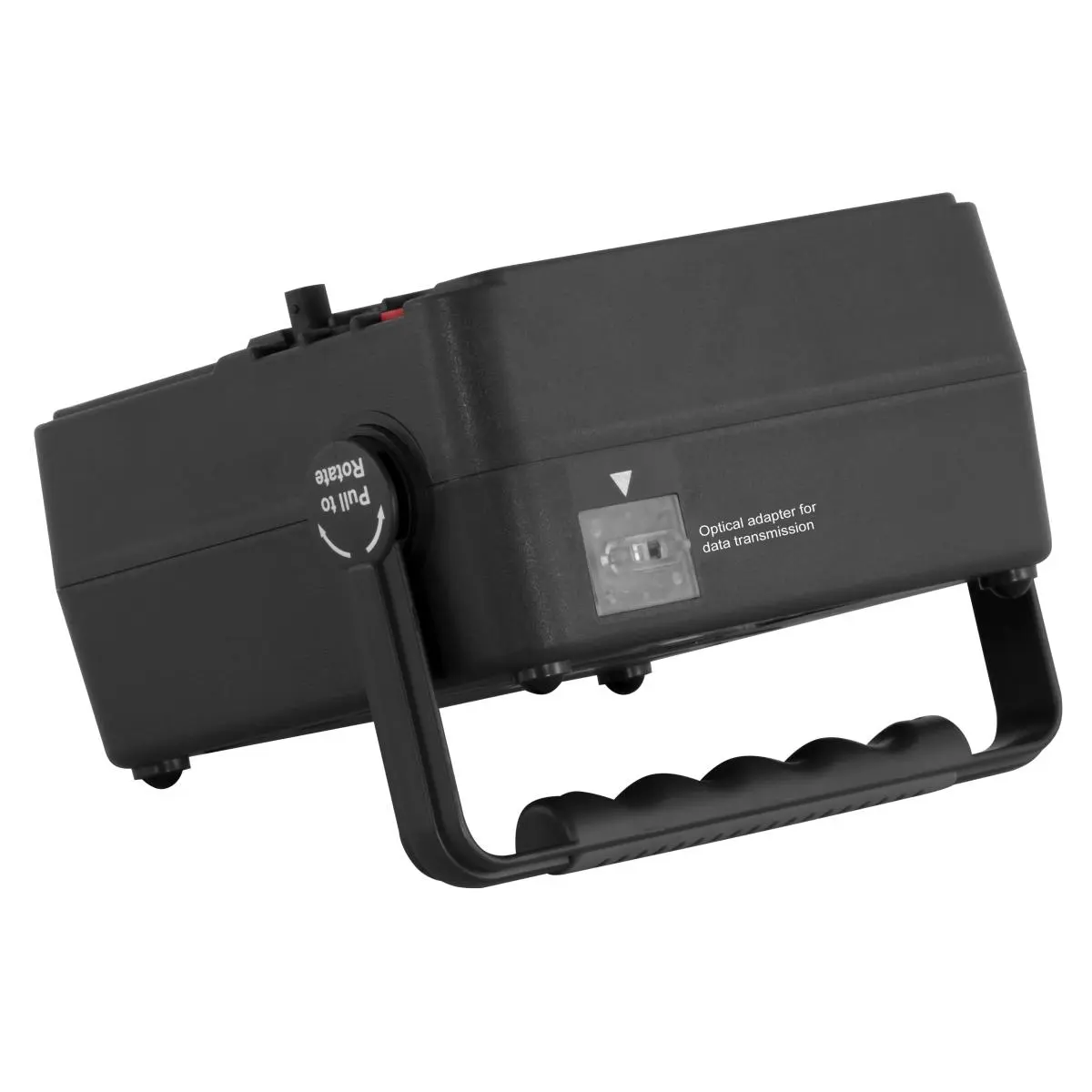

Interface  RS232
Standard(s)  EN 61010-1, EN 61326-1
Safety standard  CAT III 600 V
Alarm  Acoustic, visual
Alarm modes  Below, Above
Measurement opening  Current clamp: max. 50 mm
Menu language  English (US)
Protection class (device)  IP30
Weight  889 g
Operating conditions  0 ... 40 °C , 0 ... 80 % r.H
Storage conditions  0 ... 40 °C , 0 ... 80 % r.H

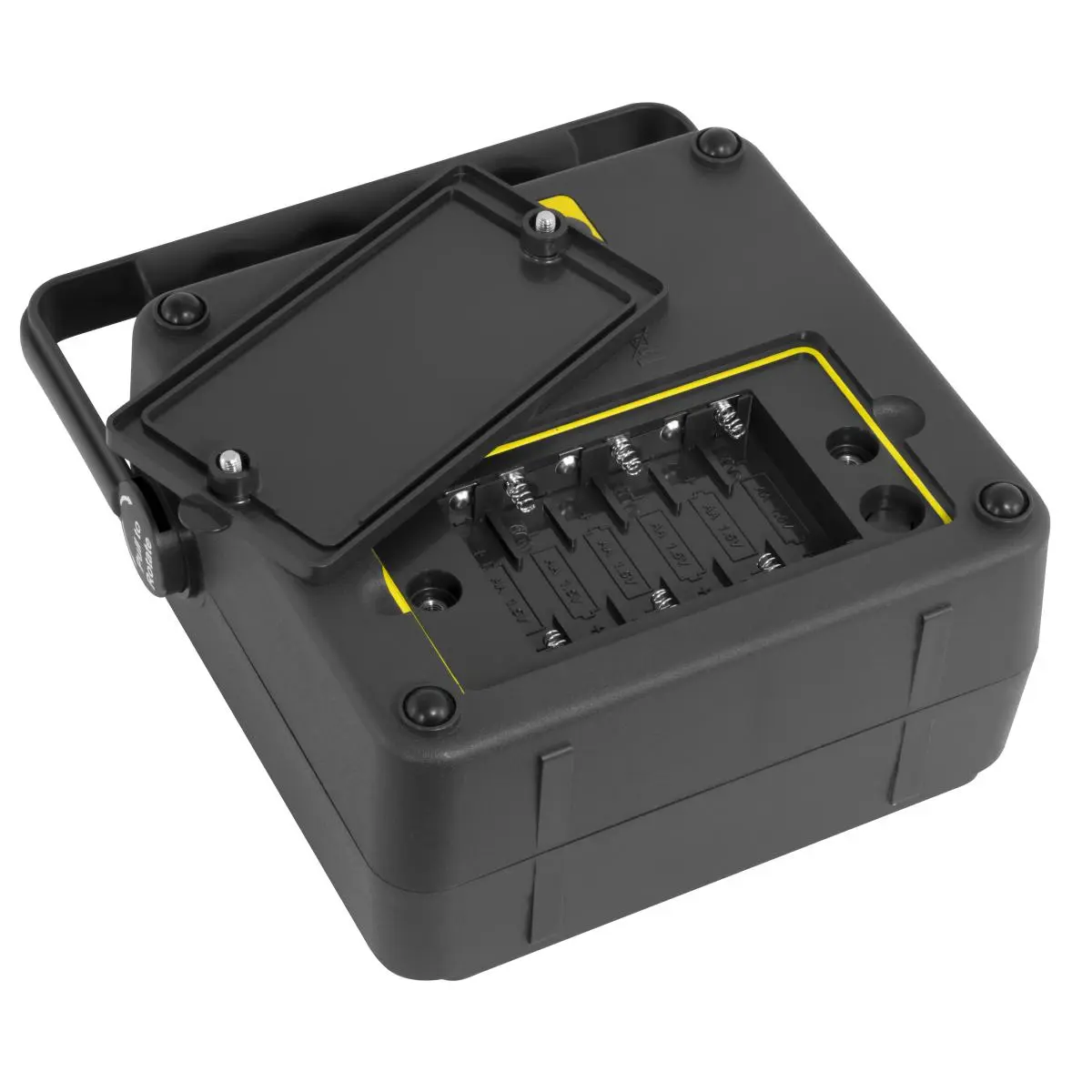

Accumulator/battery  6x 1.5 V AA battery , alkaline-manganese
Capacity  3000 mAh
Dimensions ( L x W x H )  220 x 195 x 105 mm

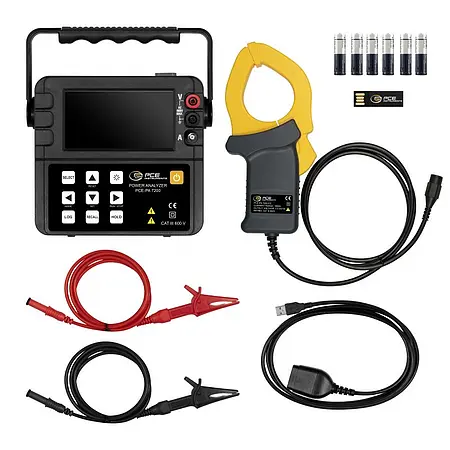

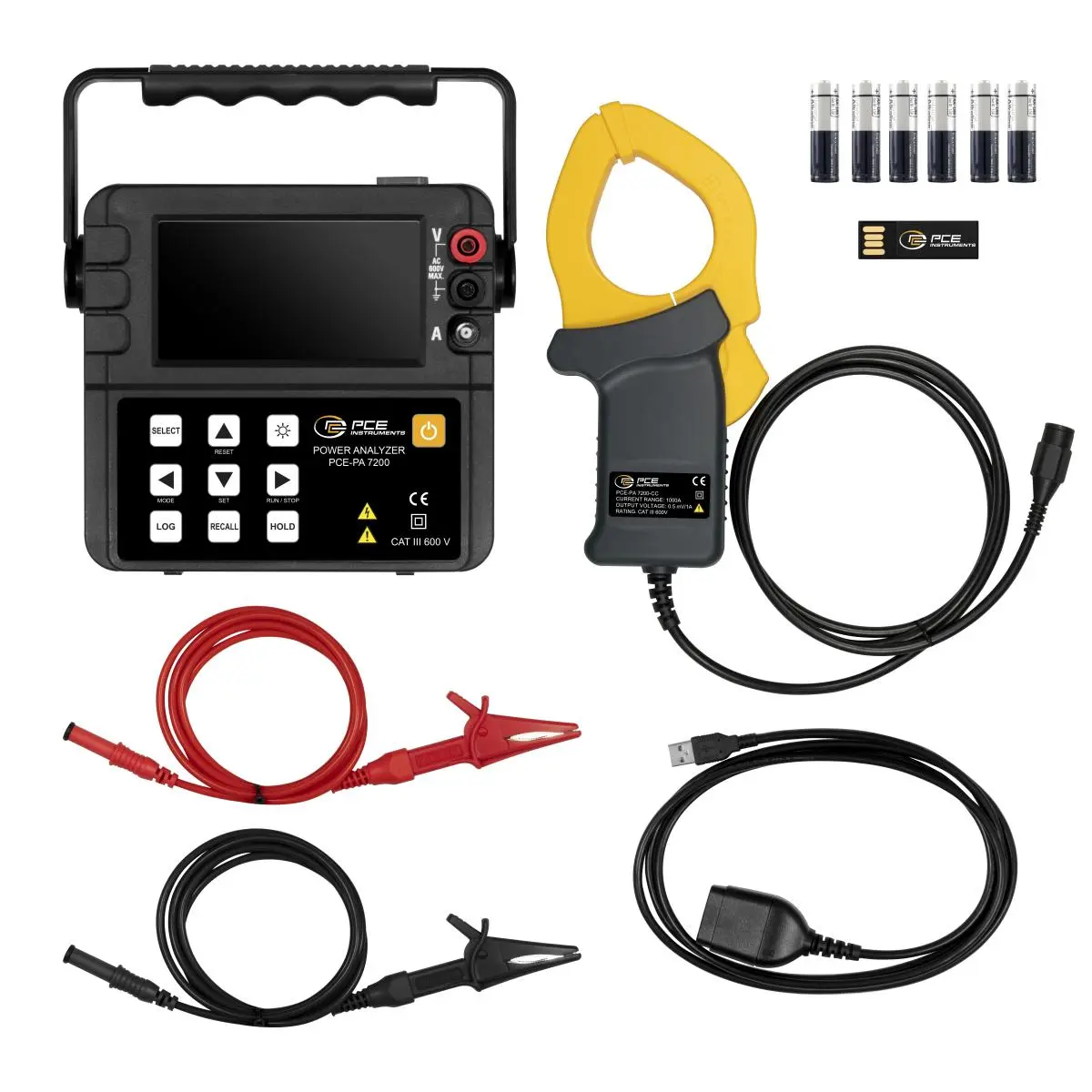

Delivery Scope

1 x Power Analyzer PCE-PA 7200

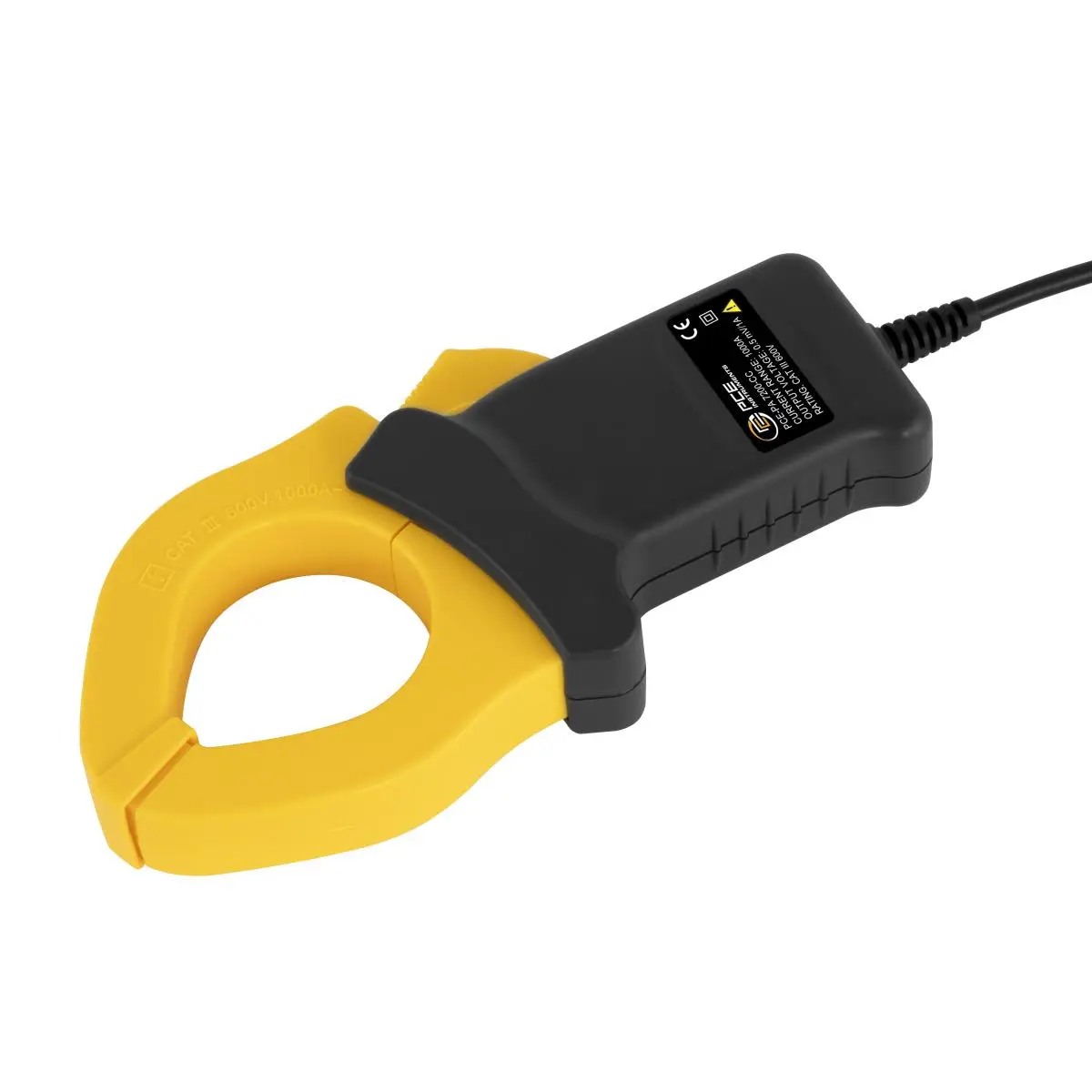

1 x AC current clamp

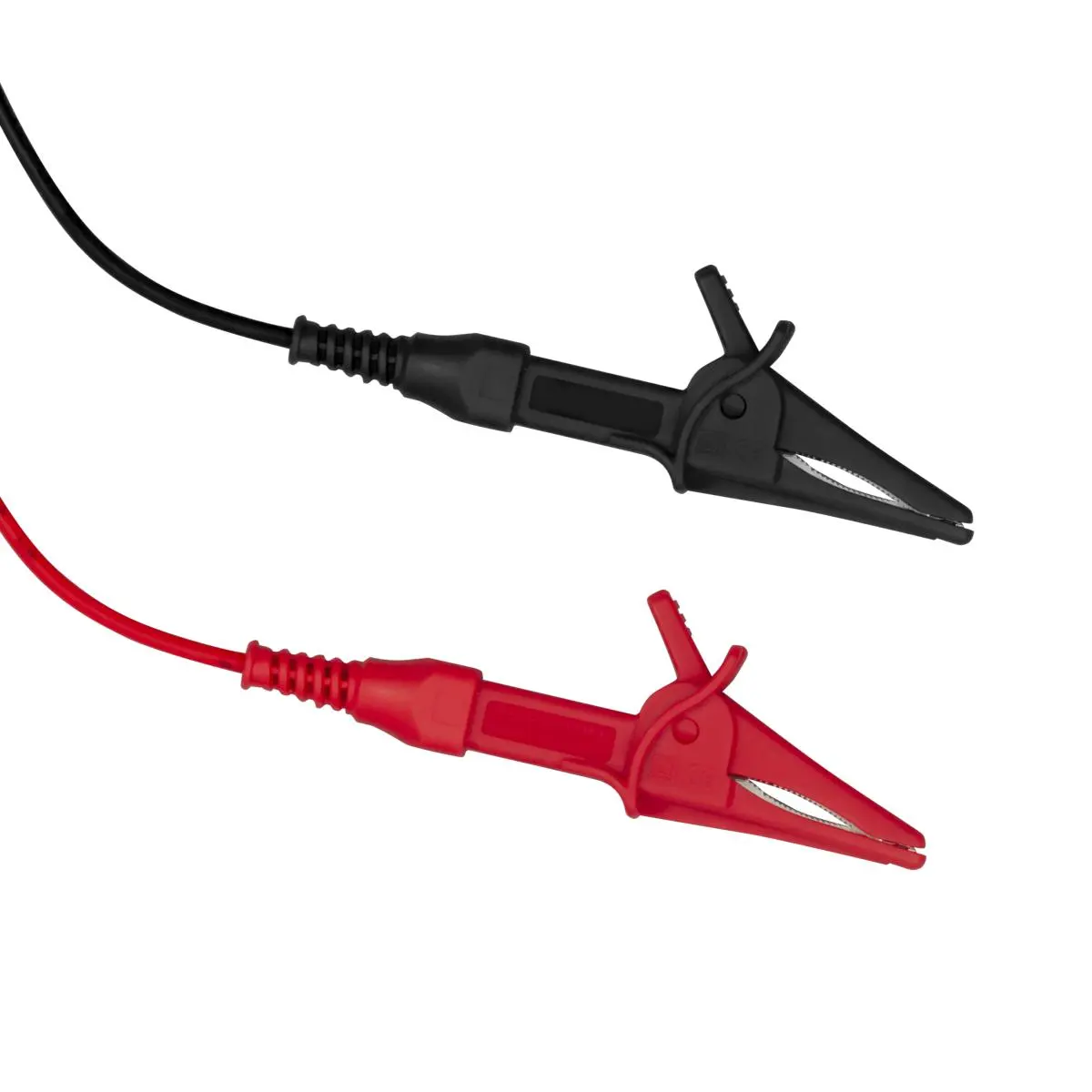

2 x measuring leads
1 x PC software on USB stick
1 x data transfer cable
1 x operating instructions
6 x 1.5 V AA batteries
