₹10,401.00
Wherever the human body reaches its limits in terms of force measurement, the motorized test stand comes into play. The user of the motorized test stand is obliged to prepare a risk analysis. If it emerges from this that the type of application and the samples pose a risk to the user, a safety device may be required, especially in the case of the test stand operated by an electric motor.

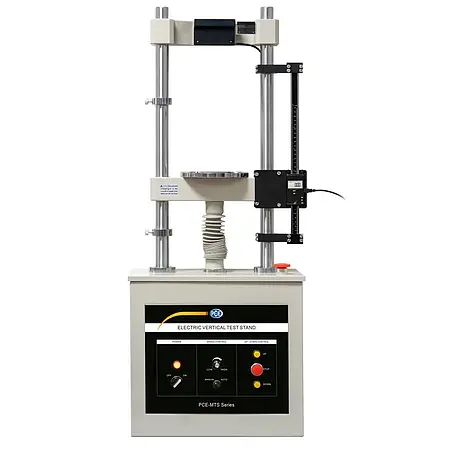

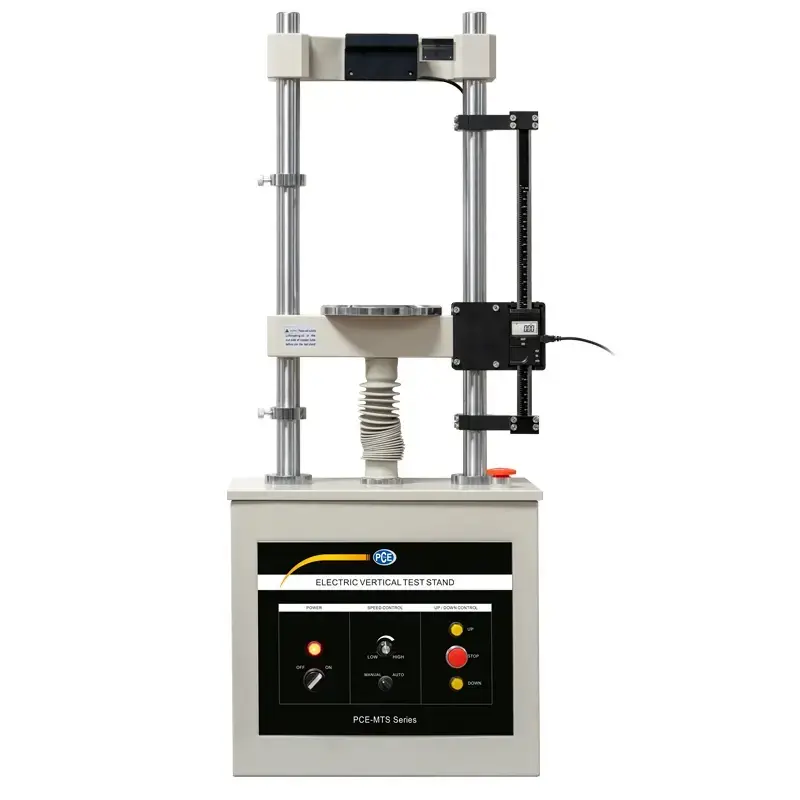

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***| Universal testing machine PCE-MTS500 | |
| Force range | max. 5000 N (500 kg / 1100 lbs) |
| Travel distance | max. 300 mm / 11.8" |
| Feed rate | 30 ... 230 mm/min / 1.18 ... 9.05 in/min |
| Test table | Ø 160 mm/ 6.3" |
| Sample width | max. 200 mm / 7.9" |
| Guide columns | Ø 32 mm / 1.3" |
| Dimensions | 1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8" |
| Weight | ca. 60 kg / 132 lbs |

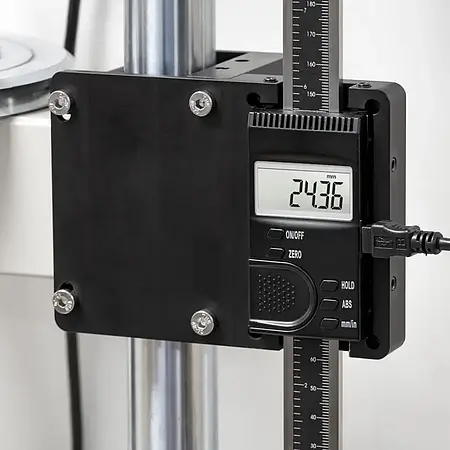

| Length measuring device PCE-DFG FD 300 | |
| Measuring range | -150 … 150 mm / -5.9 … 5.9" |
| Resolution | 0.01 mm / 0.0004" |
| Accuracy | ±0.03 mm / 0.001" |
| Operating conditions | Temperature: 0 … +50 °C / 32 … 122 °F |
| Storage conditions | Temperature: -20 … +65 °C / -4 … 149 °F |
| Humidity: 10 … 95 % RH, non-condensing | |
| Weight | 360 g / 12.7 oz |
| Power supply | 3VCR 2032 |
| Dimensions | 394 x 40 x 10 mm / 15.5 x 1.5 x 0.4" (HxWxD) |
